Perspective view HR33 Marlin Corded handheld scanner

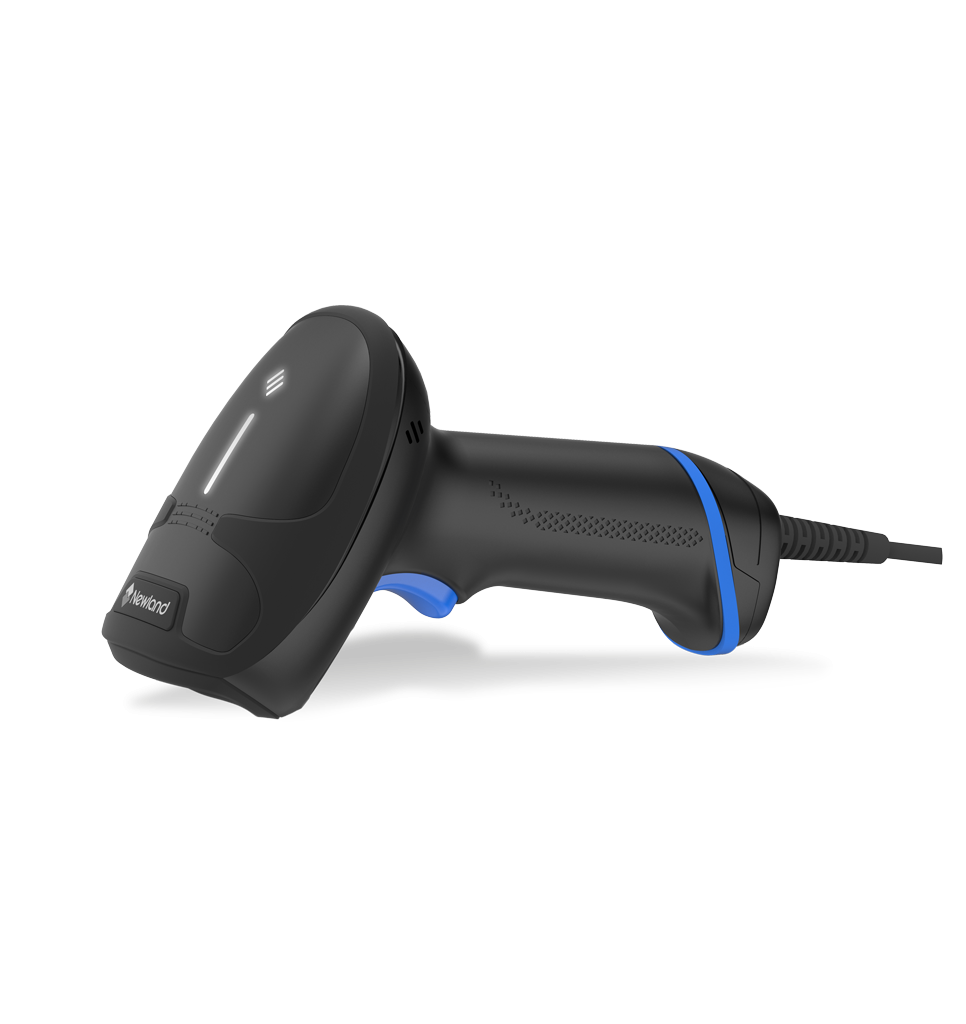

Perspective side view HR33 Marlin Corded handheld scanner

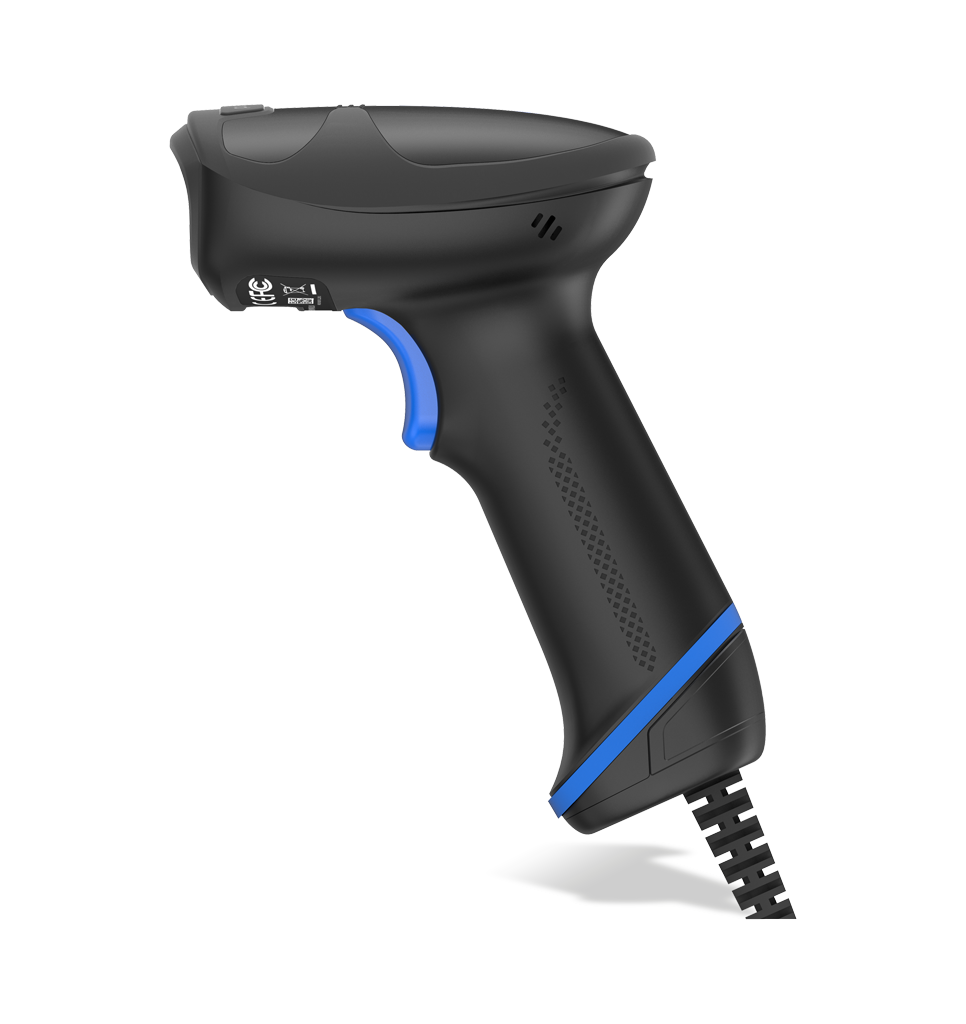

Side view HR33 Marlin Corded handheld scanner

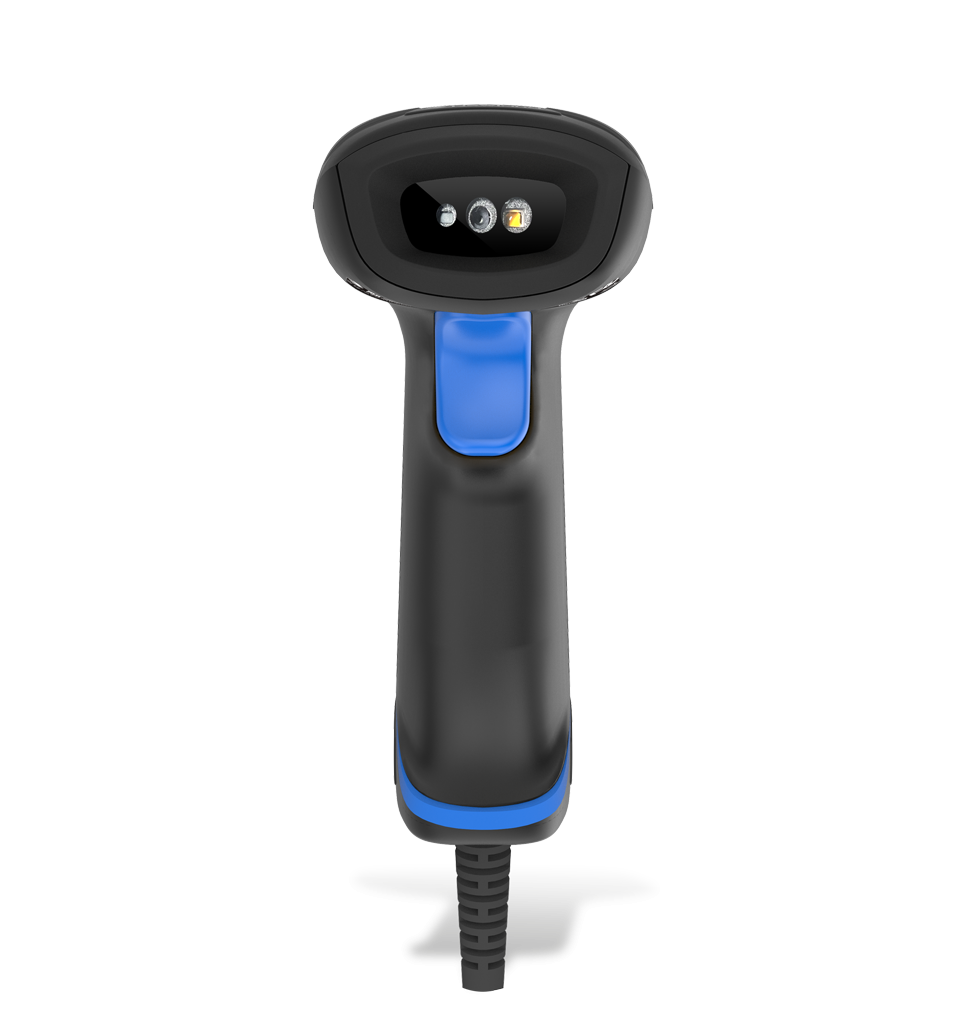

Front view HR33 Marlin Corded handheld scanner
Back view HR33 Marlin Corded handheld scanner

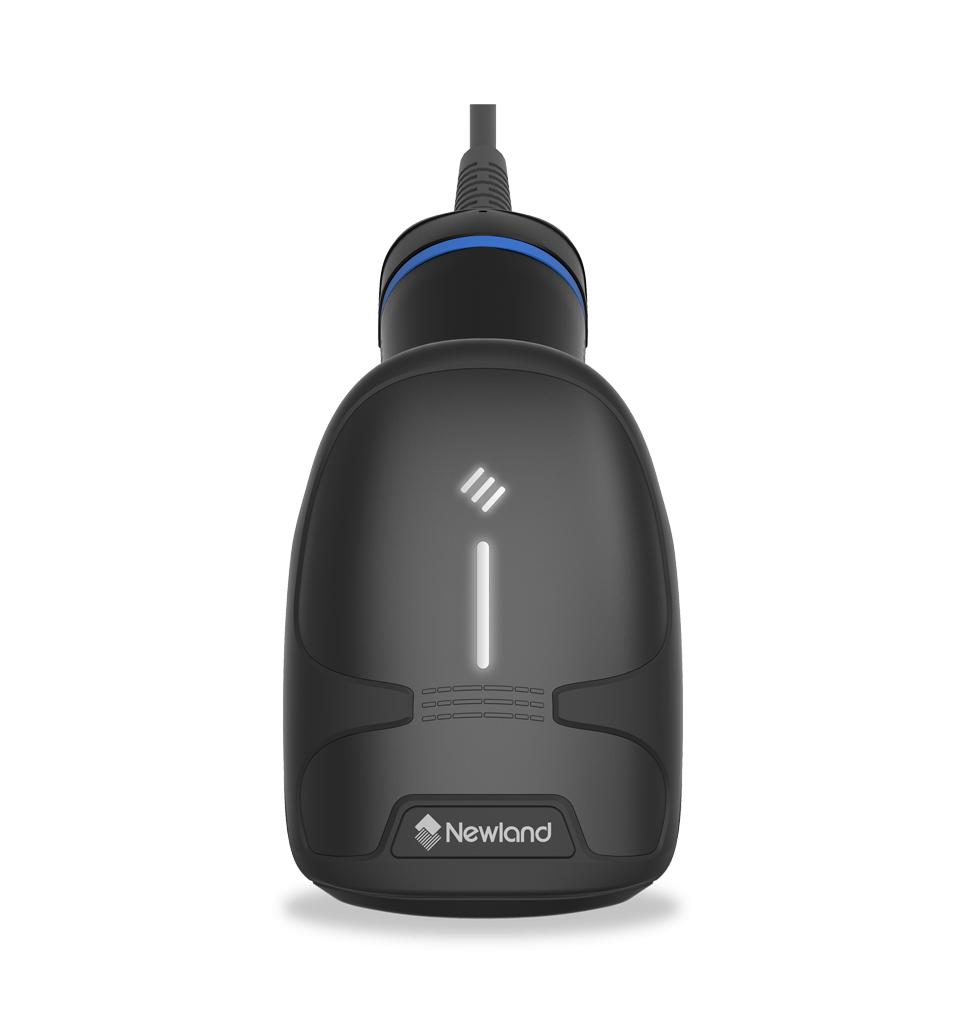

Top view HR33 Marlin Corded handheld scanner

HR33 Marlin Corded

General Purpose Handheld Scanners

Why choose the HR33 Marlin Corded?

  • Customize the scanner's behavior with Advanced Scripting
  • Incredibly accurate barcode scanning with the laser aimer and megapixel sensor
  • Hands-free scanning using the adjustable auto-sense or gooseneck stands

The legacy continues with the latest HR33 Marlin Corded, which offers effortless barcode capture thanks to Newland EMEA decoding technology. Cutting-edge scanning and decoding are showcased in a design that represents premium quality to become Newland’s best ever handheld 2D barcode reader so far. The HR33 Marlin Corded features a light and ergonomic design, making it the ideal companion for high-intensity scanning.

Efficiency boost with Advanced Scripting.

Features

  • Performance and Elegance
    The HR33 Marlin boasts a stylish design that is not only well-balanced and comfortable to hold but also looks great. It is an example of Newland taking pride in matching performance with beauty.
  • Adaptable to your needs.
    The HR33 Marlin is the first in the portfolio to include advanced Scripting for programming intricate commands. Easyset is still available to those familiar with the program, but adding Scripting allows even finer detail, making the HR33 Marlin series the best in class.
  • High Performance
    The HR33 Marlin Corded has a laser aimer for accurate barcode scanning and a megapixel sensor to capture various types of barcodes, even if they are damaged or distorted. This makes it ideal for high-density workloads.
  • Acuscan
    Laser aiming with Acuscan is an optional feature that allows you to hone in on the code you want, even if barcodes are printed closely together.
  • Hands-free Scanning
    The HR33 Marlin Corded scanner offers various hands-free scanning stand options. The first option is the intelligent adjustable auto-sense stand, which can be adjusted from an upright position to a flat one, making it suitable for desktop and wall-mounted use. The second option is the gooseneck stand, which provides a flexible design to adjust to your preferred scanning distance and angle.
  • Be confident with Newland
    The HR33 Marlin’s IP52 and 1.5m drop specification are backed up with a trustworthy 5-year warranty. Select the HR33 with confidence, knowing that Newland has created a scanner that’s up for the job no matter the environment.

Technical Specifications

  • Data Capture
    1D Code 11, Code 128, Code39, GS1-128(UCC/ENA-128), AIM 128, ISBT 128,Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, ITF-6, ITF-14, Standard 2 of 5,China Post 25, MSI-Plessey, Plessey, GS1Databar(RSS), Code 49, Code 16K.
    2D PDF417,QR Code, Micro QR, Data Matrix, Aztec, Maxi Code, Chinese Sensible Code, GM Code, Micro PDF417, Code One, Dotcode
    Aiming Cross laser
    Depth of Field Code 39 (5mil) 50 mm - 230 mm
    Depth of Field DataMatrix (10mil) 30 mm - 245 mm
    Depth of Field EAN 13 (13mil) 40 mm - 535 mm
    Depth of Field PDF417 (6.7mil) 45 mm - 215 mm
    Field of View Horizontal 48˚
    Field of View Vertical 30˚
    Illumination White LED
    Image Sensor 1280 x 800 CMOS
    Minimal Print Contrast 15%
    OCR Passport OCR, Chinese ID Card, China Travel Permit OCR
    Resolution ≥3mil
    Scan Angle Pitch ±60°
    Scan Angle Roll 360˚
    Scan Angle Skew ±60°
  • Physical
    Current @ 5VDC Operating 281 mA (max)
    Current @ 5VDC Standby 129 mA
    Dimensions 95(W) × 68(D) × 166(H) mm
    Input Voltage 5 VDC ±5%
    Interfaces RS-232, HID-POS, USB-CDC, USB-KBW
    Notifications Beep, LED, Vibration
    Weight 140 g
  • Environmental
    Drop 1.5 m
    Electro Static Discharge (ESD) ±8 kV (contact discharge), ±15 kV (air discharge)
    Humidity 5% to 95% (non-condensing)
    IP Rating IP52
    Operating Temperature -20°C to 60°C (-4°F to 140°F)
    Storage Temperature -40°C to 70°C (-40°F to 158°F)
  • Software
    Configuration Tools EasySet
  • Certifications
    Certifications Hardware FCC, RoHS 2.0, IEC 60825, IEC 62471, CE
  • Warranty
    Warranty Standard 5 Years
  • Accessories
    Accessories Optional USB cable, USB-C cable, RS-232 cable, Wall mount clip, Smart adjustable stand, Smart gooseneck stand
    Accessories Standard USB cable, RS-232 cable
  • What's in the box?
    NLS-HR3300-S5 HR33 Marlin, 3,5 meter coiled USB cable
    NLS-HR3300-SA HR33 Marlin, 3,5 meter coiled USB cable, Smart adjustable stand
    NLS-HR3300-S8 HR33 Marlin, 2 meter RS-232 cable, Multiplug adapter

  • Suggested industries

    • placeholder Retail
    • placeholder Hospitality & Leisure
    • placeholder Healthcare
    • placeholder Postal
    • placeholder Government & Public

Documents

Accessories

Available Versions

Part Number Description

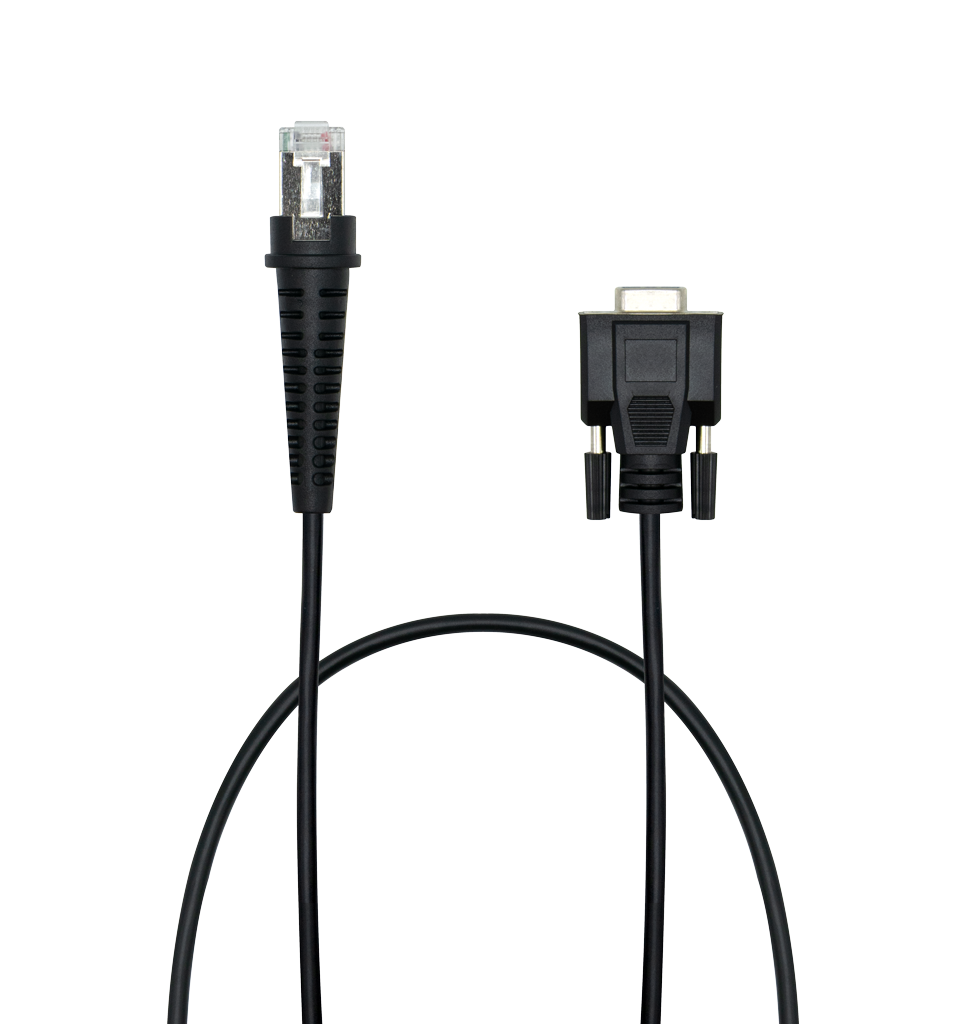

NLS-HR3300-S8 HR33 Marlin 2D CMOS Mega Pixel Handheld Reader with 2 mtr. Straight RS232 cable (CBL037R) and multiplug adapter (ADP100). Smart stand compatible.

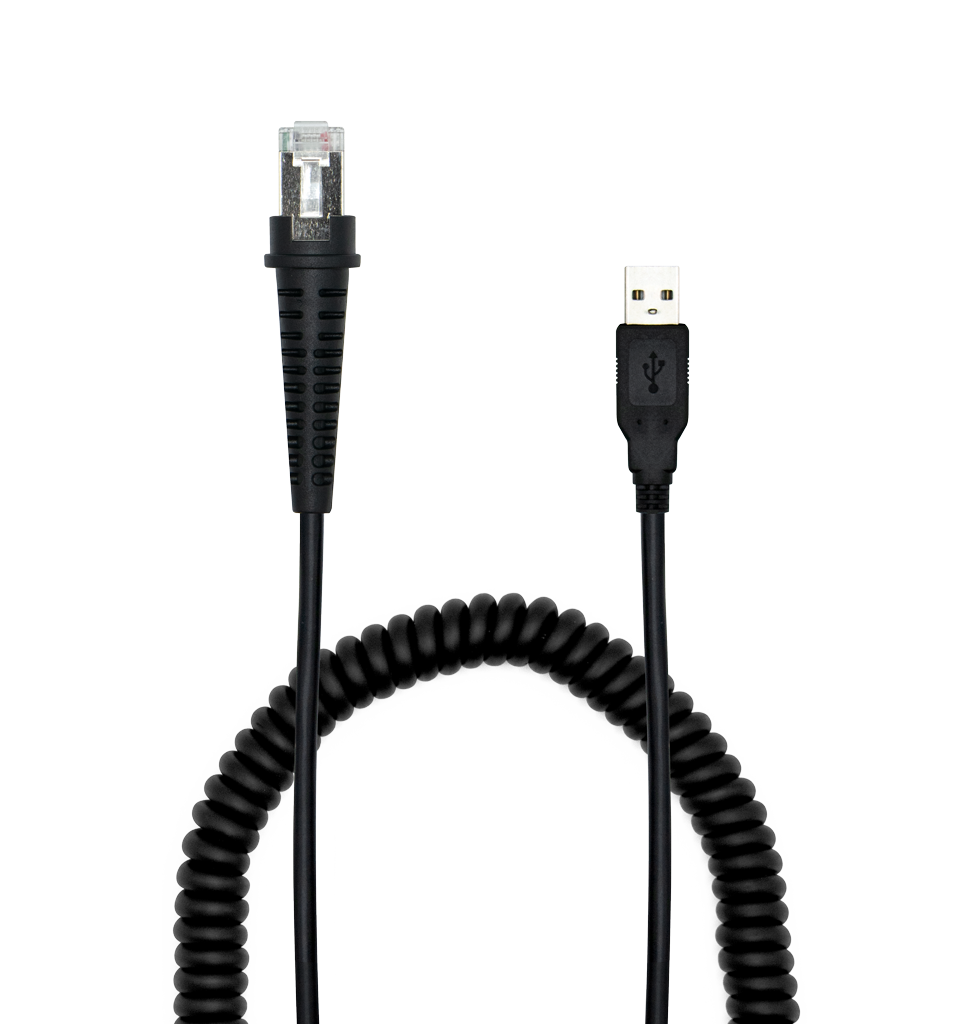

NLS-HR3300-S5 HR33 Marlin 2D CMOS Mega Pixel Handheld Reader with 3,5 mtr. coiled USB cable(CBL030UA). Smart stand compatible
NLS-HR3300-SA HR33 Marlin 2D CMOS Mega Pixel Handheld Reader with 3.5 mtr. coiled USB cable(CBL030UA) and autosense. Incl. smart adjustable stand (NLS-STD23-33-SA).
