Perspective view HR23 Dorada Corded handheld scanner

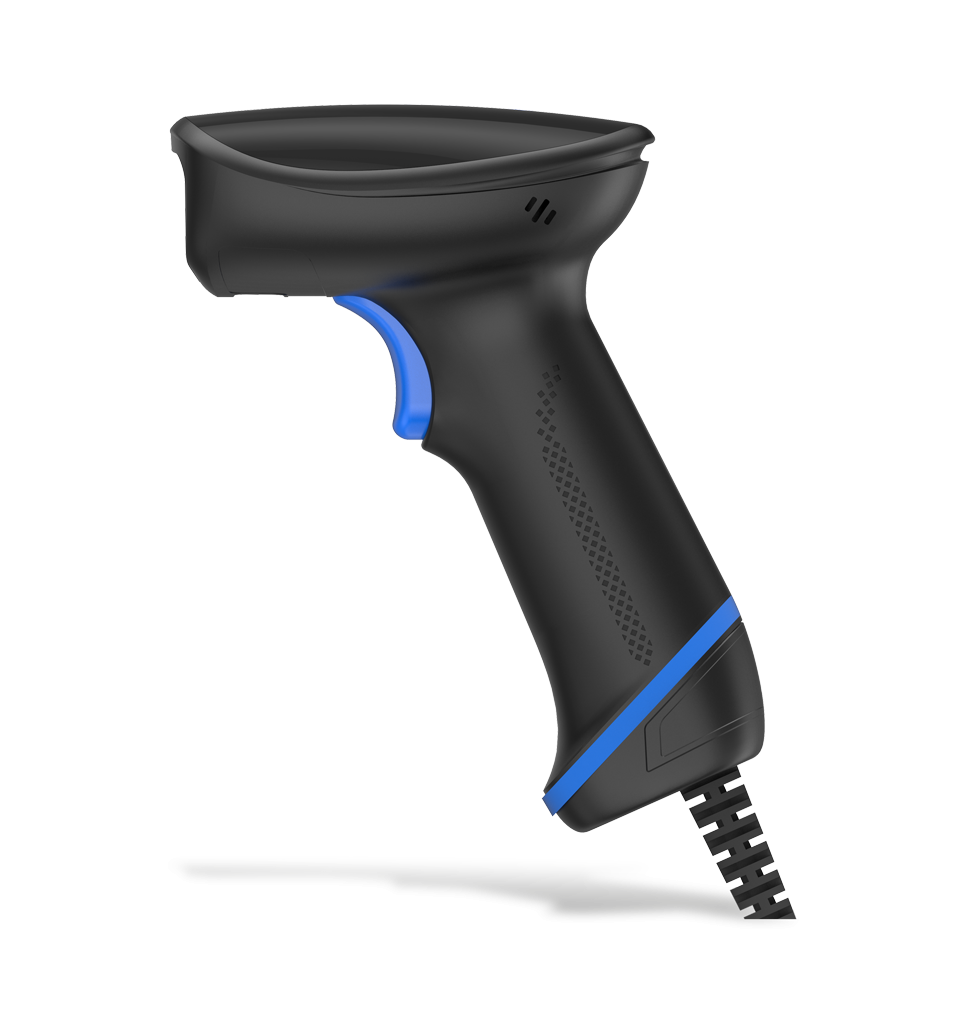

Side view HR23 Dorada Corded handheld scanner

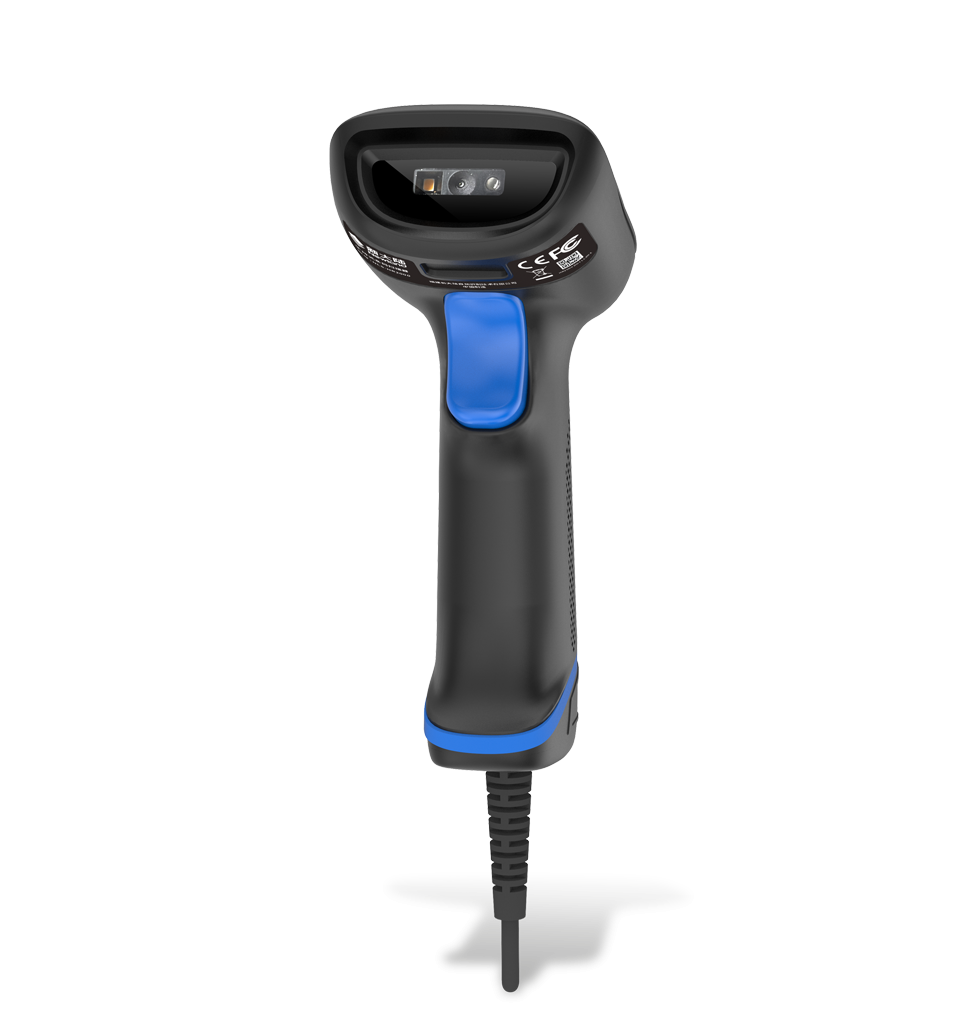

Front view HR23 Dorada Corded handheld scanner

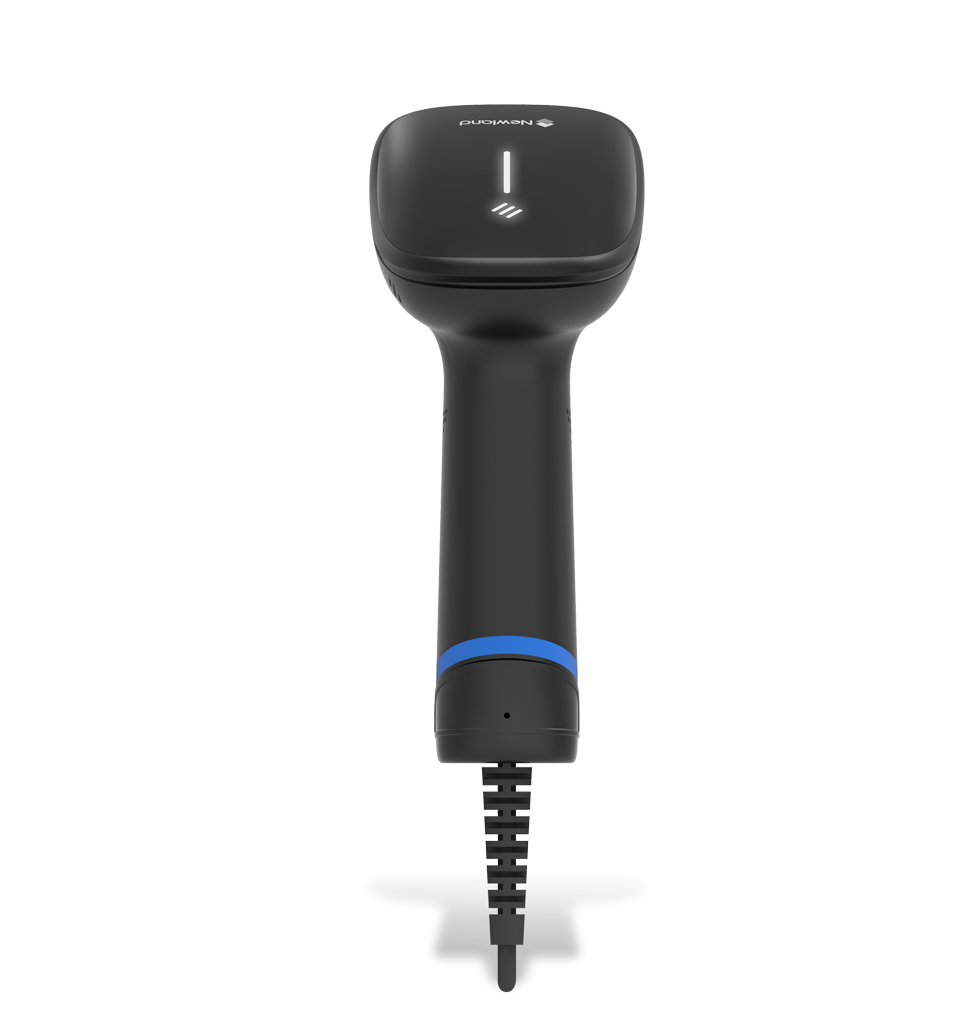

Back view HR23 Dorada Corded handheld scanner

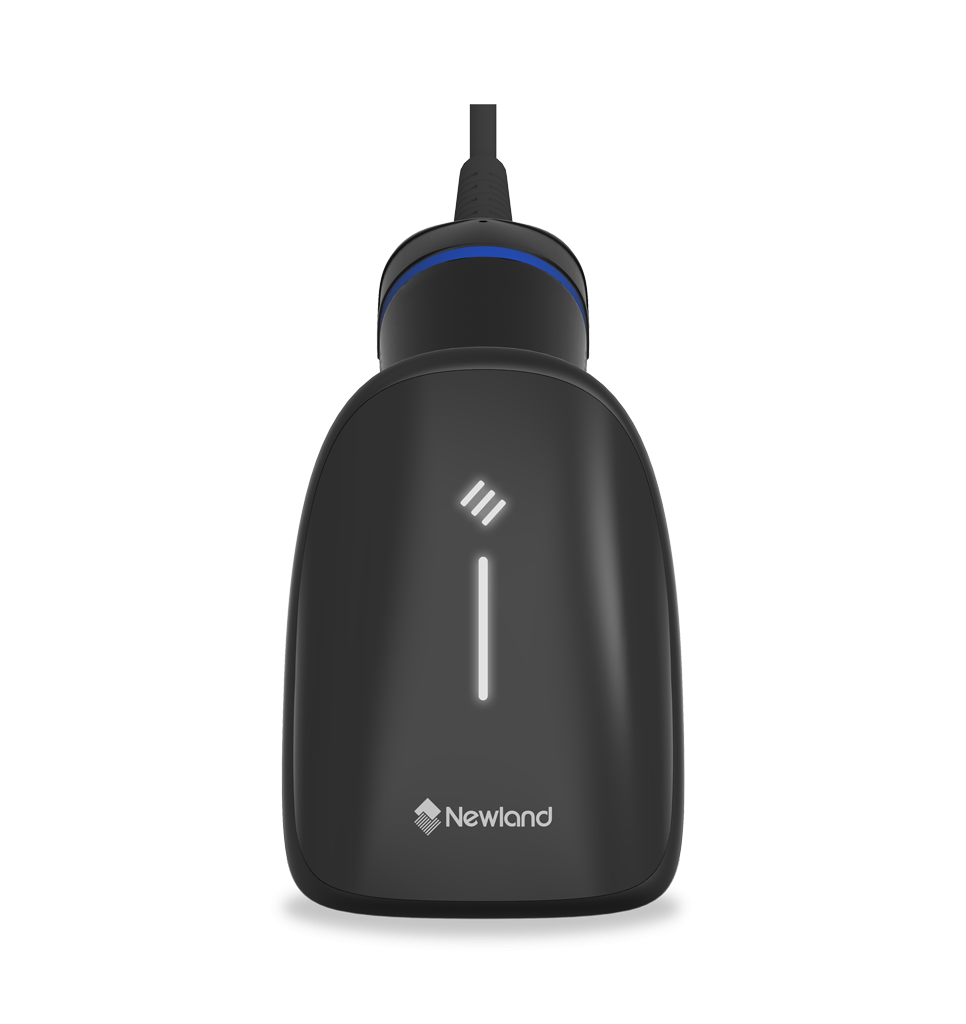

Top view HR23 Dorada Corded handheld scanner

HR23 Dorada Corded

General Purpose Handheld Scanners

Why choose the HR23 Dorada Corded?

  • Exceptional scanning performance at an entry-level price
  • Lightweight, modern, and ergonomically designed
  • A 5 year standard warranty for added confidence

The HR23 Dorada offers the best 2D scanning at the price of a 1D scanner, thanks to Newland’s advanced decoding technology. With its blended ergonomics and creative design, the HR23 Dorada offers comfort and productivity for quickly capturing barcodes. The HR23 Dorada is ideal for intensive handheld scanning, from high-density to damaged, vague, and distorted barcodes.

2D scanning for the price of a 1D scanner.

Features

  • Outstanding Performance.
    This new version of the Dorada scanner delivers exceptional scanning performance at an entry-level price. Improved decoding technology makes it the best scanner in terms of performance and value.
  • Comfortable and Balanced Design.
    The HR23 Dorada is a modern and appealing scanner that is ergonomically designed to fit comfortably in the hand. Although lightweight to reduce user fatigue, the scanner feels sturdy and looks nice, making it an excellent all-round user experience.
  • Easyset
    The Dorada series can be easily configured using Newland Easyset software. This tool, exclusively developed for Newland devices, allows users to change settings, clone devices, update firmware, and analyze scanned data.
  • Durable
    Don't underestimate the robustness of the Dorada scanner. With an IP52 rating and a 1.5m drop spec, it is suitable for most applications that require a cabled barcode scanner.
  • Hands-free choices.
    The HR23 Dorada offers various stands for hands-free scanning. The primary option is the adjustable Smart Stand, which can transition from an upright position to a flat layout. This adaptable stand is suitable for both desktop and wall-mounted options. Alternatively, there is a flexible gooseneck design available, which offers a graceful curve that adjusts effortlessly to your desired scanning distance and angle.
  • A trustworthy Guarantee.
    With a 5-year guarantee, the HR23 Dorada offers added confidence for daily scanning.

Technical Specifications

  • Data Capture
    1D Code 11, Code 128, Code 39, GS1-128(UCC/ENA-128), AIM 128, ISBT 128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, ITF-6, ITF-14, Standard 2 of 5, China Post 25, MSI-Plessey, Plessey, GS1Databar(RSS)
    2D PDF417, QR Code, Aztec, Data Matrix, Micro PDF417, Micro QR
    Aiming Red LED
    Depth of Field Code 39 (5mil) 50 mm - 120 mm
    Depth of Field DataMatrix (10mil) 30 mm - 125 mm
    Depth of Field EAN 13 (13mil) 50 mm - 280 mm
    Depth of Field PDF417 (6.7mil) 40 mm - 120 mm
    Field of View Horizontal 45˚
    Field of View Vertical 34˚
    Illumination White LED
    Image Sensor 640 x 480 CMOS
    Minimal Print Contrast 20%
    Resolution ≥3mil
    Scan Angle Pitch ±60°
    Scan Angle Roll 360°
    Scan Angle Skew ±60°
  • Physical
    Current @ 5VDC Operating 190 mA (typical), 200 mA (max)
    Current @ 5VDC Standby 35 mA
    Dimensions 95(W) x 68(D) x 161(H) mm
    Input Voltage 5 VDC ±5%
    Interfaces RS-232, HID-POS, USB-CDC, USB-KBW
    Notifications Beep, LED, Vibration
    Weight 137 g
  • Environmental
    Drop 1.5 m
    Electro Static Discharge (ESD) ±8 kV (contact discharge), ±15 kV (air discharge)
    Humidity 5% to 95% (non-condensing)
    IP Rating IP52
    Operating Temperature -20°C to 60°C (-4°F to 140°F)
    Storage Temperature -40°C to 70°C (-40°F to 158°F)
  • Software
    Configuration Tools EasySet
  • Certifications
    Certifications Hardware FCC, RoHS 2.0, IEC 62471, CE
  • Warranty
    Warranty Standard 5 Years
  • Accessories
    Accessories Optional USB cable, USB-C cable, RS-232 cable, Wall mount clip, Smart adjustable stand, Smart gooseneck stand
    Accessories Standard USB cable, RS-232 cable
  • What's in the box?
    NLS-HR2300-S5 HR23 Dorada, 3,5 meter coiled USB cable
    NLS-HR2300-SA HR23 Dorada, 3,5 meter coiled USB cable, Smart adjustable stand
    NLS-HR2300-S8 HR23 Dorada, 2 meter RS-232 cable, Multiplug adapter

  • Suggested industries

    • placeholder Retail
    • placeholder Hospitality & Leisure
    • placeholder Healthcare
    • placeholder Postal
    • placeholder Transportation & Logistics

Documents

Accessories

Available Versions

Part Number Description
NLS-HR2300-S5 HR23 Dorada 2D CMOS Handheld Reader with 3,5 mtr. coiled USB cable (CBL030UA). Smart stand compatible.
NLS-HR2300-S8 HR23 Dorada 2D CMOS Handheld Reader with 2 mtr. Straight RS232 cable (CBL037R) and multiplug adapter (ADP100). Smart stand compatible.
NLS-HR2300-SA HR23 Dorada 2D CMOS Handheld Reader with 3.5 mtr. coiled USB cable (CBL030UA) and autosense. Incl. smart adjustable stand (NLS-STD23-33-SA).
