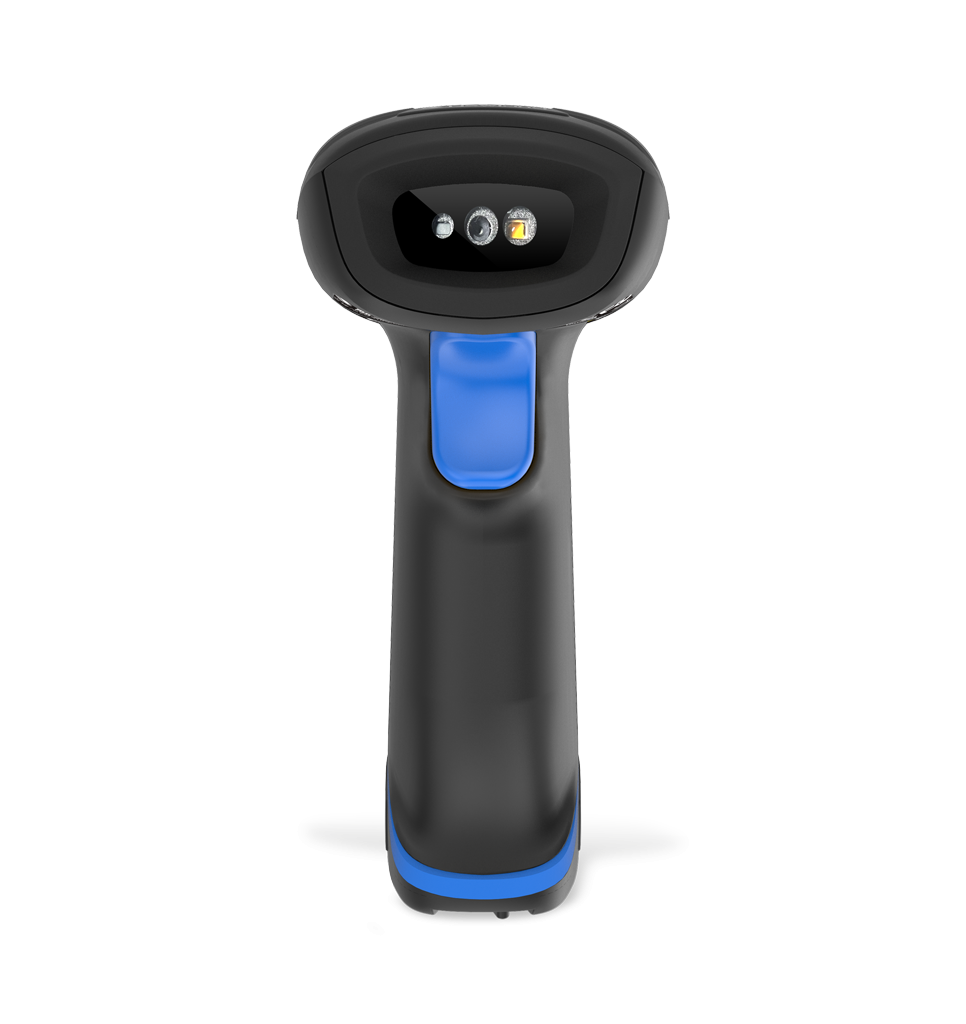

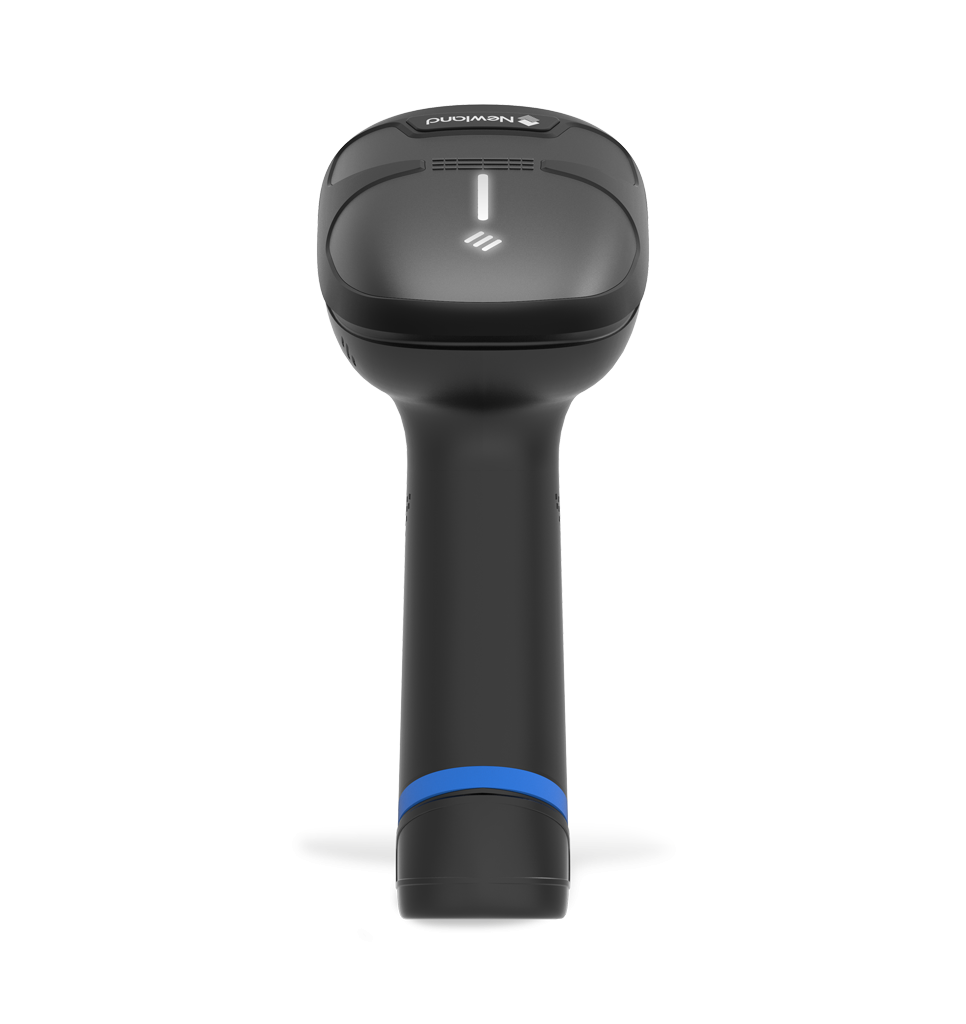

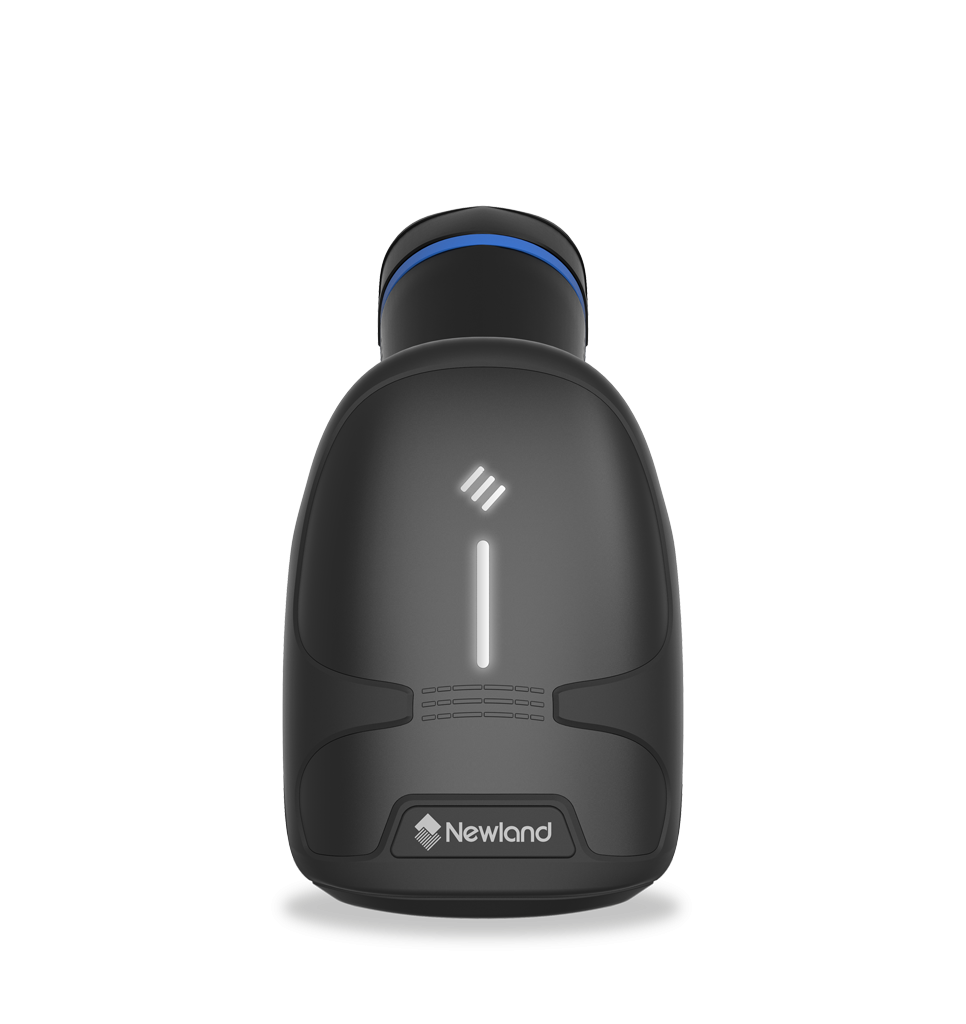

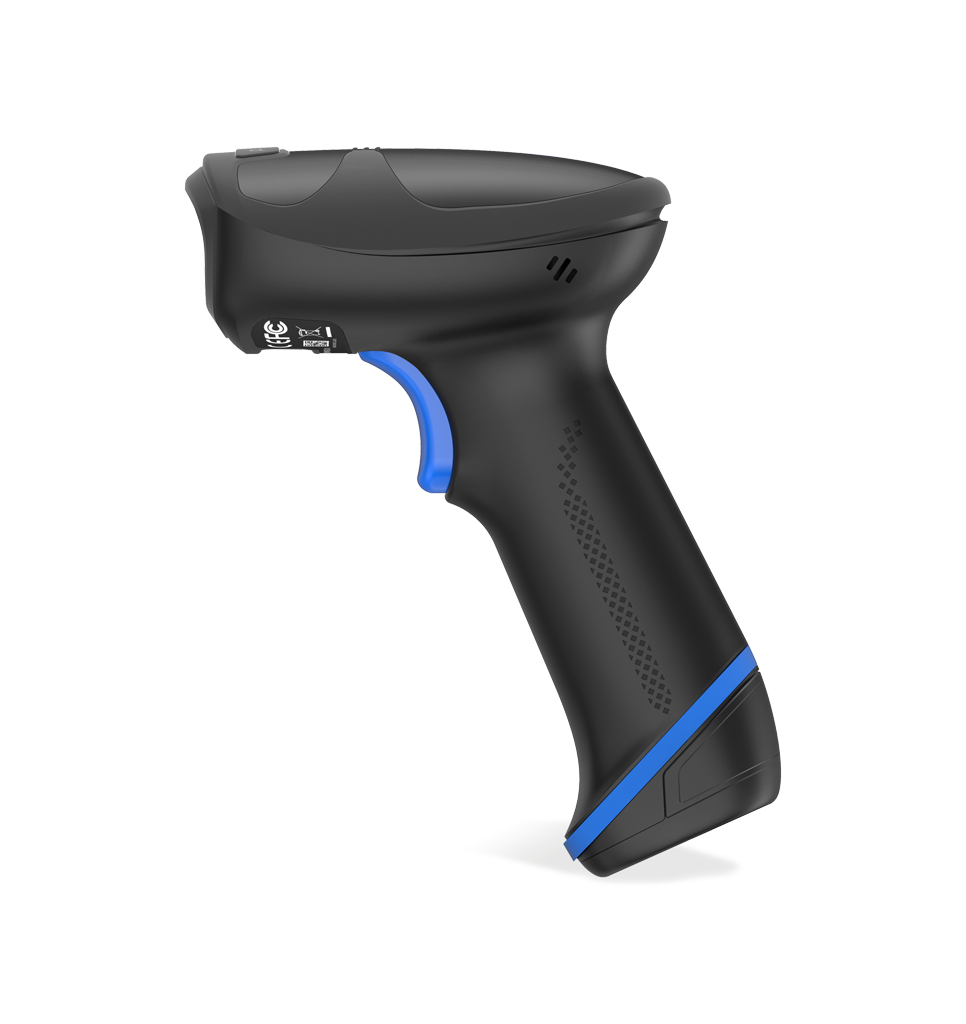

HR33 Marlin Bluetooth
General Purpose Handheld Scanners
-
1.5m drop
-
1D & 2D
-
2,600 mAh
-
Acuscan
-
Advanced Scripting
-
Bluetooth 5.0
-
EasySet
-
GS1 Ready
-
IP52
-
Megapixel
-
USB
-
Warranty 5 Years
Why choose the HR33 Marlin Bluetooth?
- Customize the scanner's behavior with Advanced Scripting
- Minimize interruptions with the easily replaceable battery
- Configurable modes ensure reliable data capture online or offline
The legacy continues with the latest HR33 Marlin Bluetooth, which offers effortless barcode capture thanks to Newland EMEA decoding technology. Cutting-edge scanning and decoding are showcased in a design that represents premium quality to become Newland’s best wireless handheld 2D barcode reader so far. The HR33 Marlin Bluetooth, with its easily replaceable battery, is the ideal choice for uninterrupted barcode scanning.
Efficiency boost with Advanced Scripting.
Features
-
Easily replaceable battery

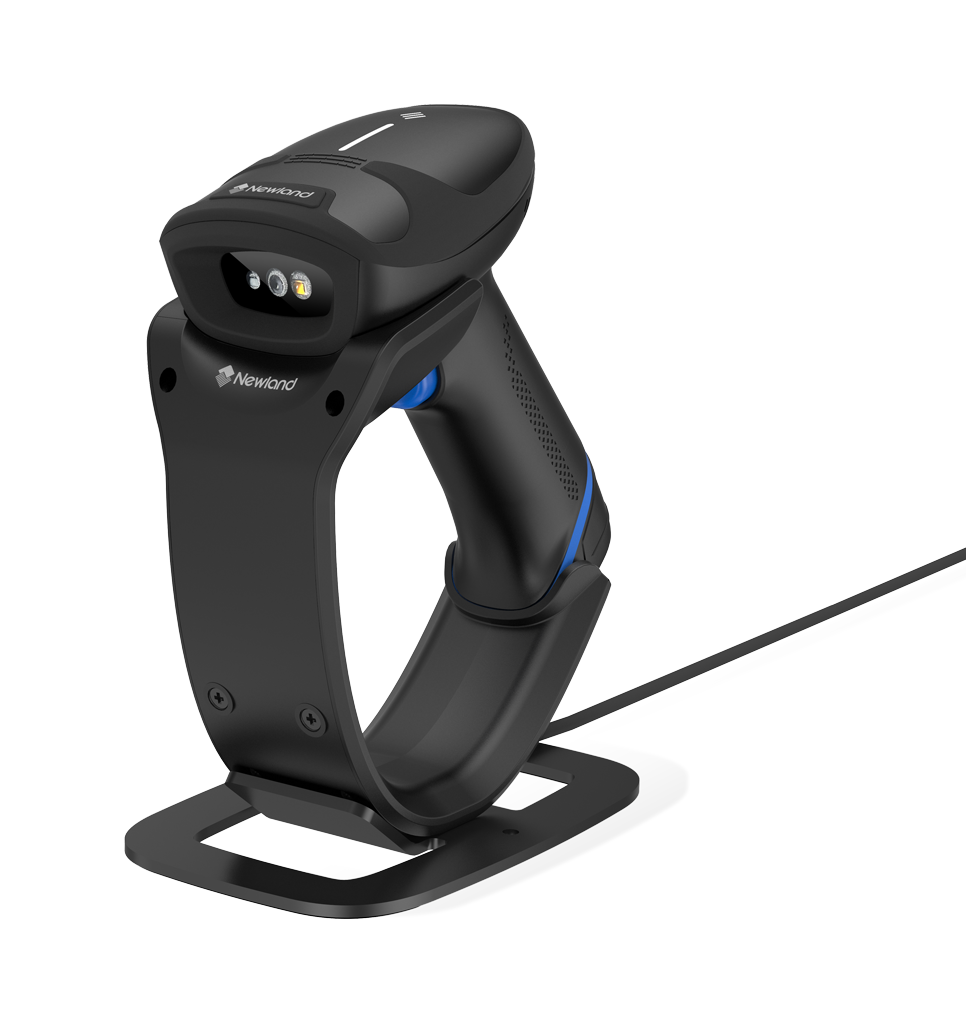

The HR33 Marlin Bluetooth provides more than 12 hours of continuous use on a single charge. If the battery runs out, the compartment features a latch-release opening design to replace it easily without interrupting your tasks. Additionally, the low battery indicator comes in two different colors, providing a quick visual cue for when the battery needs to be changed. The new magnetic contact on the stand allows for easy connection and high reliability. -
High Connectivity
The HR33 Marlin Bluetooth scanner features 5.0 Bluetooth connectivity and can scan items within a 100m range in open space. Whether you use the communication and charging stand directly with a device’s Bluetooth or via a dongle, the HR33 Marlin BT provides a reliable wireless connection. -
High Performance
The HR33 Marlin Corded has a laser aimer for accurate barcode scanning and a megapixel sensor to capture various types of barcodes, even if they are damaged or distorted. This makes it ideal for high-density workloads. -
Personalized Configuration
The HR33 Marlin is the first Bluetooth handheld in the portfolio to include advanced Scripting for programming intricate commands. Easyset is still available to those familiar with the program, but adding Scripting allows even finer detail, making the HR33 Marlin series the best in class. -
Be confident with Newland
The confidence in the new HR33 BT Marlin’s IP52 and 1.5m drop specification means becoming the first to receive a 5-year warranty from Newland EMEA. Select the HR33 BT Marlin with confidence that Newland has created a scanner that’s up for the job no matter the environment. -
Scan & send or collect & send
The HR33 BT Marlin has configurable modes that allow the user to select a real-time scan and send via a wireless connection or a choice of two types of offline storage and batch sending of the data. The scanner’s memory allows for thousands of codes to be stored if needed.
Technical Specifications
-
Data Capture
1D Code 11, Code 128, Code39, GS1-128(UCC/ENA-128), AIM 128, ISBT 128,Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, ITF-6, ITF-14, Standard 2 of 5,China Post 25, MSI-Plessey, Plessey, GS1Databar(RSS), Code 49, Code 16K. 2D PDF417,QR Code, Micro QR, Data Matrix, Aztec, Maxi Code, Chinese Sensible Code, GM Code, Micro PDF417, Code One, Dotcode Aiming Laser Depth of Field Code 39 (5mil) 50 mm - 230 mm Depth of Field DataMatrix (10mil) 30 mm - 245 mm Depth of Field EAN 13 (13mil) 40 mm - 535 mm Depth of Field PDF417 (6.7mil) 45 mm - 215 mm Field of View Horizontal 48˚ Field of View Vertical 30˚ Illumination White LED Image Sensor 1280 x 800 CMOS Minimal Print Contrast 15% OCR Passport OCR, Chinese ID Card, China Travel Permit OCR Resolution ≥3mil Scan Angle Pitch ±60° Scan Angle Roll 360˚ Scan Angle Skew ±65° -
Performance
Memory Flash ≥16,384 code entries (above 60 bytes) -
Physical
Battery Type 2600 mAh lithium-ion battery Dimensions Scanner: 117,5(W) x 87,5(D) x144(H) mm, Cradle: 140(W) x 90(D) x144,5(H) mm Expected Battery Life ≥15 hours of continuous operation (scan once per 6 seconds) Expected Charge Time ≤6 hours (with power adapter) Input Voltage 5 VDC ±5% Interfaces USB-A, HID-POS, USB-CDC, USB-KBW Notifications Beep, LED, Vibration Weight Scanner: 210 g, Cradle: 340,5 g -
Wireless
Communication Modes Synchronous, Asynchronous, Batch Radio Technology Bluetooth 5.0 Wireless Distance ( max.) ≥100 m (in open space) -
Environmental
Charge Temperature 0°C to 45°C (32°F to 113°F) Drop 1.5 m Drop with Cradle 1.2 m Electro Static Discharge (ESD) ±8 kV (contact discharge), ±15 kV (air discharge) Humidity 5% to 95% (non-condensing) IP Rating IP52 Operating Temperature -10°C to 50°C (14°F to 122°F) Storage Temperature -40°C to 70°C (-40°F to 158°F) -
Software
Configuration Tools EasySet -
Certifications
Certifications Hardware FCC ID, RoHS 2.0, CE RED, IEC 60825, IEC 62471 -
Warranty
Warranty Standard 5 Years -
Accessories

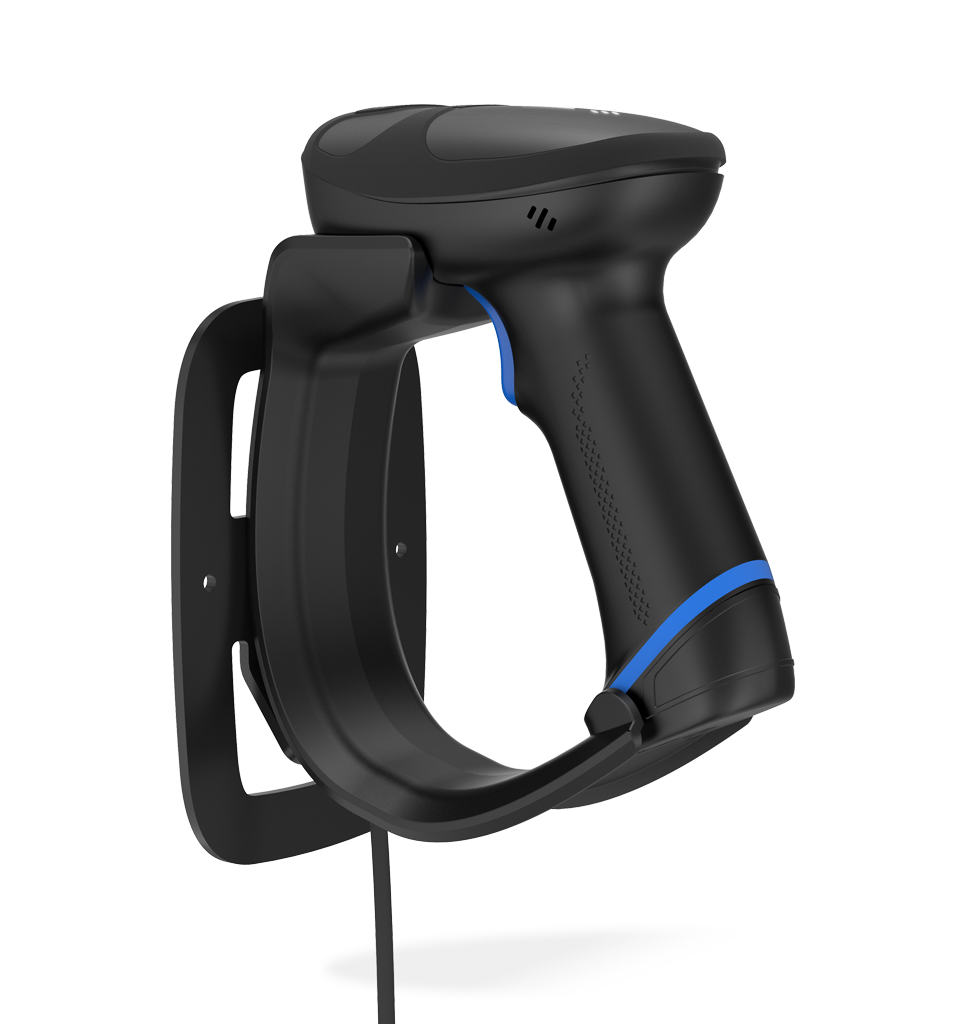

Accessories Optional 4-slot battery charger, 2,600 mAh battery, Wall mount clip Accessories Standard USB cable, Stand/Docking station -
What's in the box?
NLS-HR3300-BT HR33 Marlin BT, Stand/Docking station, USB cable
-
Suggested industries
-
Retail
-
Healthcare
-
Postal
-
Transportation & Logistics
-
Warehousing & Distribution
-
Available Versions
| Part Number | Description |
|---|---|
| NLS-HR3300-BT | HR33 Marlin 2D CMOS Mega Pixel Wireless Bluetooth Handheld Reader with Stand/Docking Station(NLS-HCD2000), USB cable (130cm fixed to stand). |
