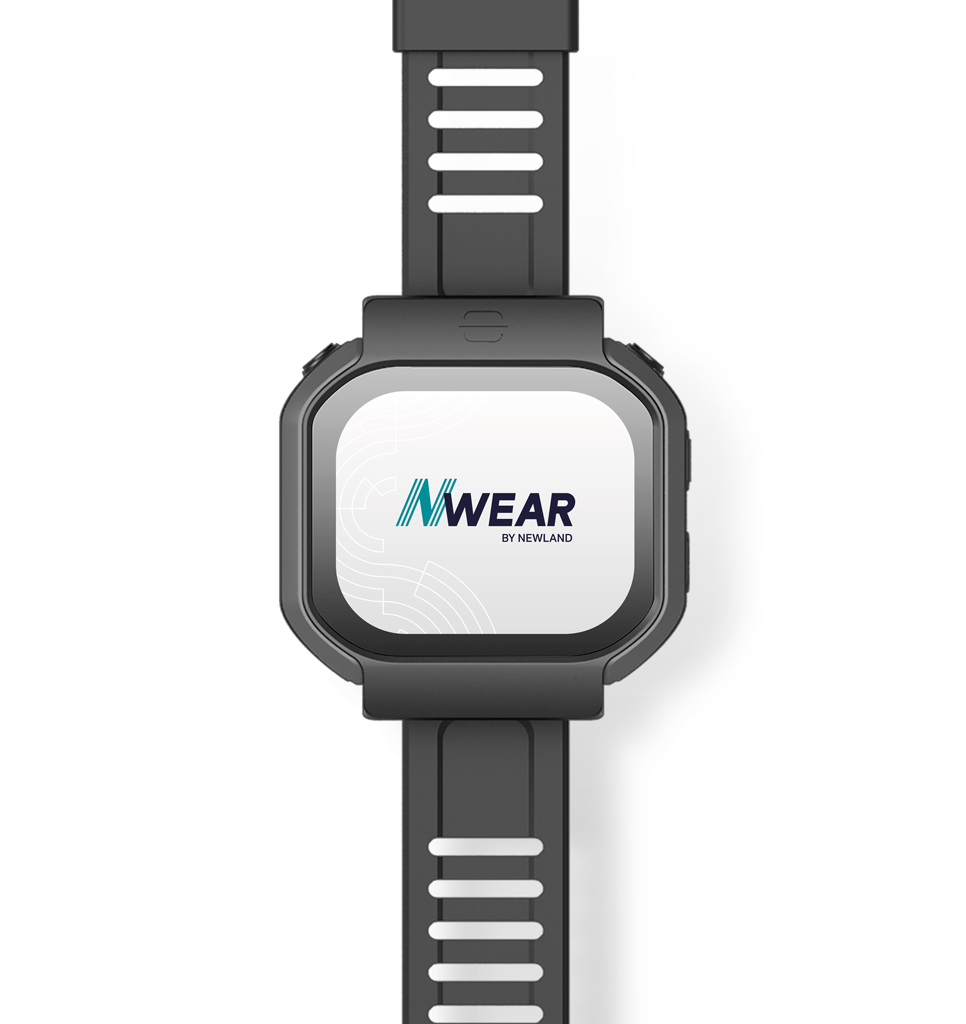

Front view WD5 Industrial Smartwatch Nwear range with strap

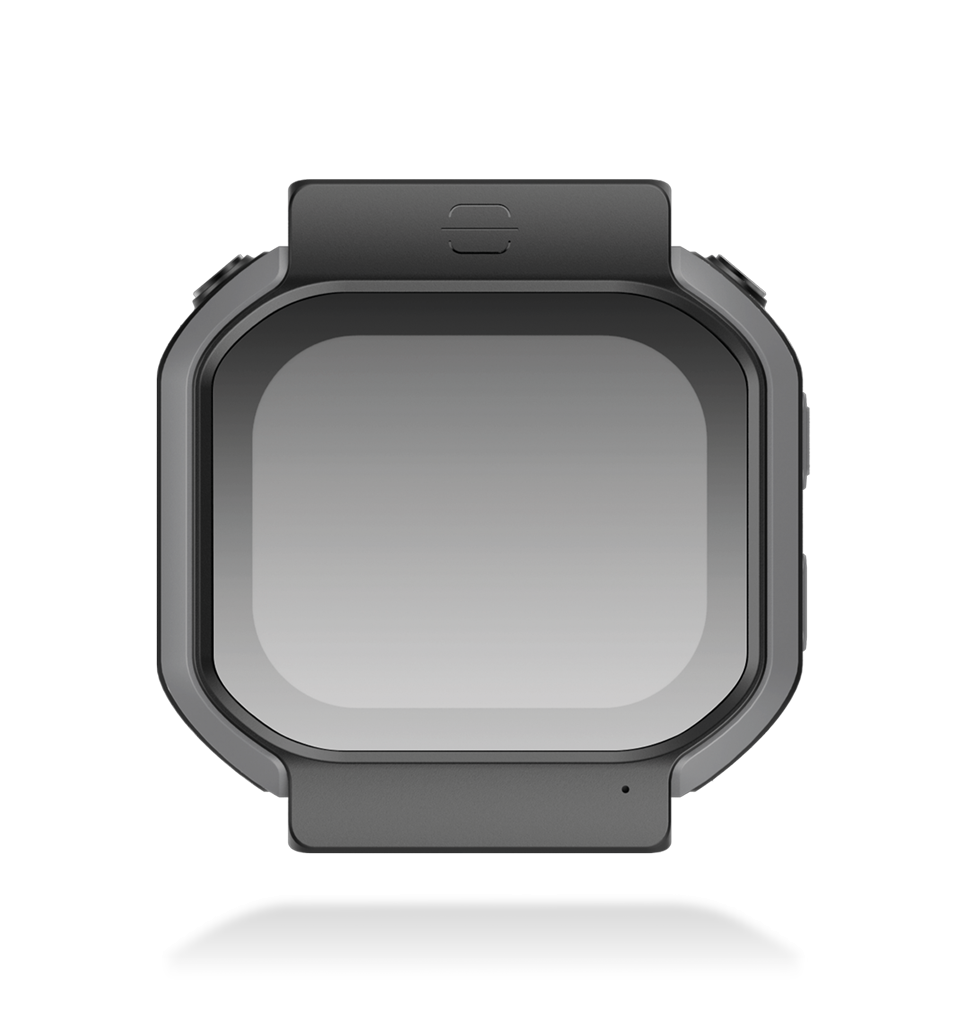

Front view WD5 Industrial Smartwatch Nwear range

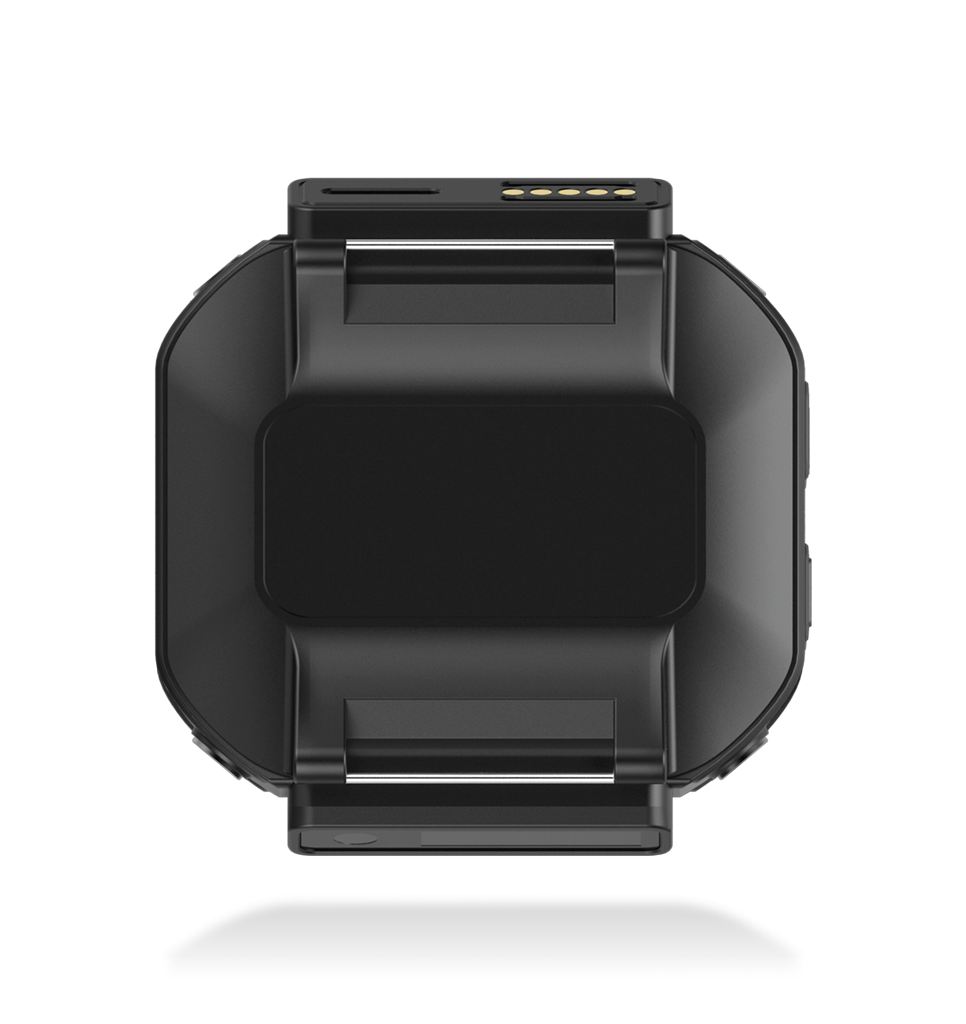

Back view WD5 Industrial Smartwatch Nwear range

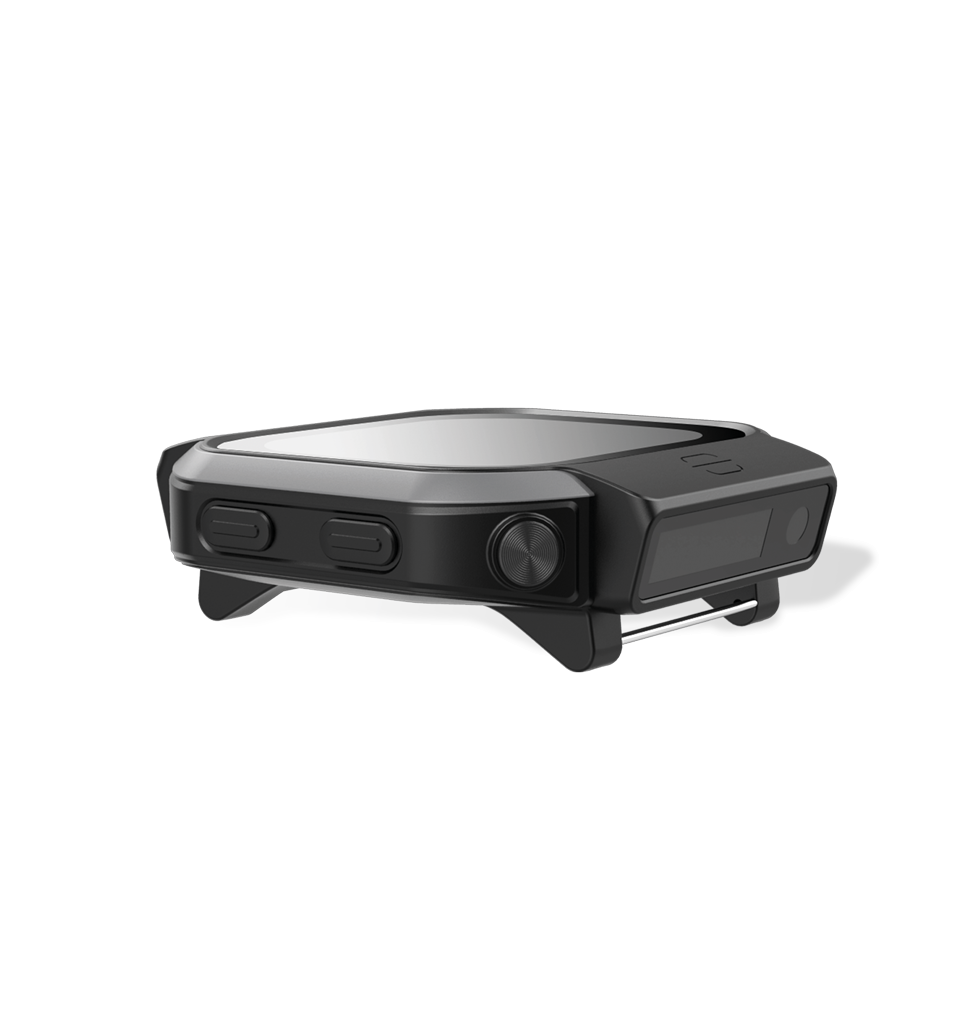

Side view WD5 Industrial Smartwatch Nwear range

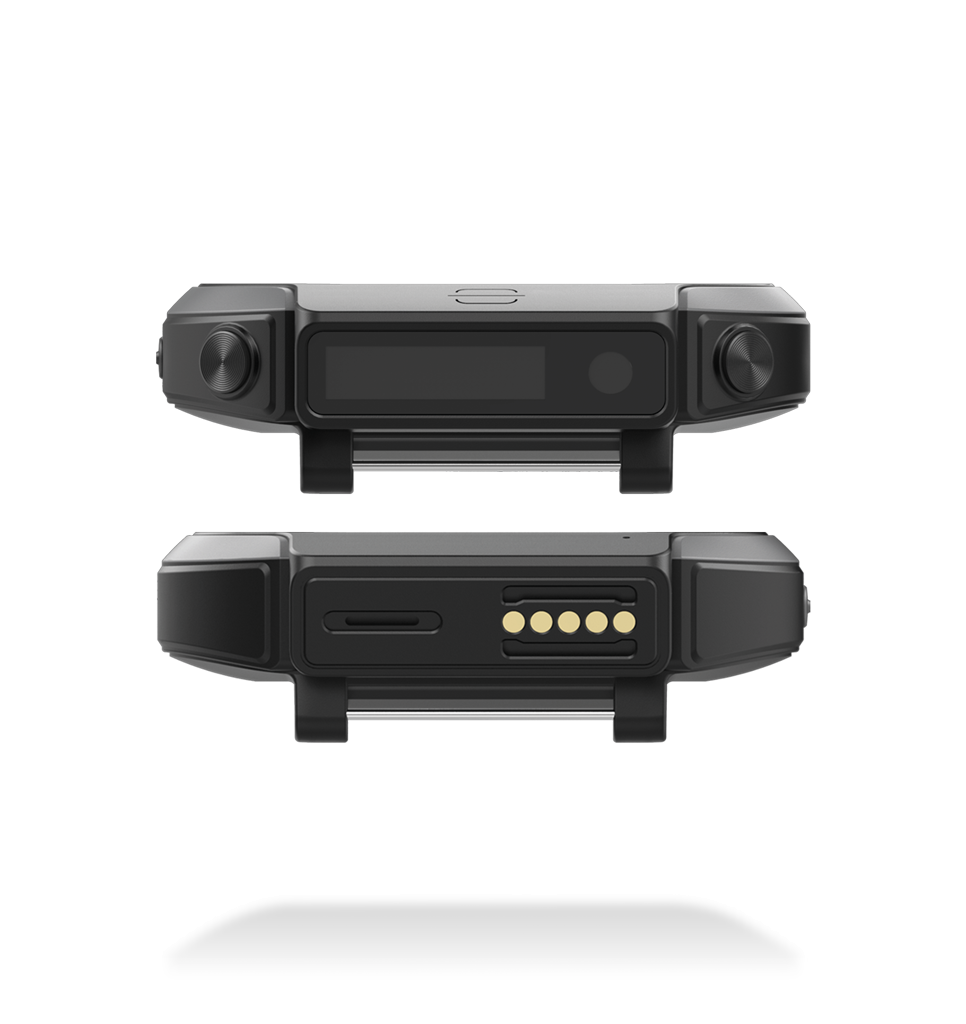

Top and bottom views WD5 Industrial Smartwatch Nwear range

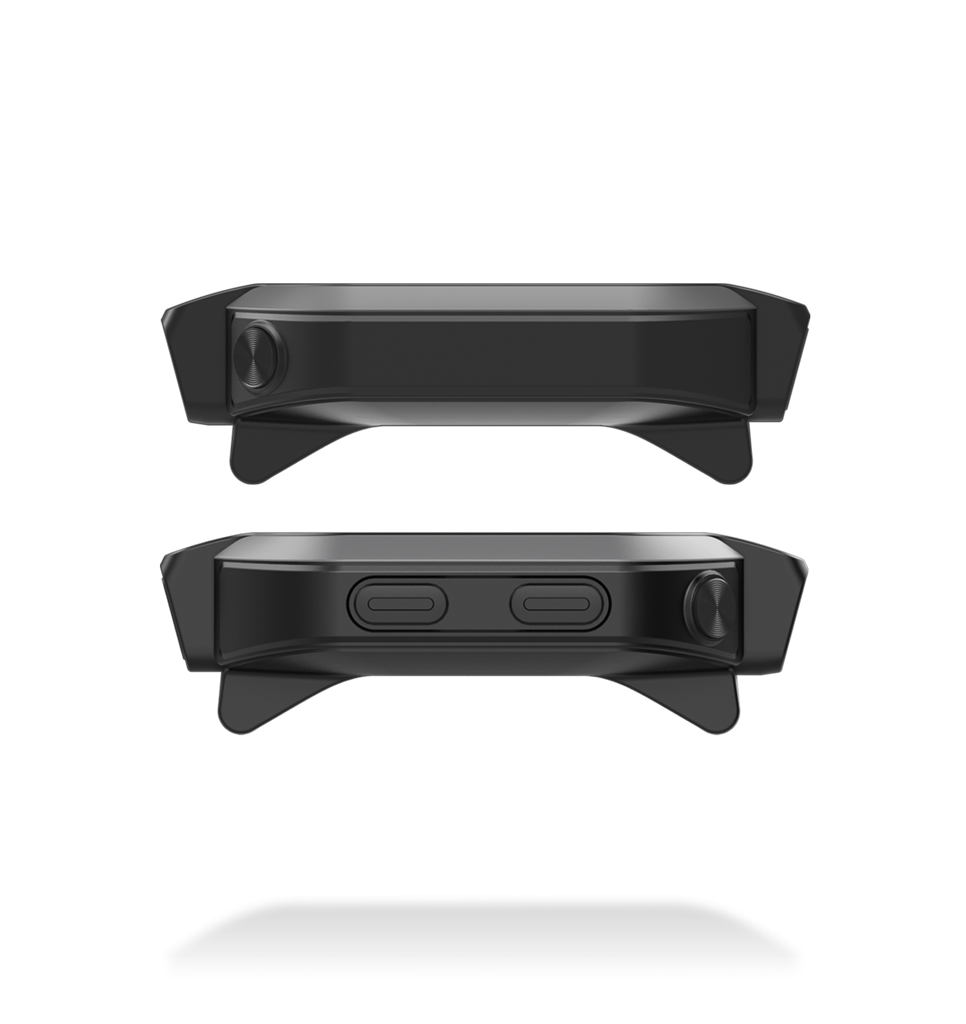

Side views WD5 Industrial Smartwatch Nwear range

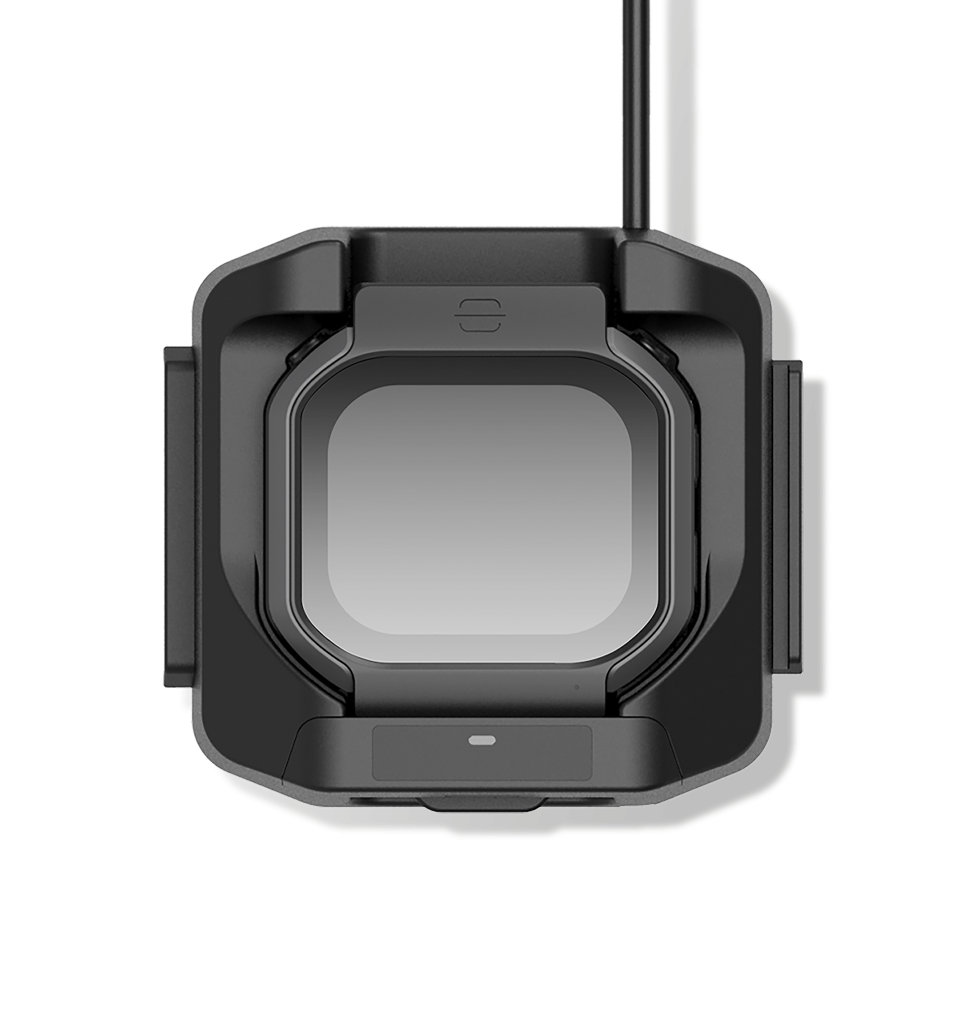

Front view WD5 Industrial Smartwatch Nwear range in cradle

WD5 Industrial Smartwatch

Wearables

Why choose the WD5 Industrial Smartwatch?

  • Barcode scanning and image capture combined in a single device
  • Powerful connectivity with WiFi 6 and Bluetooth 5.1
  • Gain real-time insights on production and supply chain from and for the whole team

Introducing the WD5 Industrial Smartwatch - The future of industrial efficiency is now at your fingertips! Powered by Android 13 and a lightning-fast 2.0 GHz octa-core processor, the WD5 is designed to keep up with your business needs and enhance safety, efficiency, and performance. Bluetooth 5.1, dual-band WiFi 6, and NFC provide seamless, power-efficient real-time data capture and communication connectivity. Witness your team’s productivity soar with this state-of-the-art wearable, purpose-built for today’s demanding industrial environments.

Watch efficiency get turned up!

Features

  • Performance Meets Durability.
    The WD5 Industrial Smartwatch features an innovative and intuitive design. Its 2.06” capacitive AMOLED display provides a straightforward and user-friendly interface. The Industrial Smartwatch also includes pogo pin contacts for fast charging and communication. The industrial smartwatch has a powerful 2.0 GHz octa-core processor, 4GB of RAM, and 64GB of flash memory, ensuring seamless performance. Not only is the WD5 Industrial Smartwatch stylish, but it is also durable and robust, with an IP67 certification and 1.5m drop protection. Weighing just 81g and boasting a slim design, the WD5 Industrial Smartwatch is lightweight and portable, making it ideal for industrial applications.
  • Scan, Capture, and Transmit in One Device.
    The WD5 Industrial Smartwatch is equipped with Newland VGA scanning technology, allowing high-performance scanning of 1D barcodes and 2D codes even if damaged or distorted. The device also features LED aiming that uses Acuscan technology to ensure the decoding of codes and barcodes even when displayed closely together. Additionally, the WD5 Industrial Smartwatch comes with a 13-megapixel camera. Combining a scanner and camera in the WD5 Industrial Smartwatch reduces the need for multiple devices while offering greater flexibility. Users can perform various tasks, such as scanning, taking photos, and transmitting data, all with a single device.
  • Flexibility and Security.
    The WD5 Industrial Smartwatch is equipped with the Android 13 Operating System, which provides modern and future-proof technology. Android 13 has improved security, integration, and flexibility performance compared to proprietary or outdated operating systems. This operating system is ideal for modern industrial applications like the WD5 Industrial Smartwatch.
  • Powerful Connectivity.
    The WD5 Industrial Smartwatch has WiFi 6 and Bluetooth 5.1 connectivity to ensure daily productivity. Additionally, the WD5 offers the NFC option to provide fast, secure, and convenient usage for everyday applications
  • Device Management & Software Tools.​
    The WD5 Industrial Smartwatch comes fully equipped with Newland’s free Ndevor MDM, which allows you to manage all your devices from one location. SOTI and WS1 are alternative MDM options for the device.
  • Nwear Family tree

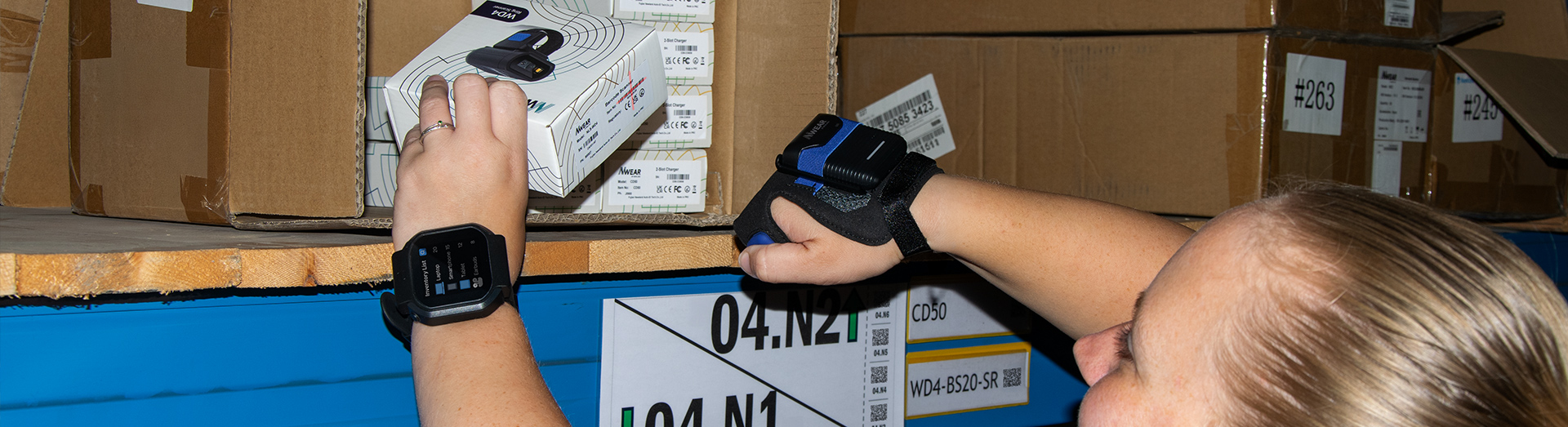

    For applications requiring high-speed barcode scanning, the WD5 can connect to Bluetooth wearable scanning solutions. Nhub on the device enables seamless connectivity to Newlands Nwear wearable scanners. EasyConnect is available to link 3rd Party Bluetooth devices.

  • Certifications

Technical Specifications

  • Data Capture
    1D Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E,Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93,UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey
    2D PDF417, QR Code, Data Matrix
    Aiming Red LED
    Depth of Field Code 39 (5mil) 65 mm - 150 mm
    Depth of Field DataMatrix (10mil) 55 mm - 120 mm
    Depth of Field EAN 13 (13mil) 65 mm - 295 mm
    Depth of Field PDF417 (6.7mil) 60 mm - 120 mm
    Depth of Field QR (15mil) 35 mm - 180 mm
    Image Sensor 800 x 640 CMOS
  • Performance
    Current Operating System Android 13
    Memory Flash 64GB
    Memory RAM 4GB
    Processor 2.0 GHz octa-core, 64-bit
  • Physical
    AC Adapter 5 V, 2 A
    Battery Type 3,85 V, 1200 mAh
    Dimensions 265(W) × 58(D) × 19(H) mm; Wristband: 24mm
    Display 2.06" AMOLED (410 x 502), support multi touch, brightness: 480 nits
    Interfaces Pogo pins
    Keypad 4 keys
    Notifications Speaker, Vibration
    Sensors Magnetic sensor, Gyroscope, Acceleration sensor
    Top-mounted Camera 13 MP, Auto focus
    Weight 81 g (including battery)
  • Wireless
    RFID ISO14443A/B, ISO15693, MIFARE, FeliCa RF, Kovio, NFC Forum Type 1-4 Tags
    WLAN RADIO Built-in 802.11 a/b/g/n/ac/ax, support 2.4GHz and 5GHz, k/v/r compliant
    WPAN RADIO Bluetooth 5.1
  • Environmental
    Drop 1.5m drops to concrete (for six sides, one drop per side)
    Electro Static Discharge (ESD) ±6 kV (direct discharge), ±10 kV (air discharge)
    Humidity 5% to 95% (non-condensing)
    IP Rating IP67
    Operating Temperature -20°C to 50°C (-4°F to 122°F)
    Storage Temperature -30°C to 60°C (-22°F to 140°F)
  • Software
    Configuration Tools Ndevor
    MDM (certified) Ndevor
  • Warranty
    Comprehensive Service Contract 3 Years, 5 Years
    Warranty Extension +1 Year, +3 Years
    Warranty Standard 2 Years
  • Accessories

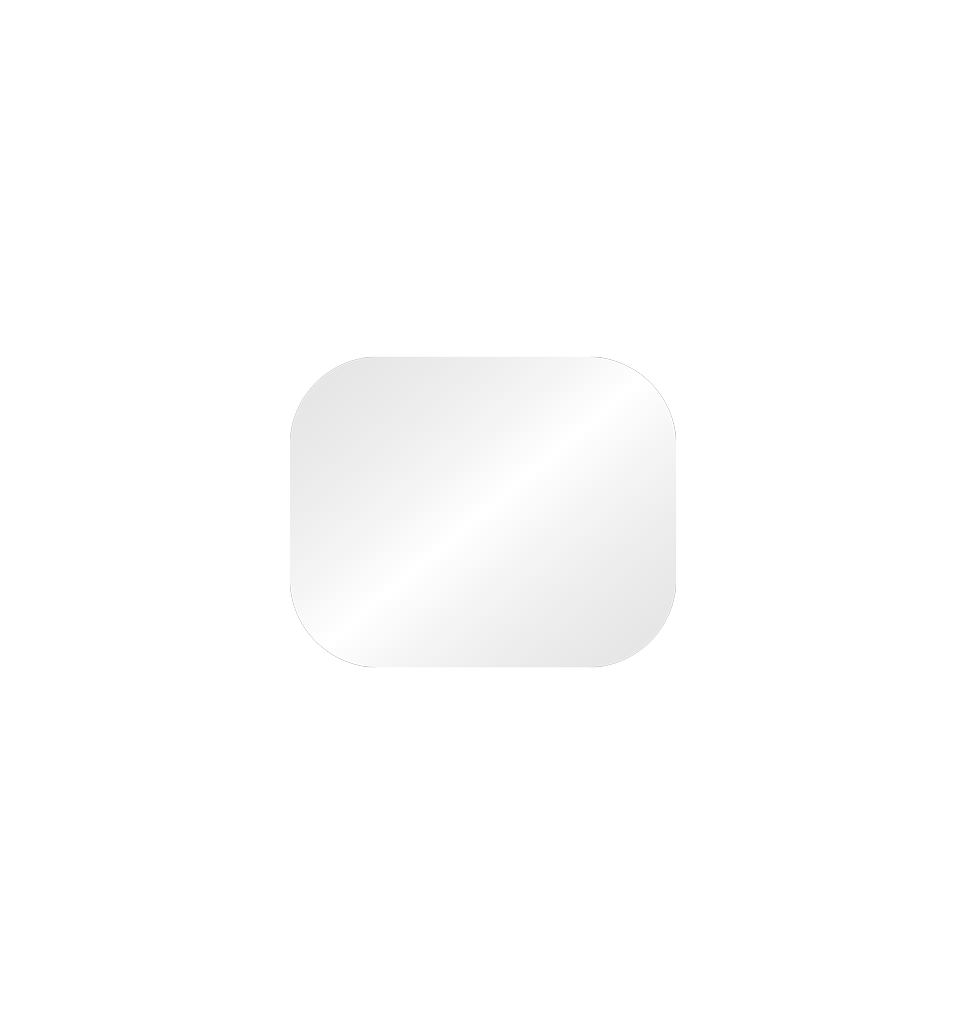

    Accessories Optional Charging cradle, Fast charging power adapter, Screen protector, Silicone watch strap, Belt clip, Belt clip with retractable reel
    Accessories Standard USB-C cable, Watch strap (tensile strength max. 80N), Charging cradle
  • What's in the box?
    NLS-WD5-ISW WD5 Industrial Smartwatch, Wrist band, USB-C cable, Charging cradle

  • Suggested industries

    • placeholder Retail
    • placeholder Hospitality & Leisure
    • placeholder Healthcare
    • placeholder Transportation & Logistics
    • placeholder Warehousing & Distribution
    • placeholder Field Service & Utilities

Documents

Accessories

Available Versions

Part Number Description
NLS-WD5-ISW WD5 Industrial Smartwatch with 2.06" AMOLED Touch Screen, 2D CMOS VGA imager with red LED Aimer (CM30), 4GB/64GB, BT, NFC and WiFi. Incl. wrist band, USB-C cable (CBL-TC-N7) and Charging Cradle (NLS-CDWD5-01). OS: Android 13.0
