Perspective view WD1 II Watch Scanner Nwear range

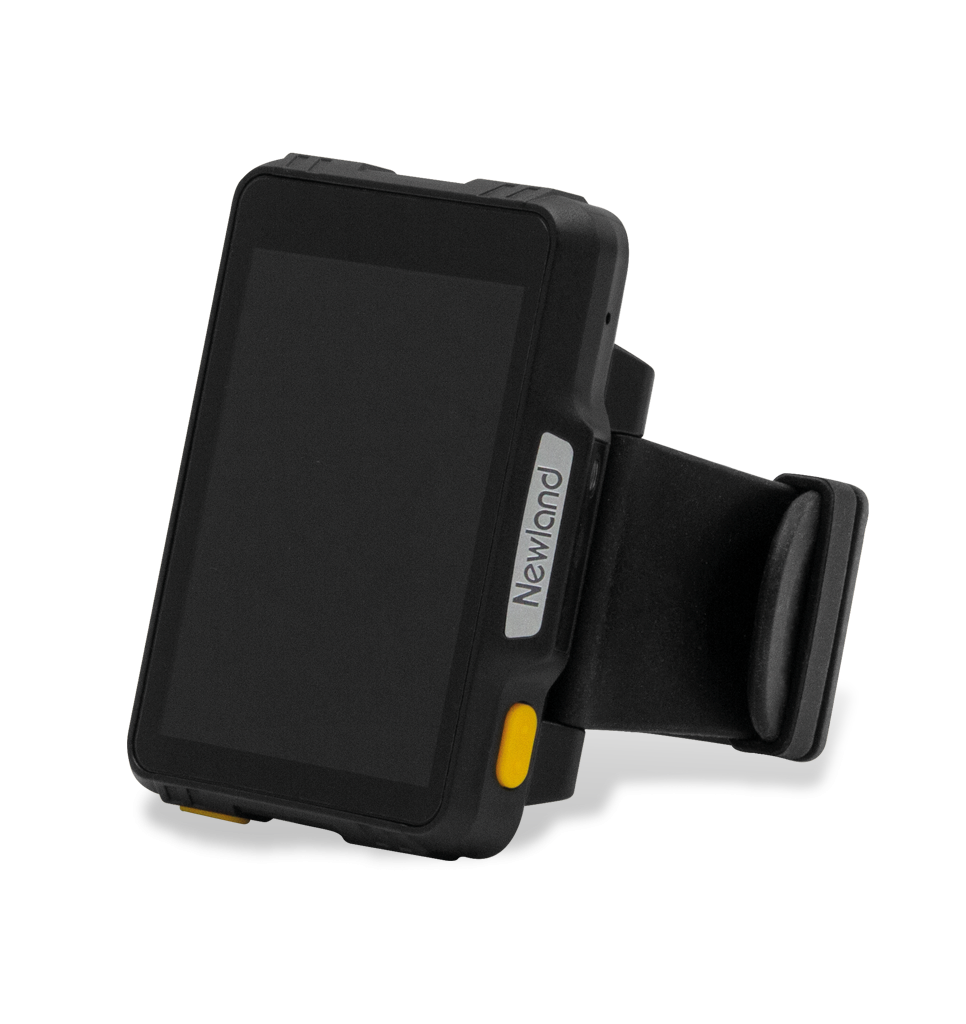

Perspective front view WD1 II Watch Scanner Nwear range

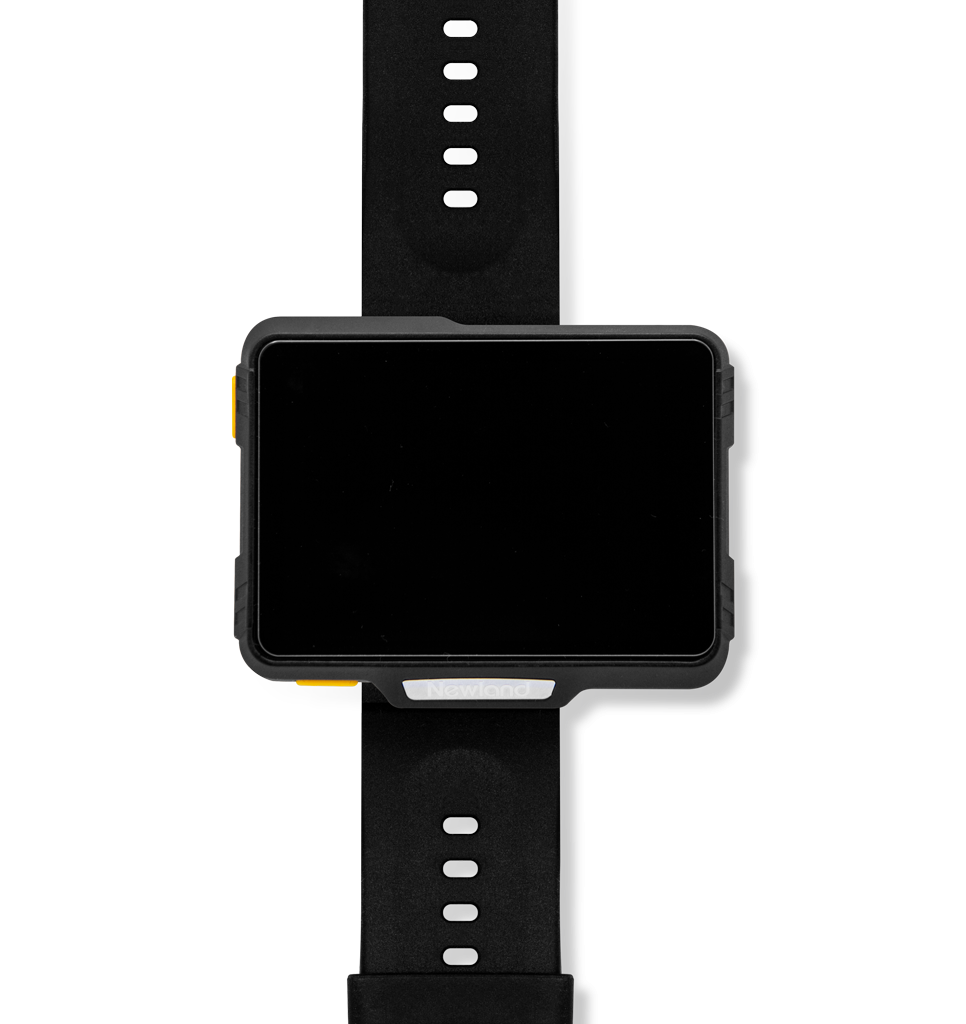

Front view WD1 II Watch Scanner Nwear range

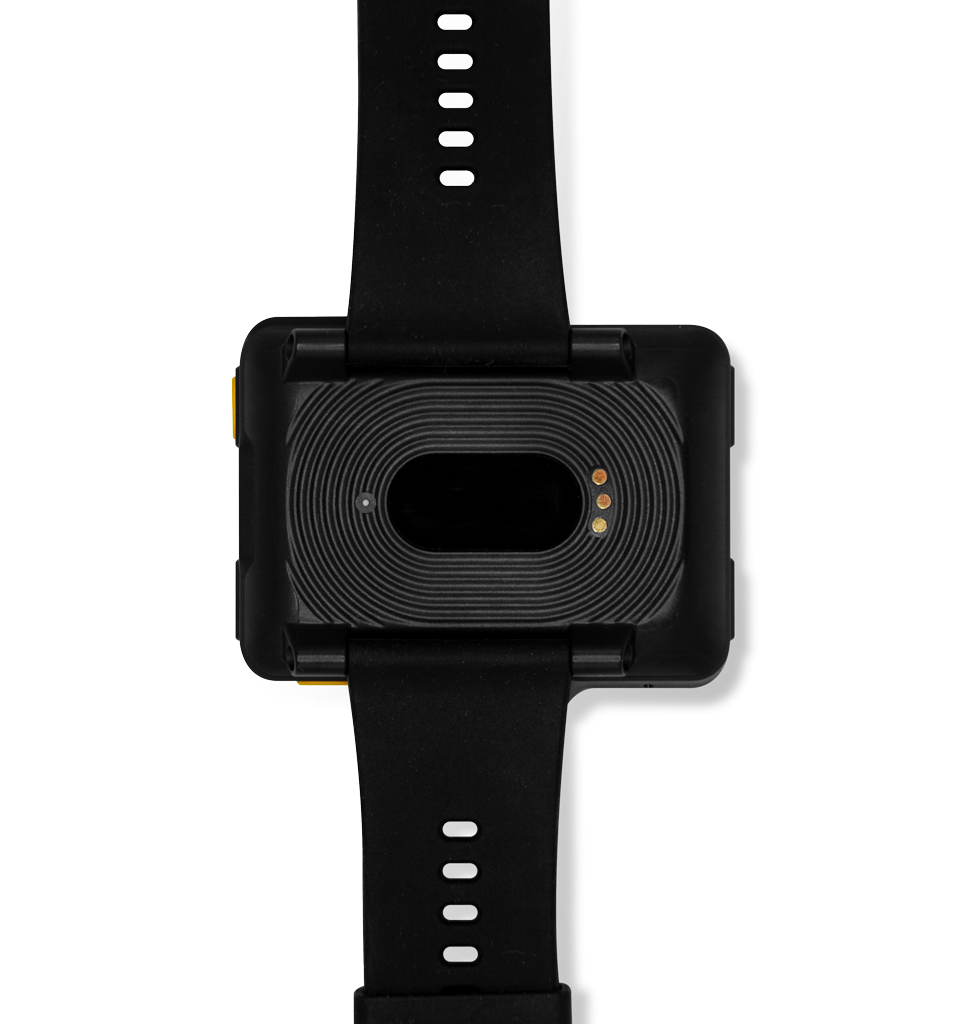

Back view WD1 II Watch Scanner Nwear range

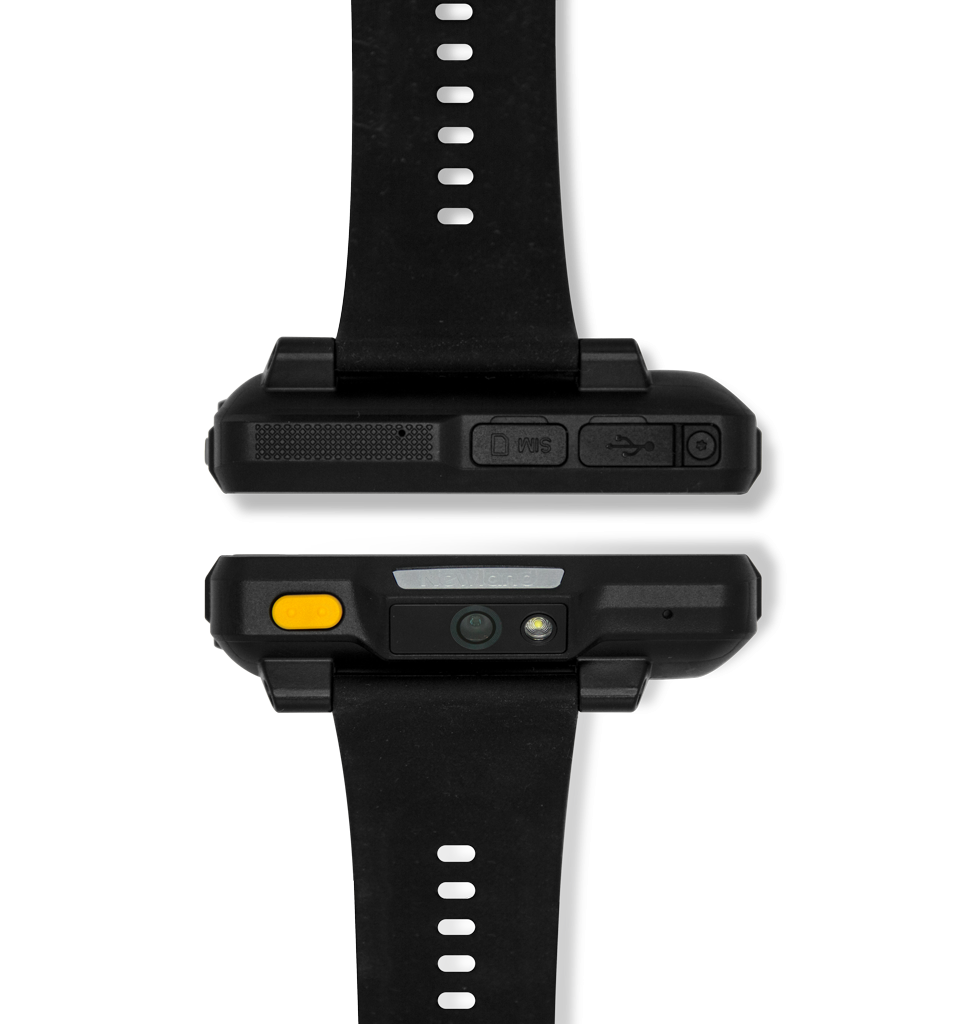

Side views WD1 II Watch Scanner Nwear range

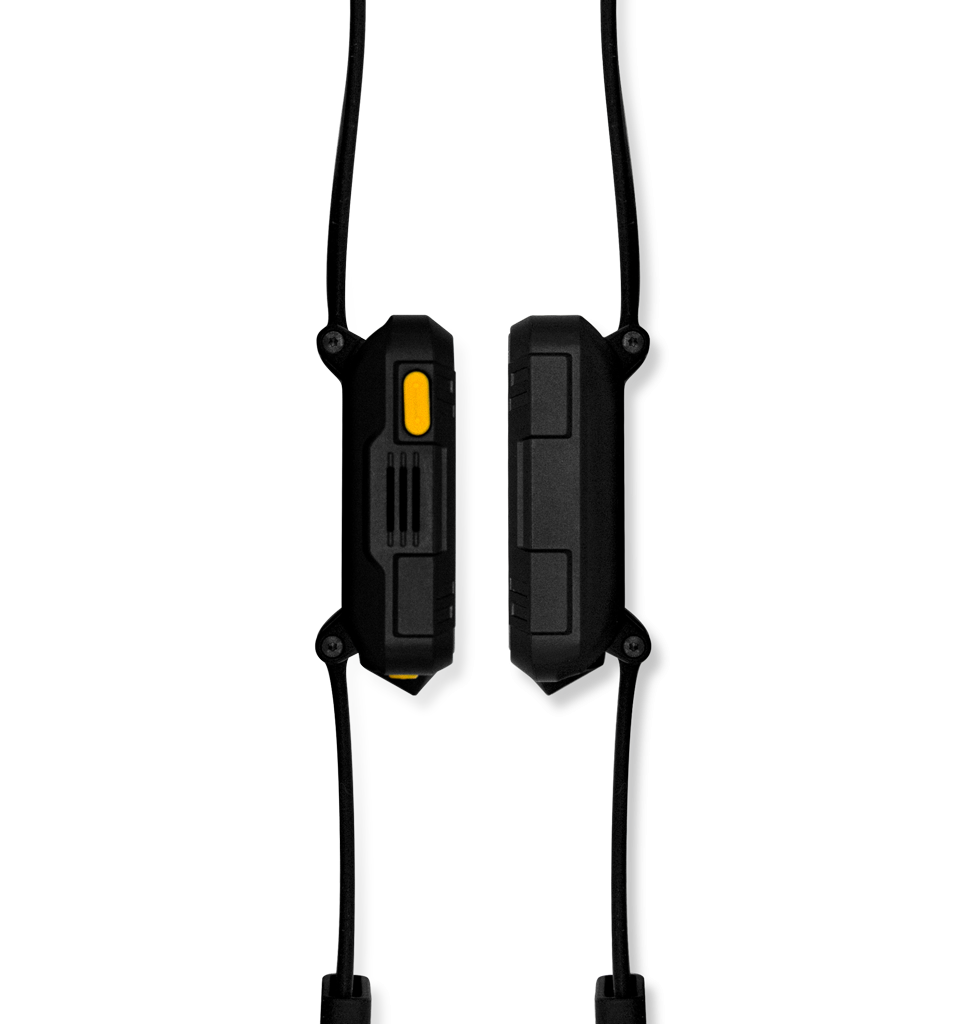

Side views WD1 II Watch Scanner Nwear range

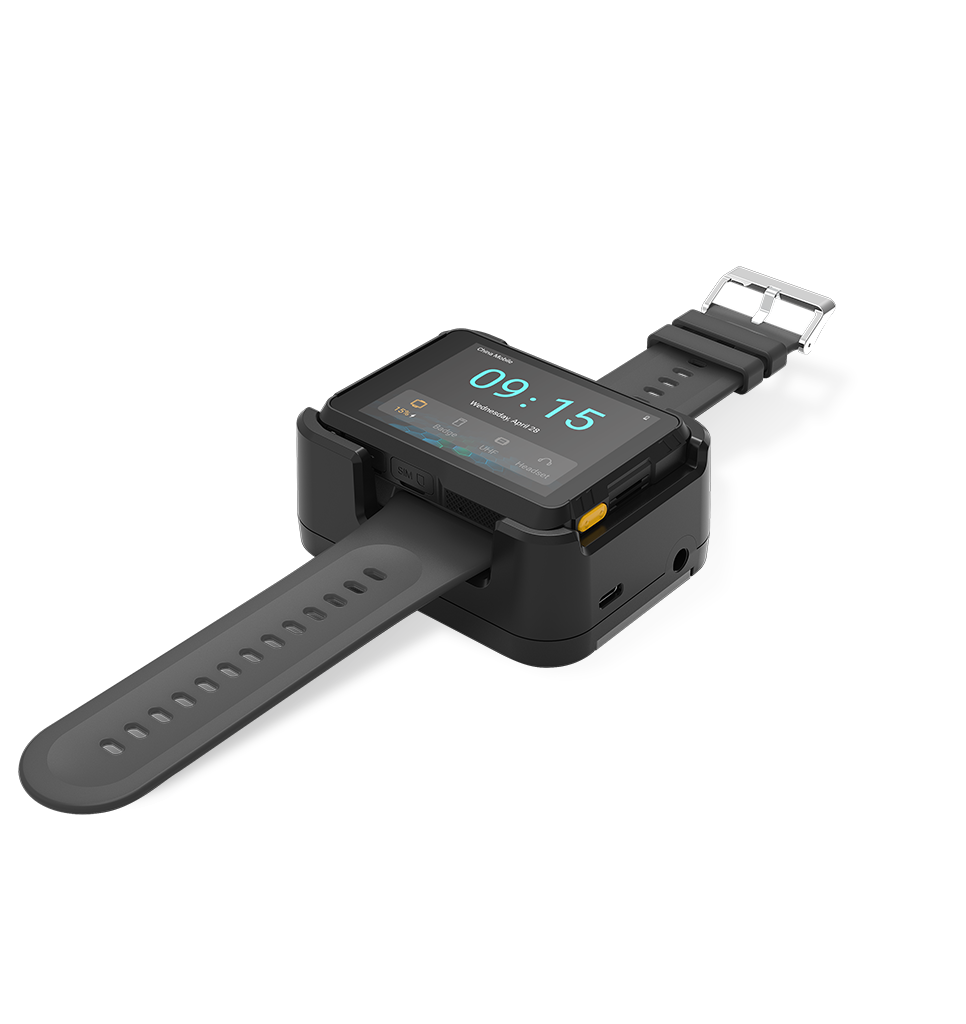

Perspective view WD1 II Watch Scanner Nwear range in cradle

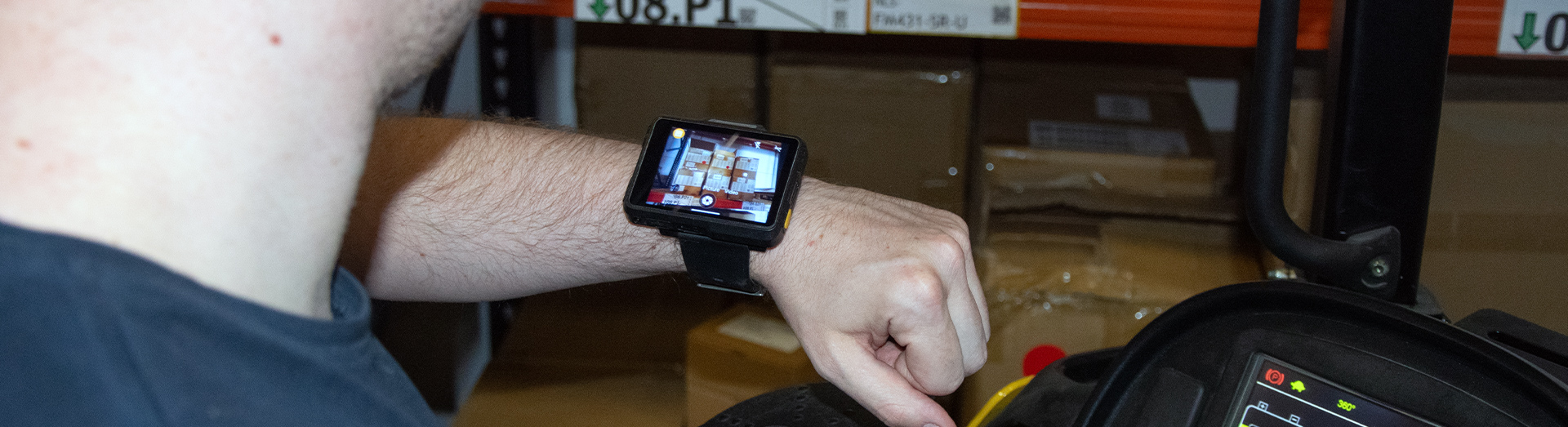

WD1 II Watch Scanner

Wearables

Why choose the WD1 II Watch Scanner?

  • 12 hours of use without disruptions with 3,300 mAh battery
  • Usable in any environment with IP67, Corning glass, and 1.2m drop resistance
  • User-friendly experience thanks to its convenient 2.8" capacitive touch screen

The WD1 II Watch Scanner ensures that data storage and processing are more mobile than ever with our Android-based smartwatch. While the design and weight are similar to a consumer smartwatch, the WD1 II is specifically designed for harsh working environments. With a 2.8” capacitive touch, Android 13 GMS, a 3.300 mAh battery, WiFi and 4G, it’s the perfect companion.

#Gearup with the WD1 II Watch Scanner

Features

  • Lightweight and User-friendly
    The WD1 II watch scanner packs all the latest hardware in a modern design. It compacts an Android 13.0 OS into a light and durable device and a 2.8” capacitive touch screen. The scanner has a customizable side button and shortcuts for different functions making the WD1 II convenient and user-friendly. Designed as any conventional smartwatch, the WD1 II is familiar to use, simplifying staff training and making performing tasks more intuitive.
  • Effortless Hands-Free Scanning
    When paired with WD2, WD1 II provides a hands-free solution that allows you to scan the items while simultaneously performing other physical tasks. This not only ensures ease of use but also increases overall productivity.
  • Strong Connection
    WD1 II is equipped with Bluetooth 5.0 and WiFi (802.11 a/b/g/n/ac, 2.4 GHz and 5GHz), which both ensure fast and steady connection during data transmission and processing.
  • Premium Durability and Versatility
    The WD1 II is built to withstand dusty environments and inevitable bumps and drops. With an IP67 rating and highly protective Corning glass, the WD1 II endures up to 1.2m drops. At the same time, WD1 II can resist both hot and cold temperatures, operating under conditions from -20°C up to 50°C. This makes it usable in almost any work environment.
  • Exceptional Performance
    Armed with a high-performing octa-core processor and 3/32GB memory, the WD1 II allows the user to smoothly perform the tasks and handle large amounts of captured data. The 3300mAh battery ensures up to 12 hours of utilization without workflow disruptions.

  • Certifications

Technical Specifications

  • Performance
    Current Operating System Android 13, GMS
    Memory Flash 32GB
    Memory RAM 3GB
    Processor 2.0 GHz octa-core, 64-bit
  • Physical
    Audio Speaker, Dual microphone, Noise reduction
    Battery Type Lithium-ion polymer battery: 3.8 V, 3300 mAh (non-removable)
    Buttons Power key/lock screen key, user-defined key
    Dimensions Dial plate: 77mm × 56mm; Dial plate thickness: 17.8mm
    Display 2.8” (640 × 480), brightness: 460 nits
    Interfaces USB-C, 2 pogo pins
    Keypad 2 keys
    Notifications LED, Speaker, Vibration
    Rear camera 13 MP, LED flash, Auto focus, Torch mode, Barcode scanning
    Sensors Angular Velocity sensor, Geomagnetic sensor, Acceleration sensor, Air pressure sensor
    SIM/TF Nano SIM*1
    Touch Panel Capacitive touchscreen, Gorilla glass
    Weight 146 g
  • Wireless
    GPS Beidou, GLONASS, Galileo, GPS (AGPS)
    WLAN RADIO IEEE 802.11 a/b/g/n/ac, 2.4GHz and 5GHz
    WPAN RADIO Bluetooth 5.0
    WWAN RADIO 2G: GSM: 900/1800MHz 3G: WCDMA: (B1,B8) 4G: TD-LTE: (B34,B38,B40); FDD-LTE: (B1, B3, B7, B8, B20,B28 a&b)
  • Environmental
    Drop 1.2m drops to concrete (for six sides, one drop per side)
    Electro Static Discharge (ESD) ±6 kV (direct discharge), ±10 kV (air discharge)
    Humidity 5% to 95% (non-condensing)
    IP Rating IP67
    Operating Temperature -20°C to 55°C (-4°F to 131°F)
    Storage Temperature -30°C to 70°C (-22°F to 158°F)
  • Software
    Configuration Tools Ndevor
    MDM (certified) Ndevor, SOTI
    Terminal Emulation (compatible) StayLinked, Ivanti Velocity
  • Warranty
    Comprehensive Service Contract 3 Years, 5 Years
    Warranty Extension +1 Year, +3 Years
    Warranty Standard 2 Years
  • Accessories
    Accessories Optional Multiplug adapter, Charging cradle, Fast charging power adapter, Screen protector, Arm sleeve, Silicone watch strap, Velcro watch strap
    Accessories Standard USB-C cable, Multiplug adapter, Wrist holster
  • What's in the box?
    NLS-WD1-W4-V2 WD1 II Watch Scanner, Wrist band, USB-C cable, Multiplug adapter

  • Suggested industries

    • placeholder Retail
    • placeholder Healthcare
    • placeholder Transportation & Logistics
    • placeholder Warehousing & Distribution
    • placeholder Field Service & Utilities

Documents

Accessories

Available Versions

Part Number Description
NLS-WD1-W4-V2 WD1-V2 Wearable Watch Device with 2.8" Touch Screen, 3GB/32GB, BT, WiFi, 4G, GPS and Camera. Incl. wrist band, USB-C cable and MultiPower adapter. OS: Android 13.0 GMS.
