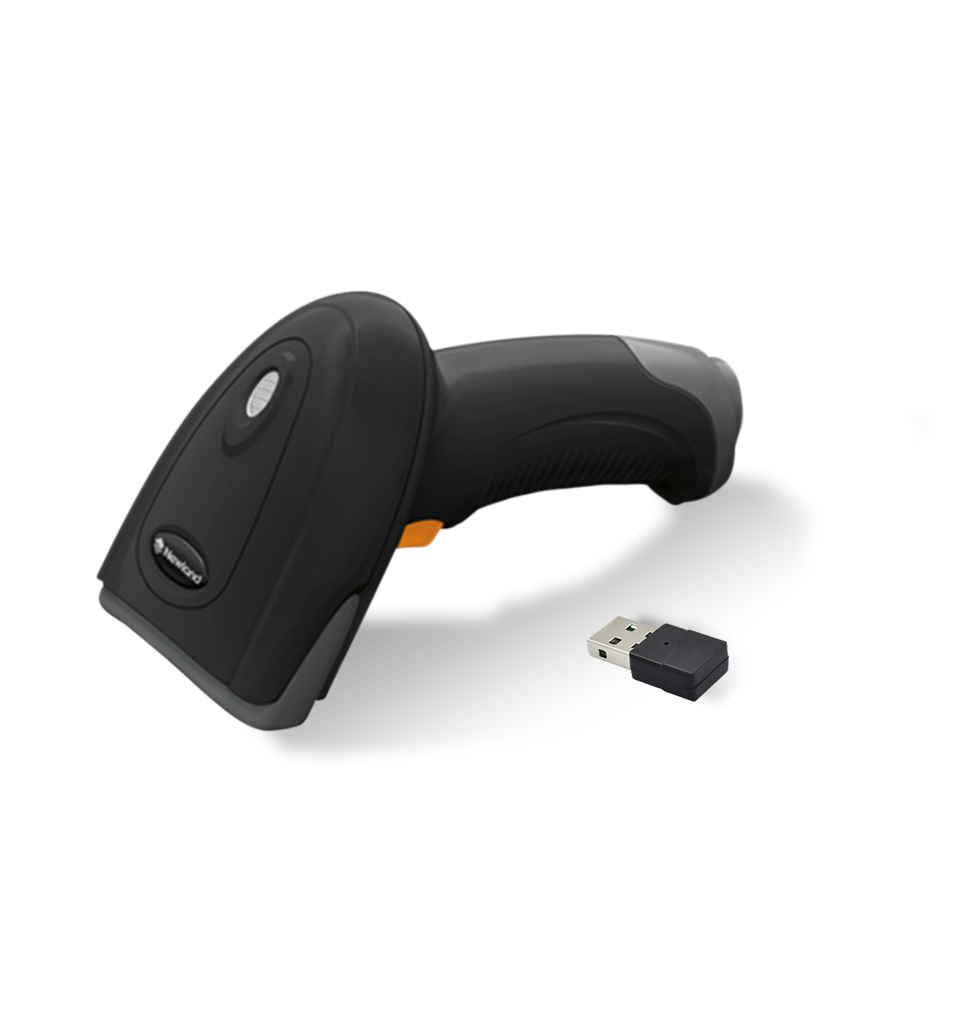

HR22 Dorada II Bluetooth
General Purpose Handheld Scanners
-
1.5m drop
-
1D & 2D
-
2,200 mAh
-
Bluetooth 5.0
-
CMOS
-
CPU
-
EasySet
-
IP42
-
Warranty 3 Years
| Part Number | Description | EOL date | EOM date |
|---|---|---|---|
| NLS-HR2280-BTV2-SF | HR22 Dorada II 2D CMOS WIreless Bluetooth Handheld Reader for direct connection or with dongle, with USB charging cable & foldable smart stand. | 5/22/2024 | 5/22/2029 |
Published on:
The following products will be discontinued at set dates due to having better alternatives or outdated technology.
Recommendation of Alternative Product:
HR23 Dorada BluetoothEOL date: product discontinuation date, the last day of accepting order for this product.
EOM date: service & support discontinuation date, the last day of providing software upgrade, parts & repair service for this product.
The highest profile successes of the Dorada series have come in industries and applications looking for a 2D scanner at the price of a 1D scanner. Offering a cost-effective handheld scanning solution, the HR22 Dorada II offers an upgrade fitting growing demands by the market.
Features
-
Outstanding Performance.
At the heart of the HR22 Dorada II wireless handheld scanner is another example of Newland’s excellent scanning with CPU decoding. Effortlessly capture high density, high volume and distorted barcodes printed on paper or displayed on screen. -
Reliable Bluetooth options.
Adopting the latest Bluetooth 5.0 technology, the HR22 Dorada II is able to maintain a wireless connection at distances up to 50 meters from the host device. The HR2280-BT Dorada also comes with a Bluetooth 5.0 direct connection dongle. The dongle and scanner connect automatically for a 1-2-1 secure wireless connection. -
Data capture.
The Dorada II can also work in batch mode to collect scanned data, to then transfer via Bluetooth, wireless dongle or via USB cable. the cable can connect the scanner to Easyset configuration software. -
Exceptional Battery Life.
With a 2200mAh battery, the HR22 Dorada II will run a comfortable 12 hours of continuous use. The provided USB cable allows for convenient charging. -
Durable construction.
The HR22 Dorada II has a more than suitable IP42 rating for its key applications and is drop resistant up to 1.5m. Its durable housing guarantees optimal protection, so falls from desktops and countertops are no issue.
Technical Specifications
-
Data Capture
1D All major 1D symbologies, including Code 11, Code 128, Code 39, GS1-128 (UCC/EAN 128), AIM 128, ISBT 128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-8, EAN-13, ISBN/ISSN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 25, ITF6, ITF-14, Standard 25, China Post 25, MSI Plessey, Plessey, GS1 Databar (RSS). 2D All major 2D symbologies, including PDF417, Micro PDF417, Micro QR, QR Code, Data Matrix, Aztec. Aiming Red LED (625nm) Depth of Field Code 39 (5mil) 45 mm - 115 mm Depth of Field DataMatrix (10mil) 35 mm - 125 mm Depth of Field EAN 13 (13mil) 45 mm - 260 mm Depth of Field PDF417 (6.67mil) 50 mm - 120 mm Depth of Field QR (15mil) 30 mm - 170 mm Field of View Horizontal 42° Field of View Vertical 34° Illumination White LED Image Sensor 640 x 480 CMOS Minimal Print Contrast 20% Scan Angle Pitch ±60° Scan Angle Roll 360° Scan Angle Skew ±60° -
Performance
Memory Flash 1MB -
Physical
Dimensions 145(W) × 101(D) × 68(H) mm Expected Battery Life ≥12 hours of continuous operation (scan once per 6 seconds) Expected Charge Time ≤5.5 hours (with power adapter) Input Voltage 5 VDC ±5% Interfaces USB Notifications Beep, LED, Vibration Weight 167 g -
Wireless
Communication Modes Manual batch, Automatic batch, Synchronous Radio Technology Bluetooth 5.0 Wireless Distance ( max.) ≥50 m -
Environmental
Drop 1.5 m Electro Static Discharge (ESD) ±8 kV (direct discharge), ±15 kV (air discharge) Humidity 5% to 95% (non-condensing) IP Rating IP42 Operating Temperature -20°C to 60°C (-4°F to 140°F) Storage Temperature -40°C to 70°C (-40°F to 158°F) -
Software
Configuration Tools EasySet -
Certifications
Certifications Hardware CE EMC Class B, FCC Part15 Class B, IEC 62471, RoHS, BIS -
Warranty
Warranty Standard 3 Years
-
Suggested industries
-
Retail
-
Hospitality & Leisure
-
Healthcare
-
Postal
-
Available Versions
| Part Number | Description |
|---|---|
| NLS-HR2280-BTV2-SF | HR22 Dorada II 2D CMOS WIreless Bluetooth Handheld Reader for direct connection or with dongle, with USB charging cable & foldable smart stand. |
