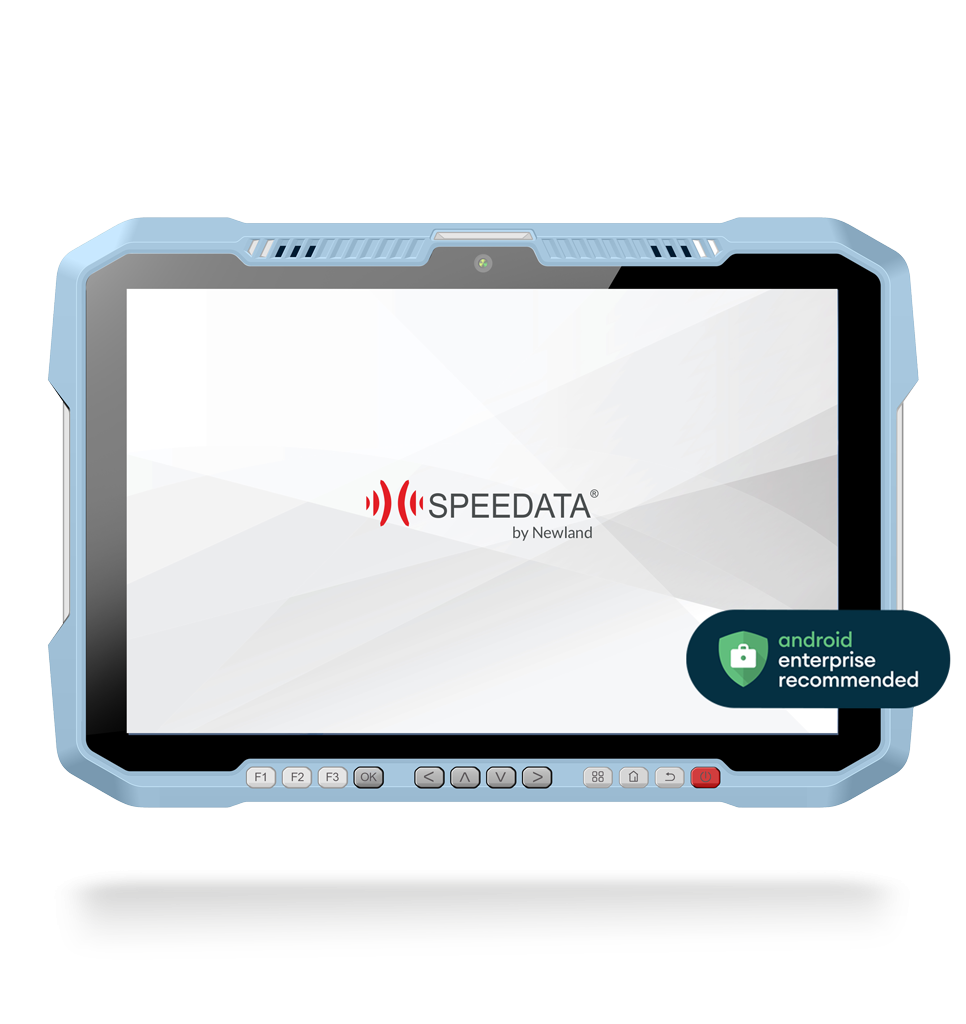

Front view SD100MD OrionPlus touch panel computer with AER tag

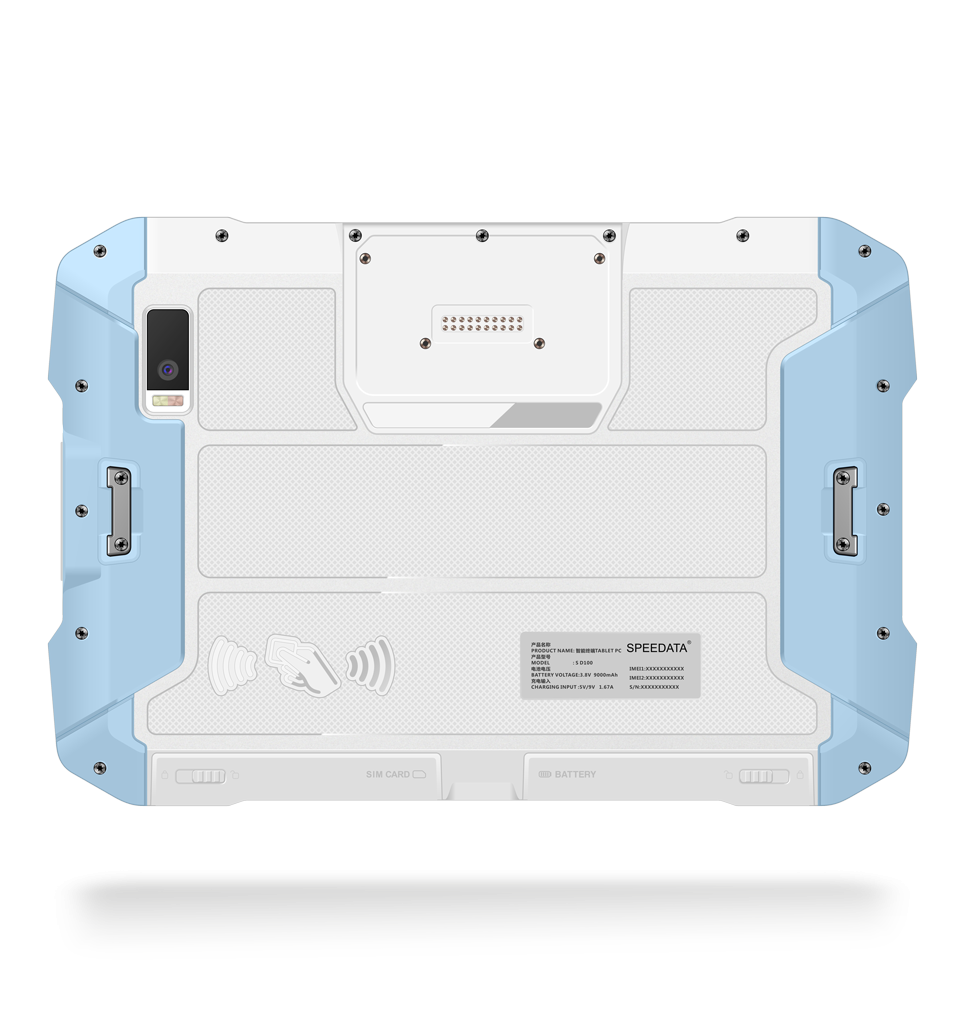

Back view SD100MD OrionPlus touch panel computer

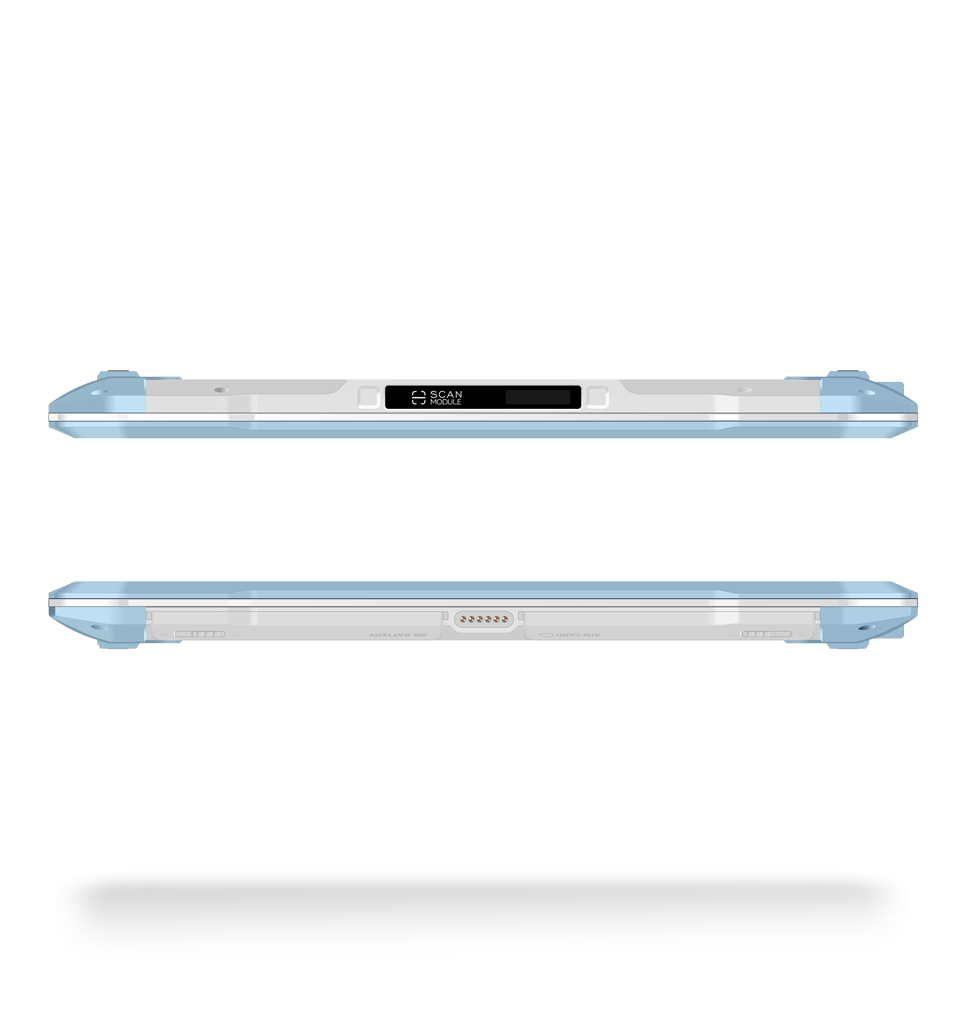

Top and bottom views SD100MD OrionPlus touch panel computer

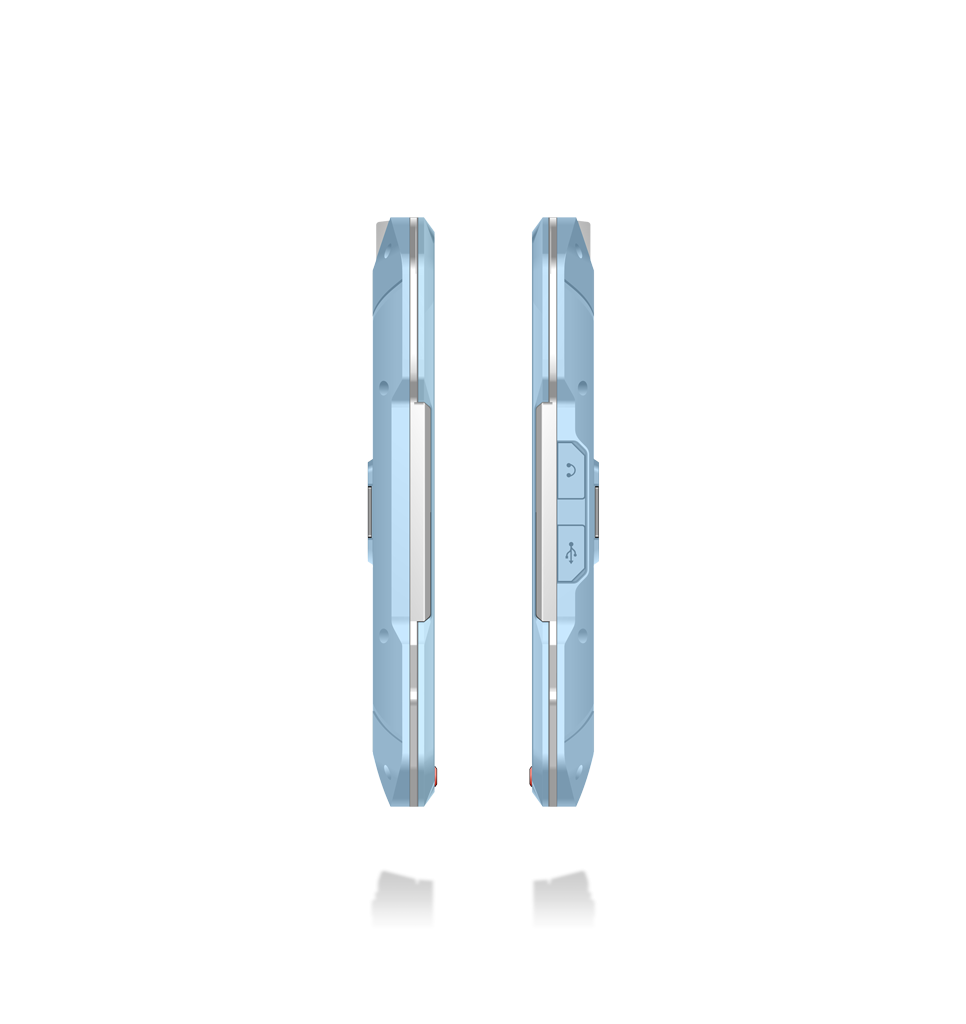

Side views SD100MD OrionPlus touch panel computer

SD100MD Orion Plus

Touch Panel Computers

Part Number Description EOL date EOM date
SD-SD100MD-PLUS SD100 5G Plus 10" Healthcare Tablet 2.2Ghz 4GB/64GB, 2D CMOS Mega Pixel imager with Laser Aimer (CM6x), BT, WiFi, 5G, GPS, NFC and Camera. Incl USB cable and multiplug adapter (Orion III). OS: Android 11 GMS (AER). 8/29/2025 8/29/2030

Published on:

The following products will be discontinued at set dates due to having better alternatives or outdated technology.

Recommendation of Alternative Product:

NQuire 1000 Manta III

EOL date: product discontinuation date, the last day of accepting order for this product.

EOM date: service & support discontinuation date, the last day of providing software upgrade, parts & repair service for this product.

Say hello to our first 5G Android tablet for all your 1D and 2D scanning needs. Specifically designed for healthcare professionals, the SD100 Orion II MD Plus follows the EC60601-01 standard to ensure safe and hygienic access to patient data at a glance.

Features

  • Supports.
    1D and 2D barcodes.
  • Software.
    Built on Android 11 GMS (AER).
  • Touch screen.
    10.0 inch (1920 x 1200) 5 point capacitive touch screen.
  • Processor.
    Octa-core 2.2 GHz CPU.
  • Memory.
    4GB RAM and 64GB Flash memory.
  • Offers.
    WiFi 802.11 a/b/g/n/ac (2.4GHz & 5GHz), Bluetooth 5.1, GPS, camera, NFC, GSM, WCDMA.
  • Accessories.
    Support hand strap for ease of use. Optional charging cradle and vehicle cradle.

Technical Specifications

  • Data Capture
    1D All major 1D symbologies
    2D All major 2D symbologies
  • Performance
    Current Operating System Android 11, GMS, Android Enterprise Recommended (AER)
    Memory Flash 64GB
    Memory RAM 4GB
    Processor 2.0 GHz octa-core
  • Physical
    Audio Front dual stereo speakers, Volume 90db±3db (test distance 10cm)
    Audio Jack 3.5mm earphone jack
    Battery Type 9000 mAh
    Dimensions 254(W) x 176(D) x 17.4(H) mm
    Display 10” (1200 x 1920) IPS highlight screen
    Expected Battery Life Typical working time not less than 10 hours
    Expected Charge Time Fast charging, full charging time <4 hours
    Front camera 5 MP
    Interfaces USB-C
    Keypad 12 keys
    Notifications LED, Vibration, Sound
    Pogo Pin 20 Pogo Pins contact
    Rear camera 13 MP, Auto focus, High brightness LED flash
    Sensors G-sensor, Proximity sensor, COMPASS, Ambient light sensor
    SIM/TF 2 Micro SIM card slots, 1 SD card slot
    Touch Panel 5 points capacitive touchscreen
    Weight 800 g (with battery)
  • Wireless
    GPS GPS, BD, GLONASS
    NFC ISO14443A/B , ISO15693 , NFC Reading distance: 0~5cm; UHF ISO18000-6C, Euro frequency (865MHz - 867MHz), Antenna: 1.5dBi ceramic antenna, Power: 5dBm~30dBm adjustable, 1dbm step, Working range: Indoor >12m, Outdoor >6m, Inventory speed: >200 tags/sec
    WLAN RADIO IEEE 802.11 a/b/g/n/ac 2.4G 5G dual frequency
    WPAN RADIO Bluetooth 5.1 BLE
    WWAN RADIO FDD-LTE B1/B3/B5/B7/B8, TDD-LTE B38/B39/B40/B41, TDSCDMA B34/B39, WCDMA B1/B2/B5/B8, GSM B2/B3/B5/B8, CDMA 1 x/CDMA2000 BC0/BC1
  • Environmental
    Drop 1 meter drop to cement floor
    Electro Static Discharge (ESD) ±8 kV (contact discharge), ±15 kV (air discharge)
    Humidity 5% to 95%
    IP Rating IP65
    Operating Temperature -20°C to 55°C (-4°F to 131°F)
    Storage Temperature -30°C to 70°C (-22°F to 158°F)
  • Certifications
    Certifications Hardware CCC, CE
  • Warranty
    Warranty Standard 2 Years
  • Accessories
    Accessories Optional Charging cradle, Car cradle
    Accessories Standard Hand strap

  • Suggested industries

    • placeholder Hospitality & Leisure
    • placeholder Healthcare
    • placeholder Government & Public

Documents

Available Versions

Part Number Description
SD-SD100MD-PLUS SD100 5G Plus 10" Healthcare Tablet 2.2Ghz 4GB/64GB, 2D CMOS Mega Pixel imager with Laser Aimer (CM6x), BT, WiFi, 5G, GPS, NFC and Camera. Incl USB cable and multiplug adapter (Orion III). OS: Android 11 GMS (AER).
