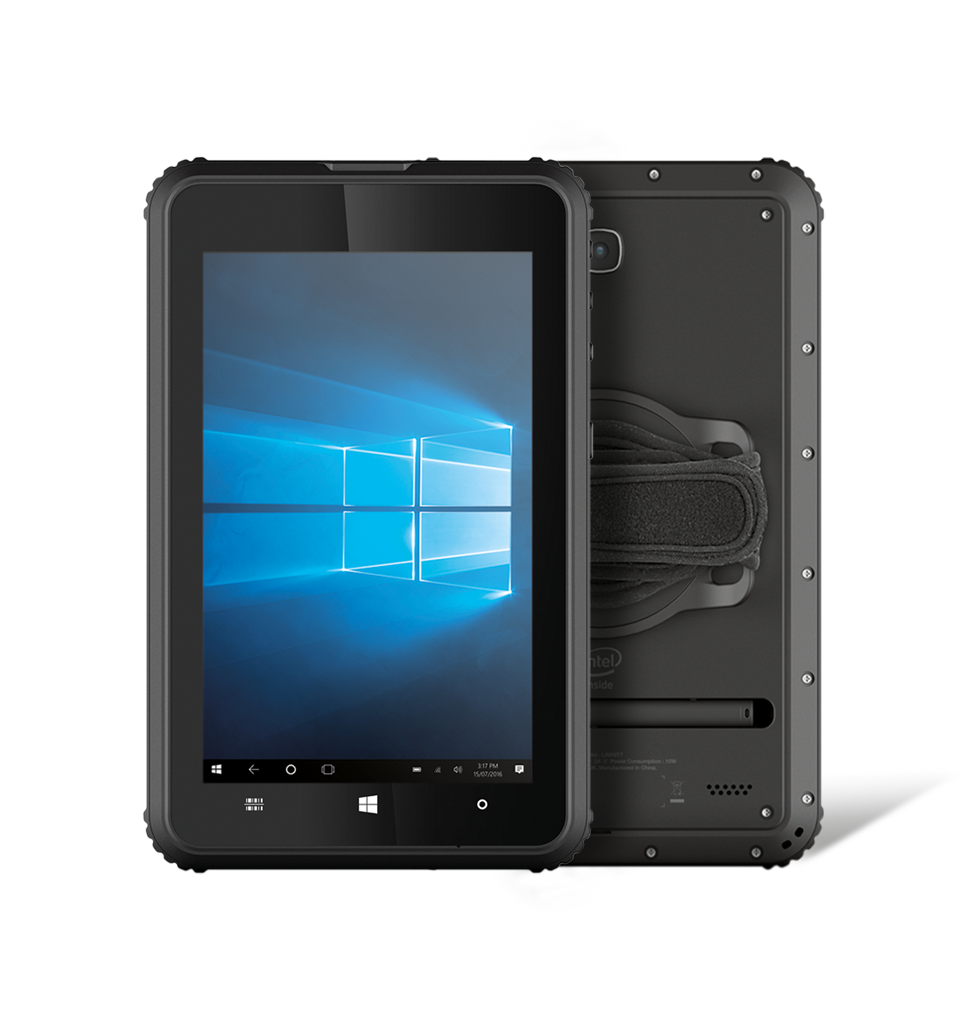

Front view NQuire 800 Plus touch panel computer

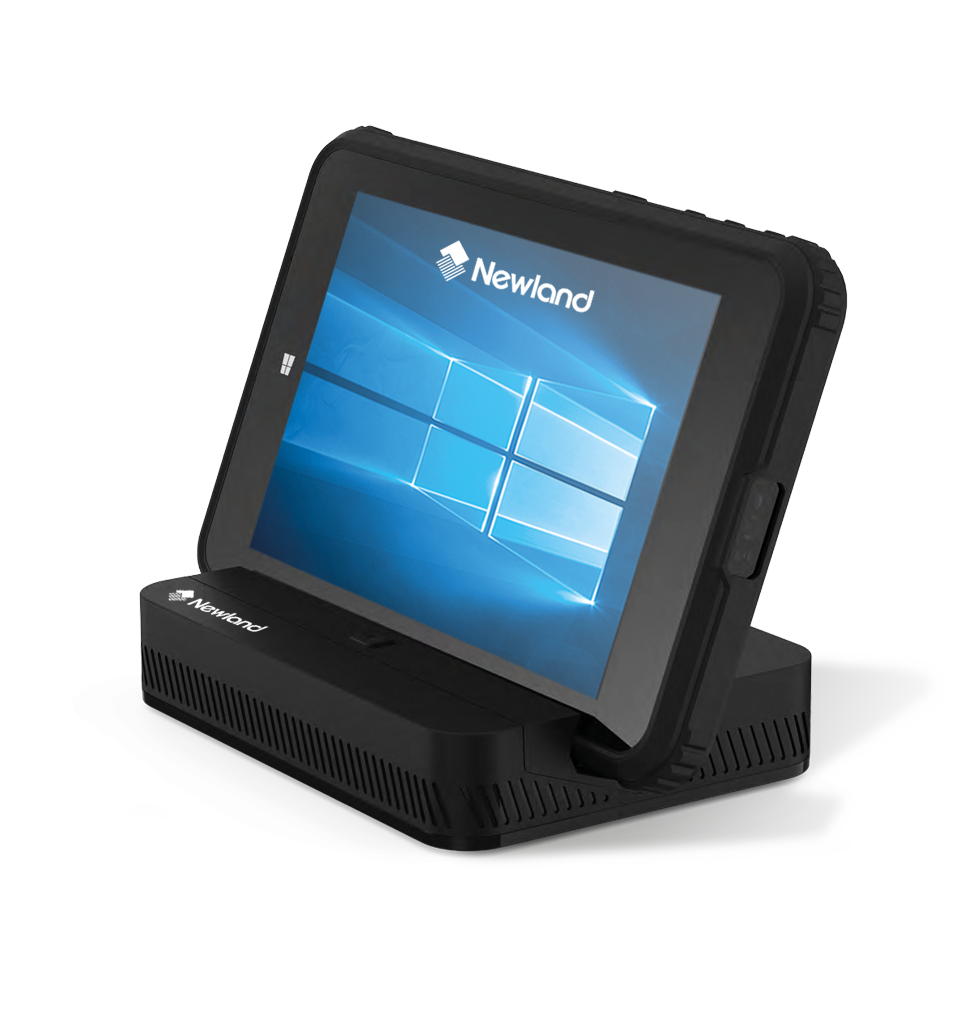

Perspective view NQuire 800 Plus touch panel computer in stand

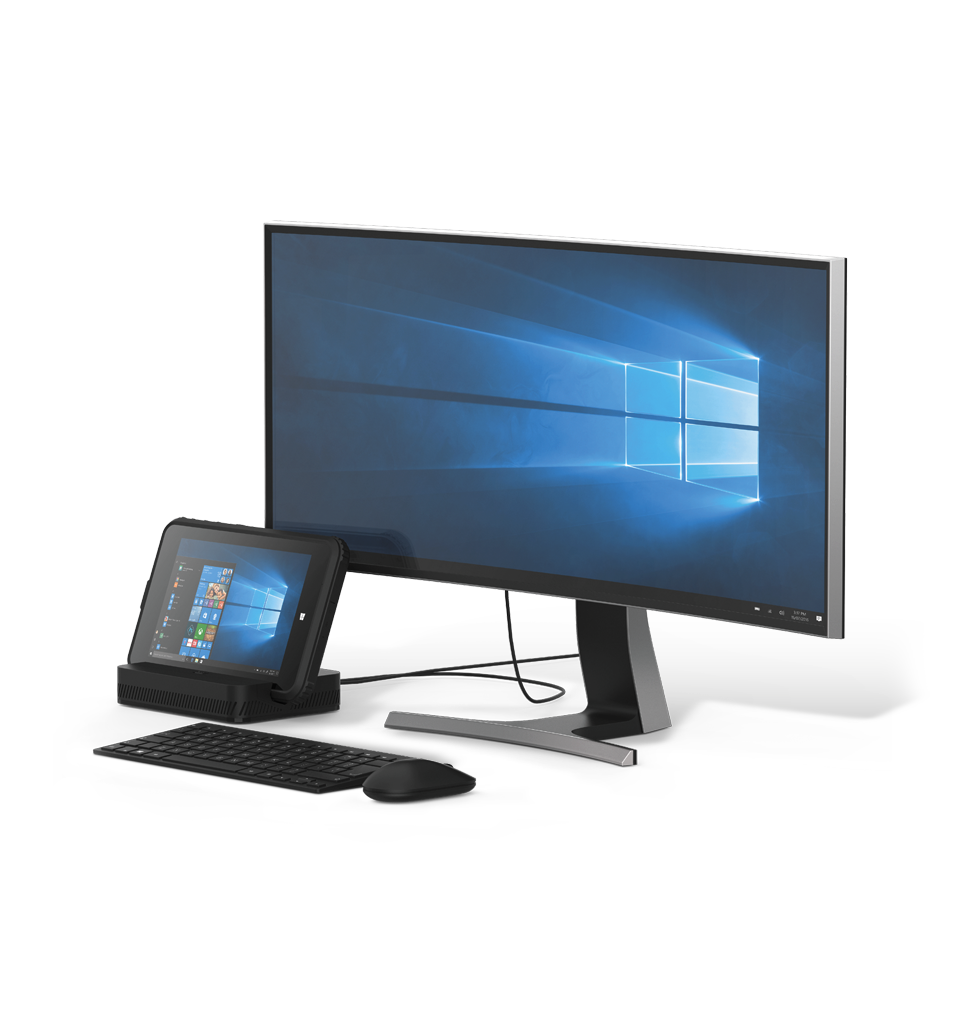

Front view NQuire 800 Plus touch panel computer with computer

NQuire 800 Plus

Touch Panel Computers

Part Number Description EOL date EOM date
NQUIRE800/HS-II PLUS Ruggedized 8" IP67 Windows 10 Tablet 4GB/64GB, WIFI - 3G - BT - GPS - 2D CMOS engine Incl. Stylus pen with lanyard, OTG cable, Handstrap and multi plug adapter. 3/1/2022 3/1/2027

Published on:

The following products will be discontinued at set dates due to having better alternatives or outdated technology.

Recommendation of Alternative Product:

NQuire 750 Stingray II

EOL date: product discontinuation date, the last day of accepting order for this product.

EOM date: service & support discontinuation date, the last day of providing software upgrade, parts & repair service for this product.

Designed to be used in a variety of extreme environments, the NQuire 800 Plus is the perfect tablet to withstand everything that your business can throw at it. Powered by a 64-bit Quad-Core Intel. processor and Windows 10 Pro, the NQuire 800 Plus brings seamless integration into your business systems whilst remaining a viable budget-conscious solution. The tablet has been designed specifically to enhance the efficiency of your business workforce and mobilise your teams ready to keep in touch with the ever-evolving landscape that modern businesses now operate in.

Features

  • Integrated barcode scanner.
    With built-in barcode scanners, look to the NQuire 800 Plus as the perfect solution for your business. Work faster, more efficiently and more effectively.
  • Impact protection.
    Rigorously designed and drop tested up to 1.2M, the NQuire 800 Plus is protected from accidental bumps with reinforced edge and corner protection.
  • IP67 Certified.
    For complete peace-of-mind, IP67 certification ensures that the device is dust proof and can be submerged into water up to 1 meter for 30 minutes.
  • Connectivity assured.
    Always keep connected wherever your team is based with Bluetooth 4.0, a 3G micro-SIM card slot and Wi-Fi 802.11 ac/a/b/g/n connectivity. GPS tracking lets your team use location-based apps for increased accuracy and security wherever they are.
  • Easy-hold hand strap.
    The NQuire 800 Plus easy-hold hand strap has a fully removable back plate that securely screws into the tablets main body. With 360-degree rotation, users can position their tablet in either vertical or horizontal orientation for ease of use.
  • Built-in Stylus.
    A discreet built-in capacitive stylus provides precision navigation and is designed to aid the function of any workforce.

Technical Specifications

  • Data Capture
    1D All major 1D symbologies, including Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC / EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey.
    2D All major 2D symbologies, including PDF417, Data Matrix ECC200 / 000 / 050 / 080 / 100 / 140, QR Code.
  • Performance
    Current Operating System 64Bit Windows 10 Pro
    Memory Flash 64GB
    Memory RAM 4GB
    Memory Storage Expansion (max.) Up to 128GB (supports SDHC/SDXC cards)
    Processor 1.44 GHz up to 1.92 GHz, 64-Bit Quad Core; Chip: Intel Atom® x5-Z8350
  • Physical
    Audio Jack 3.5mm earphone jack
    Battery Type 8000 mAh Lithium-polymer
    Current @ 9VDC Operating 700 mA (typical), 1.7 A (max)
    Current @ 9VDC Standby 45 mA (typical), 75 mA (max)
    Dimensions 235(W) x 147(D) x 22(H) mm
    Display 8” IPS (800 x 1280), luminance: 380cd/m2(typical value), contrast ratio: 600:1(min), 800:1(typical), view angle 1°~ 179°
    Expansion Slot Up to 128GB (supports SDHC/SDXC cards)
    Expected Battery Life 5-7 hours; 250 Hours Standby
    Front camera 5 MP, Auto focus
    Interfaces Micro USB
    Keypad 2 keys
    Power over Ethernet 802.3 af
    Sensors Gravity Sensor, Acceleration sensor
    Video HD (1280 x 720) @ 30FPS
    Weight 875 g
  • Wireless
    GPS GPS, GLONASS
    WLAN RADIO 802.11 ac/a/b/g/n, 2.4Ghz and 5Ghz, WEP, WPA2-Personal AES, WPA2-Enterprise AES, 8-2.11x WEP with EAP method PEAP, EAP-SIM, EAP-TTLS
    WPAN RADIO Bluetooth 4.0
    WWAN RADIO 3G Micro SIM (3FF); Band 900 / 2100 MHz
  • Environmental
    Drop 1.2 m
    IP Rating IP67
    Operating Temperature -5°C to 40°C (23˚F to 104˚F)
    Storage Temperature -20°C to 60°C (-4°F to 140°F)
  • Certifications
    Certifications Hardware IEC 60825, IEC2, FDA II, EN 60825-1
  • Warranty
    Warranty Standard 2 Years
  • Accessories
    Accessories Standard Hand strap, Power adapter, Stylus, USB - OTG cable

  • Suggested industries

    • placeholder Field Service & Utilities

Documents

Available Versions

Part Number Description
NQUIRE800/HS-II PLUS Ruggedized 8" IP67 Windows 10 Tablet 4GB/64GB, WIFI - 3G - BT - GPS - 2D CMOS engine Incl. Stylus pen with lanyard, OTG cable, Handstrap and multi plug adapter.
