NQuire 1500 Mobula
Touch Panel Computers
-
15.6" screen
-
1D & 2D
-
Android 7.1
-
Bluetooth 4.1
-
Camera
-
I/O Ctrl
-
IP54
-
Megapixel
-
Ndevor
-
PoE
-
SD
-
USB
-
WIFI
| Part Number | Description | EOL date | EOM date |
|---|---|---|---|
| NQUIRE1500PRW-0C | NQuire 1500 Mobula Customer information terminal with 15,6" Touch screen, BT, Wi-Fi & POE. Incl. wall mount bracket and multiplug adapter. (no scanner) OS: Android 7.1 | 4/18/2024 | 4/18/2029 |
| NQUIRE1500PRW-7C | Nquire 1500 Mobula Customer information terminal with 15,6" Touch screen, 2D Megapixel scanner, BT, Wi-Fi & POE. Incl. wall mount bracket and multiplug adapter. OS: Android 7.1 | 4/18/2024 | 4/18/2029 |
Published on:
The following products will be discontinued at set dates due to having better alternatives or outdated technology.
Recommendation of Alternative Product:
NQuire 1500 Mobula IIEOL date: product discontinuation date, the last day of accepting order for this product.
EOM date: service & support discontinuation date, the last day of providing software upgrade, parts & repair service for this product.

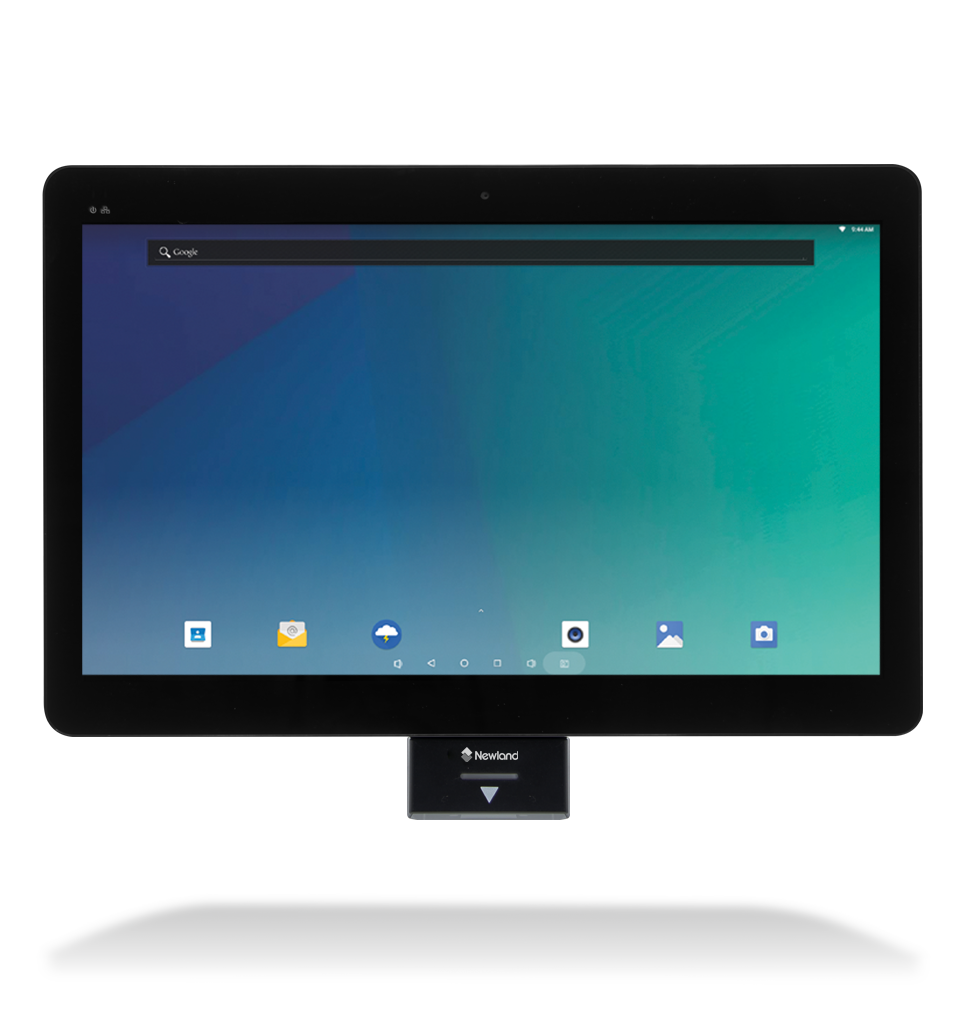

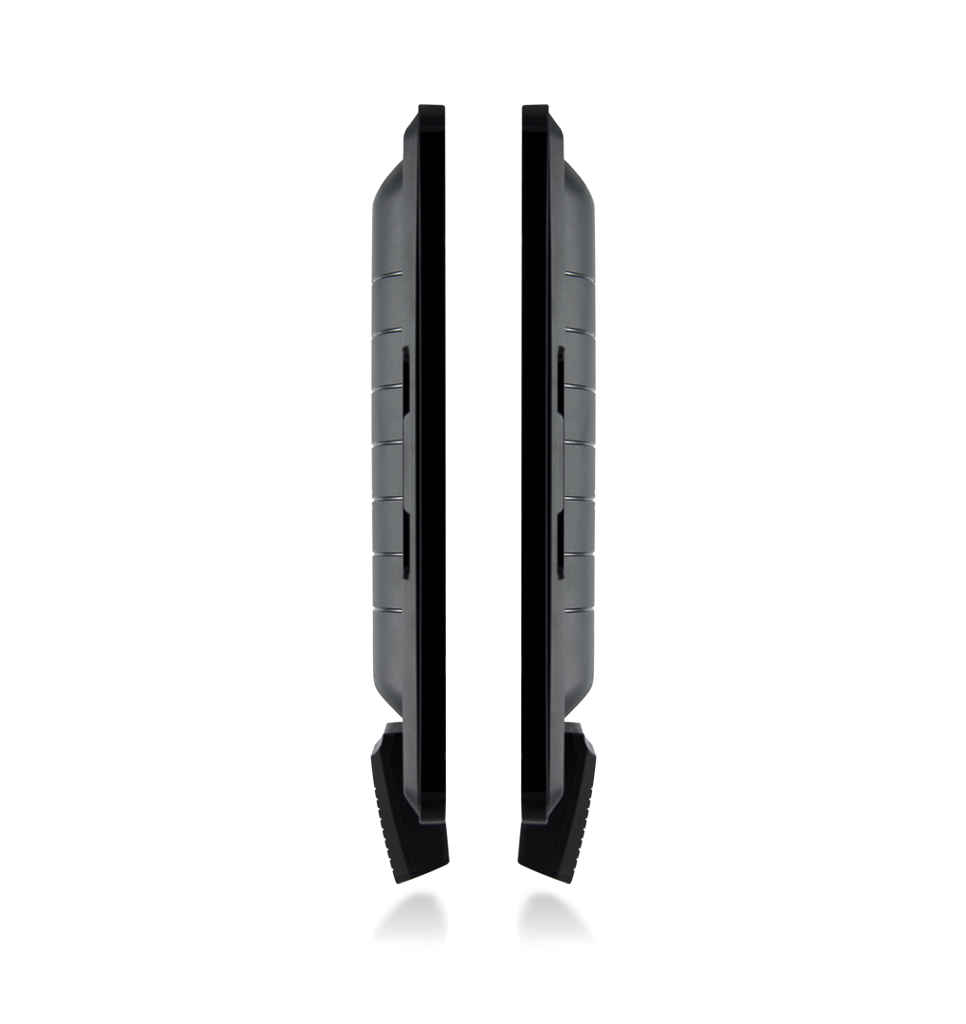

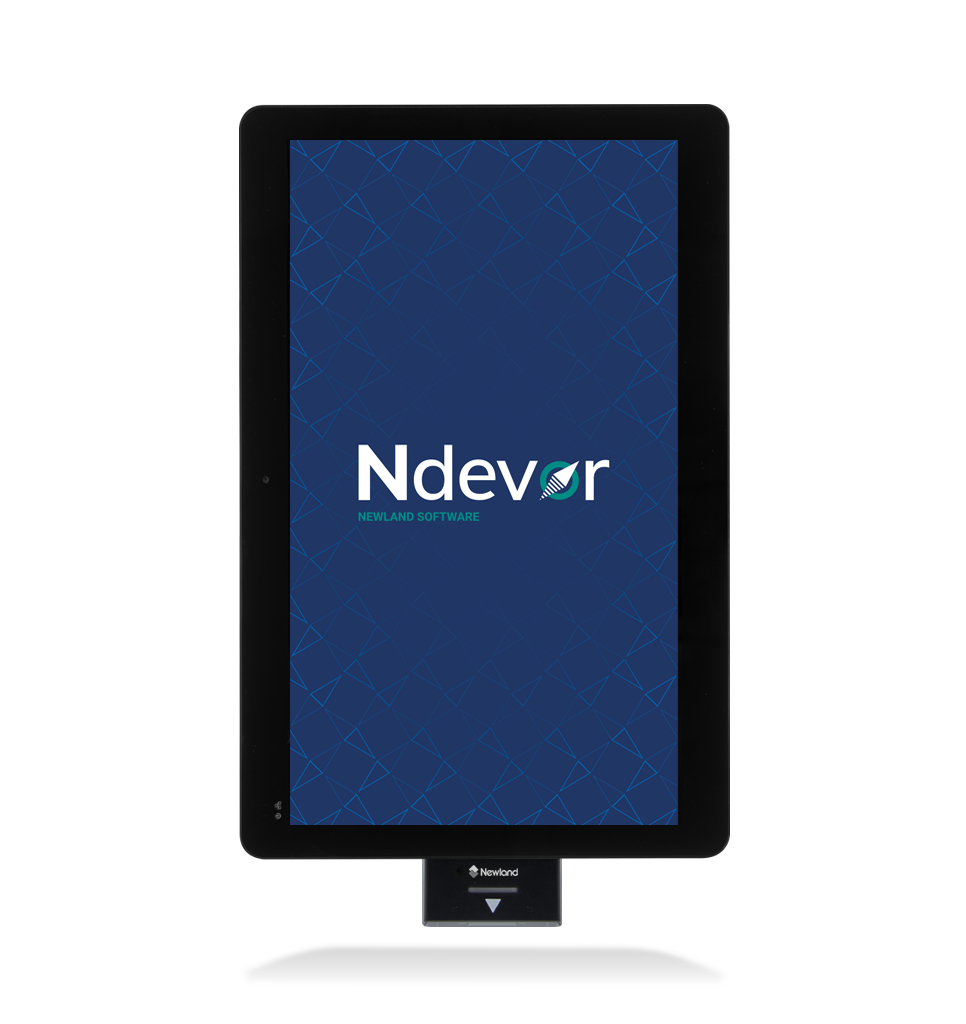

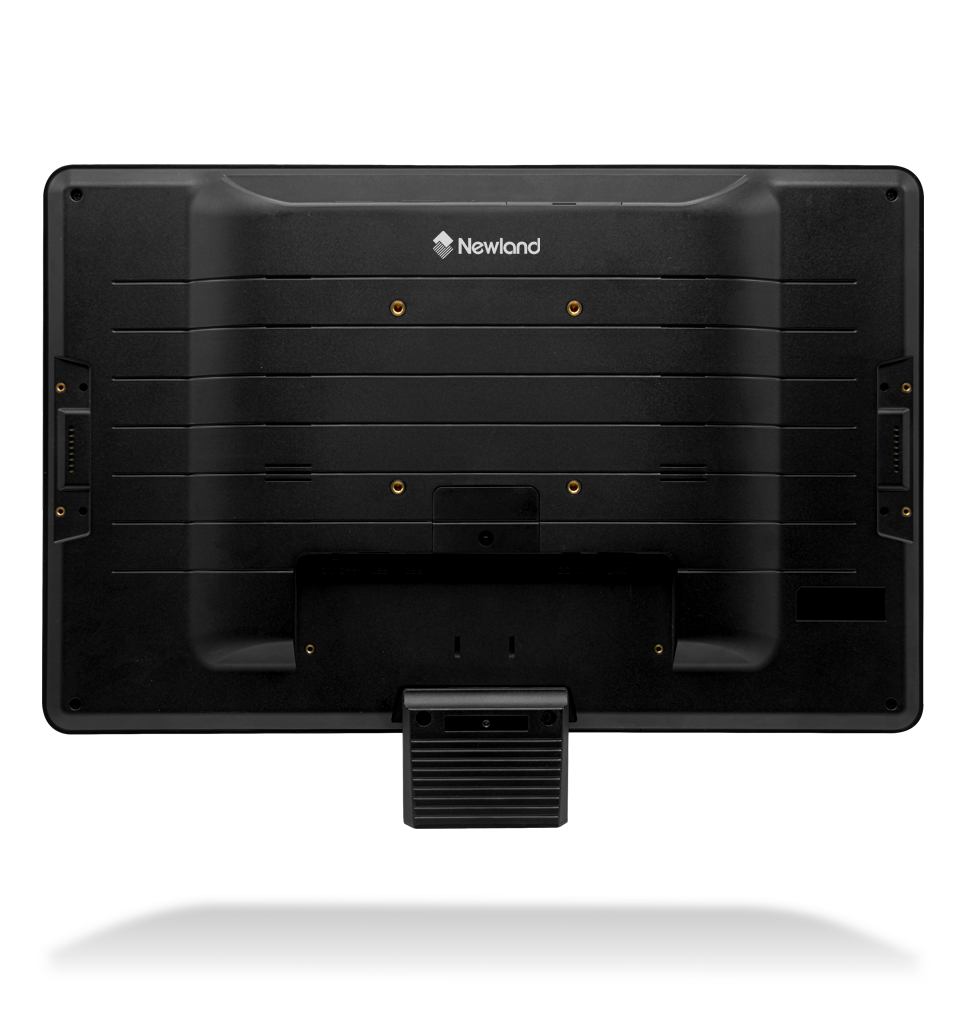

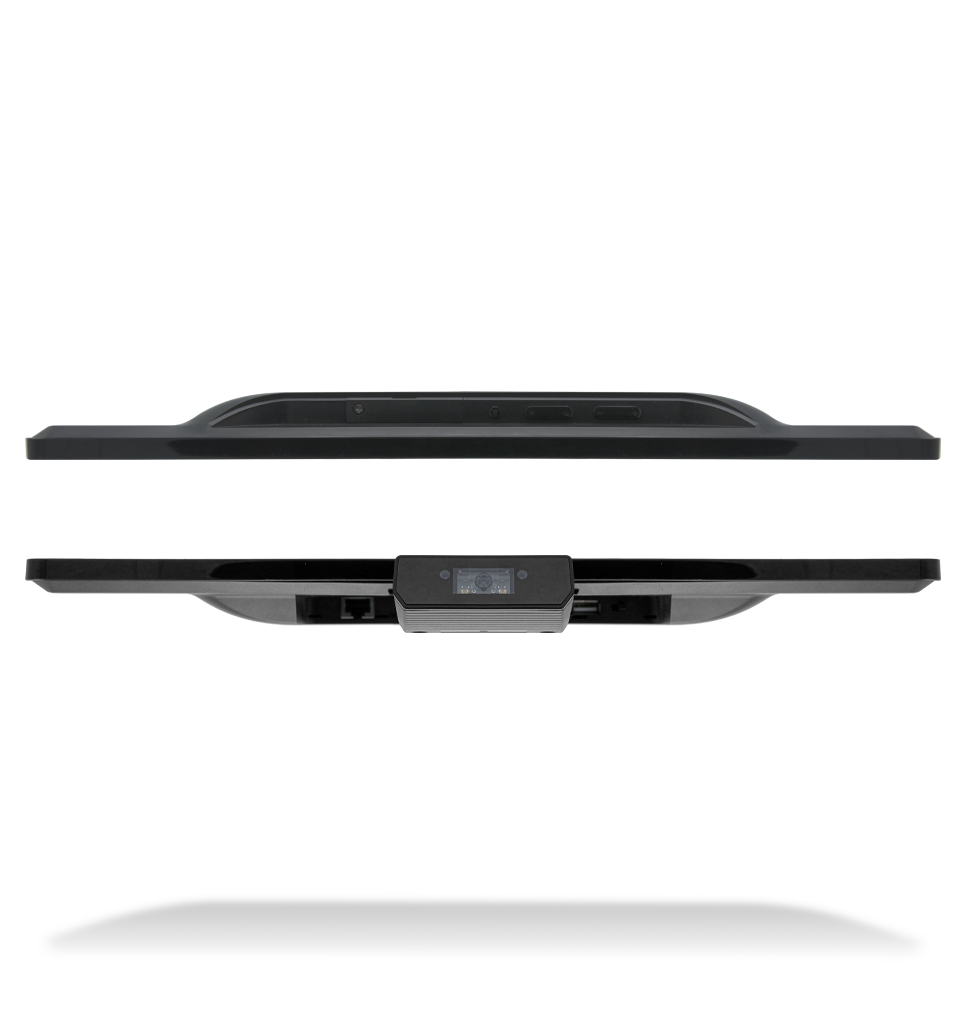

The NQuire 1500 Mobula enables a slimmer profile with a larger screen design. Equally neat and lightweight, it suits most mounting needs without compromising valuable space. The larger screen lends itself to more detail or larger fonts and images that make data more visible and readable.
Features
-
Android OS.
The NQuire 1500 Mobula runs on an Android 7.1 OS. With this reliable operating system comes a feature-rich environment for stable apps that are tried and tested. Android 7.1 is an excellent match for the applications most suited to the NQuire 1500. Particularly when operating within four walls, fitting the NQuire 1500’s Power over Ethernet (PoE) connectivity. -
Free MDM included.
The NQuire 1500 Mobula comes with the option of running Newland’s free MDM solution: Ndevor. As a result, the Micro Kiosk lends itself perfectly to the coordination of multiple units. Managing information from a shared database, organizing applications and settings across many individual units, as well as low-touch assistance in troubleshooting can all be managed from a centralized location. -
Mount anywhere.
The NQuire 1500 Mobula’s slim and lightweight design is suitable for mounting in various scenarios. Options to mount the Nquire series range from wall to free-standing. Its classic Vesa75 configuration also ensures that existing holders from 3rd parties can be used. -
Snappy Megapixel Scanning.
Barcode data capture is at the heart of Newland’s Micro Kiosks. The NQuire 1500 is fitted with its own Megapixel scanning technology. This maintains high standards for the scanning of both large and small 1D & 2D barcodes. The Micro Kiosk further includes optimal settings for reading barcodes presented on smartphone and tablet screens. With the scanner set at a 20° angle, it matches the ergonomics of how the user presents codes for scanning. -
Multi-purpose display.
The sharp, full-colour screen on the NQuire 1500 Mobula is perfect for running animations and live recorded videos when it is not being actively used. With onboard memory, expanded memory and online options, the choice of content to display is virtually limitless. -
Endless communication and data capture possibilities.
With WiFi, Ethernet (PoE support) and Bluetooth, this Micro Kiosk offers a variety of standard communication possibilities.
Technical Specifications
-
Data Capture
1D All major 1D symbologies 2D All major 2D symbologies Aiming Laser diode (625±10nm) Illumination White LED (625±10nm) Image Sensor 1280 x 800 CMOS Scan Modes Sense Mode Scan Rate 60 frames per second -
Performance
Current Operating System Android 7.1 Memory Flash 8GB Emmc Memory RAM 2GB DDR3 Processor RK3288, ARM Cortex-A53; up to 1.5 GHz -
Physical
Audio Microphone, Integrated speakers 80(1.3W) Battery Type No main battery, RTC clock battery Buttons (Vol+/ Vol-)/ (Up / Down)/ Exit / Power switch Dimensions 380.35(W) x 283.64(D) x 27.7(H) mm Display 15.6" IPS (1920 x 1080), brightness 250cd/m2, backlight LED Expansion Slot 1 x MicroSDHC class 10 compatible Front camera 5 MP, Fixed focus Housing Plastic Input Voltage 12 VDC ±5% Interfaces Micro USB 2.0, USB 2.0, OTG, RJ-45, DC head Keypad 6 keys Power over Ethernet RJ45 Ethernet, 10/100/1.000BASE-T Power Supply Output DC12 V, 2 A Sensors Gravity Sensor Touch Panel 5 points capacitive touchscreen VESA standard Complies with the standard VESA 75 bracket, enabling easy mounting on shelves and walls Video H.264 real-time video playback 1080P@30fps display Weight 1,315 g -
Wireless
WPAN RADIO Bluetooth 4.1 -
Environmental
Humidity 5% to 95% (non-condensing) IP Rating IP54 (front only) Operating Temperature -10°C to 50°C (14°F to 122°F) Storage Temperature -20°C to 60°C (-4°F to 140°F) -
Software
Configuration Tools Ndevor MDM (certified) Ndevor, SOTI Terminal Emulation (compatible) Ivanti Velocity -
Certifications
Certifications Hardware FCC, RoHS, CE -
Warranty
Warranty Standard 2 Years -
Accessories
Accessories Optional Desktop stand Vesa75 Accessories Standard Power adapter, Wall mount bracket Vesa75
-
Suggested industries
-
Retail
-
Hospitality & Leisure
-
Healthcare
-
Field Service & Utilities
-
Available Versions
| Part Number | Description |
|---|---|
| NQUIRE1500PRW-0C | NQuire 1500 Mobula Customer information terminal with 15,6" Touch screen, BT, Wi-Fi & POE. Incl. wall mount bracket and multiplug adapter. (no scanner) OS: Android 7.1 |
| NQUIRE1500PRW-7C | Nquire 1500 Mobula Customer information terminal with 15,6" Touch screen, 2D Megapixel scanner, BT, Wi-Fi & POE. Incl. wall mount bracket and multiplug adapter. OS: Android 7.1 |
