Front view NQuire 1000 Manta II touch panel computer
Back view NQuire 1000 Manta II touch panel computer
Side views NQuire 1000 Manta II touch panel computer
Top and bottom views NQuire 1000 Manta II touch panel computer

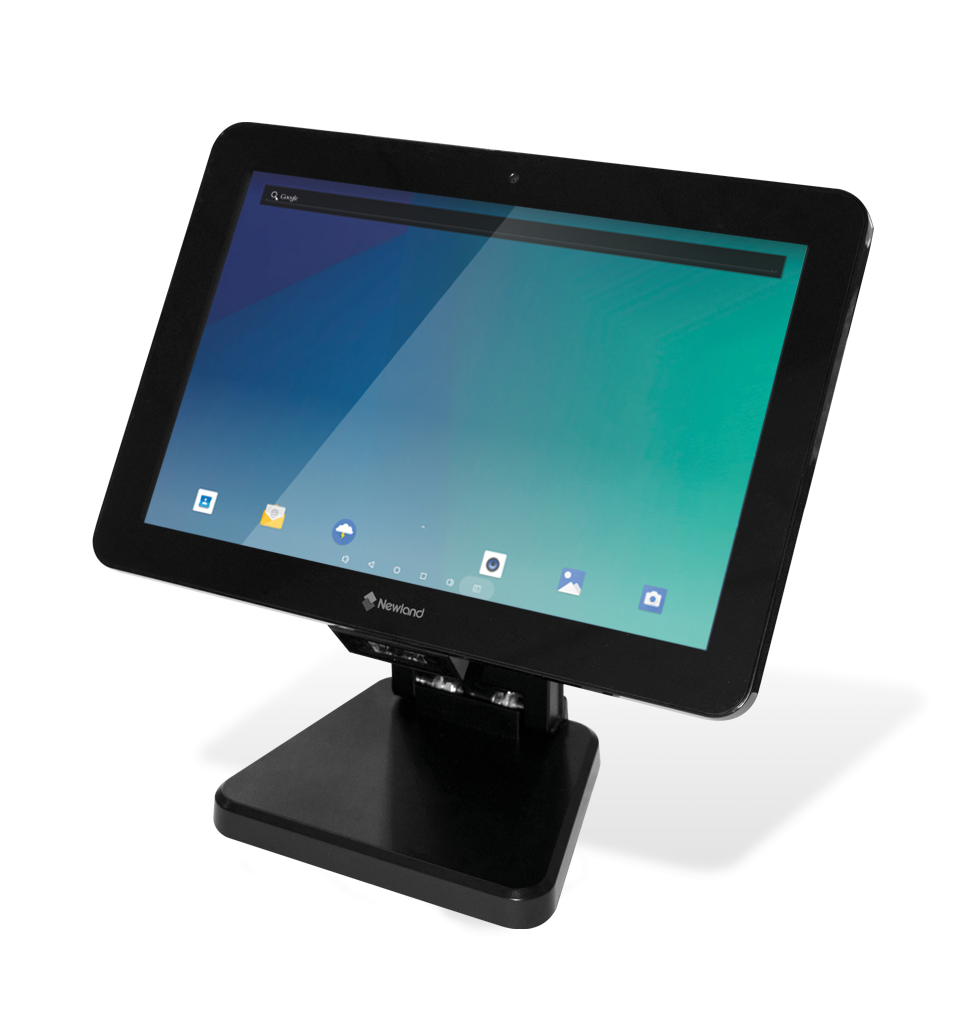

Perspective view NQuire 1000 Manta II touch panel computer with stand

NQuire 1000 Manta II

Touch Panel Computers

Part Number Description EOL date EOM date
NQUIRE1000PRW-0C NQuire 1000 Manta II Customer information terminal with 10" Touch Screen, 5MP front camera, BT, WiFi and POE. Incl. wall mount bracket and multiplug adapter. (No scanner). OS: Android 7.1. 3/3/2026 3/3/2031
NQUIRE1000PRW-4C NQuire 1000 Manta II Customer information terminal with 10" Touch Screen, 2D CMOS Mega Pixel imager with Laser Aimer (CM6x), 5MP front camera, BT, WiFi and POE. Incl. wall mount bracket and multiplug adapter. OS: Android 7.1. 3/3/2026 3/3/2031

Published on:

The following products will be discontinued at set dates due to having better alternatives or outdated technology.

Recommendation of Alternative Product:

NQuire 1000 Manta III

EOL date: product discontinuation date, the last day of accepting order for this product.

EOM date: service & support discontinuation date, the last day of providing software upgrade, parts & repair service for this product.

The NQuire 1000 Manta II is armed with Newland’s CM6x, our powerful 2D megapixel barcode scanner. The engine has a 20 degree scan angle for comfortable scanning of larger products. The Manta is also available without a scanner.

Features

  • Fully functioning CIT system.
    With Octa-Core Cortex-A53 CPU up to 1.5GHz.
  • Easy to install and use anywhere.
    Ideally suited for shelf mounting or on-counter usage in department stores, supermarkets, small grocery stores, pharmacy/cosmetic stores, tobacco kiosks and more.
  • Snappy reading performance.
    Armed with Newland’s CM6x, 2D megapixel barcode scanner. The engine has a 20 degree scan angle for comfortable scanning of larger products. Also, available without a scanner.
  • Easily build applications.
    The NQuire 1000 Manta II is built on Android 7.1, allowing for easy development of custom applications, tailored to your needs.
  • Highly customizable with a broad range of features.
    Dual band WiFi, Bluetooth embedded, front 5Mp camera, POE, speaker.
  • Variety of accessories.
    The NQuire 1000 Manta II offers a variety of optional accessories, including a Foldable desktop stand, VESA magnetic shelf stand and VESA wall mount. Additionally, optional modules for 4G, MSR, NFC and low frequency RFID help extend and tailor communication and data capture possibilities even further. Modules can only be ordered pre-mounted to the connector on the left or right side.

  • Certifications

Technical Specifications

  • Data Capture
    1D All major 1D symbologies
    2D All major 2D symbologies
    Aiming Laser diode (625±10nm)
    Illumination White LED (625±10nm)
    Image Sensor 1280 x 800 CMOS
    Scan Modes Sense Mode
    Scan Rate 60 frames per second
  • Performance
    Current Operating System Android 7.1
    Memory Flash 8GB Emmc
    Memory RAM 2GB DDR3
    Processor RK3368, octa-core Cortex-A53; up to 1.5 GHz , PowerVR G6110 GPU; up to 600MHZ
  • Physical
    Audio Integrated speakers 80(1.3W)
    Audio Jack 3.5mm earphone jack
    Buttons (Vol+ / Vol-) / (Up / Down) / Exit / Power switch
    Dimensions 252(W) × 184(D) × 33(H) mm
    Display 10.1” WXGA (1280 x 800), TFT LCD display
    Expansion Slot SD card
    Front camera 5 MP
    Housing PC, ABS
    Input Voltage 12 VDC ±5%
    Interfaces USB-A, USB 2.0, GPIO
    Keypad 6 keys
    Pogo Pin 2x POGO-Pin connector
    Power over Ethernet RJ45 Ethernet, 10/100/1.000BASE-T
    Power Supply Input 12 VDC (2 A)
    Power Supply Output AC100 to 240 V (50 to 60 Hz)
    Sensors Gravity Sensor
    Touch Panel 10 points capacitive touchscreen
    VESA standard Metal Fitting mounting screw holes: 75*75 mm
    Video MKV, TS, FLV, AVI, VOB, MPG, DAT, ASF, RM, MOV, 3GP, MP4, WMV
    Weight 615 g
  • Wireless
    RFID Optional
    WLAN RADIO IEEE 802.11 b/g/n/ac (2.4G), IEEE 802.11 a/b/g/n/ac (5G)
    WPAN RADIO Bluetooth 4.1
  • Environmental
    Humidity 5% to 95% (non-condensing)
    IP Rating IP54 (front only)
    Operating Temperature -10°C to 50°C (14°F to 122°F)
    Storage Temperature -20°C to 60°C (-4°F to 140°F)
  • Software
    Configuration Tools Ndevor
    MDM (certified) Ndevor, SOTI, Airwatch
    Terminal Emulation (compatible) Ivanti Velocity
  • Certifications
    Certifications Hardware FCC, RoHS, CE
  • Warranty
    Comprehensive Service Contract 3 Years, 5 Years
    Warranty Extension +1 Year, +3 Years
    Warranty Standard 2 Years
  • Accessories
    Accessories Optional Multiplug adapter, Desktop stand Vesa75, Wall mount bracket Vesa75, MSR reader module, NFC reader module, 4G module, RFID low frequency reader module
    Accessories Standard Multiplug adapter, Wall mount bracket Vesa75

  • Suggested industries

    • placeholder Retail
    • placeholder Hospitality & Leisure
    • placeholder Healthcare
    • placeholder Field Service & Utilities

Documents

Accessories

Available Versions

Part Number Description
NQUIRE1000PRW-0C NQuire 1000 Manta II Customer information terminal with 10" Touch Screen, 5MP front camera, BT, WiFi and POE. Incl. wall mount bracket and multiplug adapter. (No scanner). OS: Android 7.1.
NQUIRE1000PRW-4C NQuire 1000 Manta II Customer information terminal with 10" Touch Screen, 2D CMOS Mega Pixel imager with Laser Aimer (CM6x), 5MP front camera, BT, WiFi and POE. Incl. wall mount bracket and multiplug adapter. OS: Android 7.1.
