Why choose the N1?
- High performance compact scan engine with integrated USB and RS232 TTL interfaces
- 6th Generation UIMG technology for excellent scanning
- Power efficient that it's perfect for mobile applications that run on battery

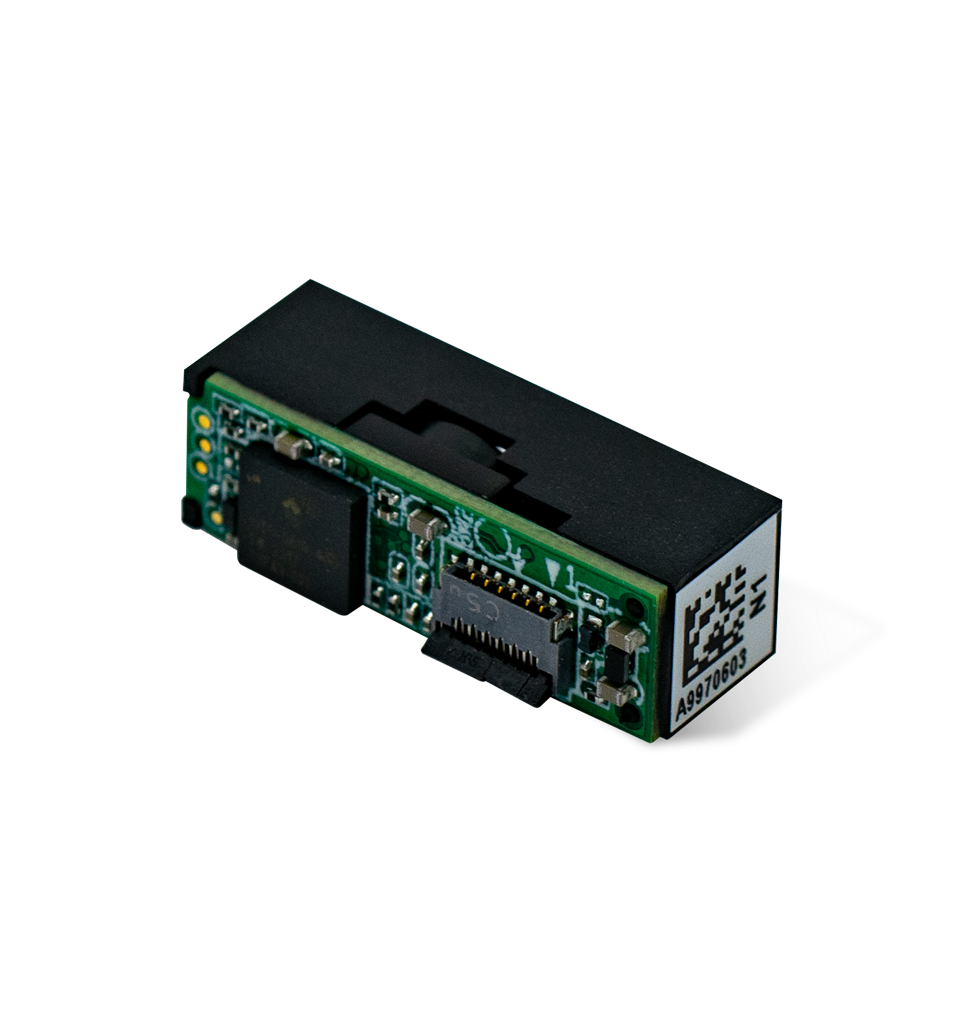

The N1 showcases some of Newland’s most impressive OEM technology. At only 21.5 x 9 x 7mm, it stars as our smallest scan engine to date, without compromising on performance. Armed with 6th generation UIMG scanning technology, its accuracy and speed are optimal, even for otherwise hard-to-read 1D and 2D barcodes.
Small in size and strong in performance.
Features
-
Our Smallest Engine Yet.
By decoding via an embedded chip instead of a separate processor, Newland has packed impressive scanning speed and performance into a compact design. At only 21.5 x 9 x 7mm, the N1 is the slimmest solution in the range. Its dressed down design offers both great value and a sleek integration when space is limited. -
Newland’s 6th Generation UIMG technology.
The N1 is armed with Newland’s latest scanning technology, including our new decoder chip 0610. By leveraging our own technology, Newland has further perfected the engine’s overall scan performance, supporting all common 1D, 2D and Aztec codes. -
Outstanding Power Efficiency.
The N1 can aim, illuminate and decode barcodes while drawing as little current from the host device as possible. It prolongs battery life compared to like-for-like scanners, as well as offering an eco-conscious solution. This makes it the ideal choice for portable solutions. -
Long Barcode Support.
The N1’s wide scan angle and versatile depth of field ensures a successful scan in nearly all situations and settings. The engine particularly excels at decoding long barcodes up close, often a prime requirement in ticket validation inside of a printer of other types of housing. -
EasySet Configuration.
The N1 is compatible with our master configuration software EasySet. Built for Windows OS, this software helps simplify the process of testing and deploying configurations as well as updating the firmware.
Technical Specifications
-
Data Capture
1D All major 1D symbologies, including Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI-Plessey. 2D All major 2D symbologies, including PDF417, QR Code, Micro QR, Data Matrix, Aztec. Aiming Red LED (625nm) Depth of Field Code 39 (5mil) 40 mm - 150 mm Depth of Field DataMatrix (10mil) 45 mm - 120 mm Depth of Field EAN 13 (13mil) 60 mm - 350 mm Depth of Field PDF417 (6.67mil) 50 mm - 125 mm Depth of Field QR (15mil) 30 mm - 170 mm Field of View Horizontal 42° Field of View Vertical 31.5° Illumination White LED (5000K) Image Sensor 640 x 480 CMOS Minimal Print Contrast 25% Resolution ≥3mil Scan Angle Pitch ±60° Scan Angle Roll 360° Scan Angle Skew ±60° -
Performance
Decoder ASIC (0610) -
Physical
Current @ 3.3VDC Operating 138 mA (typical) Current @ 3.3VDC Sleep < 0.3mA Current @ 3.3VDC Standby 11.8 mA Dimensions 21.5(W) x 9.0(D) x 7.0(H) mm Input Voltage 3.3 VDC ±5% Interfaces USB, TTL-232 Power Consumption 456 mW (typical) Weight 1.2 g -
Environmental
Ambient Light 0 to 100,000 lux (natural light) Humidity 5% to 95% (non-condensing) Operating Temperature -20°C to 55°C (-4°F to 131°F) Storage Temperature -40°C to 70°C (-40°F to 158°F) -
Software
Configuration Tools EasySet -
Certifications
Certifications Hardware RoHS 2.0, CE EMC Class B, FCC Part15 Class B, IEC 62471 -
Warranty
Warranty Standard 2 Years -
Accessories
Accessories Optional USB cable, RS-232 cable, Software development board Accessories Standard 75mm flexible flat cable (FFC)
-
Suggested industries
-
Retail
-
Healthcare
-
Transportation & Logistics
-
Field Service & Utilities
-
Configurations & Drivers
Links
Available Versions
| Part Number | Description |
|---|---|
| NLS-N1 | 2D CMOS Area Imager, Standard, CMOS 640 x 480 , All-in-one, Newland Decoderchip 0610, TTL-232/USB interface with FFC (flexible flat cable), white Illumination, LED Aimer, small footprint, low power consumption |
