Front view SD55 Lynx UHF mobile computer

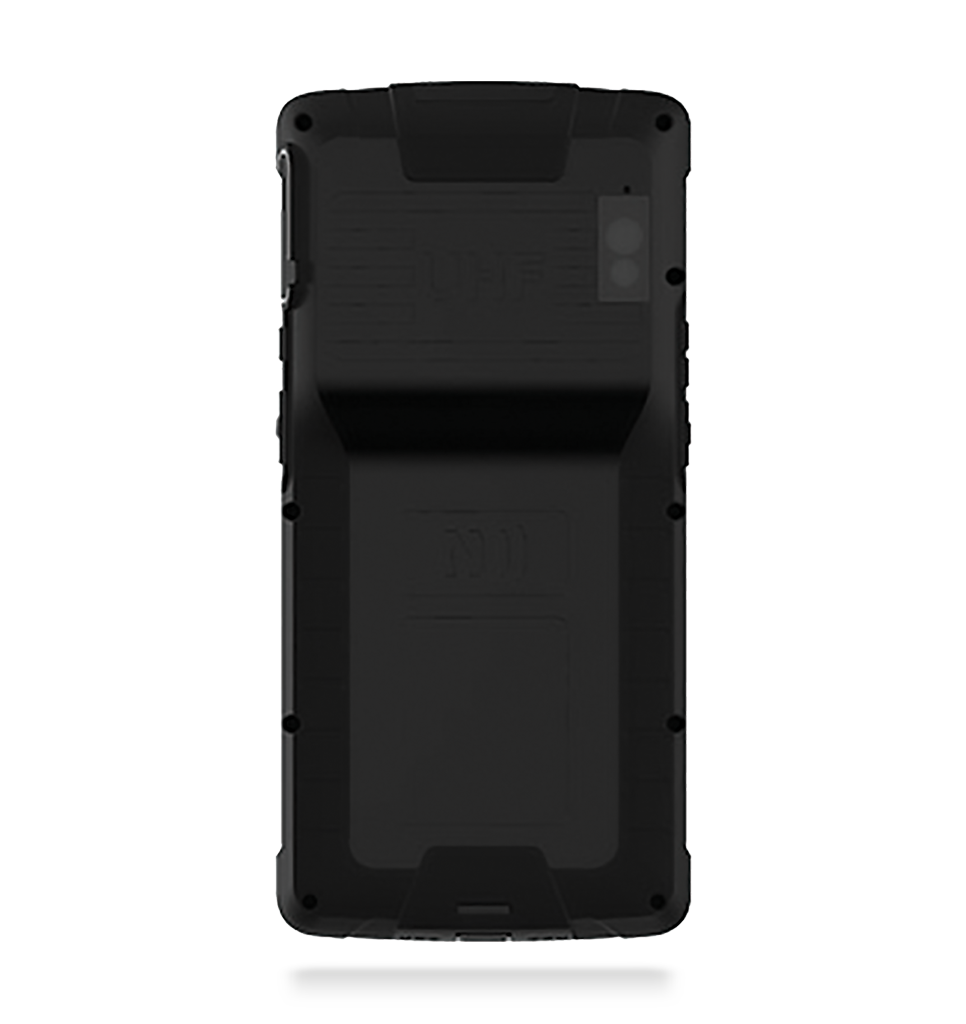

Back view SD55 Lynx UHF mobile computer

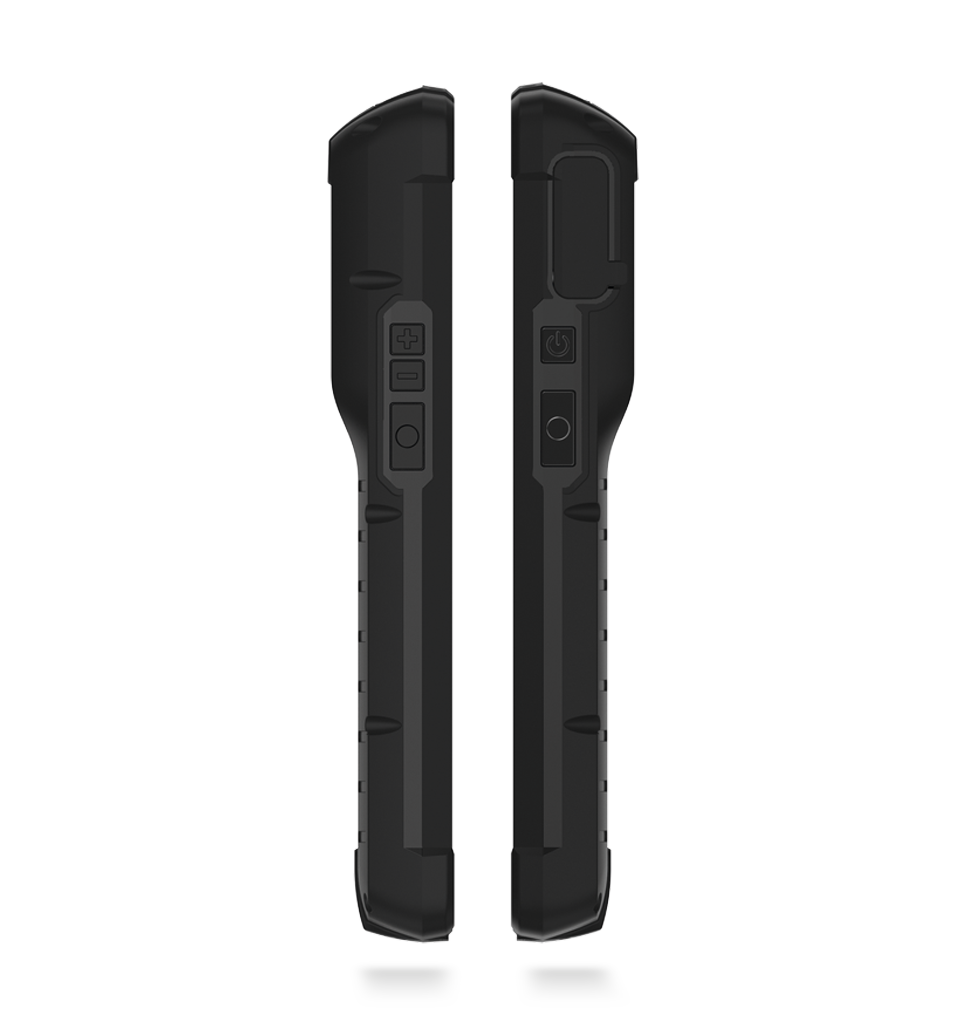

Side views SD55 Lynx UHF mobile computer

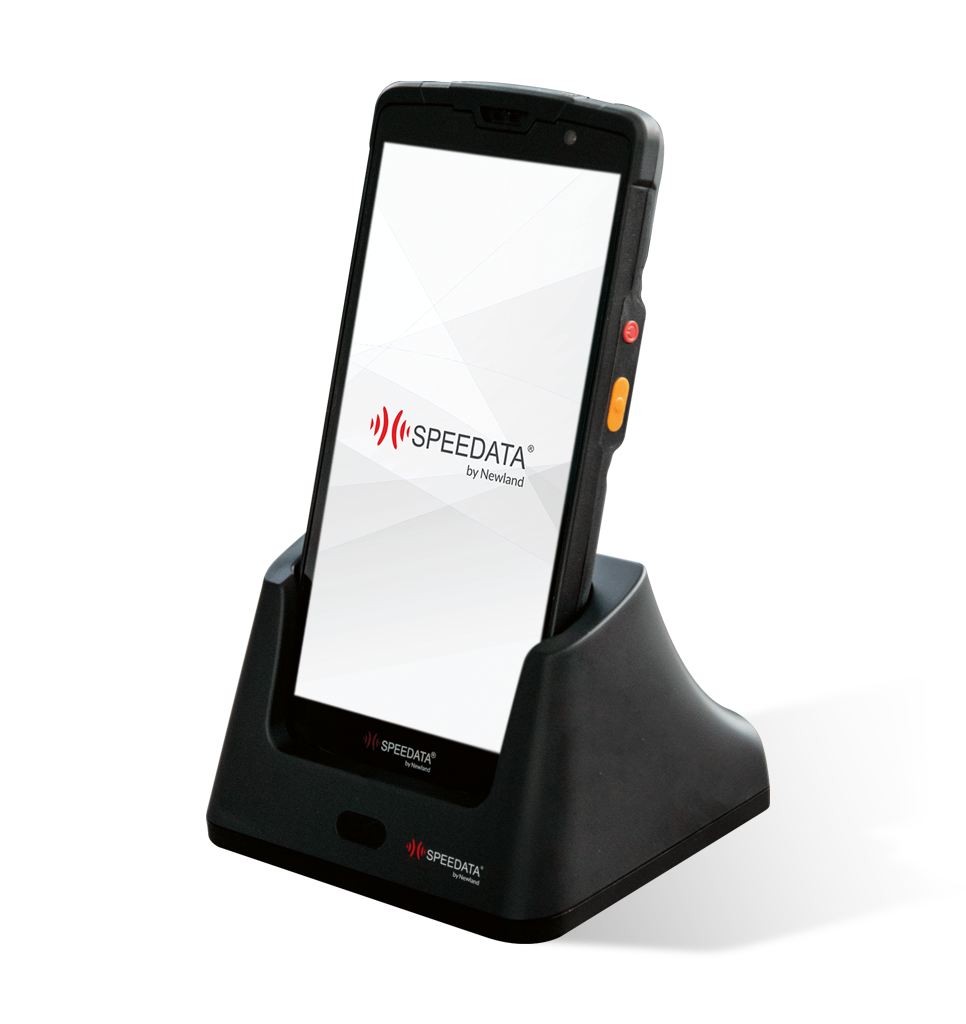

Perspective view SD55 Lynx UHF mobile computer in cradle

SD55 Lynx UHF

Mobile Computers

Part Number Description EOL date EOM date
SD55UHF-C 5,5” Mobile computer 2Ghz 4GB/64GB, 2D CMOS imager with Laser Aimer, BT, WiFi, 3G/4G, GPS, NFC, UHF and Camera (OS Android 8.1). Incl. USB cable, charging cradle and multiplug adapter (Lynx). 5/27/2024 5/27/2029
SD55UHF-EU-BI-C "5,5” Mobile computer 2Ghz 2GB/16GB, 2D CMOS imager with Laser Aimer, BT, WiFi, 3G/4G, GPS, NFC, EU UHF, BID support and Camera (OS Android 8.1). Incl. USB cable, charging cradle and multiplug adapter (Lynx). 5/27/2024 5/27/2029

Published on:

The following products will be discontinued at set dates due to having better alternatives or outdated technology.

Recommendation of Alternative Product:

MT93 Megattera Pro UHF

EOL date: product discontinuation date, the last day of accepting order for this product.

EOM date: service & support discontinuation date, the last day of providing software upgrade, parts & repair service for this product.

With its capacitive touchscreen and Android 8.1 operating system, the SD55 Lynx UHF is everything you’ve asked for in a mobile computer, and more. Equipped with a UHF Antenna, this device can easily scan hard-to-reach areas of your stockroom.

Features

  • Supports.
    1D and 2D barcodes.
  • Software.
    Built on Android 8.1.
  • Display.
    5.5 inch (1440 x 720) 5 point capacitive touch screen.
  • Processor.
    Octa core 2.0GHz CPU.
  • Memory.
    4GB RAM and 64GB ROM memory.
  • Offers.
    Wi-Fi 802.11 a/b/g/n (2.4GHz & 5GHz) dual frequency, camera, NFC, GSM, WCDMA.
  • Accessories.
    Supplied with cradle.

Technical Specifications

  • Data Capture
    1D Auspost, Bpo, Canpost, Codabar, Code11, Code128, Code32, Code39, Code93, Dutchpost, Ean13, Ean8, Ean128, Int25, Isbt, Iata25, Japost, Msi, Ocr, Planet, Postnet, Strt25, Tlc39, Trioptic, Upca, and Upce
    2D Aztec, Codablock, Code49, Composite, Datamatrix, Maxicode, Micropdf, Pdf417, Qr, and Rss
  • Performance
    Current Operating System Android 8.1
    Memory Flash 64GB
    Memory RAM 4GB
    Processor 2.0 GHz octa-core
  • Physical
    Audio Front dual stereo speakers, Volume 90db±3db (test distance 10cm)
    Battery Type 5800 mAh
    Buttons Volume keys, function keys (1 left, 1 right), power key
    Dimensions 150(W) x 72.5(D) x 15(H) mm
    Display 5.5" (1440 x 720), IPS highlight screen
    Expansion Slot Micro SD card slot
    Expected Charge Time PE fast charging, full charge time < 4h
    Front camera 5 MP, Full focus
    Interfaces USB-C, OTG
    Keypad 5 keys
    Notifications LED, Vibration, Sound
    Rear camera 13 MP, Auto focus, High brightness LED flash
    Sensors G-sensor, Proximity sensor, COMPASS, Ambient light sensor
    SIM/TF 2 Nano SIM card slots
    Touch Panel 5 points capacitive touchscreen
    Weight 290 g (with battery)
  • Wireless
    GPS GPS, BD, GLONASS
    NFC ISO14443A/B, ISO15693
    NFC: Reading Distance 0 to 5 cm
    RFID ISO14443A/B, ISO15693, NFC reading distance: 0 to 5cm; UHF: ISO18000-6C, Euro frequency (865MHz - 867MHz), Antenna: 1.5dBi ceramic antenna, Power: working voltage 3.6-5V,RF output 5dBm to 30dBm(1W), 1dbm adjustable, Standby power consumption: about 0.25W, maximum 4W(typical 3.5W), Identification range: indoor >5m, outdoor open environment >3m, Group read rate: >30 tags per second, Inventory speed: >30 tags/sec
    WLAN RADIO IEEE 802.11 a/b/g/n 2.4G 5G dual frequency
    WPAN RADIO Bluetooth 4.1, BLE
    WWAN RADIO FDD-LTE B1/B3/B7, TDD-LTE B38/B39/B40/B41, TDSCDMA B34/B39, WCDMA B1/B2/B5/B8, GSM B2/B3/B5/B8, CDMA1x/CDMA2000 BC0
  • Environmental
    Drop 1.5 m
    Electro Static Discharge (ESD) ±8 kV (contact discharge), ±15 kV (air discharge)
    Humidity 5% to 95%
    IP Rating IP65
    Operating Temperature -20°C to 55°C (-4°F to 131°F)
    Storage Temperature -30°C to 70°C (-22°F to 158°F)
  • Certifications
    Certifications Hardware FCC, CCC, CE
  • Warranty
    Warranty Standard 2 Years

  • Suggested industries

    • placeholder Retail
    • placeholder Transportation & Logistics
    • placeholder Warehousing & Distribution
    • placeholder Field Service & Utilities

Available Versions

Part Number Description
SD55UHF-C 5,5” Mobile computer 2Ghz 4GB/64GB, 2D CMOS imager with Laser Aimer, BT, WiFi, 3G/4G, GPS, NFC, UHF and Camera (OS Android 8.1). Incl. USB cable, charging cradle and multiplug adapter (Lynx).
SD55UHF-EU-BI-C "5,5” Mobile computer 2Ghz 2GB/16GB, 2D CMOS imager with Laser Aimer, BT, WiFi, 3G/4G, GPS, NFC, EU UHF, BID support and Camera (OS Android 8.1). Incl. USB cable, charging cradle and multiplug adapter (Lynx).
