HR42 Halibut HD Corded
Industrial Handheld Scanners
-
1.8m drop
-
1D & 2D
-
Acuscan
-
Coiled cable
-
DPM
-
Dual Interface
-
HD
-
IP42
-
Megapixel
-
Nset
-
Warranty 5 Years
| Part Number | Description | EOL date | EOM date |
|---|---|---|---|
| NLS-HR4280-H5 | 2D CMOS Handheld Reader Mega Pixel, High Density (Black surface) with 3 meter coiled USB cable. Autosense, smart stand ready. | 8/1/2024 | 8/1/2029 |
| NLS-HR4280-H8 | 2D CMOS Handheld Reader Mega Pixel, High Density (Black surface) with 2 meter RS232 cable and multiplug adapter. Autosense, smart stand ready. | 8/1/2024 | 8/1/2029 |
Published on:
The following products will be discontinued at set dates due to having better alternatives or outdated technology.
Recommendation of Alternative Product:
NVH220 Lophius CordedEOL date: product discontinuation date, the last day of accepting order for this product.
EOM date: service & support discontinuation date, the last day of providing software upgrade, parts & repair service for this product.

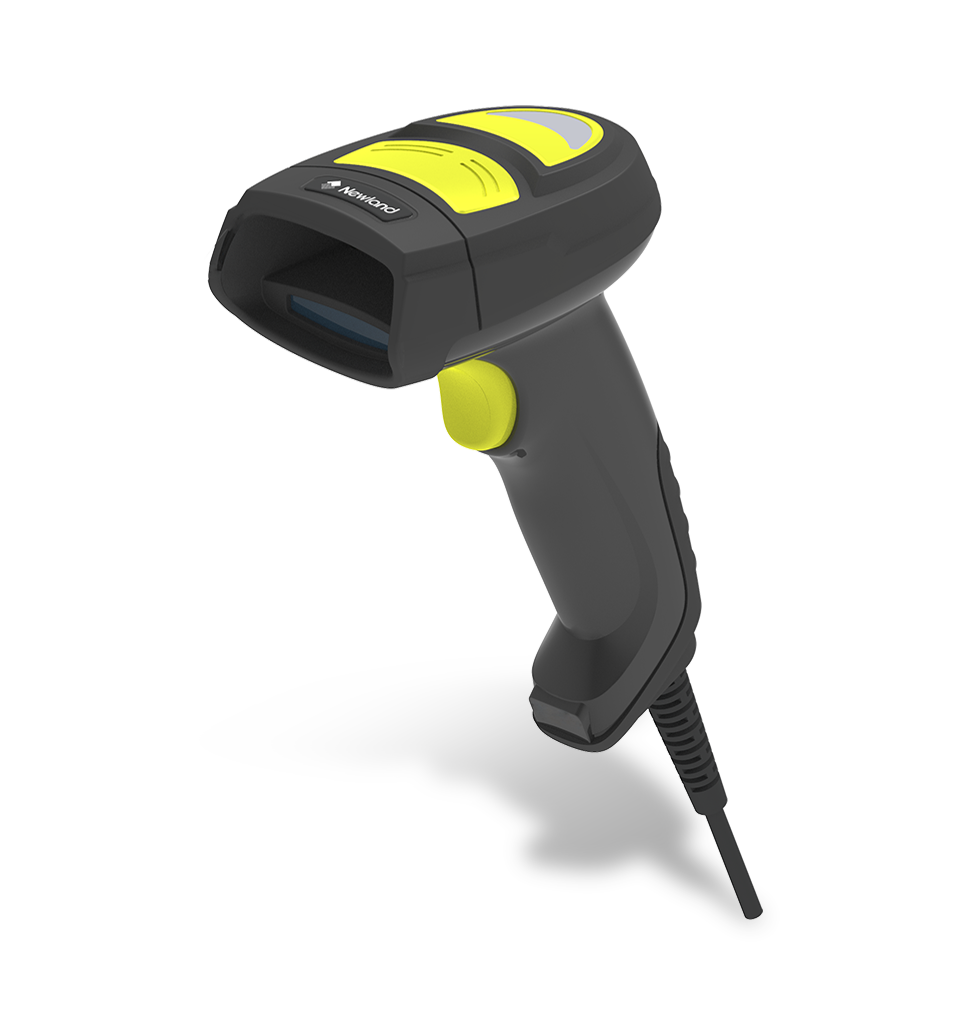

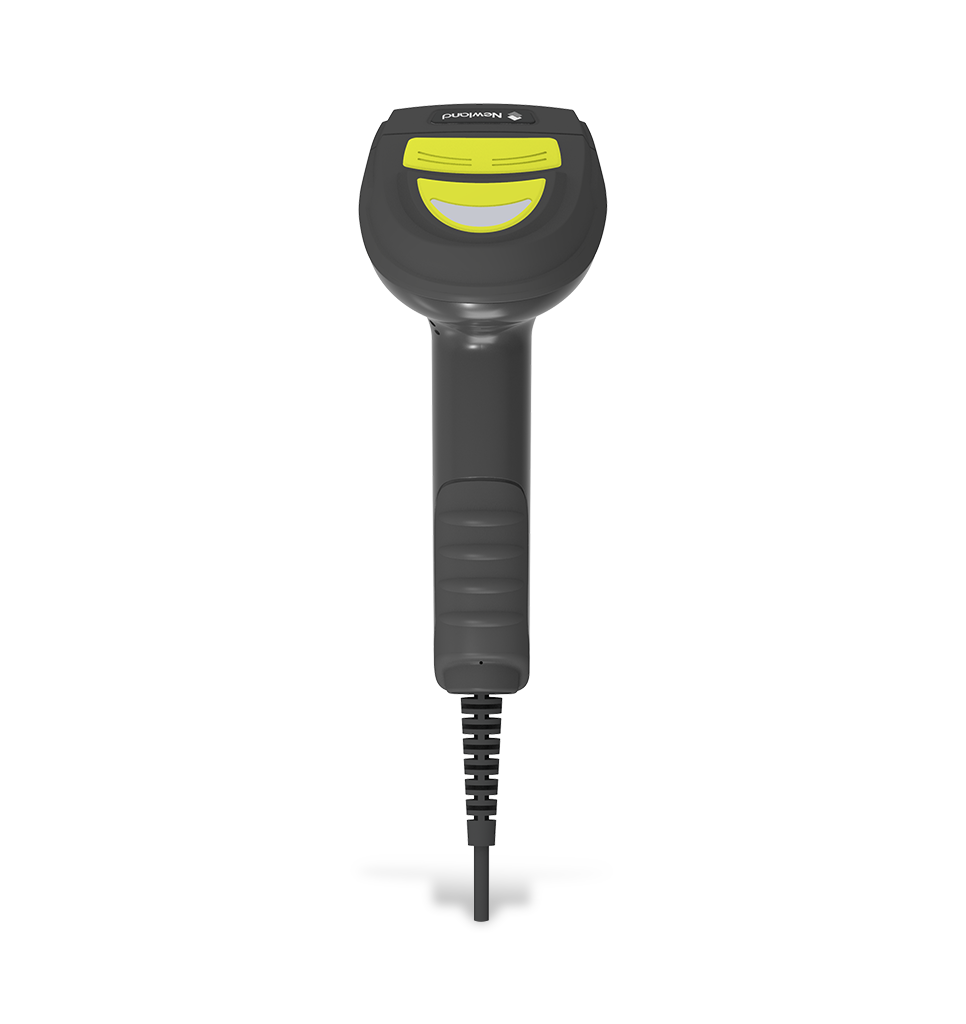

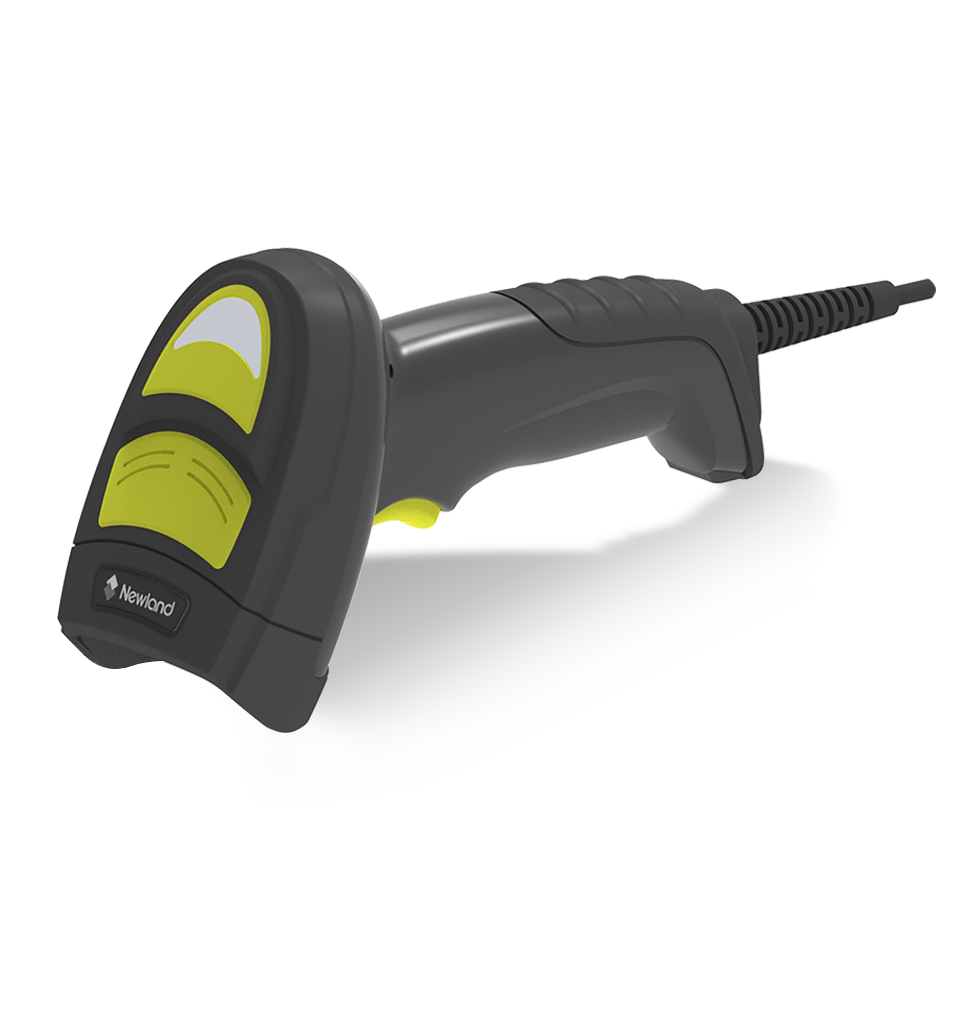

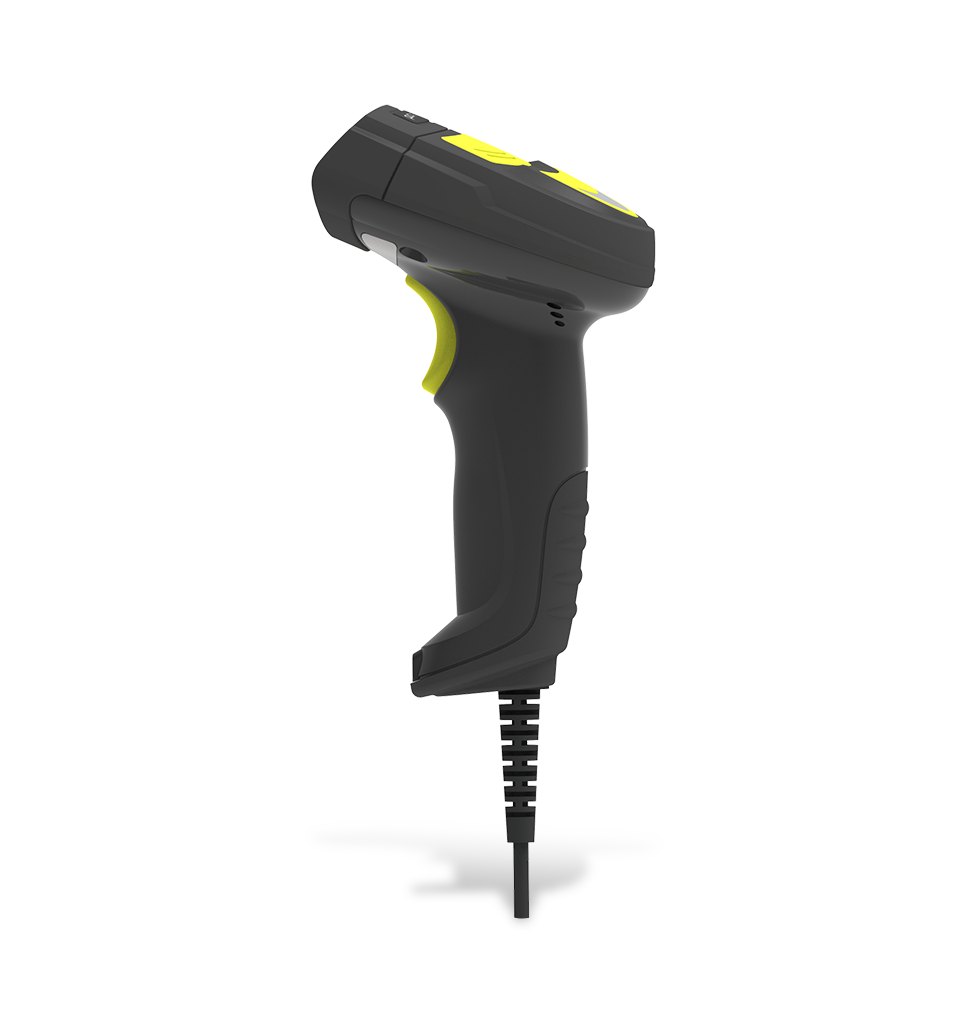

Designed and built to raise the bar, the HR42 Halibut HD Corded handheld scanner provides maximized performance and a reliable rugged exterior. With its megapixel camera, the handheld scanner achieves an entirely new level of performance that allows it to scan virtually every 1D and 2D barcode printed on paper, plastic and metal, as well as a range of direct part marks (DPMs).
Features
-
Scan virtually any barcode.
Streamline and optimize your production line with the HR42 Halibut HD Corded. Using advanced technology, the device enhances the scanning of virtually every 1D and 2D barcode printed on paper, plastic and metal, as well as a range of direct part marks (DPMs). -
Unrivaled performance.
With its megapixel camera, the HR42 Halibut HD Corded raises the bar for handheld scanners. It is able to read small, dense barcodes and damaged barcodes faster and more accurately, ensuring maximum productivity no matter what. -
User-friendly aiming technology.
Designed with the end user in mind, the HR42 Halibut HD Corded has a crisp and accurate laser aimer for point-and-shoot scanning. -
Rock-solid architecture.

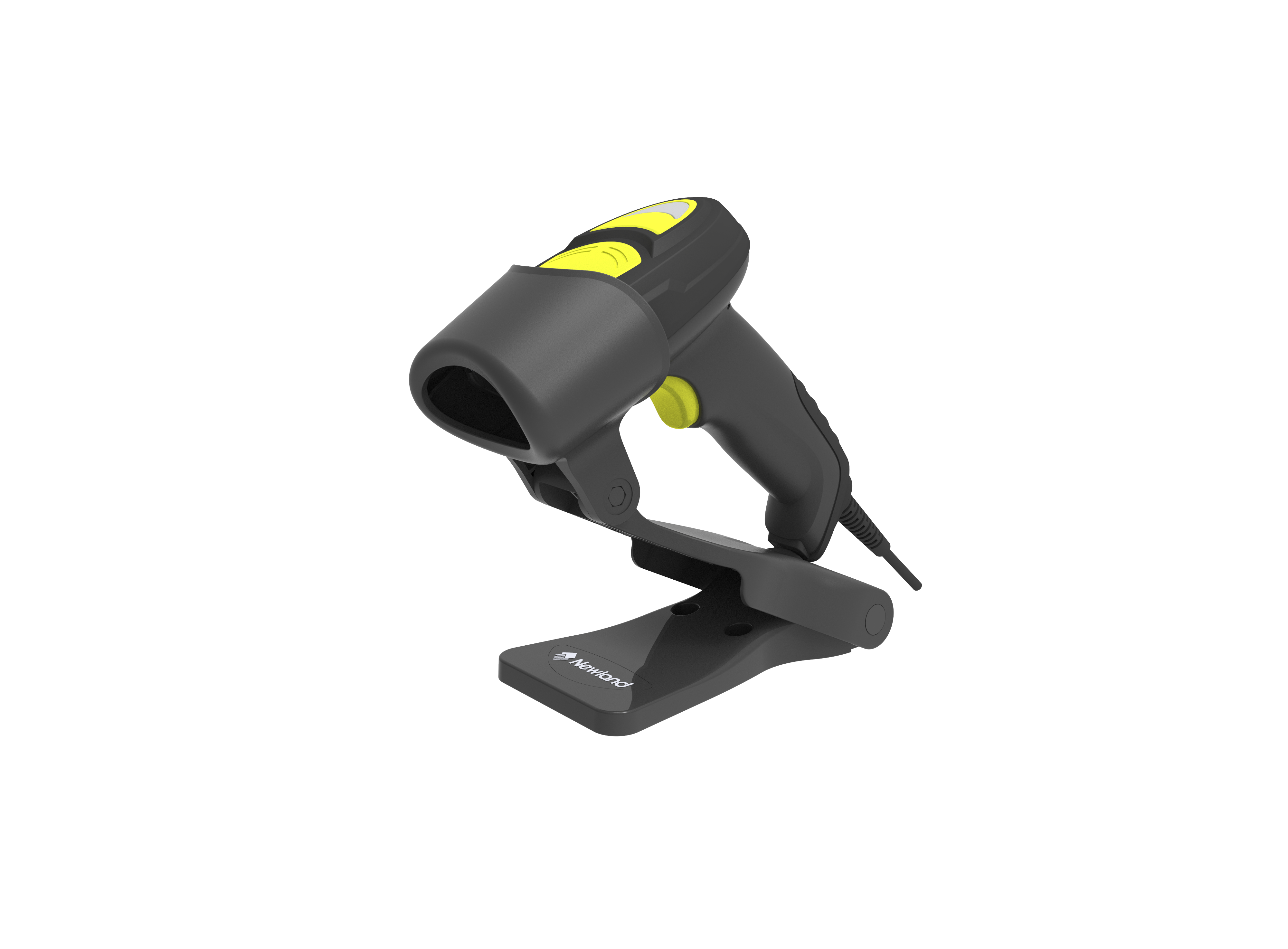

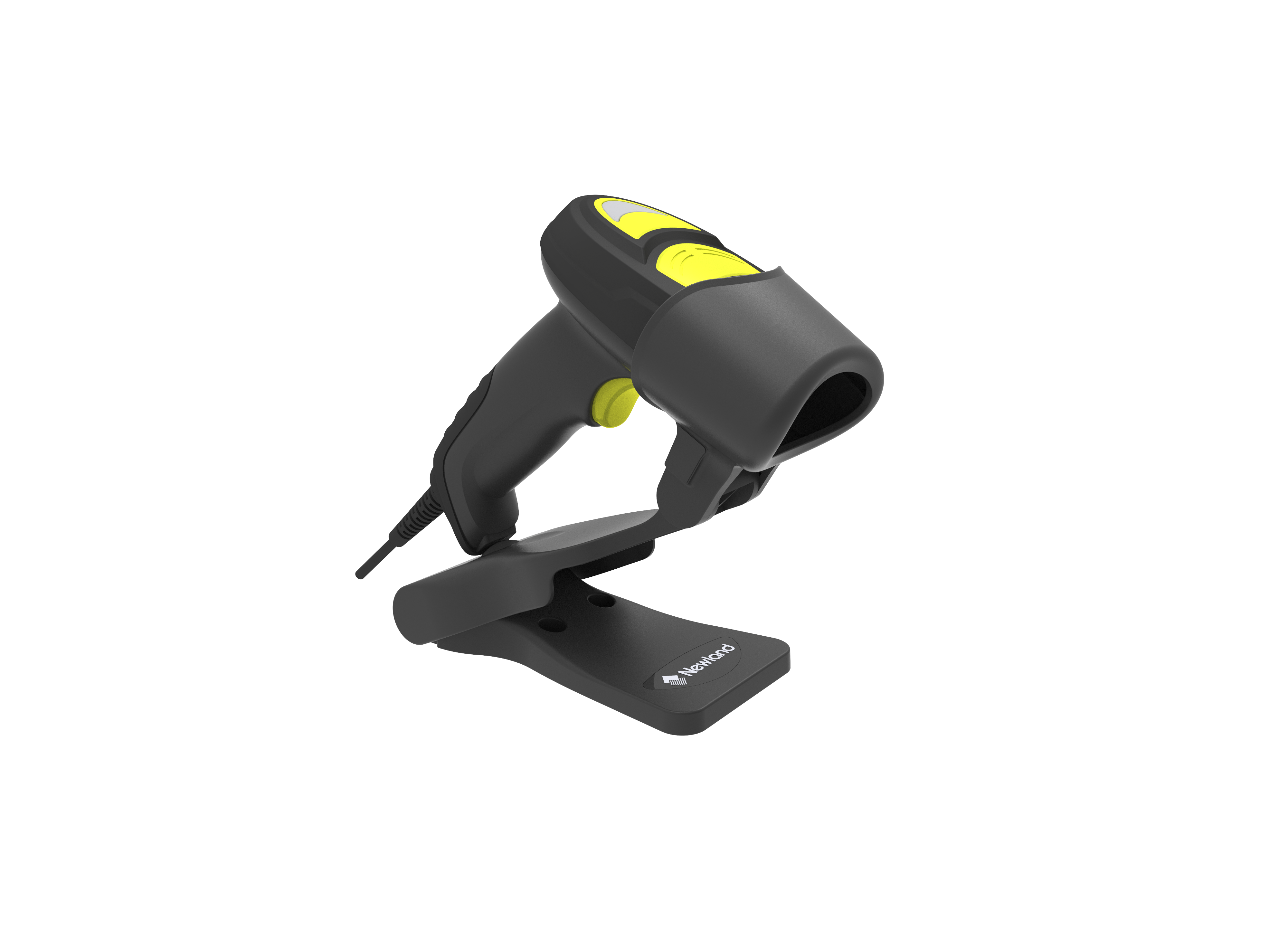

Your employees can confidently use the Halibut HD Corded all day everyday due to its drop resistant housing (1.8m). Designed for light industrial environments, the Halibut gets the job done, even if they bump or drop it. Available with auto-sense stand for hands-free applications. -
Application scenarios.
Light-industrial applications, including electronic assembly, production line, healthcare, postal and financial.
Technical Specifications
-
Data Capture
1D All major 1D symbologies, including EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey. 2D All major 2D symbologies, including PDF417, QR Code, Data Matrix, Aztec, Maxicode. Aiming Laser diode (650nm) Depth of Field Code 39 (5mil) 50 mm - 100 mm Depth of Field DataMatrix (10mil) 40 mm - 110 mm Depth of Field EAN 13 (13mil) 25 mm - 155 mm Depth of Field PDF417 (6.67mil) 40 mm - 105 mm Depth of Field QR (15mil) 35 mm - 155 mm Field of View Horizontal 40.5° Field of View Vertical 30.4° Illumination White LED Image Sensor 1280 x 960 CMOS Minimal Print Contrast 25% Motion Tolerance 2 m/s Scan Angle Pitch ±50° Scan Angle Roll 360° Scan Angle Skew ±50° Scan Modes Sense Mode, Continuous Mode, Level Mode, Batch Mode Scan Rate 60 frames per second -
Performance
Processor DDR3, 800Mhz -
Physical
Current @ 5VDC Operating 266 mA (typical), 344 mA (max) Current @ 5VDC Standby 109 mA Dimensions 115(W) × 74(D) × 161(H) mm Housing PC, ABS Input Voltage 5 VDC ±5% Interfaces USB, RS-232 Notifications Beep, LED Power Consumption 1251 mW (typical) Power Supply Input 5 VDC (1.5 A) Power Supply Output AC100 to 240 V (50 to 60 Hz) Weight 173 g -
Environmental
Drop 1.8 m Electro Static Discharge (ESD) ±8 kV (direct discharge), ±16 kV (air discharge) Humidity 5% to 95% (non-condensing) IP Rating IP42 Operating Temperature -20°C to 50°C (-4°F to 122°F) Storage Temperature -40°C to 70°C (-40°F to 158°F) -
Software
Configuration Tools NSet -
Certifications
Certifications Hardware IEC 60825-1, CE EMC Class B, FCC Part15 Class B, RoHS, KC -
Warranty
Warranty Standard 5 Years
-
Suggested industries
-
Healthcare
-
Field Service & Utilities
-
Configurations & Drivers
Links
Available Versions
| Part Number | Description |
|---|---|
| NLS-HR4280-H5 | 2D CMOS Handheld Reader Mega Pixel, High Density (Black surface) with 3 meter coiled USB cable. Autosense, smart stand ready. |
| NLS-HR4280-H8 | 2D CMOS Handheld Reader Mega Pixel, High Density (Black surface) with 2 meter RS232 cable and multiplug adapter. Autosense, smart stand ready. |
