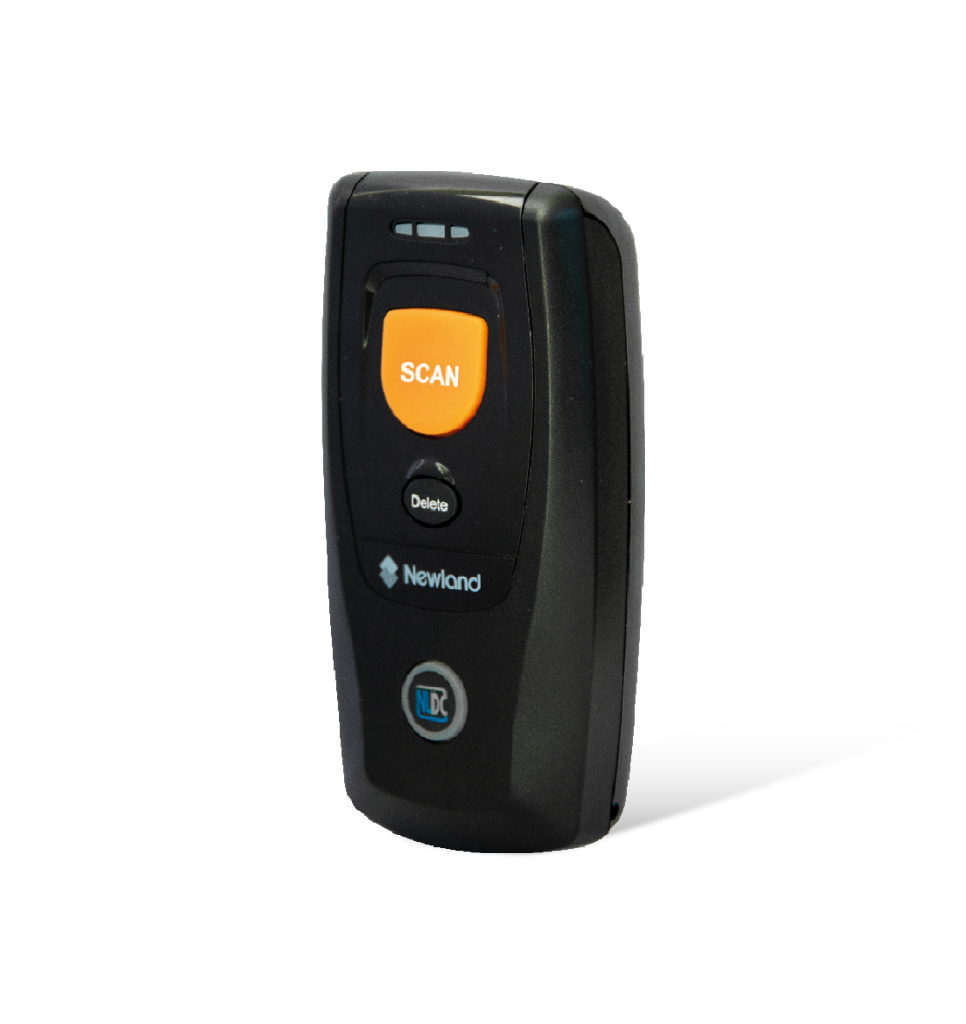

Perspective view BS8060 Piranha handheld scanner

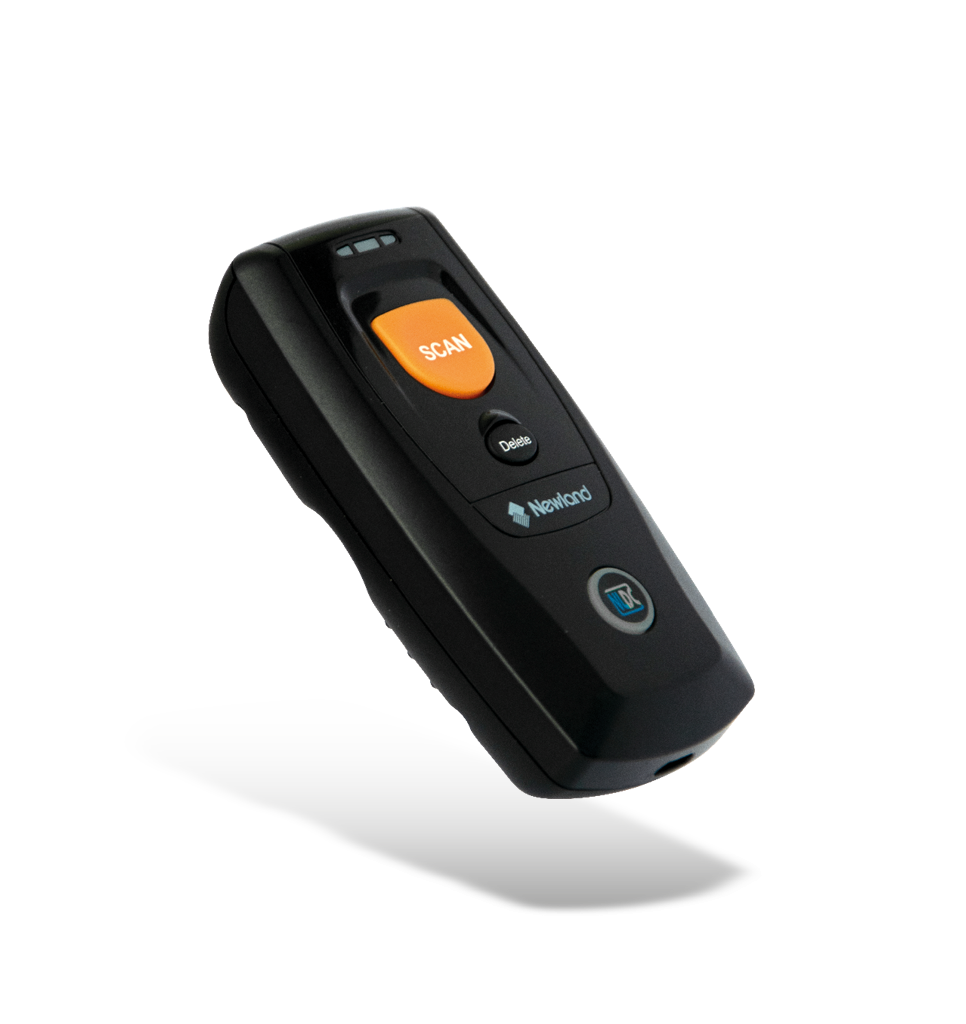

Perspective side view BS8060 Piranha handheld scanner

BS8060 Piranha

General Purpose Handheld Scanners

Part Number Description EOL date EOM date
NLS-BS8060-2T BS8060 2D CMOS Bluetooth scanner, reads both 1D and 2D barcodes (QR Code included). Supports Apple iOS, Android & Windows devices. BT class 1 range up to 100 mtr. 1MB memory. 11/22/2023 11/22/2028
NLS-BS8060-3V BS8060 1D CCD Bluetooth scanner, reads 1D barcodes. Supports Apple iOS, Android & Windows devices. BT class 1 range up to 100 mtr. 1MB memory. 11/22/2023 11/22/2028

Published on:

The following products will be discontinued at set dates due to having better alternatives or outdated technology.

Recommendation of Alternative Product:

BS80 Piranha 1D, BS80 Piranha 2D

EOL date: product discontinuation date, the last day of accepting order for this product.

EOM date: service & support discontinuation date, the last day of providing software upgrade, parts & repair service for this product.

The BS8060 Piranha is a snappy, small and portable barcode scanner, providing the convenience of always having a scanner at your fingertips. Dimensions of 88 x 46 x 24.5mm make it small enough to fit into your pocket and light enough to carry around all day. Despite its small size, the Piranha maintains an excellent performance, scanning virtually all 1D and 2D barcodes seamlessly.

Features

  • Superior reading performance.
    The BS80 Piranha is offered in 2 versions, containing a 1D or a 1D+2D barcode scanning engine. Both of these engines read virtually any barcode from paper or screen. The 2D device has been equipped with a laser aimer with a red cross to make barcode reading easier and faster.
  • Easy Bluetooth pairing.
    Via Bluetooth 4.0 Class 1 wireless technology, the BS80 Piranha can be paired with any Android, iOS or Windows device five times faster than regular Bluetooth.
  • Can be used anywhere, anytime.
    The BS80 Piranha is small enough to fit into your pocket and light enough to carry around all day, providing you with the convenience of always having a scanner at your fingertips.
  • Convenient communication.
    Use the interface that suits your application best. The BS80 Piranha gives you the flexibility to choose your preferred communication method with options like HID keyboard and Virtual COM.
  • Hassle-free battery capacity.
    The high capacity Li-ion battery in the scanner provides up to 11 hours of continuous use per charge, allowing you to work hassle-free all day. Charging and communication cradle available (optional).
  • Application scenarios.
    Mobile payments, e-coupons/e-vouchers, retail store management, inventory management, distributor management and more.

Technical Specifications

  • Data Capture
    1D All major 1D symbologies, including Code 128, UCC/EAN-128, AIM 128, EAN-8, JAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 25, ITF-6, ITF-14, Deutsche 14, Deutsche 12, COOP 25, Matrix 25, Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11, Plessey, MSI/Plessey, GS1 Databar.
    2D All major 2D symbologies, including PDF417, QR Code, Data Matrix.
    Depth of Field Code 39 (5mil) 60 mm - 190 mm
    Depth of Field DataMatrix (10mil) 85 mm - 140 mm
    Depth of Field EAN 13 (13mil) 60 mm - 380 mm
    Depth of Field PDF417 (6.67mil) 85 mm - 150 mm
    Depth of Field QR (15mil) 40 mm - 190 mm
    Illumination Red LED (612nm-624nm)
    Image Sensor 752 x 480 CMOS
    Minimal Print Contrast 30%
    Scan Angle Pitch ±55°
    Scan Angle Roll 360°
    Scan Angle Skew ±55°
  • Performance
    Memory Flash 1MB
  • Physical
    Battery Type 3.7 V, 900 mA, Rechargeable Li-ion battery
    Buttons SCAN, Delete, Function
    Current @ 5VDC Operating 260 mA (Bluetooth is on)
    Current @ 5VDC Standby 10 mA
    Dimensions 88(W) × 46(D) × 24.5(H) mm
    Expected Battery Life 6 hours of continuous operation
    Expected Charge Time 3.5 hours
    Housing ABS, PMMA
    Input Voltage 5 VDC ±5%
    Interfaces Micro USB
    Notifications Beep, LED, Vibration
    Weight 62 g
  • Wireless
    Radio Technology 2.4 - 2.5 GHz ISM band, compatible with Bluetooth 4.0/3.0/2.1+EDR
    Wireless Distance ( max.) 50 m (open space)
  • Environmental
    Drop 1.2 m
    Electro Static Discharge (ESD) ±8 kV (air discharge), ±15 kV (air discharge)
    Humidity 5% to 95% (non-condensing)
    IP Rating IP42
    Operating Temperature -20°C to 50°C (-4°F to 122°F)
    Storage Temperature -40°C to 70°C (-40°F to 158°F)
  • Certifications
    Certifications Hardware CE EMC Class B, FCC Part15 Class B, RoHS, KC
  • Warranty
    Warranty Standard 2 Years

  • Suggested industries

    • placeholder Retail
    • placeholder Hospitality & Leisure
    • placeholder Healthcare
    • placeholder Transportation & Logistics
    • placeholder Warehousing & Distribution

Documents

Available Versions

Part Number Description
NLS-BS8060-2T BS8060 2D CMOS Bluetooth scanner, reads both 1D and 2D barcodes (QR Code included). Supports Apple iOS, Android & Windows devices. BT class 1 range up to 100 mtr. 1MB memory.
NLS-BS8060-3V BS8060 1D CCD Bluetooth scanner, reads 1D barcodes. Supports Apple iOS, Android & Windows devices. BT class 1 range up to 100 mtr. 1MB memory.
