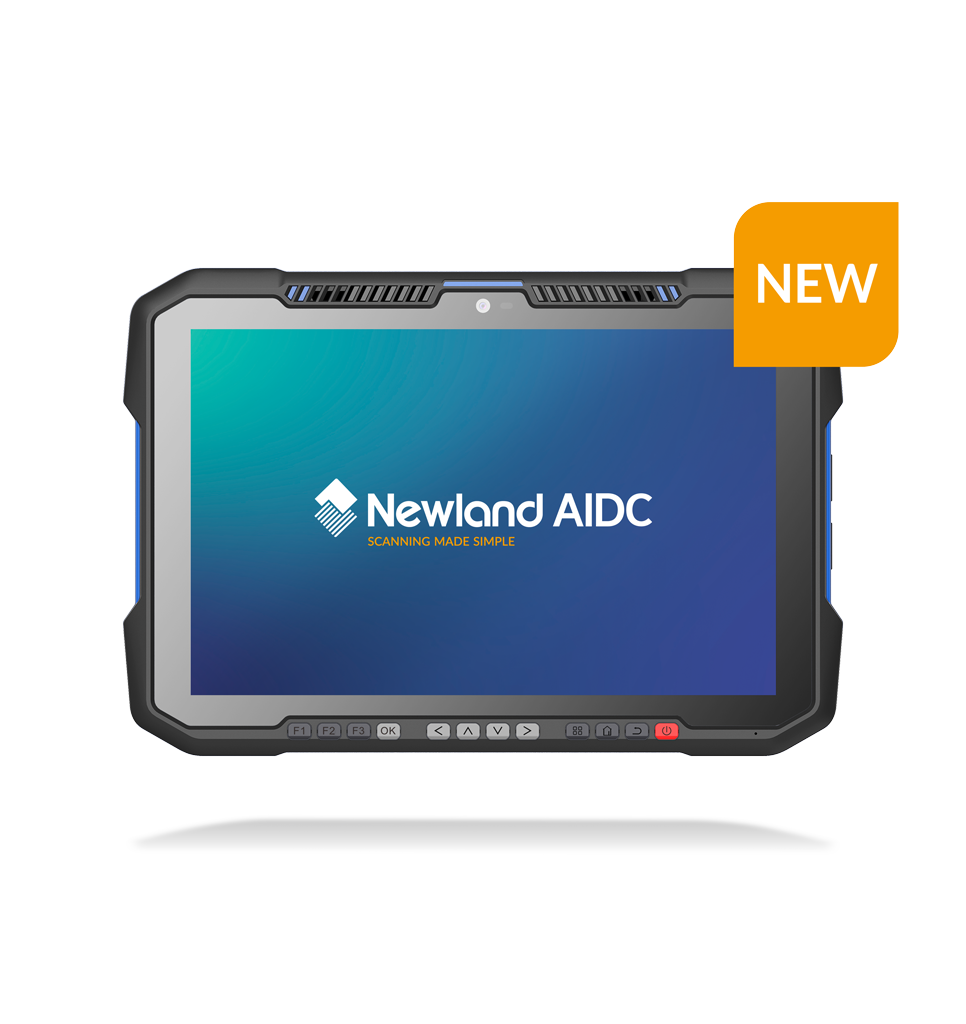

Front view NQuire 10 Trygon Touch Panel Computer with NEW tag

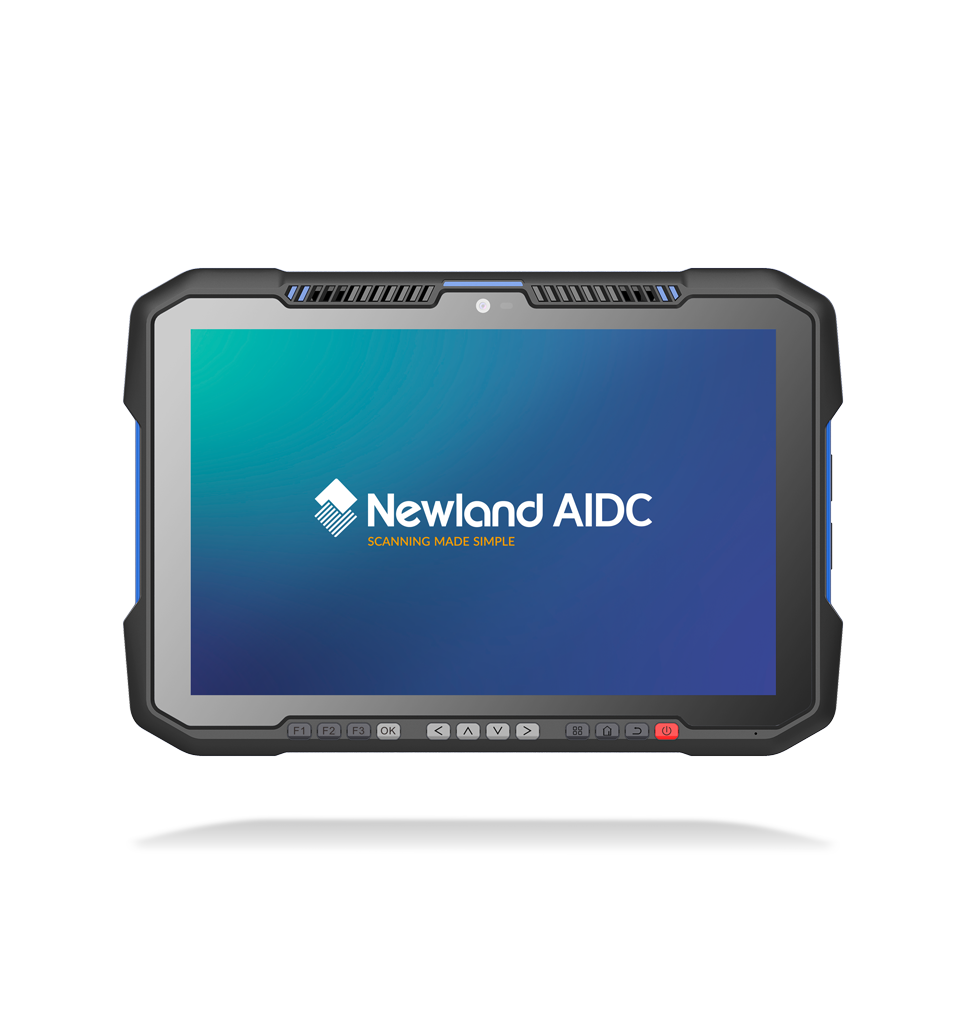

Front view NQuire 10 Trygon Touch Panel Computer Black version

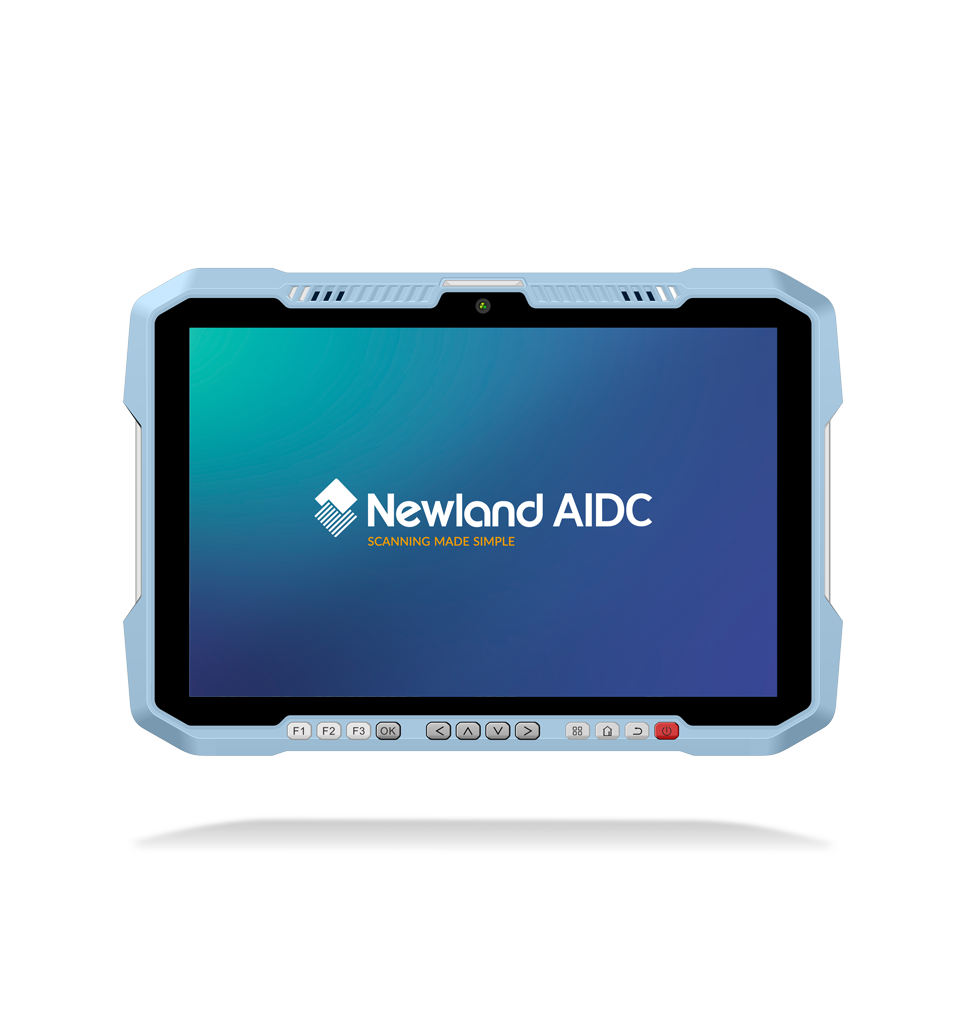

Front view NQuire 10 Trygon Touch Panel Computer White version

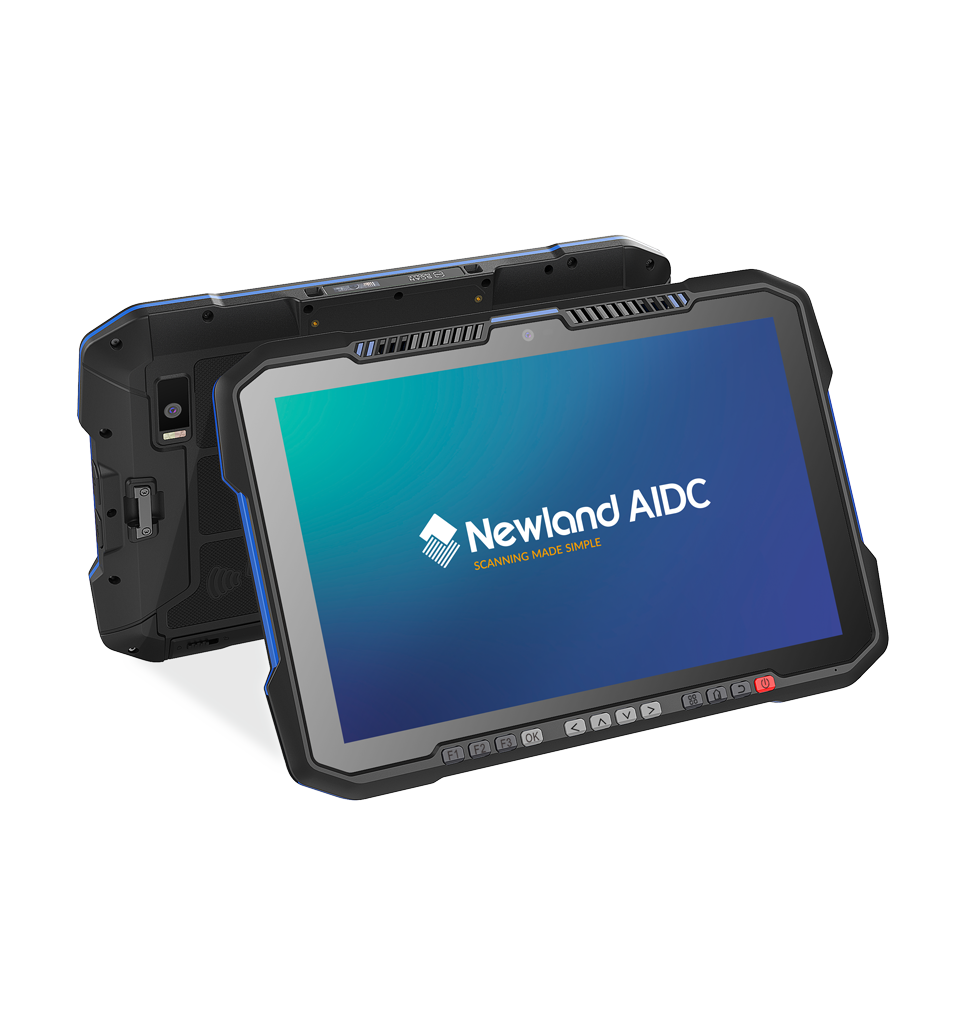

Perspective front and back views NQuire 10 Trygon Touch Panel Computer Black version

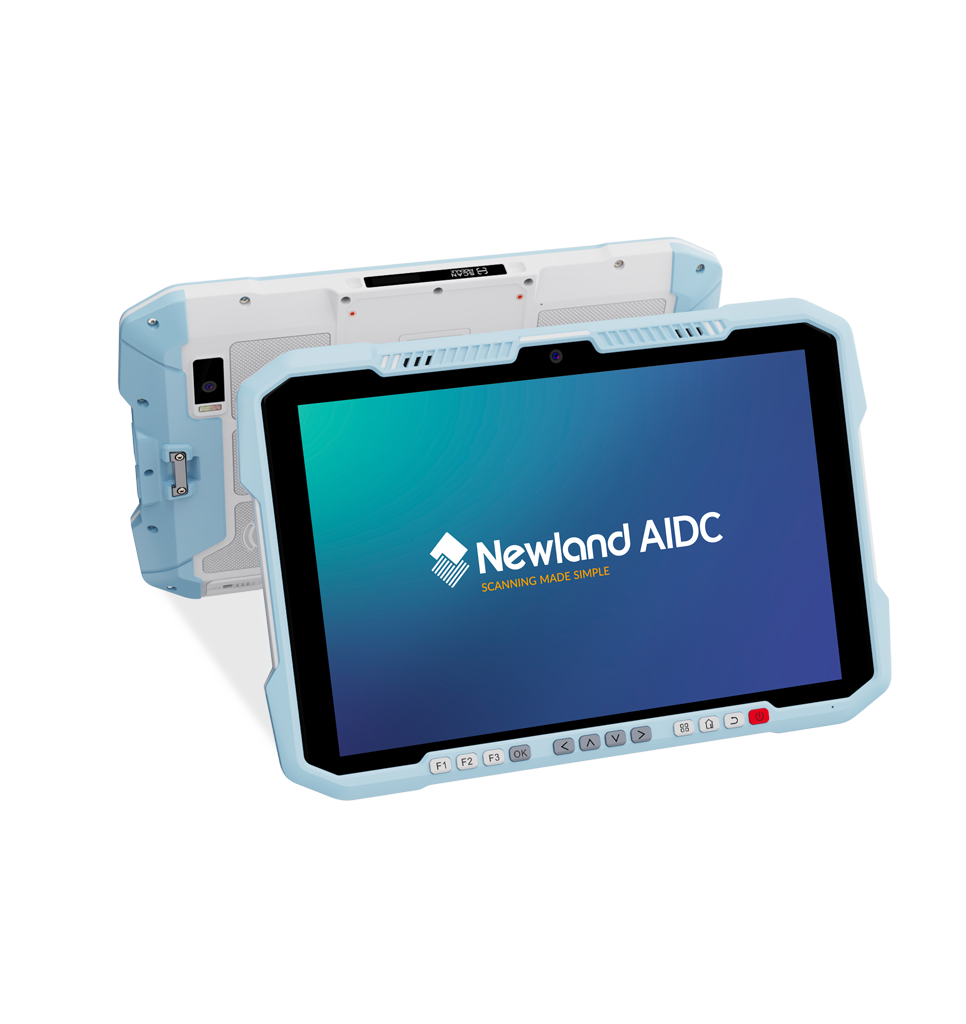

Perspective front and back views NQuire 10 Trygon Touch Panel Computer White version

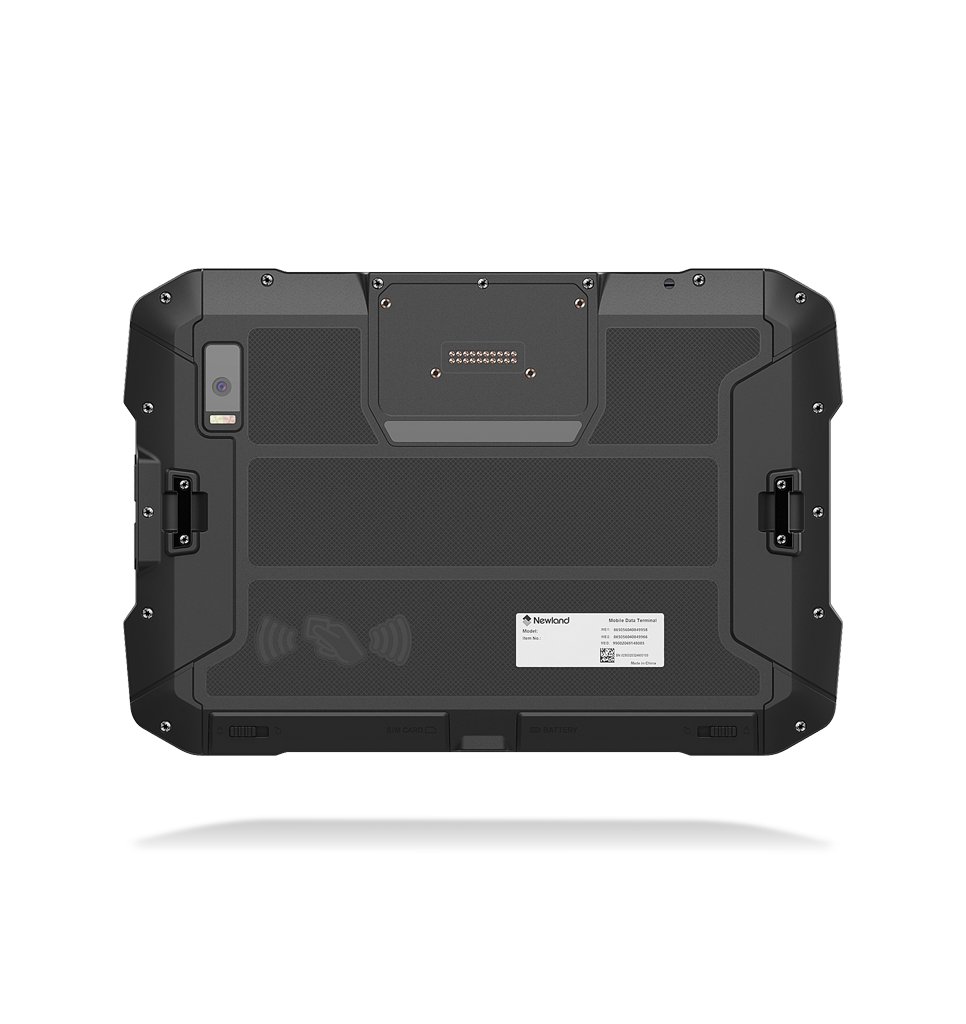

Back view NQuire 10 Trygon Touch Panel Computer Black version

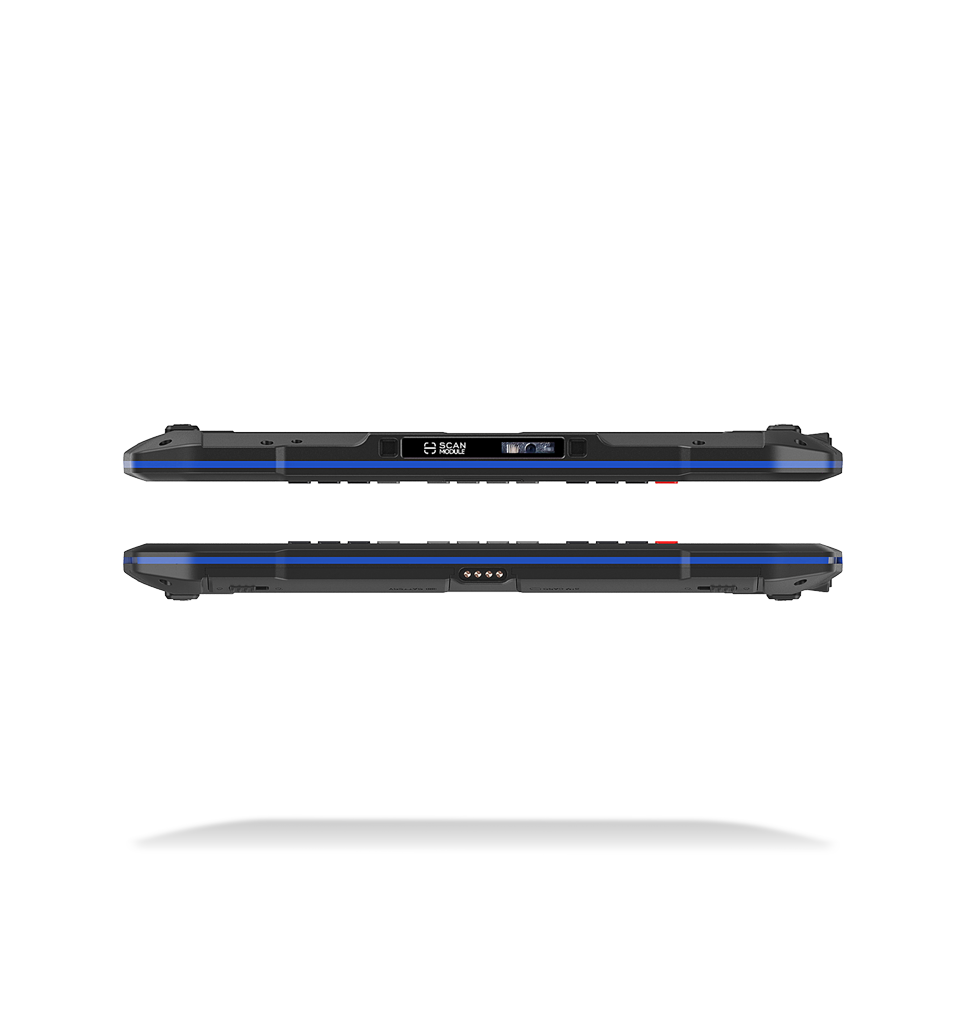

Top and bottom views NQuire 10 Trygon Touch Panel Computer Black version

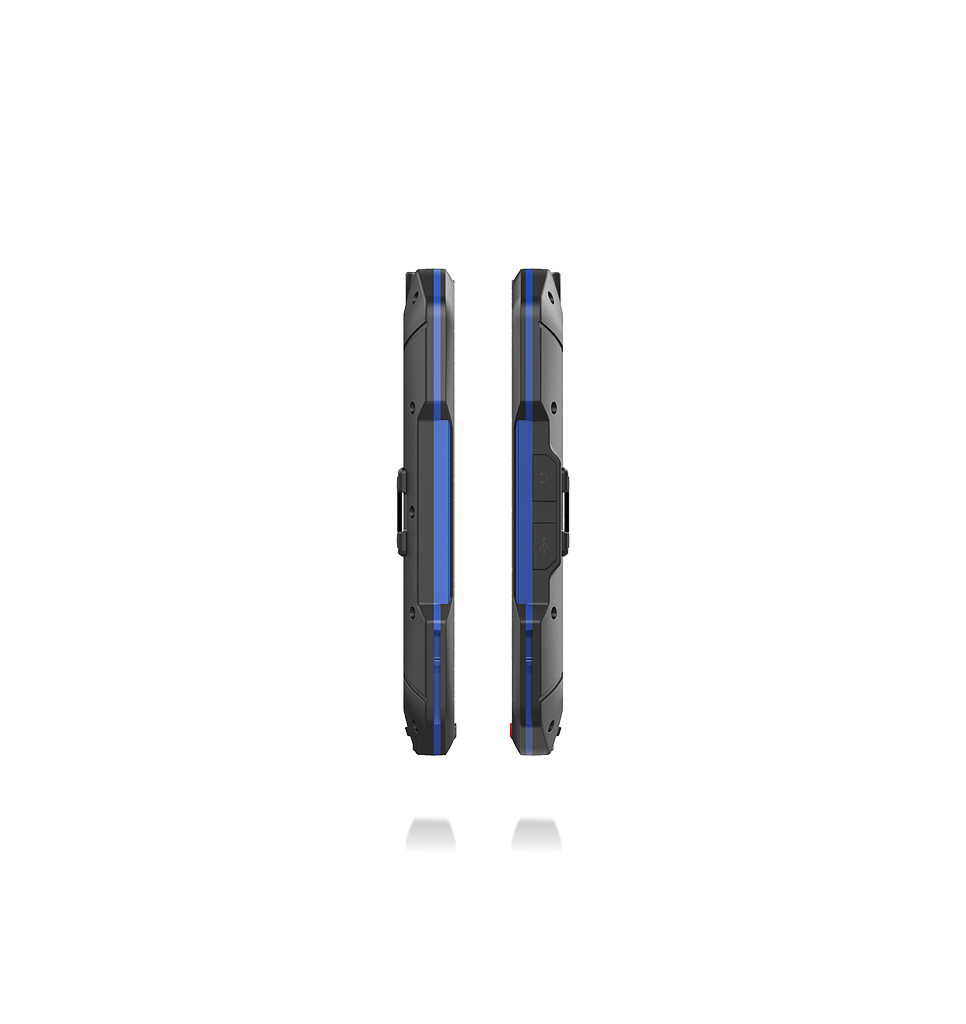

Side views NQuire 10 Trygon Touch Panel Computer Black version

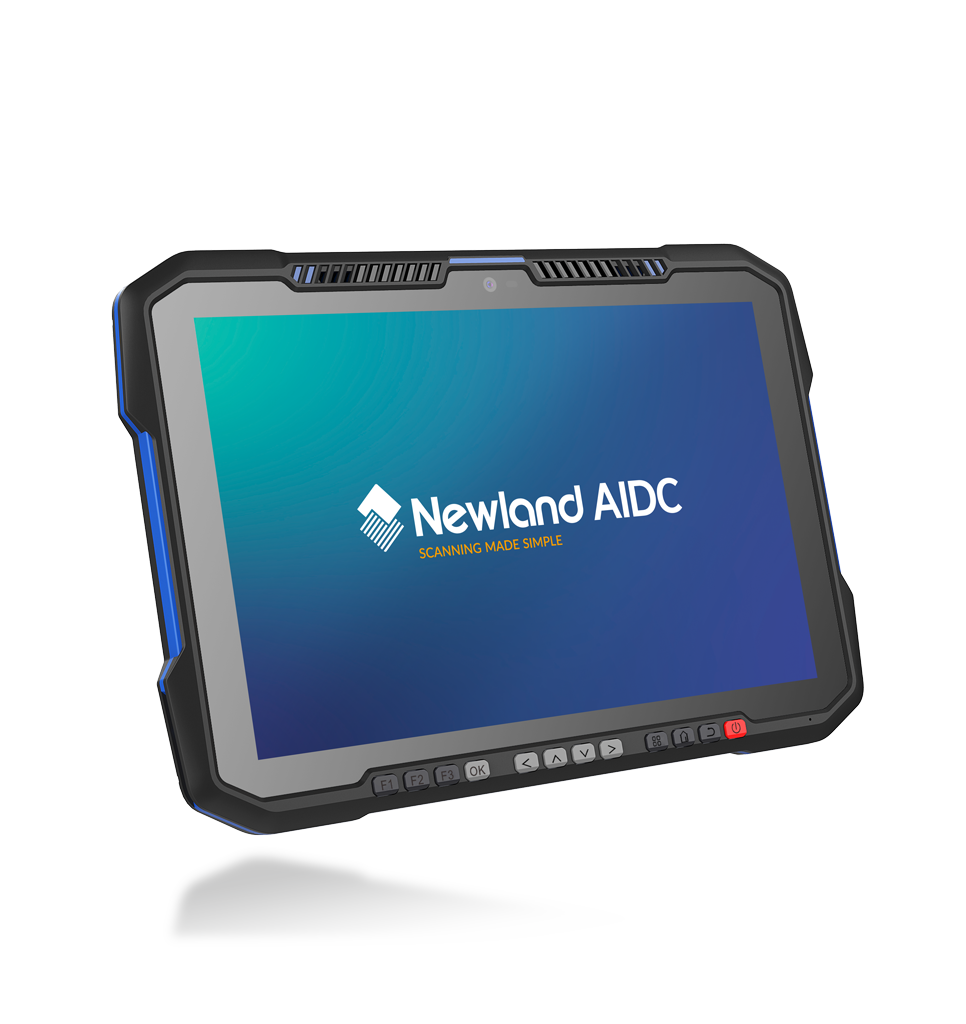

Perspective view NQuire 10 Trygon Touch Panel Computer Black version

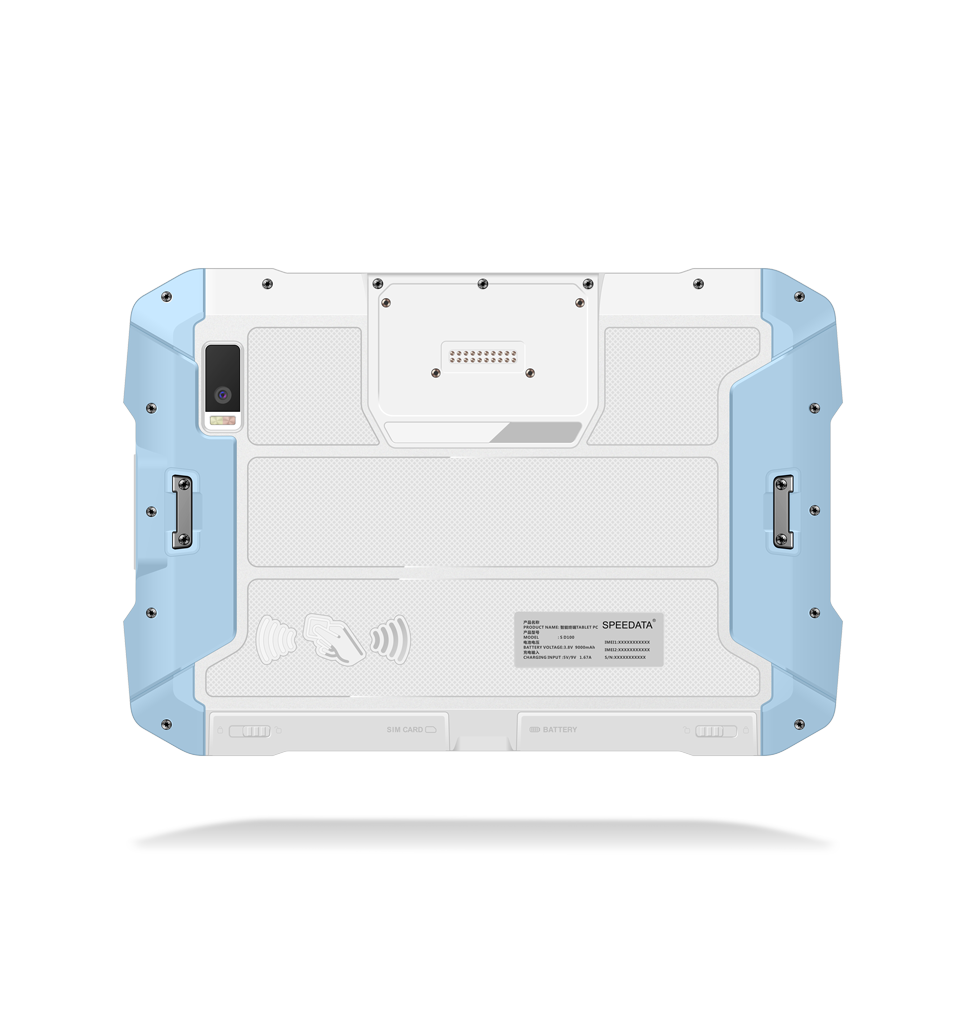

Back view NQuire 10 Trygon Touch Panel Computer White version

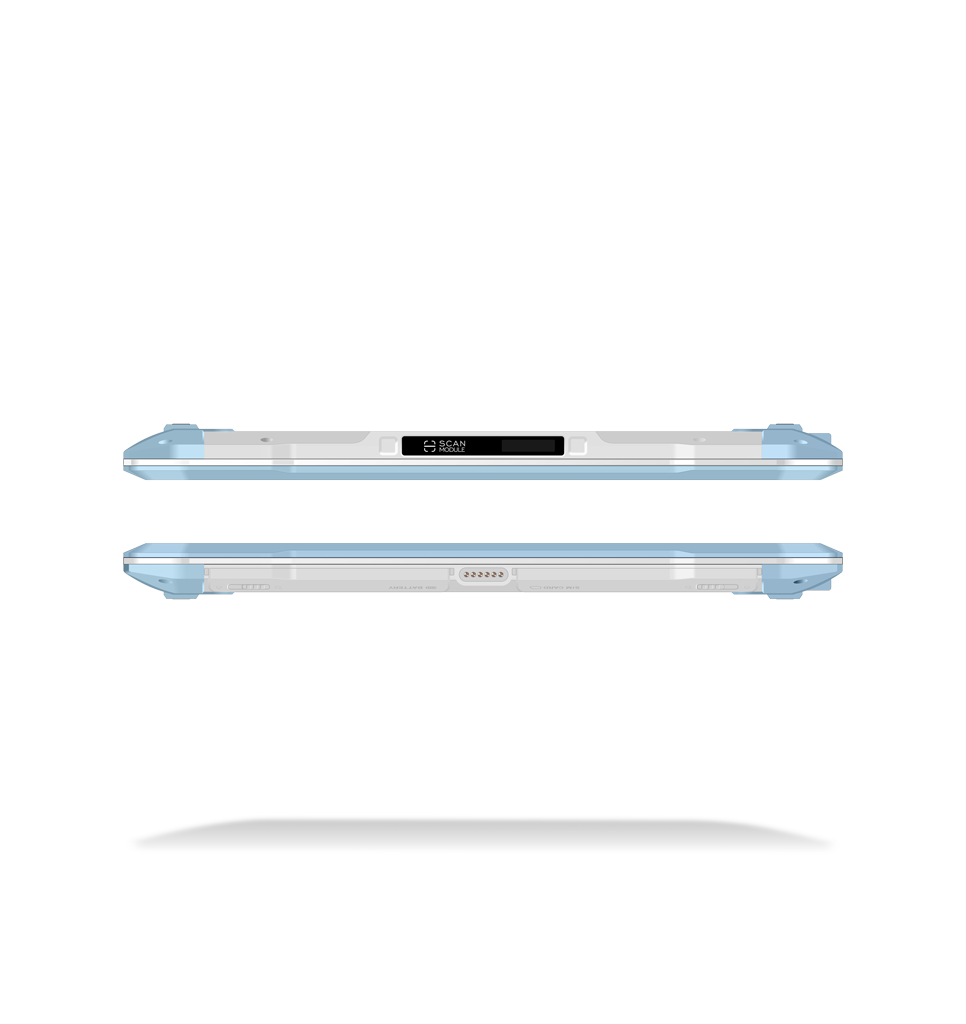

Top and bottom views NQuire 10 Trygon Touch Panel Computer White version

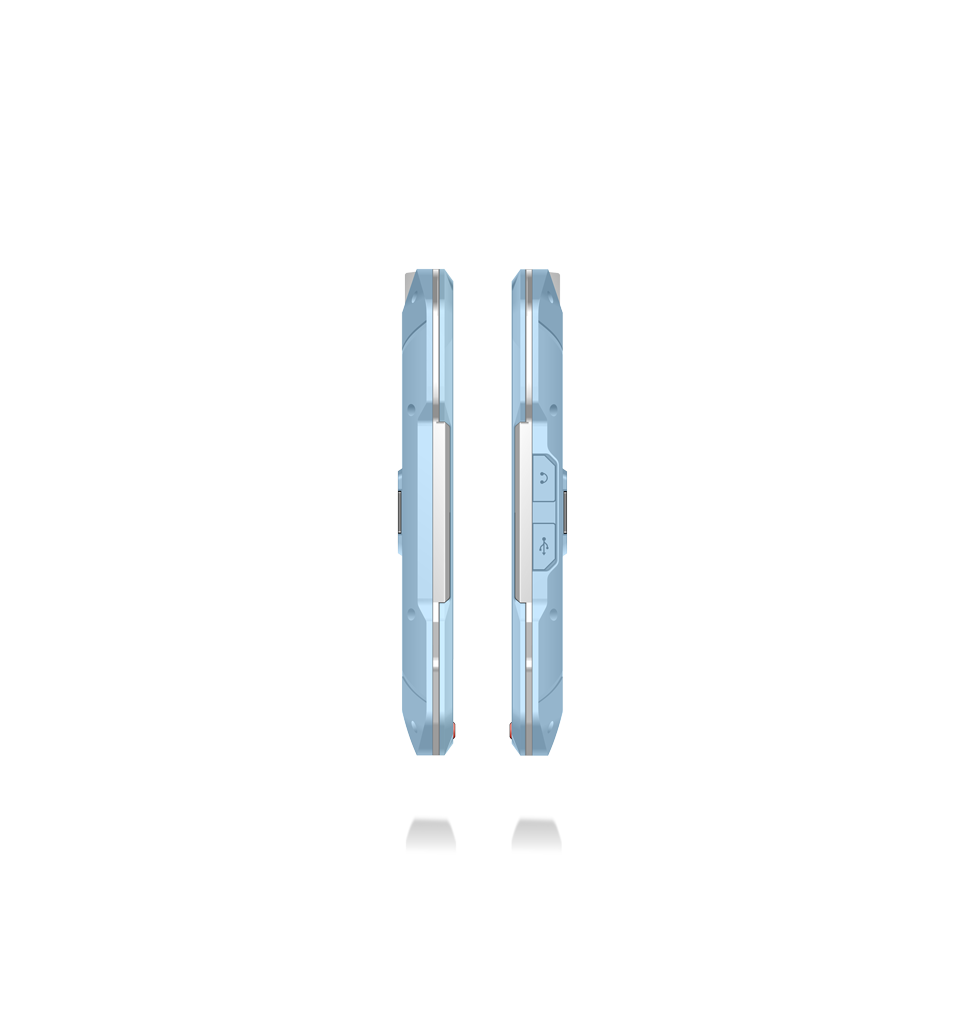

Side views NQuire 10 Trygon Touch Panel Computer White version

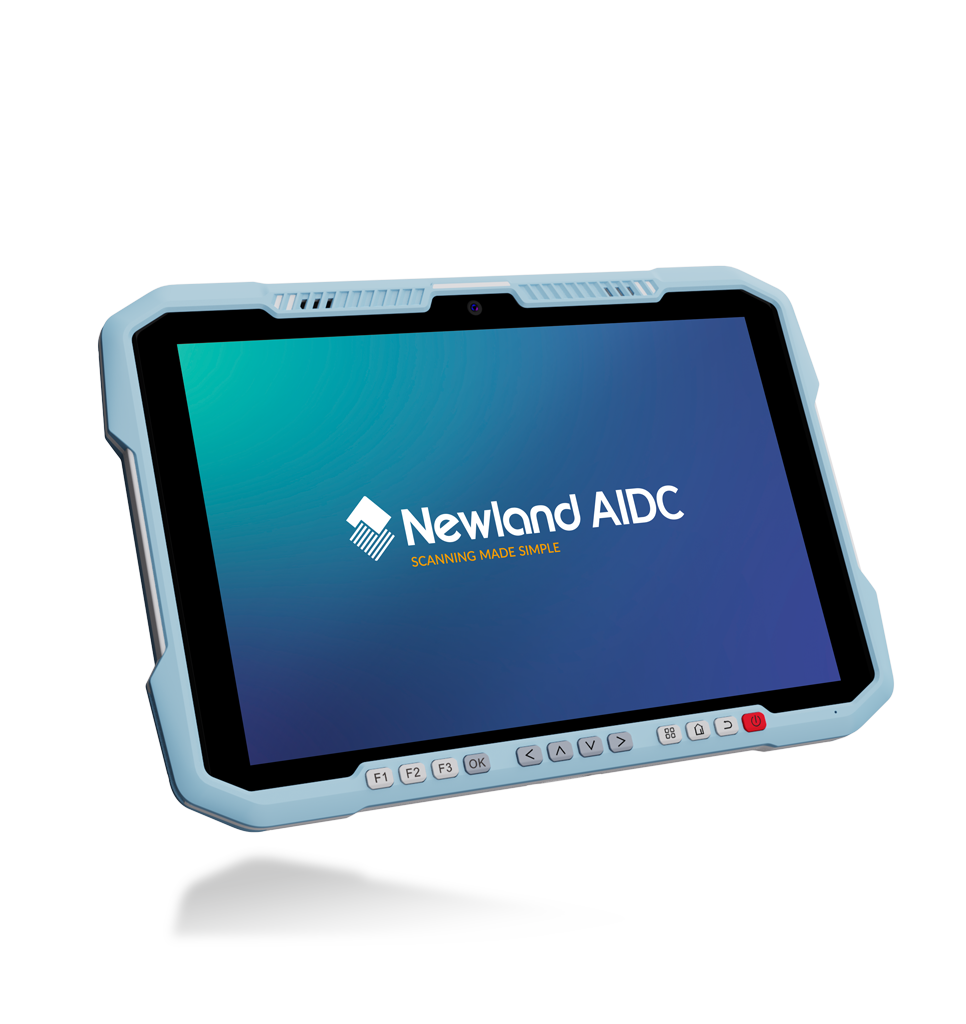

Perspective view NQuire 10 Trygon Touch Panel Computer White version

NQuire 10 Trygon

Computer Touchscreen

Why choose the NQuire 10 Trygon?

  • Intuitive user experience with the 10.1” display
  • 9,000 mAh battery for all-day operation
  • Available in black or white to suit any environment

From the medical floor to the warehouse aisle, the NQuire 10 Trygon keeps your team connected, informed, and moving. Its 10.1" touchscreen and Android 15 GMS deliver the power of a full business tool in an elegant, portable design, available in black or white to match your environment. Whether you're tracking inventory, managing equipment, or monitoring patients, the Trygon adapts to the job at hand.

Caratteristiche

  • Made to Display.
    The NQuire 10 Trygon features a 10.1" capacitive touchscreen for an intuitive, responsive user experience. The tempered glass display is sunlight-readable, making it well-suited for outdoor use. Its large screen size supports the display of extensive data sets and runs third-party applications for use cases such as warehouse stock management, field service, and quality inspections.
  • Performance Ready.
    The NQuire 10 Trygon runs Android 15 GMS and is powered by a 2.2 GHz octa-core processor for dependable application performance. It also carries Google's Android Enterprise Recommended (AER) seal of approval, confirming it meets enterprise standards for security, reliability, and core device functionality.
  • Connectivity Options.
    The NQuire 10 Trygon offers various connectivity options, including dual-band Wi-Fi, Bluetooth 5.4, 4G, GPS, and NFC. These features ensure reliable connectivity, making the Trygon suitable for a wide range of applications, both indoors and outdoors. It can be used for access control, equipment tracking, fieldwork, inventory management, and patient monitoring.
  • Scanning and Imaging.
    The NQuire 10 Trygon includes an integrated barcode scanner for fast, accurate capture of 1D and 2D barcodes. Rear and front cameras further extend its capabilities, enabling barcode capture, inspection documentation, asset and inventory tracking, and proof-of-delivery photos.
  • All-Day Power.
    The NQuire 10 Trygon is equipped with a removable 9,000 mAh battery, delivering over 12 hours of continuous operation. Fast charging support (up to 18W) further minimizes downtime between shifts.
  • Design and Durability.
    The NQuire 10 Trygon is available in two color options: black and white. The black version suits general use across a wide range of industries and applications, while the white version is tailored for medical environments where hygiene and a clean, professional appearance are priorities. Both versions feature an ergonomic design that reduces hand fatigue during extended use. With an IP65 rating and 1.2-meter drop protection, the device combines everyday comfort with the ruggedness needed for industrial environments.

Specifiche techniche

  • Capacità di decodifica
    1D Code128, Code 49, Code 16K, (GS1128) UCC/EAN-128, AIM-128, EAN-8, EAN-13, UPC-E, UPC-A, ITF, ITF 6, ITF 14, Matrix 2 of 5, Industrial 25, Standard 2 of 5, Code39, ISSN, ISBN, CodaBar, Code93, Code 11, Plessey, MSI Plessey, RSS.
    2D Aztec, Composite, CS Code, Maxicode, Micro PDF, Micro QR, PDF 417, QR Code, Data Matrix, DotCode.
    Profondità di campo Code 39 (5mil) 120 mm - 280 mm
    Profondità di campo Data Matrix (10mil) 110 mm - 260 mm
    Profondità di campo EAN 13 (13 mil) 70 mm - 600 mm
    Profondità di campo PDF417 (6.7mil) 110 mm - 230 mm
    Profondità di campo QR (15mil) 55 mm - 400 mm
  • Prestazioni di lettura
    Sistema operativo attuale Android 15, GMS, Android Enterprise Recommended (AER)
    Memoria Flash 64GB
    Memoria RAM 4GB
    Processore 2.2GHz, octa-core 64-bit processor
  • Caratteristiche fisiche
    Adattatore per corrente alternata 18W Fast Charging Supported
    Jack audio Auricolari con connettore Type-C, Presa per auricolari da 3,5 mm
    Tipo di batteria 3.85V, 9000mAh
    Dimensioni (mm) 266.8(L) × 180.9(W) × 21.45(H) mm
    Display/Touchscreen 10.1” (1200×1920), Capacitive-, Sunlight-Readable Touchscreen
    Fotocamera anteriore 5 MP, Messa a fuoco fissa
    Interfacce USB-C
    Tastiera 12 tasti (sulla tastiera)
    Notifiche Altoparlante, Vibrazione, LED multicolori
    Fotocamera posteriore 13 MP, Flash a LED, Messa a fuoco automatica
    Sensori Sensore magnetico, Sensore di luce e prossimità, Giroscopio, Sensore di accelerazione
    SIM/TF Nano + Nano or Nano + TF
    Peso 918g (including battery)
  • Senza fili
    GPS Beidou, GLONASS, Galileo, GPS (AGPS)
    NFC ISO14443A/B, ISO15693, ISO18000-3, MIFARE, FeliCa RF, Kovio, NFC Forum Type 1-4 Tags
    Radio WLAN Built-in 802.11 a/b/g/n/ac/ax Wi-Fi6E, Support 2.4G, 5G dual band and 6G, 2T2R
    Radio WPAN Bluetooth 5.4
    Radio WWAN 2G: GSM (B2, B3, B5, B8). 3G: WCDMA (B1, B2, B5, B8); CDMA 1X/EVDO(BC0). 4G: TDD-LTE (B34, B38, B39, B40, B41); FDD-LTE (B1, B2, B3, B5, B7, B8, B20, B28 a&b)
  • Ambientale
    Caduta 1.2m drops to concrete (for six sides, one drop per side)
    Scarica elettrostatica (ESD) ±8 kV (scarica diretta), ±15 kV (scarica in aria)
    Umidità Da 5% a 90% (senza condensa)
    Classificazione IP IP65
    Temperatura di esercizio da -20 °C a 50 °C (da -4 °F a 122 °F)
    Temperatura di stoccaggio da -30 °C a 70 °C (da -22 °F a 158 °F)
  • Software
    Roadmap Android https://www.newland-id.com/en/support/android-roadmap-for-newland-devices/
    Tools per la configurazione Ndevor
    MDM (certificato) Ndevor
  • Garanzia
    Garanzia standard 2 anni
  • Accessori
    Accessori opzionali Base di ricarica, Custodia protettiva, Supporto veicolare, Pellicola temperata
    Accessori standard Cavo USB, Cinturino da mano, Adattatore multipresa
  • Cosa contiene la confezione?
    NLS-NQ10T-4W-B NQuire 10 Trygon Black, USB cable, Hand strap, Multiplug adapter
    NLS-NQ10T-4W-W NQuire 10 Trygon White, USB cable, Hand strap, Multiplug adapter

  • Settori suggeriti

    • placeholder Vendita al dettaglio
    • placeholder Ospitalità e tempo libero
    • placeholder Sanità
    • placeholder Trasporti e logistica
    • placeholder Magazzini e distribuzione
    • placeholder Servizi sul campo e servizi pubblici
    • placeholder Diagnostica in vitro e automazione laboratori

Documenti

Versioni disponibili

Codice articolo Descrizione
NLS-NQ10T-4W-B Newland NQuire 10 Trygon (Black) Tablet. 10" Tablet 2.2Ghz 4GB/64GB, 2D CMOS Mega Pixel imager with Laser Aimer (CM6x), BT, WiFi6, 4G, GPS, NFC and Camera. Incl USB cable, Hand Strap and multiplug adapter. OS: Android 15 GMS (AER).
NLS-NQ10T-4W-W Newland NQuire 10 Trygon (White) Tablet. 10" Tablet 2.2Ghz 4GB/64GB, 2D CMOS Mega Pixel imager with Laser Aimer (CM6x), BT, WiFi6, 4G, GPS, NFC and Camera. Incl USB cable, Hand Strap and multiplug adapter. OS: Android 15 GMS (AER).
