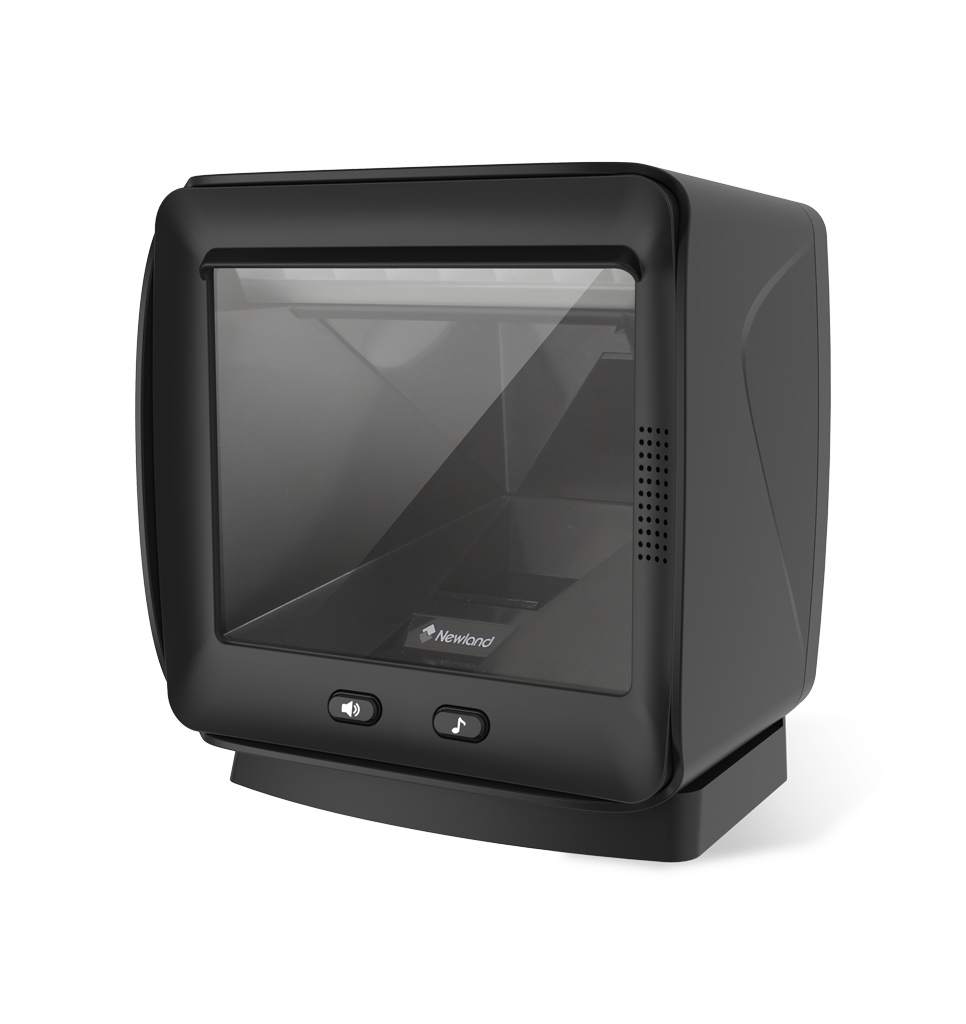

Perspective view FR80 Salmon AI Presentation Scanner
Front view FR80 Salmon AI Presentation Scanner
Back view FR80 Salmon AI Presentation Scanner

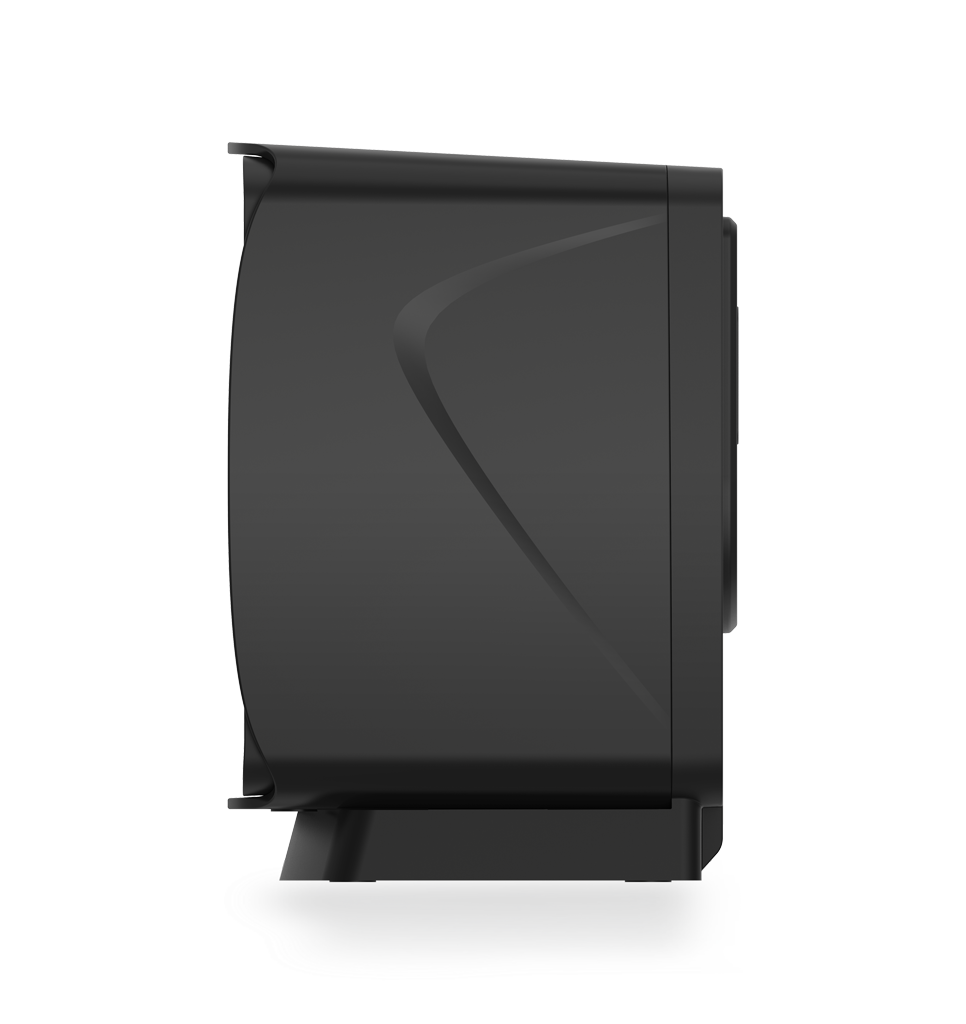

Side view FR80 Salmon AI Presentation Scanner with L mounting bracket

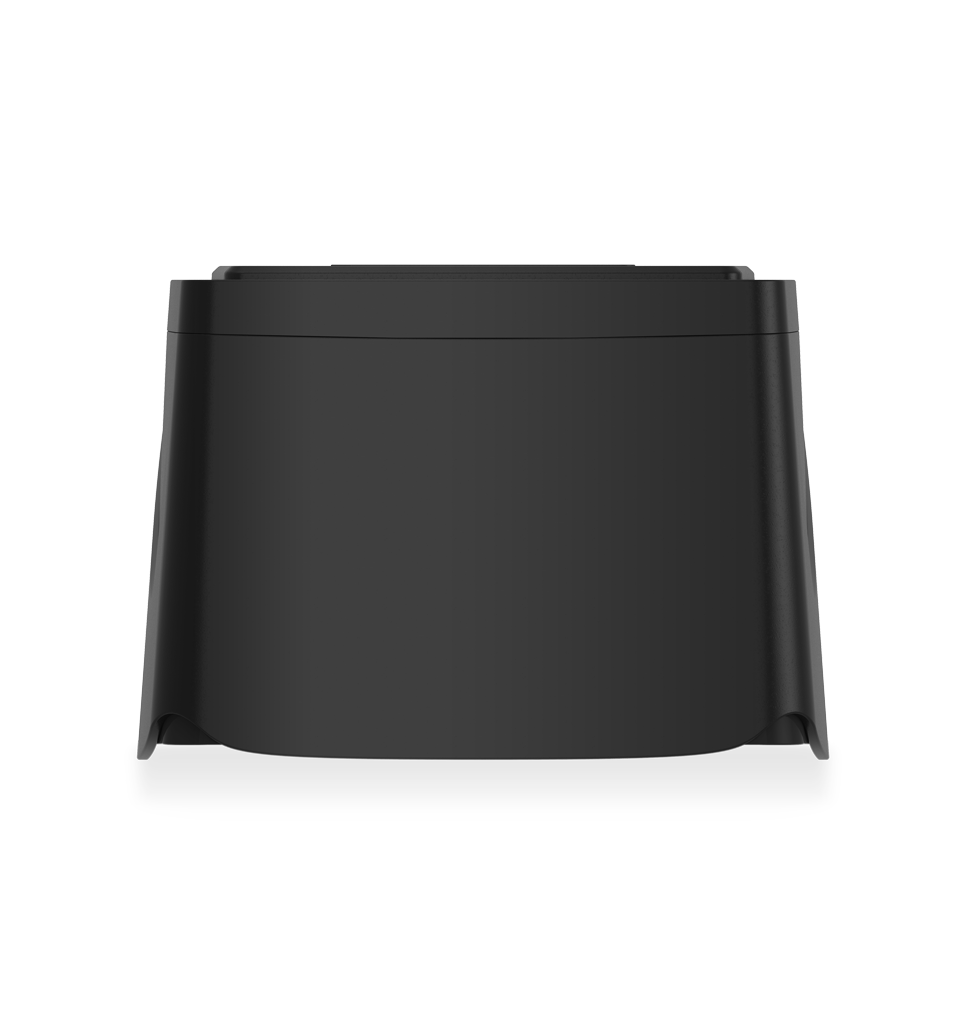

Top view FR80 Salmon AI Presentation Scanner
Bottom view FR80 Salmon AI Presentation Scanner

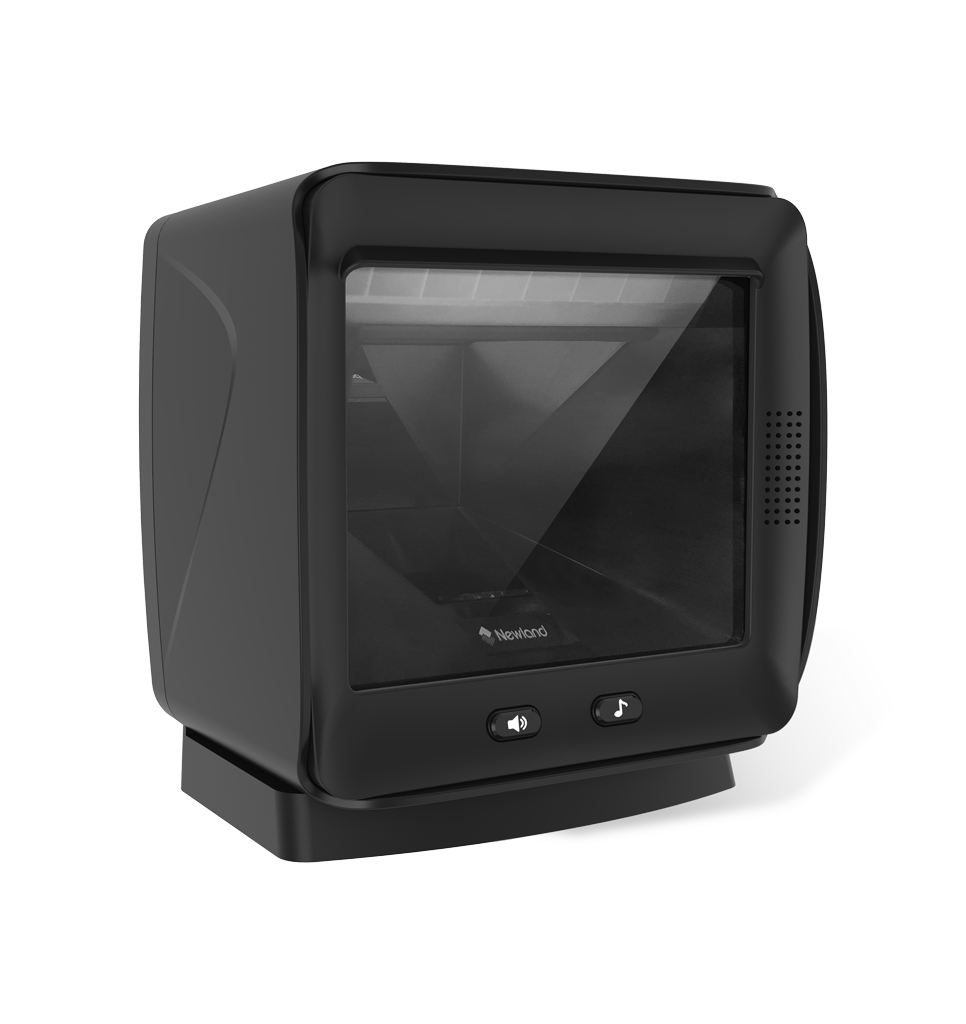

Perspective side view FR80 Salmon AI Presentation Scanner

FR80 Salmon AI

Präsentationsscanner

Why choose the FR80 Salmon AI?

  • AI-powered barcode detection technology to detect, locate, and read barcodes
  • OCR capability for precise data capture from IDs
  • Active sensors to double reading prevention

The FR80 Salmon uses AI-powered barcode decoding and OCR technologies, enabling it to accurately read various barcodes and data, even on challenging surfaces. This device combines all the features your business needs for a plug-and-play manned or self-service point-of-sale system, delivering a fast and engaging experience.

From basket to bag within seconds.

Eigenschaften

  • AI-Powered Barcode Detection
    The FR80 Salmon AI features Newland’s UIMG and AI-Powered Barcode Detection technologies. These advanced systems enable rapid, accurate, and reliable decoding of both 1D and 2D barcodes, even when damaged, distorted, reflective, or on curved surfaces. The Salmon uses computer vision and self-learning capabilities to accurately interpret barcodes. It efficiently analyzes images to detect, locate, and read barcodes. The FR80 Salmon AI performs exceptionally well in challenging conditions, providing a dependable scanning solution that operates flawlessly in any situation.
  • Advanced OCR Technology
    The FR80 Salmon AI is equipped with advanced OCR technology, allowing it to scan and accurately extract text from IDs and official documents. This feature makes the Salmon an ideal scanner for applications that require precise data capture, such as border control, age verification in retail, postal sorting facilities, and library check-in and checkout processes.
  • Status Indicators
    The FR80 Salmon AI is equipped with six different status indicators that indicate the scanner's current operating status. These indicators provide information on decoding, configuration, communication, and any abnormal conditions. This feature is particularly valuable in fast-paced settings, such as point-of-sale applications, as it enables users to quickly confirm whether a barcode has been scanned correctly, helping avoid unnecessary delays at checkout.
  • EAS deactivation.
    The FR80 Salmon AI features a built-in single antenna system for deactivating EAS security tags. It is compatible with major single-loop EAS systems, including Checkpoint, and is conveniently placed near the scan window for easy access.
  • Advanced Multi-Core Processing Platform.
    Equipped with a multi-core processing platform, the FR80 Salmon AI delivers powerful computing capabilities, ensuring faster and more stable decoding performance.
  • Large Scan Window
    The FR80 Salmon AI boasts a large scan window, which allows it to capture barcodes even when products are presented very close to the scanner. This large window is particularly beneficial in fast-paced retail environments, as it enables users of all experience levels to scan codes successfully without needing precise alignment of the barcode with the scanner.
  • Setting the tone.
    The FR80 Salmon allows users to select different audible feedback tones and volumes using two easily accessible buttons. These buttons can be disabled as part of a custom configuration via the user manual or EasySet configuration software.

Technische Spezifikationen

  • Datenerfassung
    1D All major 1D symbologies, including EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code39, Codabar, UCC/EAN 128, RSS, Interleaved 25, ITF 14, ITF 6, Standard 25, Matrix 25,COOP 25, Industrial 25, Plessey, MSI Plessey, Code 11, Code 93, Code 49, Code 16K.
    2D All major 2D symbologies, including PDF417, QR Code, Data Matrix, Micro PDF417,Micro QR.
    Schärfentiefe EAN 13 (13 mil) 0 mm - 140 mm
    Sichtfeld horizontal 42.4°
    Sichtfeld vertikal 36°
    GS1-kompatibel Ja
    Beleuchtung Rote LED (612 nm–624 nm)
    Bildsensor 1280 x 1088 CMOS
    Minimaler Druckkontrast 15%
    Bewegungstoleranz 3,5 m/s
    Auflösung ≥3mil (1D)
    Scan-Winkelabstand ±50°
    Scan-Winkelrolle 360°
    Scan-Winkelversatz ±50°
    Scan-Modi Erweiterter Erkennungsmodus
  • Physikalisch
    Strom bei 5 V DC Betrieb 280 mA (typical), 500 mA (max.)
    Strom bei 5 V DC Standby 155 mA
    Abmessungen (mm) Without base: 151 (W) x141.5 (H) x97.5 (D) mm (max.); With base: 151 (W) x156.5 (H) x108.5 (D) mm (max.)
    Eingangsspannung 5 VDC ±5 %
    Schnittstellen USB, RS-232
    Benachrichtigungen Piepton, LED
    Stromverbrauch 2W (typical), 2.5W (max.)
    Gewicht 549 g (without base), 681 g (with base)
  • Umwelt
    Elektrostatische Entladung (ESD) ±8 kV (direkte Entladung), ±15 kV (Luftentladung)
    Feuchtigkeit 5 % bis 95 % (nicht kondensierend)
    IP-Bewertung IP52
    Betriebstemperatur -20 °C bis 50 °C (-4 °F bis 122 °F)
    Lagertemperatur -40 °C bis 70 °C (-40 °F bis 158 °F)
  • Software
    Konfigurationstools EasySet
  • Zertifizierungen
    Zertifizierungen Hardware FCC Part15 Class B, CE EMC Class B
  • Garantie
    Standardgarantie 5 Jahre
  • Zubehör
    Optionales Zubehör USB-Kabel, RS-232-Kabel
    Standardzubehör Netzteil, Entwässerungskanal, USB-Kabel, Montageplatte
  • Was ist im Lieferumfang enthalten?
    NLS-FR8080V2-E-U30 FR80 Salmon AI, 3 meter USB cable, EAS antenna, Multiplug adapter
  • Empfohlene Branchen

    • placeholder Behörden & Öffentlicher Sektor
    • placeholder Postwesen
    • placeholder Einzelhandel
    • placeholder Transport & Logistik

Verfügbare Versionen

Teilenummer Beschreibung
NLS-FR8080V2-E-U30 FR80 Salmon II, 2D CMOS Mega Pixel reader with AI-powered Barcode Detection, 3 mtr USB cable CBL151U, EAS antenna and multiplug adapter ADP100
