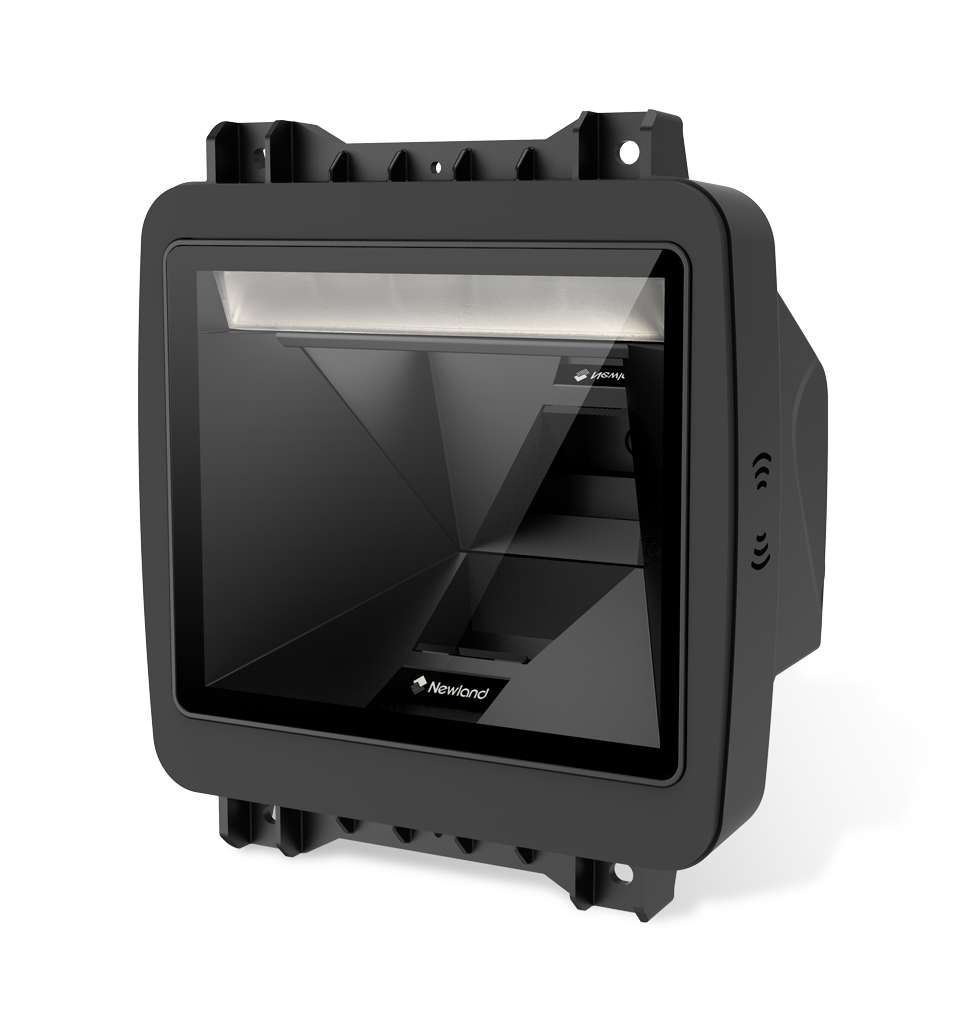

Perspective view FM80 Salmon AI Fixed-Mount Scanner

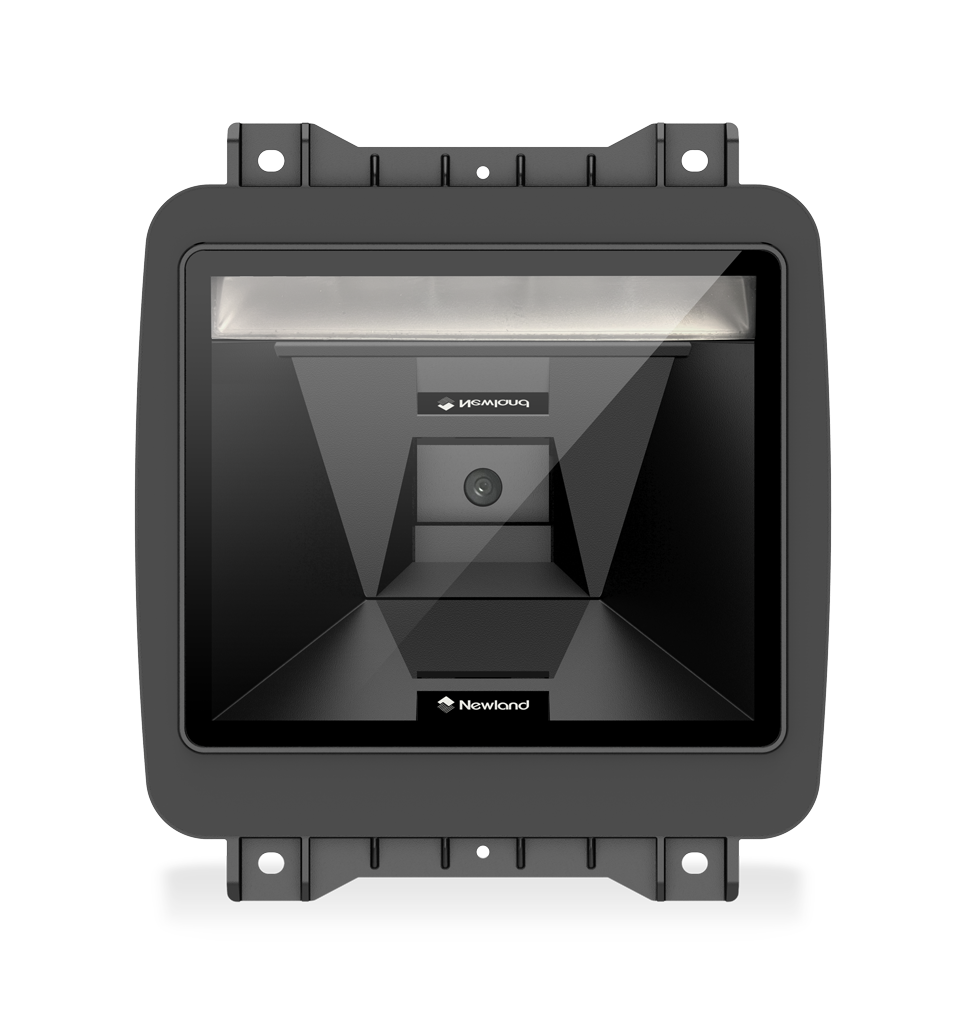

Front view FM80 Salmon AI Fixed-Mount Scanner

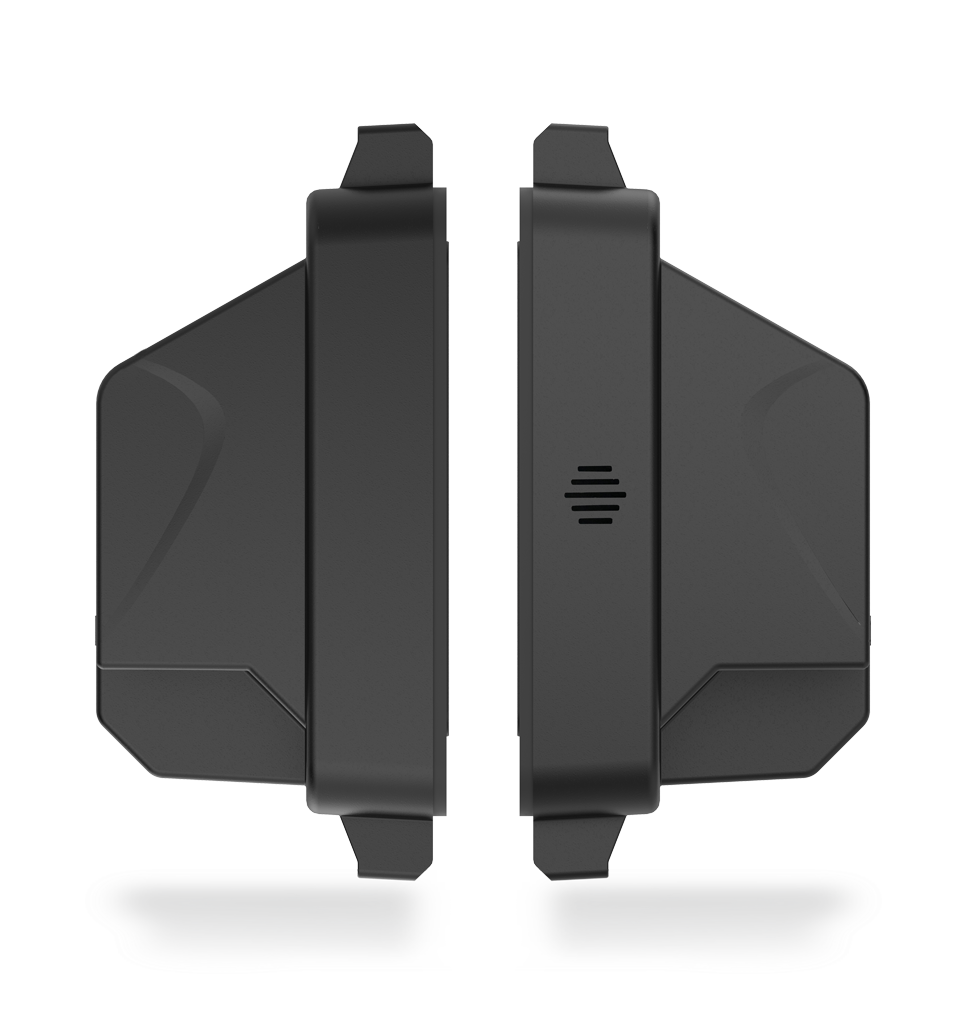

Side views FM80 Salmon AI Fixed-Mount Scanner

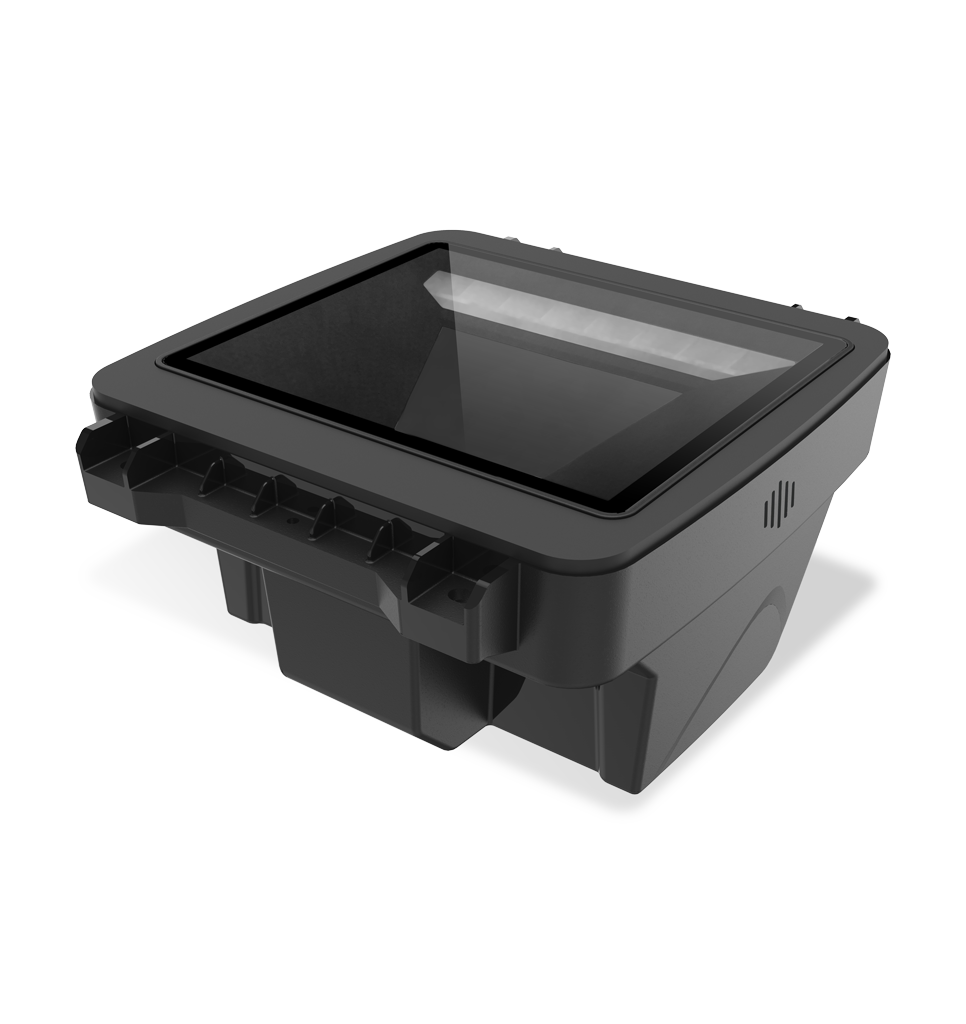

Perspective side view FM80 Salmon AI Fixed-Mount Scanner

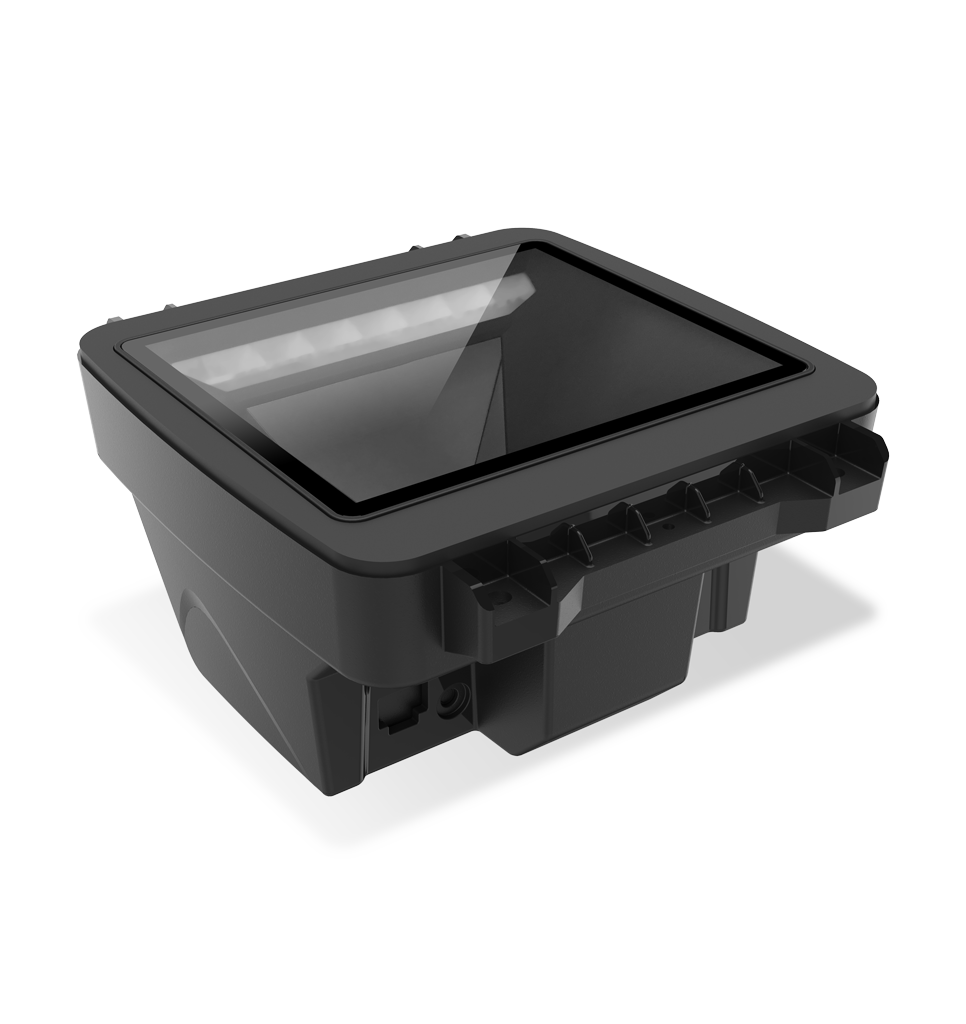

Perspective bottom view FM80 Salmon AI Fixed-Mount Scanner

FM80 Salmon AI

Stationäre Scanner

Why choose the FM80 Salmon AI?

  • AI-powered barcode detection technology to detect, locate, and read barcodes
  • OCR capability for precise data capture from IDs
  • Large scan window ideal for fast-paced retail scanning

The FM80 Salmon AI is equipped with advanced AI-powered barcode decoding and OCR technologies, allowing it to accurately decode a variety of barcodes and data, even on challenging surfaces. It offers easy integration into any setup and features a large scan window, making it an excellent solution for self-service applications.

Superior scanning with AI and OCR technologies.

Eigenschaften

  • AI-Powered Barcode Detection
    The FM80 Salmon AI features Newland’s UIMG and AI-Powered Barcode Detection technologies. These advanced systems enable rapid, accurate, and reliable decoding of both 1D and 2D barcodes, even when damaged, distorted, reflective, or on curved surfaces. The Salmon uses computer vision and self-learning capabilities to accurately interpret barcodes. It efficiently analyzes images to detect, locate, and read barcodes. The FM80 Salmon AI performs exceptionally well in challenging conditions, providing a dependable scanning solution that operates flawlessly in any situation.
  • Advanced OCR Technology
    The FM80 Salmon AI is equipped with advanced OCR technology, allowing it to scan and accurately extract text from IDs and official documents. This feature makes the Salmon an ideal scanner for applications that require precise data capture, such as border control, age verification in retail, postal sorting facilities, and library check-in and checkout processes.
  • Status Indicators
    The FM80 Salmon AI is equipped with six different status indicators that indicate the scanner's current operating status. These indicators provide information on decoding, configuration, communication, and any abnormal conditions. This feature is particularly valuable in fast-paced settings, such as point-of-sale applications, as it enables users to quickly confirm whether a barcode has been scanned correctly, helping avoid unnecessary delays at checkout.
  • EAS deactivation.
    The FM80 Salmon AI features a built-in single antenna system for deactivating EAS security tags. It is compatible with major single-loop EAS systems, including Checkpoint, and is conveniently placed near the scan window for easy access.
  • Advanced Sense Mode
    The FM80 Salmon AI includes an advanced sensing mode that detects presented barcodes for reading. For each displayed barcode, the scanner initiates a decoding session to prevent multiple readings of the same barcode. This feature helps avoid accidental misreads, thereby reducing time lost during the scanning process.
  • Mount-Ready Design
    The FM80 Salmon AI features six anchor points along the front edge of its window, making it easier to mount and integrate into installations like kiosks. Additionally, a soft inlay surrounds the window's edge, providing a more comfortable fit within enclosures.
  • Large Scan Window
    The FM80 Salmon AI boasts a large scan window, which allows it to capture barcodes even when products are presented very close to the scanner. This large window is particularly beneficial in fast-paced retail environments, as it enables users of all experience levels to scan codes successfully without needing precise alignment of the barcode with the scanner.

Technische Spezifikationen

  • Datenerfassung
    1D code 11, Code 128, Code 39, GS1-128 (UCC/EAN128), AIM 128, ISBT 128, CodaBar, Code 93, UPC-A/UPC-E, Coupon, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2/5, Matrix 2/5, Industrial 2/5, ITF-14, ITF-6, Standard 2/5, China post 25, MSI-Plessey, GS1 Composite, GS1 Databar (RSS)
    2D PDF417, QR Code, Data Matrix, Aztec
    Schärfentiefe EAN 13 (13 mil) 0mm - 140mm
    Sichtfeld horizontal 42.4°
    Sichtfeld vertikal 36°
    GS1-kompatibel Ja
    Beleuchtung Rote LED
    Bildsensor 1280 x 1088 CMOS
    Minimaler Druckkontrast 15%
    Auflösung ≥3mil (1D)
    Scan-Winkelabstand ±50˚
    Scan-Winkelrolle 360˚
    Scan-Winkelversatz ±50
    Scan-Modi Erweiterter Erkennungsmodus
  • Physikalisch
    Strom bei 5 V DC Betrieb 280mA (typical), 800 mA (Max)
    Strom bei 5 V DC Standby 155 mA
    Abmessungen (mm) 149(W) x 78.5(H) x 166.5(D) mm
    Eingangsspannung 5 VDC ±5 %
    Schnittstellen USB-HID, USB-CDC, RS-232, HID-POS, USB
    Benachrichtigungen Piepton, LED
    Gewicht 455g
  • Umwelt
    Elektrostatische Entladung (ESD) ±15 kV (Luftentladung), ±8 kV (direkte Entladung)
    Feuchtigkeit 5 % bis 95 % (nicht kondensierend)
    IP-Bewertung IP52
    Betriebstemperatur -20 °C bis 50 °C (-4 °F bis 122 °F)
    Lagertemperatur -40 °C bis 70 °C (-40 °F bis 158 °F)
  • Software
    Konfigurationstools EasySet
  • Garantie
    Standardgarantie 5 Jahre
  • Zubehör
    Optionales Zubehör Multiplug-Netzteil, USB-Kabel, RS-232-Kabel
    Standardzubehör USB-Kabel
  • Was ist im Lieferumfang enthalten?
    NLS-FM8080V2-E-U30 FM80 Salmon AI, 3 meter USB cable, EAS antenna
  • Empfohlene Branchen

    • placeholder Einzelhandel
    • placeholder Postwesen
    • placeholder Behörden & Öffentlicher Sektor
    • placeholder Transport & Logistik

Verfügbare Versionen

Teilenummer Beschreibung
NLS-FM8080V2-E-U30 FM80 Salmon AI, 2D CMOS Mega Pixel reader with AI-powered Barcode Detection, 3 mtr USB cable CBL151U, EAS antenna
