Front view NQuire 10 Trygon Touch Panel Computer with NEW tag
Front view NQuire 10 Trygon Touch Panel Computer Black version
Front view NQuire 10 Trygon Touch Panel Computer White version
Perspective front and back views NQuire 10 Trygon Touch Panel Computer Black version
Perspective front and back views NQuire 10 Trygon Touch Panel Computer White version
Back view NQuire 10 Trygon Touch Panel Computer Black version
Top and bottom views NQuire 10 Trygon Touch Panel Computer Black version
Side views NQuire 10 Trygon Touch Panel Computer Black version
Perspective view NQuire 10 Trygon Touch Panel Computer Black version
Back view NQuire 10 Trygon Touch Panel Computer White version
Top and bottom views NQuire 10 Trygon Touch Panel Computer White version
Side views NQuire 10 Trygon Touch Panel Computer White version
Perspective view NQuire 10 Trygon Touch Panel Computer White version

NQuire 10 Trygon

Ordenadores con panel táctil

Why choose the NQuire 10 Trygon?

  • Intuitive user experience with the 10.1” display
  • 9,000 mAh battery for all-day operation
  • Available in black or white to suit any environment

From the medical floor to the warehouse aisle, the NQuire 10 Trygon keeps your team connected, informed, and moving. Its 10.1" touchscreen and Android 15 GMS deliver the power of a full business tool in an elegant, portable design, available in black or white to match your environment. Whether you're tracking inventory, managing equipment, or monitoring patients, the Trygon adapts to the job at hand.

Características

  • Made to Display.
    The NQuire 10 Trygon features a 10.1" capacitive touchscreen for an intuitive, responsive user experience. The tempered glass display is sunlight-readable, making it well-suited for outdoor use. Its large screen size supports the display of extensive data sets and runs third-party applications for use cases such as warehouse stock management, field service, and quality inspections.
  • Performance Ready.
    The NQuire 10 Trygon runs Android 15 GMS and is powered by a 2.2 GHz octa-core processor for dependable application performance. It also carries Google's Android Enterprise Recommended (AER) seal of approval, confirming it meets enterprise standards for security, reliability, and core device functionality.
  • Connectivity Options.
    The NQuire 10 Trygon offers various connectivity options, including dual-band Wi-Fi, Bluetooth 5.4, 4G, GPS, and NFC. These features ensure reliable connectivity, making the Trygon suitable for a wide range of applications, both indoors and outdoors. It can be used for access control, equipment tracking, fieldwork, inventory management, and patient monitoring.
  • Scanning and Imaging.
    The NQuire 10 Trygon includes an integrated barcode scanner for fast, accurate capture of 1D and 2D barcodes. Rear and front cameras further extend its capabilities, enabling barcode capture, inspection documentation, asset and inventory tracking, and proof-of-delivery photos.
  • All-Day Power.
    The NQuire 10 Trygon is equipped with a removable 9,000 mAh battery, delivering over 12 hours of continuous operation. Fast charging support (up to 18W) further minimizes downtime between shifts.
  • Design and Durability.
    The NQuire 10 Trygon is available in two color options: black and white. The black version suits general use across a wide range of industries and applications, while the white version is tailored for medical environments where hygiene and a clean, professional appearance are priorities. Both versions feature an ergonomic design that reduces hand fatigue during extended use. With an IP65 rating and 1.2-meter drop protection, the device combines everyday comfort with the ruggedness needed for industrial environments.

Especificaciones técnicas

  • Captura de datos
    1D Code128, Code 49, Code 16K, (GS1128) UCC/EAN-128, AIM-128, EAN-8, EAN-13, UPC-E, UPC-A, ITF, ITF 6, ITF 14, Matrix 2 of 5, Industrial 25, Standard 2 of 5, Code39, ISSN, ISBN, CodaBar, Code93, Code 11, Plessey, MSI Plessey, RSS.
    2D Aztec, Composite, CS Code, Maxicode, Micro PDF, Micro QR, PDF 417, QR Code, Data Matrix, DotCode.
    Profundidad de campo Code 39 (5mil) 120 mm - 280 mm
    Profundidad de campo Data Matrix (10mil) 110 mm - 260 mm
    Profundidad de campo EAN 13 (13 mil) 70 mm - 600 mm
    Profundidad de campo PDF417 (6.7mil) 110 mm - 230 mm
    Profundidad de campo QR (15mil) 55 mm - 400 mm
  • Rendimiento
    Sistema operativo actual Android 15, GMS, Android Enterprise Recommended (AER)
    Memoria flash 64GB
    Memoria RAM 4GB
    Procesador 2.2GHz, octa-core 64-bit processor
  • Físico
    Adaptador CA 18W Fast Charging Supported
    Conector de audio Auriculares con conector tipo C, Conector para auriculares de 3,5 mm
    Tipo de batería 3.85V, 9000mAh
    Dimensiones (mm) 266.8(L) × 180.9(W) × 21.45(H) mm
    Pantalla/Panel táctil 10.1” (1200×1920), Capacitive-, Sunlight-Readable Touchscreen
    Cámara frontal 5 MP, Enfoque fijo
    Interfaces USB-C
    Teclado 12 teclas
    Notificaciones Altavoz, Vibración, LED multicolor
    Cámara trasera 13 MP, Flash LED, Enfoque automático
    Sensores Sensor magnético, Sensor de luz y proximidad, Giroscopio, Sensor de aceleración
    SIM/TF Nano + Nano or Nano + TF
    Peso 918g (including battery)
  • Inalámbrico
    GPS Beidou, GLONASS, Galileo, GPS (AGPS)
    NFC ISO14443A/B, ISO15693, ISO18000-3, MIFARE, FeliCa RF, Kovio, NFC Forum Type 1-4 Tags
    RADIO WLAN Built-in 802.11 a/b/g/n/ac/ax Wi-Fi6E, Support 2.4G, 5G dual band and 6G, 2T2R
    RADIO WPAN Bluetooth 5.4
    RADIO WWAN 2G: GSM (B2, B3, B5, B8). 3G: WCDMA (B1, B2, B5, B8); CDMA 1X/EVDO(BC0). 4G: TDD-LTE (B34, B38, B39, B40, B41); FDD-LTE (B1, B2, B3, B5, B7, B8, B20, B28 a&b)
  • Medioambiental
    Caídas 1.2m drops to concrete (for six sides, one drop per side)
    Descarga electroestática (ESD) ±8 kV (descarga directa), ±15 kV (descarga en aire)
    Humedad 5 % al 90 % (sin condensación)
    Grado de protección IP IP65
    Temperatura de funcionamiento De -20 °C a 50 °C (de -4 °F a 122 °F)
    Temperatura de almacenamiento De -30 °C a 70 °C (de -22 °F a 158 °F)
  • Software
    Hoja de ruta de Android https://www.newland-id.com/en/support/android-roadmap-for-newland-devices/
    Herramientas de configuración Ndevor
    MDM (certificado) Ndevor
  • Garantía
    Garantía estándar 2 años
  • Accesorios

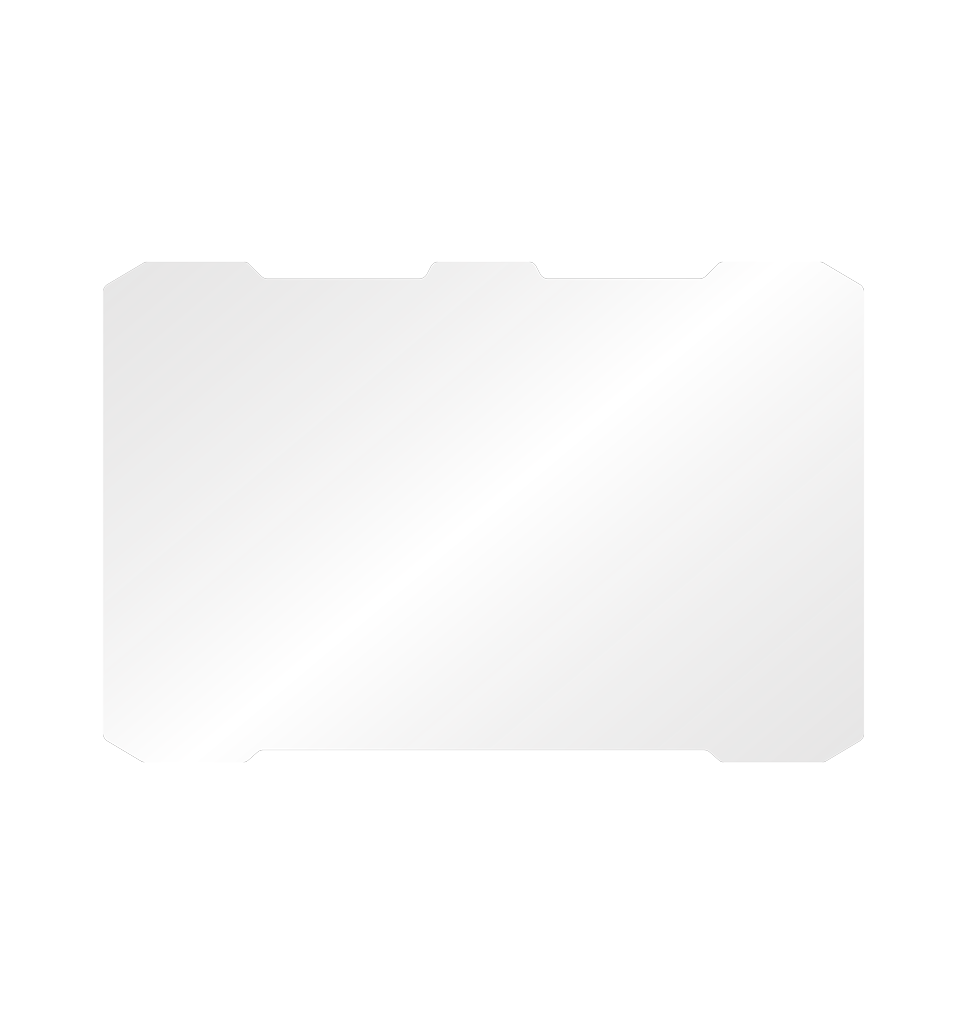

    Accesorios opcionales Base de carga, Funda protectora, Base para vehículo, Lámina templada
    Accesorios estándar Cable USB, Correa de mano, Adaptador múltiple de carga
  • ¿Qué incluye la caja?
    NLS-NQ10T-4W-B NQuire 10 Trygon Black, USB cable, Hand strap, Multiplug adapter
    NLS-NQ10T-4W-W NQuire 10 Trygon White, USB cable, Hand strap, Multiplug adapter

  • Industrias sugeridas

    • placeholder Comercio minorista
    • placeholder Hostelería y ocio
    • placeholder Sanidad
    • placeholder Transporte y logística
    • placeholder Almacenamiento y distribución
    • placeholder Servicios de campo y servicios públicos
    • placeholder Diagnóstico in vitro y laboratorios

Documentos

Enlaces

Versiones disponibles

Número de pieza Descripción
NLS-NQ10T-4W-B Newland NQuire 10 Trygon (Black) Tablet. 10" Tablet 2.2Ghz 4GB/64GB, 2D CMOS Mega Pixel imager with Laser Aimer (CM6x), BT, WiFi6, 4G, GPS, NFC and Camera. Incl USB cable, Hand Strap and multiplug adapter. OS: Android 15 GMS (AER).
NLS-NQ10T-4W-W Newland NQuire 10 Trygon (White) Tablet. 10" Tablet 2.2Ghz 4GB/64GB, 2D CMOS Mega Pixel imager with Laser Aimer (CM6x), BT, WiFi6, 4G, GPS, NFC and Camera. Incl USB cable, Hand Strap and multiplug adapter. OS: Android 15 GMS (AER).
