Perspective view HR55 Salmon General Purpose Handheld Scanner

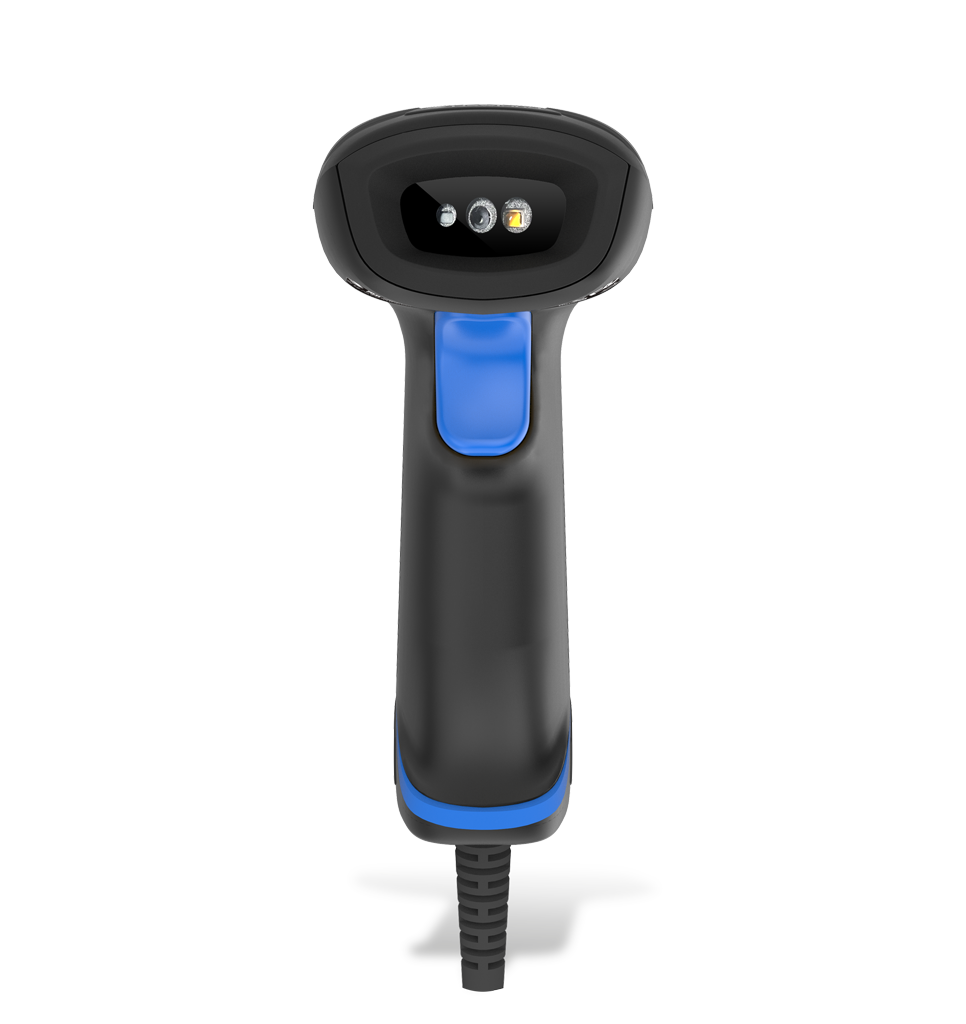

Front view HR55 Salmon General Purpose Handheld Scanner

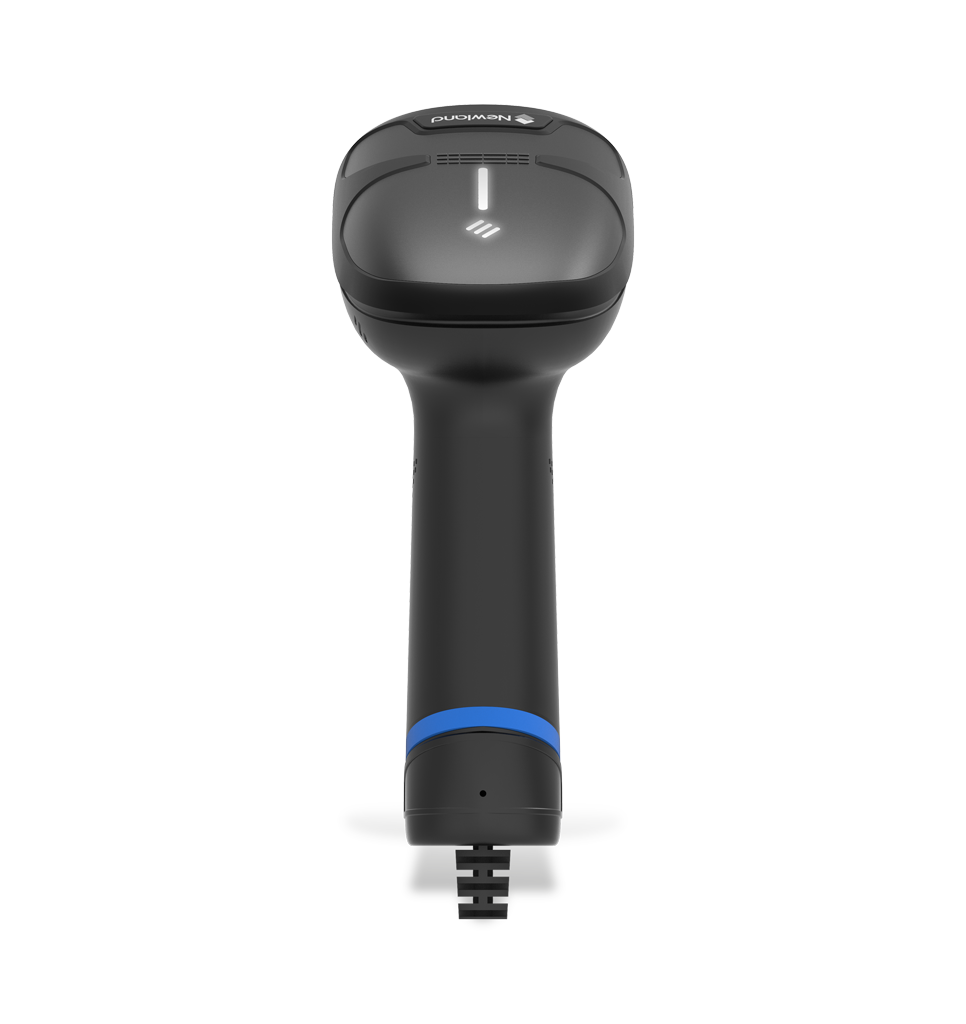

Back view HR55 Salmon General Purpose Handheld Scanner

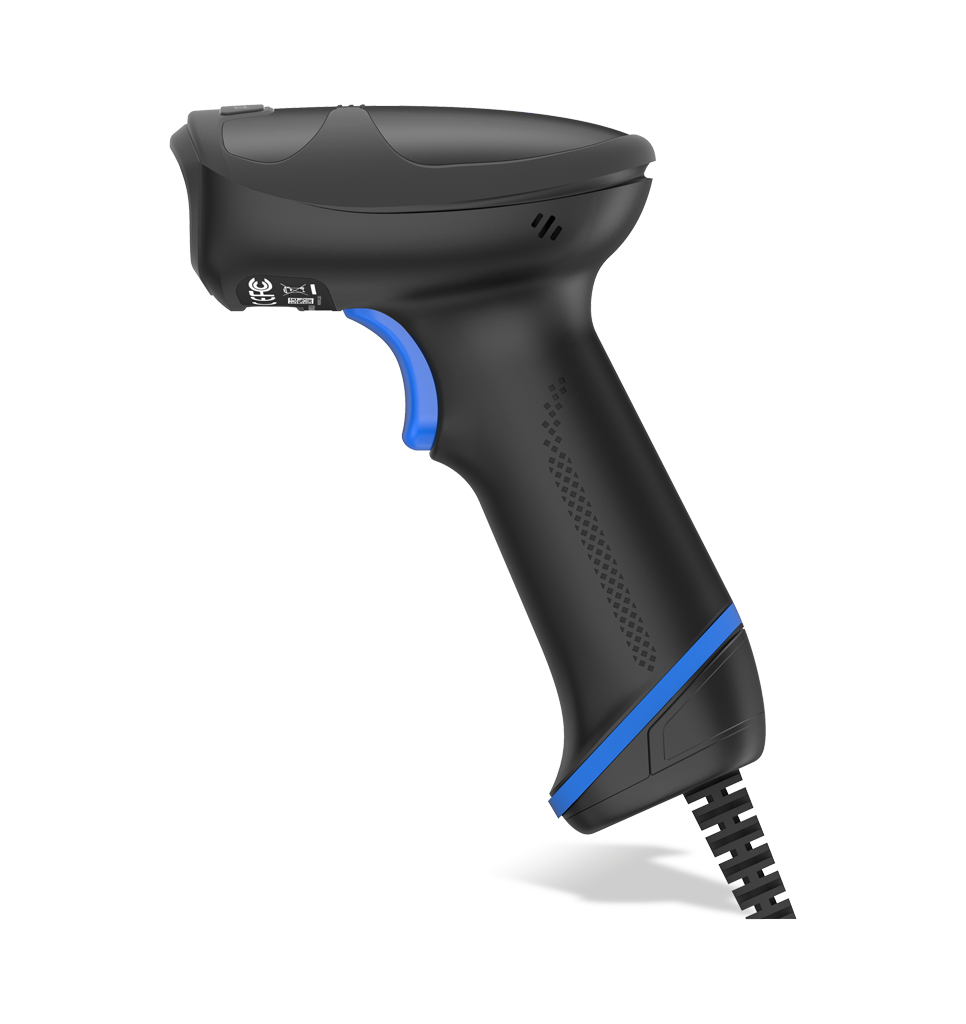

Side view HR55 Salmon General Purpose Handheld Scanner

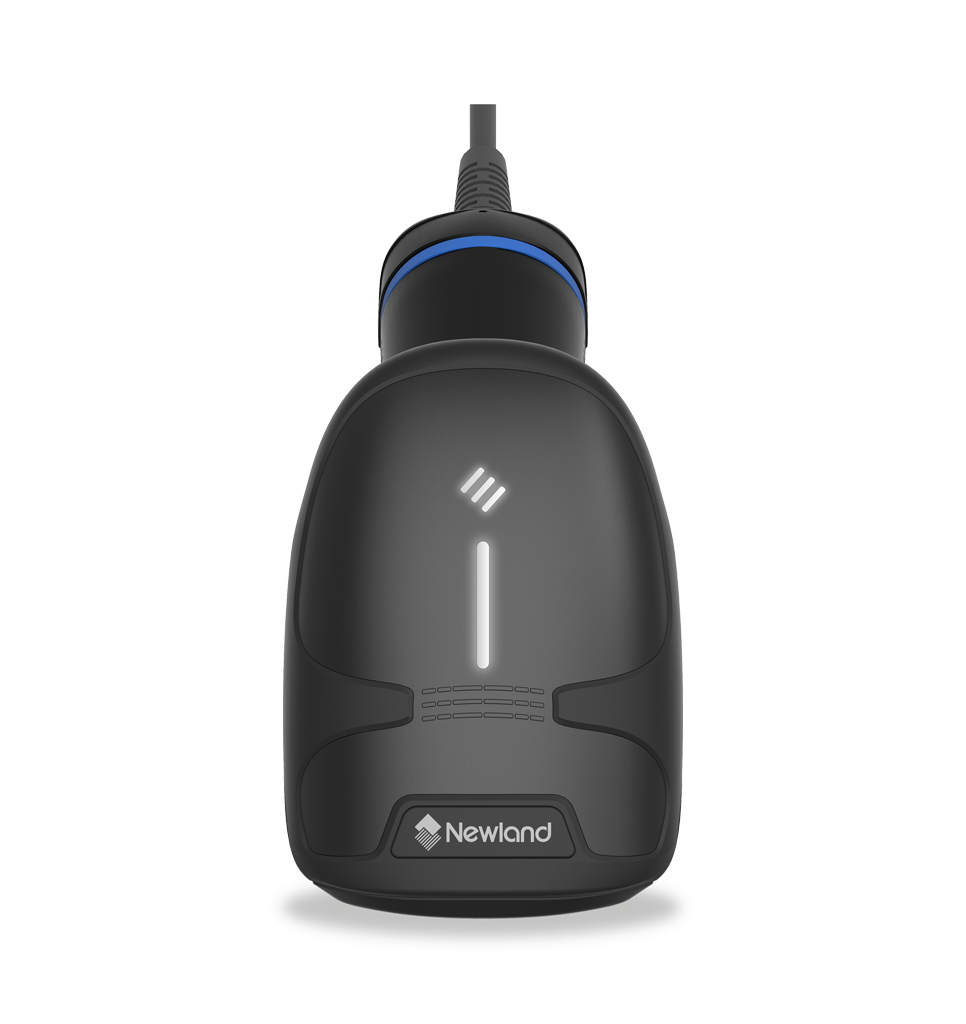

Top view HR55 Salmon General Purpose Handheld Scanner

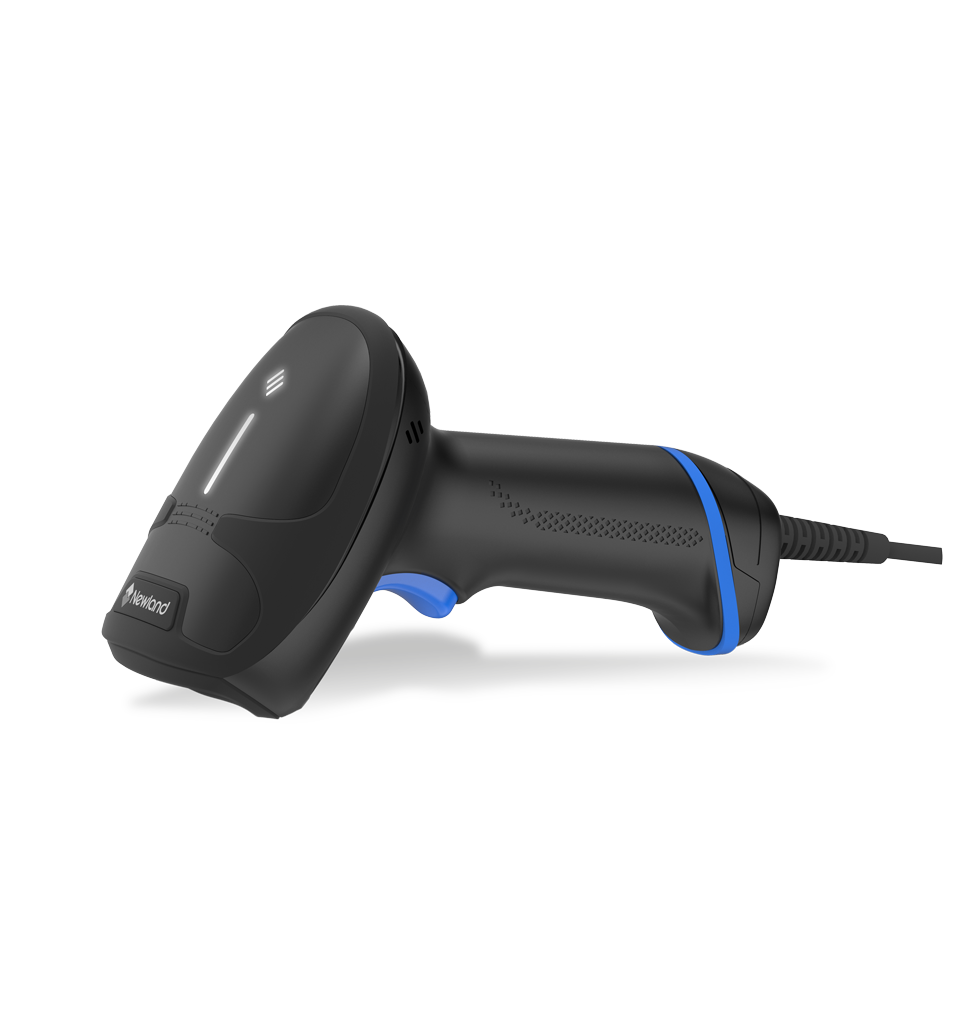

Perspective side view HR55 Salmon General Purpose Handheld Scanner

HR55 Salmon Corded

Handscanner

Why choose the HR55 Salmon Corded?

  • Customize the scanner's behavior with Advanced Scripting
  • Incredibly accurate barcode scanning with the laser aimer and megapixel sensor
  • Hands-free scanning using the adjustable auto-sense or gooseneck stands

The legacy continues with the latest HR55 Salmon Corded, which offers effortless barcode capture thanks to Newland EMEA decoding technology. Cutting-edge scanning and decoding are showcased in a design that represents premium quality to become Newland’s best ever handheld 2D barcode reader so far. The HR55 Salmon Corded features a light and ergonomic design, making it the ideal companion for high-intensity scanning.

Efficiency boost with Advanced Scripting.

Eigenschaften

  • Performance and Elegance
    The HR55 Salmon boasts a stylish design that is not only well-balanced and comfortable to hold but also looks great. It is an example of Newland taking pride in matching performance with beauty.
  • Adaptable to your needs.
    The HR55 Salmon is the first in the portfolio to include advanced Scripting for programming intricate commands. Easyset is still available to those familiar with the program, but adding Scripting allows even finer detail, making the HR55 Salmon series the best in class.
  • High Performance
    The HR55 Salmon Corded has a laser aimer for accurate barcode scanning and a megapixel sensor to capture various types of barcodes, even if they are damaged or distorted. This makes it ideal for high-density workloads.
  • Acuscan
    Laser aiming with Acuscan is an optional feature that allows you to hone in on the code you want, even if barcodes are printed closely together.
  • Hands-free Scanning
    The HR55 Salmon Corded scanner offers various hands-free scanning stand options. The first option is the intelligent adjustable auto-sense stand, which can be adjusted from an upright position to a flat one, making it suitable for desktop and wall-mounted use. The second option is the gooseneck stand, which provides a flexible design to adjust to your preferred scanning distance and angle.
  • Be confident with Newland
    The HR55 Salmon’s IP52 and 1.5m drop specification are backed up with a trustworthy 5-year warranty. Select the HR55 with confidence, knowing that Newland has created a scanner that’s up for the job no matter the environment.

Technische Spezifikationen

  • Datenerfassung
    1D Code 11, Code 128, Code39, GS1-128(UCC/ENA-128), AIM 128, ISBT 128,Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, ITF-6, ITF-14, Standard 2 of 5,China Post 25, MSI-Plessey, Plessey, GS1Databar(RSS), Code 49, Code 16K.
    2D PDF417,QR Code, Micro QR, Data Matrix, Aztec, Maxi Code, Chinese Sensible Code, GM Code, Micro PDF417, Code One, Dotcode
    Zielen Roter Laser (650 nm), Kreuzlaser
    Schärfentiefe Code 39 (5mil) 50 mm - 230 mm
    Schärfentiefe Datenmatrix (10mil) 30 mm - 245 mm
    Schärfentiefe Datenmatrix (15mil) 15 mm - 200 mm
    Schärfentiefe EAN 13 (13 mil) 40 mm - 535 mm
    Schärfentiefe PDF417 (6.7mil) 45 mm - 215 mm
    Sichtfeld horizontal 48˚
    Sichtfeld vertikal 30˚
    Beleuchtung Weiße LED
    Bildsensor 1280 x 800 CMOS
    Minimaler Druckkontrast >15%
    OCR Passport OCR, Chinese ID Card, China Travel Permit OCR
    Auflösung ≥3mil
    Scan-Winkelabstand ±60°
    Scan-Winkelrolle 360˚
    Scan-Winkelversatz ±60°
  • Physikalisch
    Strom bei 5 V DC Betrieb 281 mA (max)
    Strom bei 5 V DC Standby 129 mA
    Abmessungen (mm) 95(W) × 68(D) × 166(H) mm
    Eingangsspannung 5 VDC ±5 %
    Schnittstellen RS-232, HID-POS, USB-CDC, USB-KBW
    Benachrichtigungen Piepton, LED, Vibration
    Gewicht 140 g
  • Umwelt
    Fallhöhe 1.5 m
    Elektrostatische Entladung (ESD) ±8 kV (Kontaktentladung), ±15 kV (Luftentladung)
    Feuchtigkeit 5 % bis 95 % (nicht kondensierend)
    IP-Bewertung IP52
    Betriebstemperatur -20 °C bis 60 °C (-4 °F bis 140 °F)
    Lagertemperatur -40 °C bis 70 °C (-40 °F bis 158 °F)
  • Software
    Konfigurationstools EasySet
  • Zertifizierungen
    Zertifizierungen Hardware FCC, RoHS 2.0, IEC 60825, IEC 62471, CE
  • Garantie
    Umfassender Servicevertrag 3 Jahre, 5 Jahre
    Standardgarantie 5 Jahre
  • Zubehör
    Optionales Zubehör USB-Kabel, USB-C-Kabel, RS-232-Kabel, Wandhalterung, Zusammenklappbarer Smart-Ständer, Intelligente Gänsehalsleuchte
    Standardzubehör USB-Kabel, RS-232-Kabel
  • Was ist im Lieferumfang enthalten?
    NLS-HR5566-S1 HR55 Salmon, 3,5 meter coiled USB cable
    NLS-HR5566-S7 HR33 Marlin, 2 meter RS-232 cable, Multiplug adapter
    NLS-HR5566-SJ HR33 Marlin, 3,5 meter coiled USB cable, Smart adjustable stand

  • Empfohlene Branchen

    • placeholder Einzelhandel
    • placeholder Gastgewerbe & Freizeit
    • placeholder Gesundheitswesen
    • placeholder Postwesen
    • placeholder Behörden & Öffentlicher Sektor

Zubehör

Verfügbare Versionen

Teilenummer Beschreibung
NLS-HR5566-S1 HR55 Salmon 2D CMOS Mega Pixel Handheld Reader with 3,5 mtr. coiled USB cable(CBL030UA). Smart stand compatible
NLS-HR5566-S7 HR55 Salmon 2D CMOS Mega Pixel Handheld Reader with 2 mtr. Straight RS232 cable (CBL037R) and multiplug adapter (ADP100). Smart stand compatible.
NLS-HR5566-SJ HR55 Salmon 2D CMOS Mega Pixel Handheld Reader with 3.5 mtr. coiled USB cable(CBL030UA) and autosense. Incl. smart adjustable stand (NLS-STD23-33-SA).
