  • 1.8m drop

  • 1D & 2D

  • 2,600 mAh

  • Acuscan

  • Advanced Scripting

  • AI-Powered Barcode Detection

  • Bluetooth 5.0

  • EasySet

  • GS1 Ready

  • IP52

  • Laser aimer

  • Megapixel

  • OCR

  • USB

  • Warranty 5 Years

Kontakt Datenblatt herunterladen
Perspective view HR33 Marlin AI Bluetooth General Purpose Handheld Scanner
Front view HR33 Marlin AI Bluetooth General Purpose Handheld Scanner
Back view HR33 Marlin AI Bluetooth General Purpose Handheld Scanner
Side view HR33 Marlin AI Bluetooth General Purpose Handheld Scanner
Top view HR33 Marlin AI Bluetooth General Purpose Handheld Scanner
Perspective view HR33 Marlin AI Bluetooth General Purpose Handheld Scanner in Stand/Docking station
Side view HR33 Marlin AI Bluetooth General Purpose Handheld Scanner in stand/docking station attached to wall

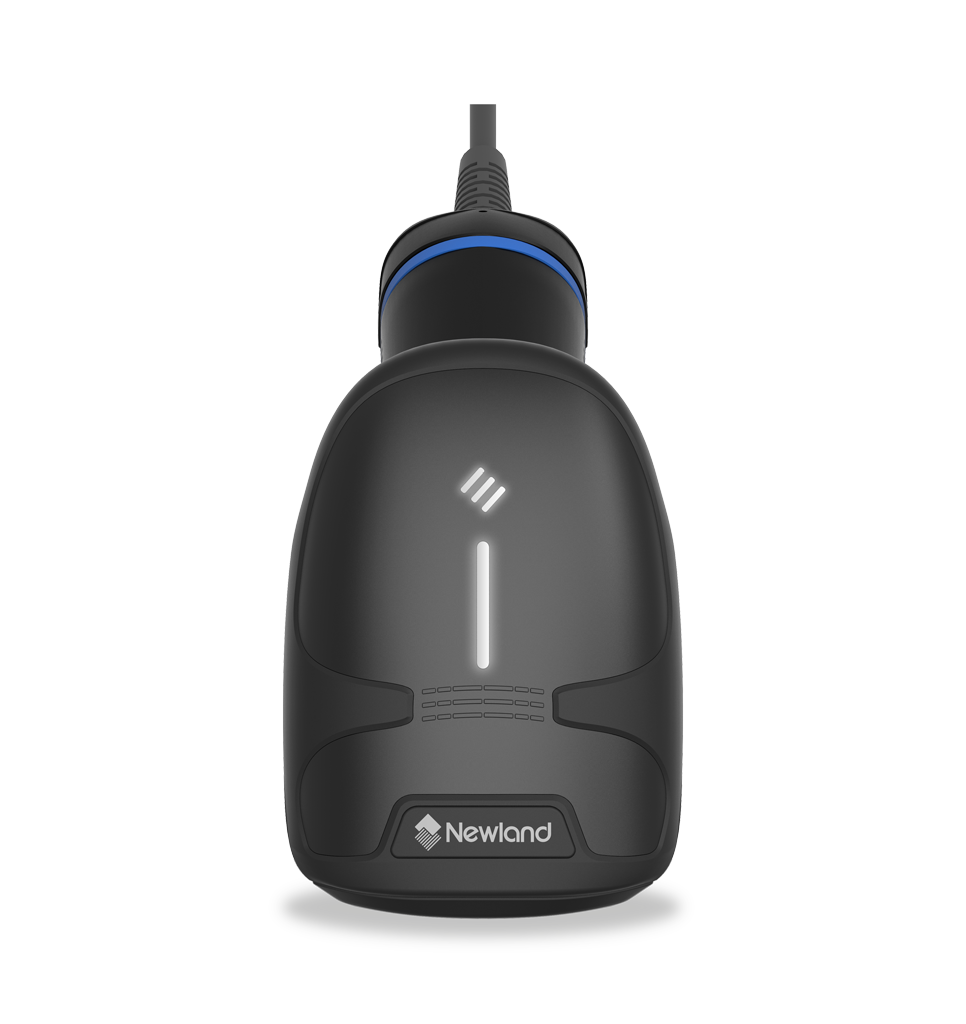

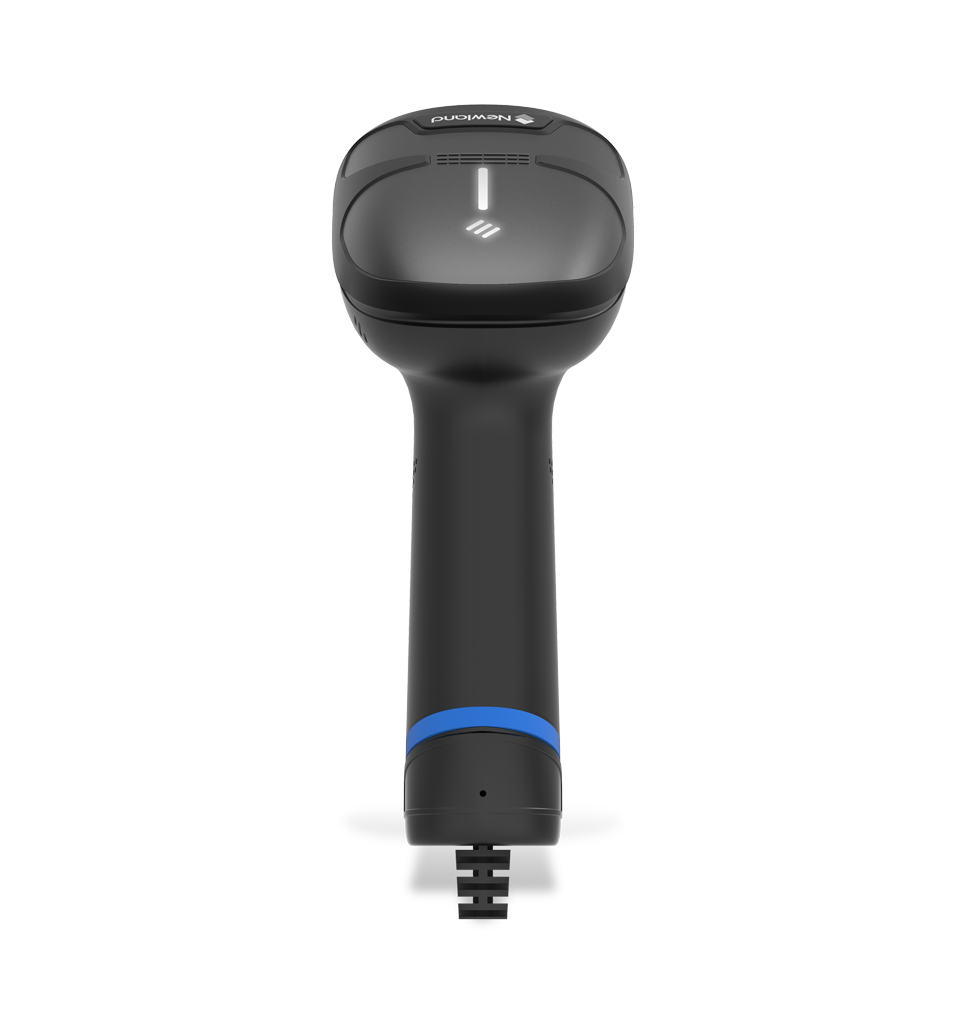

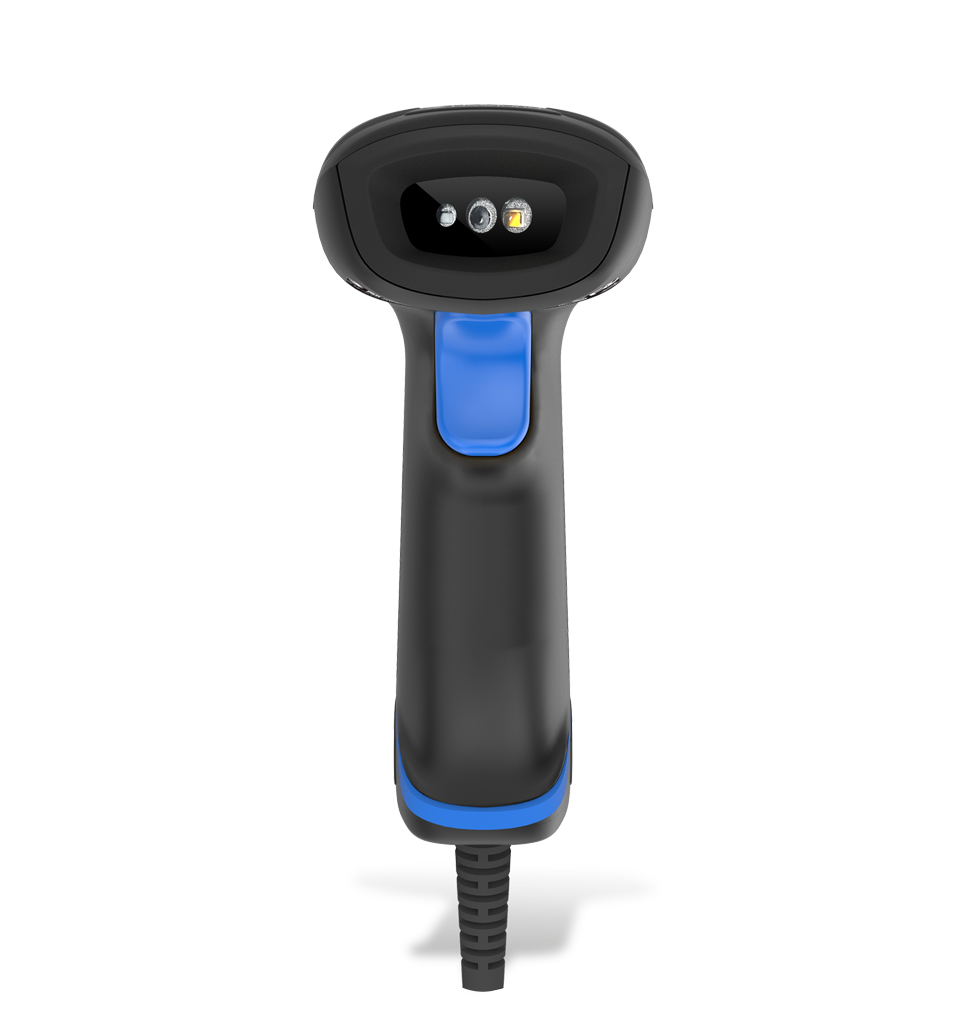

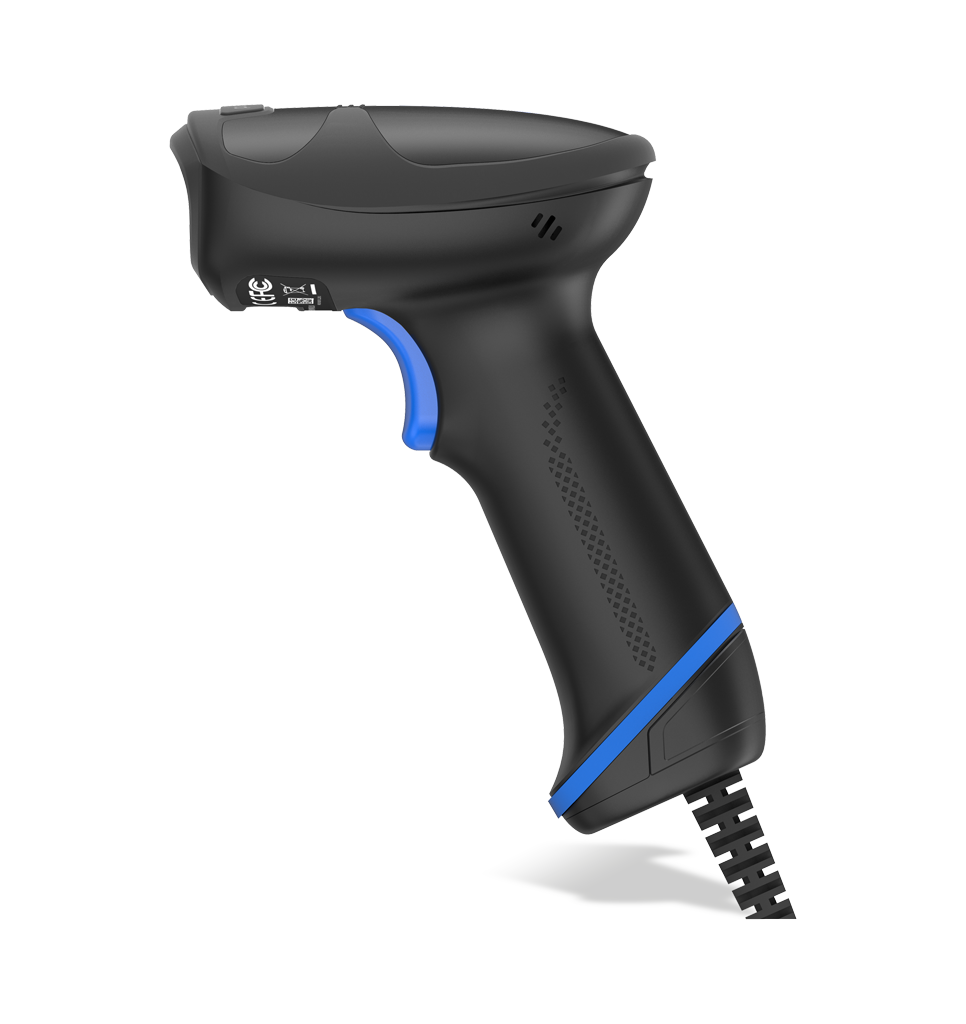

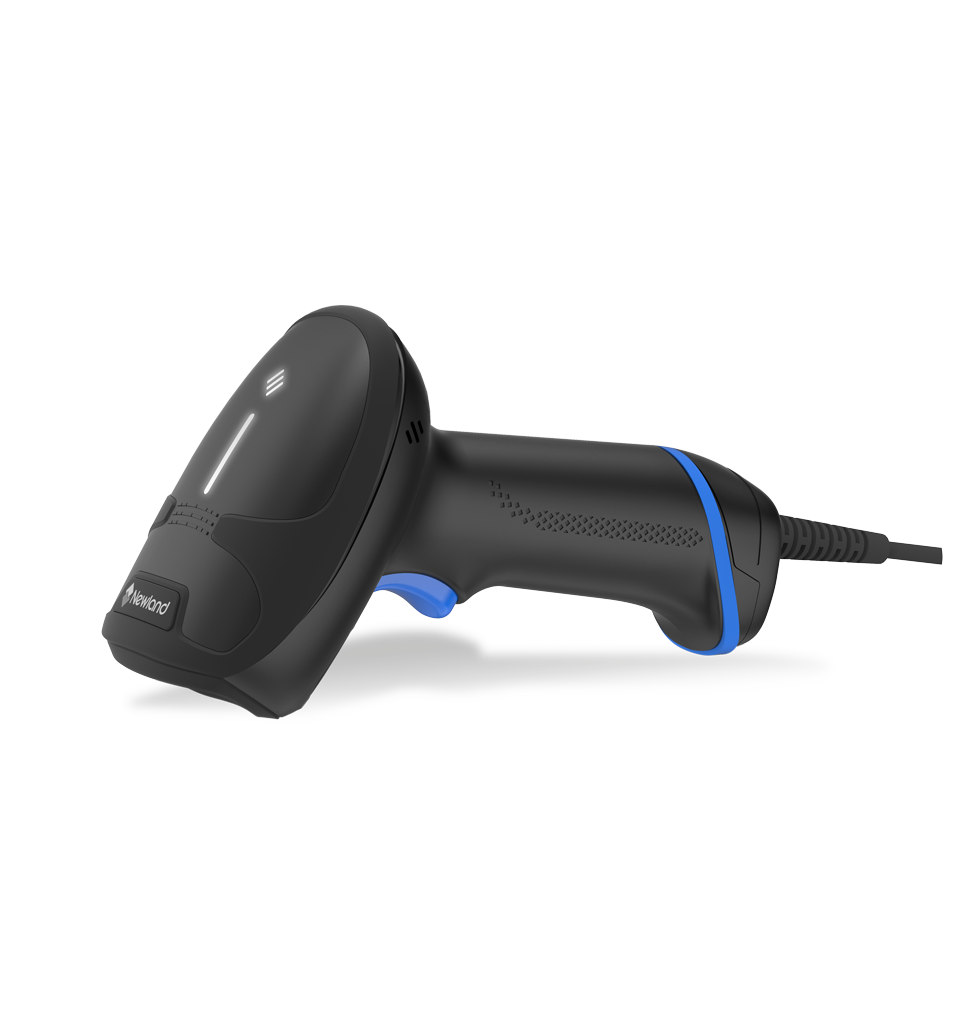

HR33 Marlin AI Corded

Eigenschaften

  • AI-Powered Scanning Technology.
    The HR33 Marlin AI BT is equipped with Newland’s UIMG and AIPowered Barcode Detection scanning technologies. These advanced systems enable rapid, accurate, and reliable decoding of both 1D and 2D barcodes, even when they are damaged or distorted, as well as on reflective and curved surfaces. AI-powered devices utilize computer vision and self-learning to interpret barcodes accurately. They efficiently analyze images to detect, locate, and read barcodes. The HR33 Marlin AI BT excels in challenging conditions, demonstrating advanced decoding performance and providing a reliable scanning solution that functions flawlessly in any situation.
  • High Connectivity
    The HR33 Marlin AI Bluetooth scanner features 5.0 Bluetooth connectivity and can scan items within a 100m range in open space. Whether you use the communication and charging stand directly with a device's Bluetooth or via a dongle, the HR33 Marlin AI BT provides a reliable wireless connection.
  • High Performance
    The HR33 Marlin AI Bluetooth barcode scanner features a laser aimer for accurate scanning and a megapixel sensor that reads various types of barcodes, including damaged or distorted ones. This makes the scanner particularly well-suited for high-density workloads. Additionally, the Marlin features advanced passport OCR capability for efficient data recognition and supports Digimarc digital watermark technology, enhancing scanning efficiency.
  • Personalized Configuration
    The HR33 Marlin AI includes the Advanced Scripting feature that enables users to customize and automate the scanner's behavior. Easyset is still available to those familiar with the program, but adding Scripting allows even finer detail, making the HR33 Marlin Series the best in class.
  • Scan & send or collect & send
    The HR33 Marlin AI BT has configurable modes that allow the user to select a real-time scan and send via a wireless connection, or a choice of two types of offline storage and batch sending of the data. The scanner's memory allows for thousands of codes to be stored if needed.
  • Be confident with Newland
    The HR33 Marlin AI BT offers users confidence with an IP52 rating, a 1.8m drop specification, and a 5-year warranty. Newland AIDC EMEA presents a scanner that’s up for the job, no matter the environment.

Technische Spezifikationen

  • Datenerfassung
    1D Code 11, Code 128, Code39, GS1-128(UCC/ENA-128), AIM 128, ISBT 128,Codabar, Code 93, UPC-A, UPC-E, Coupon, GSl Composite, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2 of S, Matrix 2 of S, Industrial 2 of S, IT F-6, ITF-14, Standard 2 of 5,China Post 25, MSI-Plessey, Plessey, GS1Databar(RSS), Code 49, Code 16K.
    2D PDF417,QR Code, Micro QR, Data Matrix, Aztec, Maxi Code, Chinese Sensible Code, GM Code, Micro PDF417, Code One, TLC-39, Dotcode, Digimarc
    Zielen Laser
    Schärfentiefe Code 39 (5mil) 30 mm - 270 mm
    Schärfentiefe Datenmatrix (10mil) 20 mm - 245 mm
    Schärfentiefe EAN 13 (13 mil) 35 mm - 535 mm
    Schärfentiefe PDF417 (6.7mil) 35 mm - 215 mm
    Sichtfeld horizontal 48˚
    Sichtfeld vertikal 30˚
    Beleuchtung Weiße LED
    Bildsensor 1280 x 800 CMOS
    Minimaler Druckkontrast 15%
    OCR Default: Passport OCR,Chinese ID Card, China Travel Permit OCR. Optional: date and general alphanumeric recognition.
    Auflösung ≥3mil
    Scan-Winkelabstand ±60°
    Scan-Winkelrolle 360°
    Scan-Winkelversatz ±65°
  • Scanleistung
    Speicher-Flash ≥16.384 Codeeinträge (über 60 Byte)
  • Physikalisch
    Batterietyp 2,600 mAh lithium-ion battery
    Abmessungen (mm) Scanner: 117,5 x 87,5 x 144 mm; Cradle: 140 x 90 x 144,5 mm
    Erwartete Akkulaufzeit ≥5 hours of continuous operation (scan once per 6 seconds)
    Erwartete Ladezeit ≥6 hours
    Eingangsspannung 5 VDC ±5 %
    Schnittstellen USB-A, HID-POS, USB-CDC, USB-KBW, Optional RS-485
    Benachrichtigungen Piepton, LED, Vibration
    Gewicht Scanner: 210 g; Cradle 340,5 g
  • Kabellos
    Kommunikationsmodi Synchron, Asynchron, Stapel
    Funktechnologie Bluetooth 5.0
    Drahtlose Entfernung (max.) ≥100m (in open space)
  • Umwelt
    Ladetemperatur 0 °C bis 45 °C (32 °F bis 113 °F)
    Fallhöhe 1.8m drops to concrete
    Elektrostatische Entladung (ESD) ±8 kV (Kontaktentladung), ±15 kV (Luftentladung)
    Feuchtigkeit 5 % bis 95 % (nicht kondensierend)
    IP-Bewertung IP52
    Betriebstemperatur -20 °C bis 50 °C (-4 °F bis 122 °F)
    Lagertemperatur -40 °C bis 70 °C (-40 °F bis 158 °F)
  • Software
    Konfigurationstools EasySet
  • Garantie
    Standardgarantie 5 Jahre
  • Zubehör
    Optionales Zubehör Wandhalterung
    Standardzubehör USB-Kabel, Ständer/Dockingstation

  • Empfohlene Branchen

    • placeholder Einzelhandel
    • placeholder Gastgewerbe & Freizeit
    • placeholder Postwesen
    • placeholder Lagerhaltung & Vertrieb
    • placeholder Behörden & Öffentlicher Sektor
