Perspective view HR33 Marlin AI BT Healthcare General Purpose Handheld Scanner

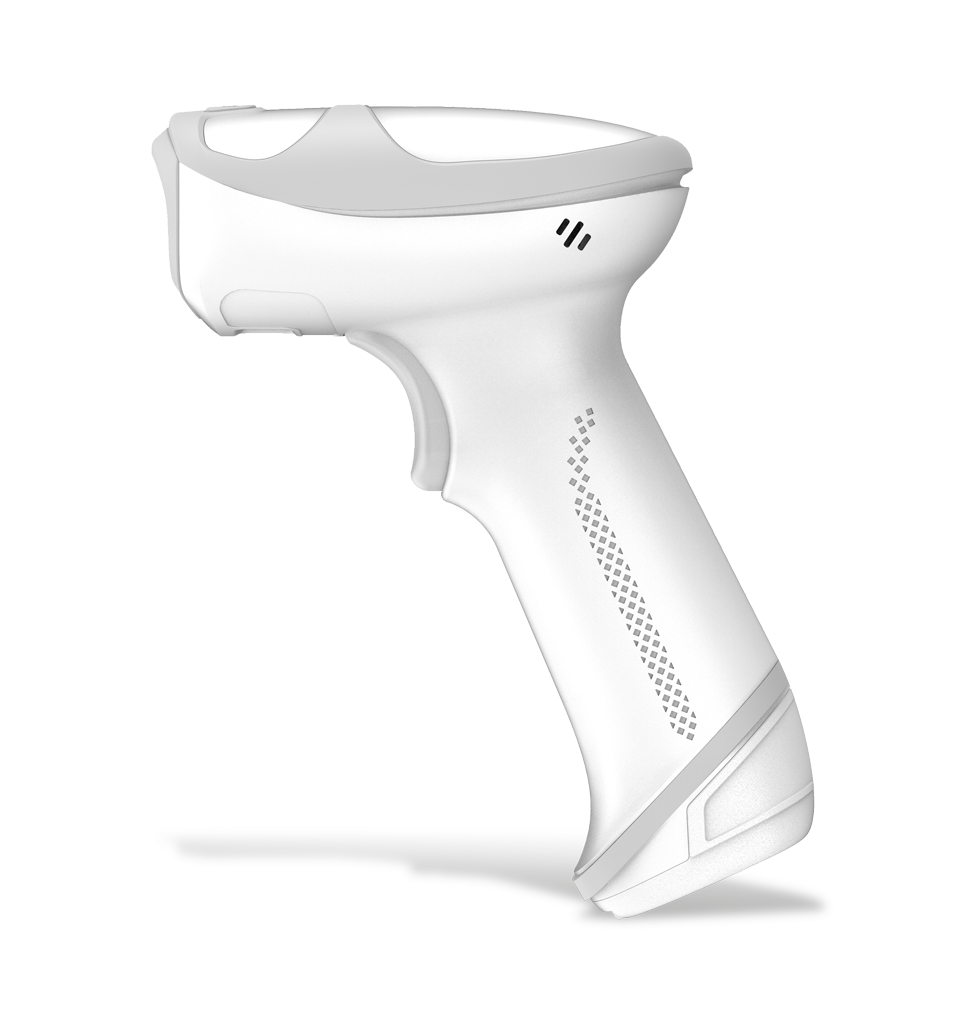

Side view HR33 Marlin AI BT Healthcare General Purpose Handheld Scanner

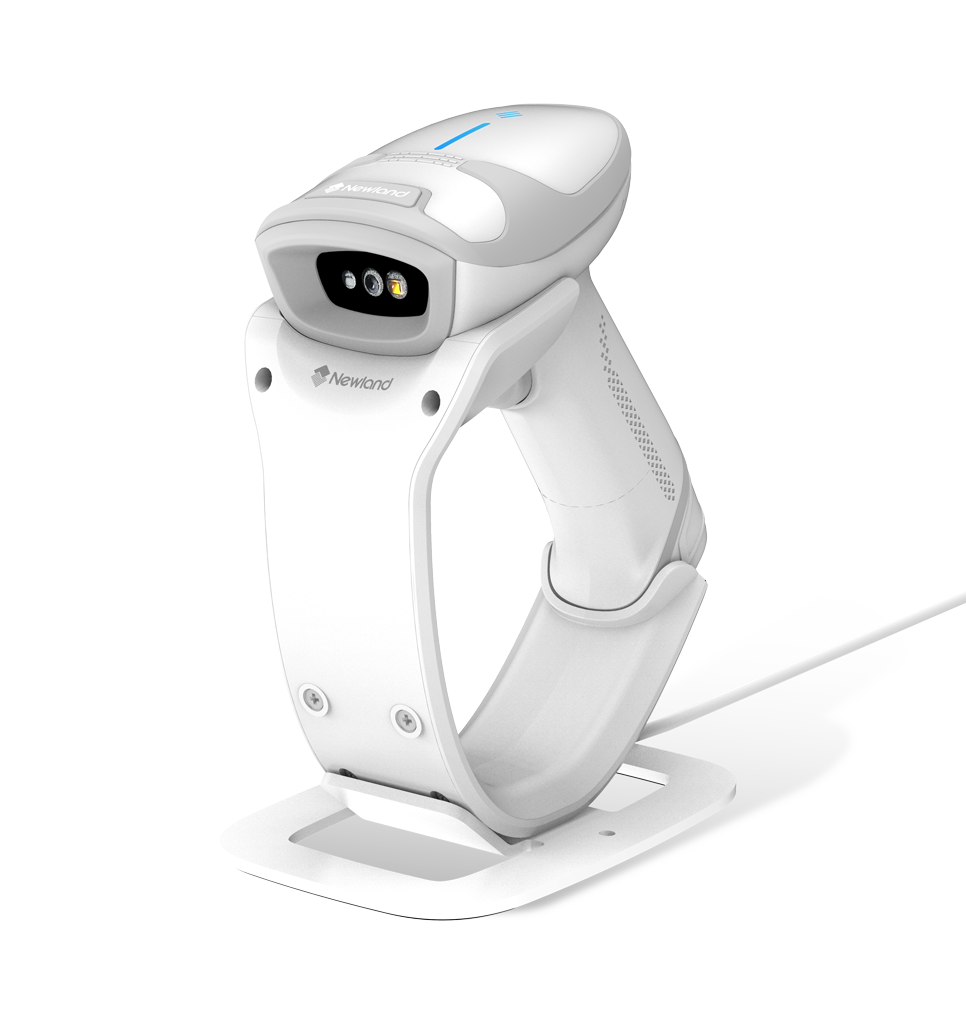

Perspective view HR33 Marlin AI BT Healthcare General Purpose Handheld Scanner in Stand/docking station

HR33 Marlin AI Bluetooth Healthcare

Skanery ręczne

Why choose the HR33 Marlin AI Bluetooth Healthcare?

  • Ready for healthcare with antimicrobial coating
  • AI-powered barcode detection technology to detect, locate, and read barcodes
  • Wireless scanning up to 100 m with Bluetooth 5.0

The HR33 Marlin AI Bluetooth Healthcare Scanner is a powerful barcode scanning device designed for healthcare applications. It includes an antimicrobial coating to enhance hygiene. Equipped with AI-powered barcode detection, advanced scripting capabilities, an LED aimer, and a high-resolution megapixel sensor, this scanner can quickly and accurately read both 1D and 2D barcodes, including those that may be damaged or distorted. Additionally, Bluetooth 5.0 connectivity ensures a strong, reliable connection for data transmission.

Cechy

  • Easily replaceable battery.
    The HR33 Marlin AI Bluetooth Healthcare offers over 12 hours of continuous use on a single charge. If the battery runs out, the compartment features a latch-release opening for convenient replacement without interrupting your tasks. Additionally, the low-battery indicator features two colors, providing a quick visual cue when it's time to change the battery. The new magnetic contact on the stand ensures easy connectivity and high reliability.
  • High Connectivity.
    The HR33 Marlin AI Bluetooth Healthcare scanner boasts Bluetooth 5.0 connectivity and can scan items within a range of 100 meters in open spaces. Whether you connect the communication and charging stand directly to a device via Bluetooth or use it with a dongle, the Marlin ensures a reliable wireless connection.
  • AI-Powered Scanning Technology.
    The HR33 Marlin AI Healthcare Series is equipped with Newland’s UIMG and AI-Powered Barcode Detection scanning technologies. These advanced systems enable rapid, accurate, and reliable decoding of both 1D and 2D barcodes, even when damaged or distorted, and on reflective and curved surfaces. AI-powered devices use computer vision and self-learning to interpret barcodes accurately. They efficiently analyze images to detect, locate, and read barcodes. The HR33 Marlin AI HC Series excels in challenging conditions, demonstrating advanced decoding performance and providing a reliable scanning solution that functions flawlessly in any situation.
  • Scan & send or collect & send.
    The HR33 Marlin AI Bluetooth Healthcare scanner features configurable modes that enable users to perform real-time scans and send data wirelessly. Additionally, it offers two types of offline storage for batch data sending. The scanner's memory can store thousands of codes, if necessary.
  • Precision and Performance.
    The HR33 Marlin AI Bluetooth Healthcare is a powerful barcode scanning device. It includes an LED aimer for precise barcode scanning and a megapixel sensor that can read various types of barcodes, including damaged or distorted ones. These capabilities make it well-suited for high-density workloads. Additionally, the Marlin HC Series is equipped with advanced Optical Character Recognition (OCR) technology for efficient data recognition and supports Digimarc digital watermark technology, further enhancing scanning efficiency.
  • Advanced Scripting.
    The HR33 Marlin AI Healthcare Series scanner features Advanced Scripting, allowing users to customize and automate the scanner's behavior by writing scripts in the programming language, Lua. This capability enables users to control how the scanner processes and interprets barcode data. While EasySet remains available for those who prefer it, the addition of Advanced Scripting provides even greater detail and customization. As a result, the HR33 Marlin AI HC Series is considered the best in its class.
  • Be confident with Newland.
    The HR33 Marlin AI Healthcare Series offers users confidence with an IP52 rating, a 1.8m drop specification, and a 5-year warranty. Newland AIDC EMEA presents a scanner that’s up for the job, no matter the environment

Dane techniczne

  • Przechwytywanie danych
    1D Code 11, Code 128, Code39, GS1-128(UCC/ENA-128), AIM 128, ISBT 128,Codabar, Code 93, UPC-A, UPC-E, Coupon, GSl Composite, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2 of S, Matrix 2 of S, Industrial 2 of S, IT F-6, ITF-14, Standard 2 of 5,China Post 25, MSI-Plessey, Plessey, GS1Databar(RSS), Code 49, Code 16K.
    2D PDF417,QR Code, Micro QR, Data Matrix, Aztec, Maxi Code, Chinese Sensible Code, GM Code, Micro PDF417, Code One, Dotcode, Digimarc
    Celowanie LED
    Głębia ostrości Kod 39 (5mil) 30 mm - 270 mm
    Głębia ostrości Data Matrix (10mil) 20 mm - 245 mm
    Głębia ostrości EAN 13 (13 mil) 35 mm - 535 mm
    Głębia ostrości PDF417 (6.7mil) 35 mm - 215 mm
    Pole widzenia w poziomie 48˚
    Pole widzenia w pionie 30˚
    Oświetlenie Biała dioda LED
    Czujnik obrazu 1280 x 800 CMOS
    Minimalny kontrast wydruku 15%
    OCR Default: Passport OCR,Chinese ID Card, China Travel Permit OCR. Optional: date and general alphanumeric recognition.
    Rezolucja ≥3mil
    Nachylenie kąta skanowania ±60˚
    Rolka kąta skanowania 360˚
    Odchylenie kąta skanowania ±65
  • Wydajność
    Pamięć Flash ≥16 384 wpisów kodu (ponad 60 bajtów)
  • Właściwości fizyczne
    Typ Baterii 2,600 mAh lithium-ion
    Wymiary (mm) Scanner: 117,5 x 87,5 x 144 mm; Cradle: 140 x 90 x 144,5 mm
    Oczekiwana żywotność baterii ≥15 hours of continuous operation (scan once per 6 seconds)
    Oczekiwany czas ładowania ≤6 hours
    Napięcie wejściowe 5 V DC ±5%
    Interfejsy RS-232, USB-A, HID-POS, USB-CDC, USB-KBW
    Powiadomienia Sygnał dźwiękowy, LED, Wibracja
    Waga Scanner: 210 g; Cradle: 340,5 g
  • Bezprzewodowy
    Tryby komunikacji Synchroniczny, Asynchroniczny, Partia
    Technologię radiową Bluetooth 5.0
    Odległość bezprzewodowa (maks.) ≥100 m (in open space)
  • Środowiskowe
    Temperatura ładowania Od 0°C do 45°C (od 32°F do 113°F)
    Odporność na upadek 1.8m drops to concrete
    Wyładowanie elektrostatyczne (ESD) ±8 kV (wyładowanie kontaktowe), ±15 kV (wyładowanie w powietrzu)
    Wilgotność 5% do 95% (bez kondensacji)
    Klasa IP IP52
    Temperatura robocza od -20°C do 50°C (od -4°F do 122°F)
    Temperatura przechowywania od -40°C do 70°C (od -40°F do 158°F)
  • Oprogramowanie
    Narzędzia konfiguracyjne EasySet
  • Certyfikaty
    Certyfikaty Sprzęt FCC ID, RoHS 2.0, CE RED, IEC 60825, IEC 62471
  • Gwarancja
    Standardowa gwarancja 5 lat
  • Akcesoria
    Akcesoria opcjonalne Klips do montażu ściennego
    Akcesoria standardowe Kabel USB, Podstawka/stacja dokująca
  • Co znajduje się w pudełku?
    NLS-HR3300-V2-BT-W HR33 Marlin AI Bluetooth Healthcare, Stand/docking station

  • Sugerowane branże

    • placeholder Handel detaliczny
    • placeholder Hotelarstwo i rekreacja
    • placeholder Opieka zdrowotna
    • placeholder Poczta
    • placeholder Transport i logistyka
    • placeholder Magazynowanie i dystrybucja
    • placeholder Diagnostyka in vitro i laboratoria
    • placeholder Administracja i sektor publiczny

Linki

Akcesoria

Dostępne wersje

Numer części Opis
NLS-HR3300-V2-BT-W HR33 V2 Marlin White 2D CMOS Wireless Bluetooth Handheld Reader with Stand/Docking Station
