NQuire 350 Skate
Dokunmatik Ekranlı Mikro Kiosklar
-
1D & 2D
-
4.3" screen
-
Android 7.1
-
Bluetooth 4.0
-
CMOS
-
I/O Ctrl
-
Megapixel
-
Micro SD
-
Ndevor
-
PoE
-
RFID
-
Touchscreen
-
USB
-
Warranty 2 Years
-
WIFI
| Parça numarası | Açıklama | EOL tarihi | EOM tarihi |
|---|---|---|---|
| NLS-NQUIRE351PRW-7C | NQuire 351 Skate Customer information terminal with 4.3" Touch Screen, 2D CMOS engine, BT, Wi-Fi, POE, NFC. Incl. wall mount bracket and multiplug adapter. OS: Android 7.1 | 18.04.2024 | 18.04.2029 |
Yayımlanma tarihi:
Aşağıdaki ürünler, daha iyi alternatiflere veya eski teknolojiye sahip oldukları için belirlenen tarihlerde kullanımdan kaldırılacaktır.
Alternatif ürün önerisi:
NQuire 500 Skate IIEOL tarihi: Ürün durdurma tarihi, bu ürün için sipariş kabul edilecek son gün.
EOM tarihi: Servis ve destek durdurma tarihi, bu ürün için yazılım yükseltme, parça ve onarım hizmetinin sağlanacağı son gün.

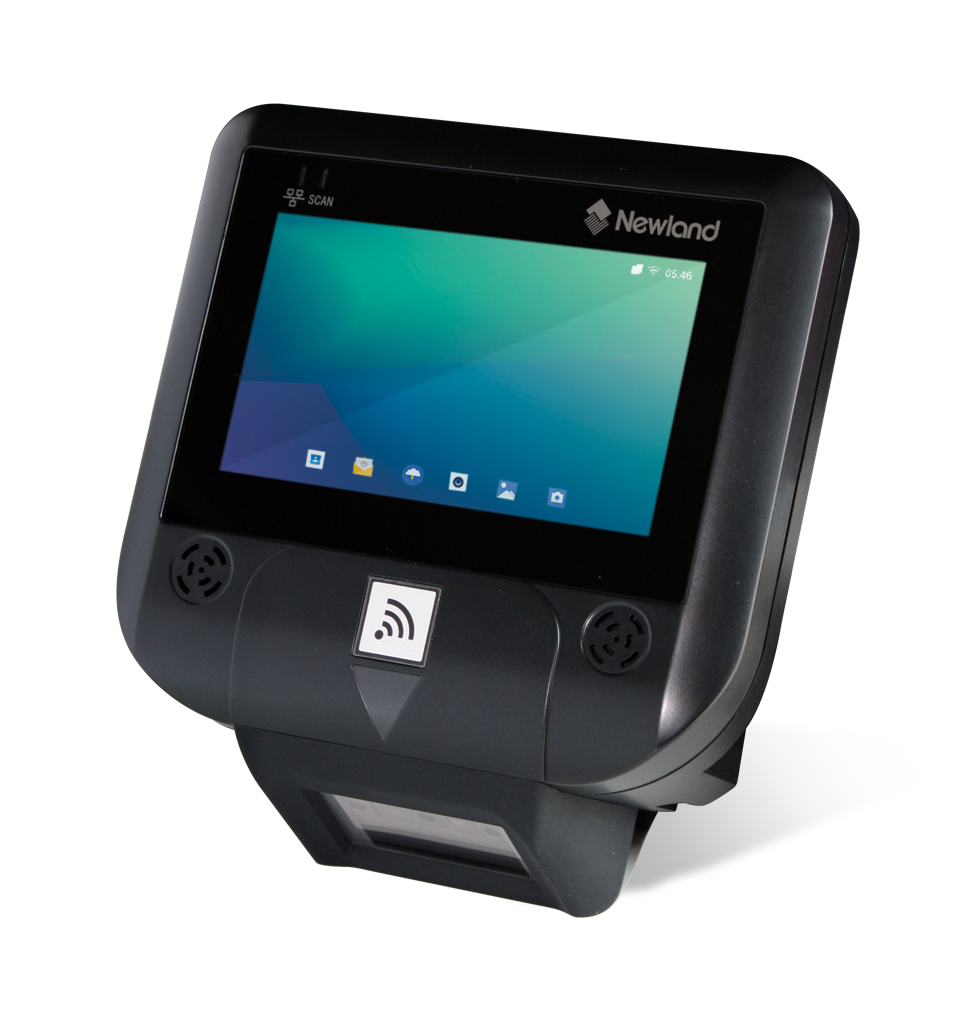

The NQuire 350 Skate packs upgraded features including Android 7.1 OS, 2D megapixel imager and Newland’s free MDM Ndevor. Its new black housing adds a contemporary feel that easily blends into your self service environment.
Özellikler
-
Self-Scanning focused.
The NQuire 350 Skate is armed with a 2D omni-directional scan engine. Its megapixel scanner easily reads barcodes, no matter the size or material that it's been printed on. A 20 degree angle of the reader makes scanning larger products comfortable. For digital barcodes, this same tilt guides each user to present their smart phone at the optimal angle to combat reflection. -
Heavily customized Android OS for easy integration and Device Management.
Running on Android 7.1, the NQuire 350 Skate ensures intuitive navigation to your customers and your team. Looking up product information, scanning tickets or checking prices is quick and simple. Meanwhile software and development possibilities are as powerful and widespread as they are in larger equivalents. -
Greater visibility.
Newland's MDM Ndevor, included with each NQuire 350 Skate, makes updating and maintaining devices even easier by connecting them to a cloud- based configuration and monitoring tool. -
Endless communication possibilities.
The NQuire 350 Skate is equipped with a variety of features that make it easy to adapt the micro kiosk to your application. The device has a built-in RFID reader and data can be transmitted through Ethernet, WiFi and Bluetooth. An external USB and GPIO port provides the possibility to connect an external device, such as a handheld scanner. -
Mount anywhere.
With its small footprint and VESA 75 compliant design, the NQuire 350 Skate can be mounted on any shelf, pole or wall. -
Backwards compatible.
The NQuire 350 Skate’s embedded CIT emulation program means the device can emulate the exact functions of the NQuire 200 series. Enabling prior customers to explore what's possible with Android while they continue their existing processes.
Teknik özellikler
-
Veri Yakalama
1D All major 1D symbologies 2D All major 2D symbologies Hedefleme Lazer diyot (625±10 nm) Aydınlatma Beyaz LED (625±10 nm) Görüntü Sensörü 1280 x 800 CMOS Tarama Yöntemleri Algılama Modu Tarama hızı 60 frames per second -
Performans
Mevcut İşletim Sistemi Android 7.1 Flaş Bellek 8GB RAM Bellek 2GB Bellek Artırma (Maks.) Micro SD up to 128GB İşlemci 1.5 GHz octa-core -
Fiziksel
Ses 88 dB (850 Hz – 20 kHz) çift kanallı stereo ses Boyutlar (mm) 140(W) x 139.5(D) x 61(H) mm Ekran 4.3" (480 x 272) TFT LCD Display Genişleme Yuvası Micro SD up to 128GB Arayüzler USB 2.0, GPIO Güç Tüketimi 6 W Ethernet üzerinden güç 802.3 af Güç Kaynağı Girişi AC 110 to 220 V (50 to 60 Hz) Güç Kaynağı Çıkışı DC12 V, 2 A Dokunmatik Panel Kapasitif dokunmatik ekran VESA standardı Complies with standard 75 braket, enabling easy mounting on shelves and walls Ağırlık 403 g -
Kablosuz
RFID ISO/IEC 14443 A/B ISO/IEC 15693; MIFARE 1K/4K; MIFARE DESFire; Sony FeliCa WLAN RADIO IEEE 802.11a/b/g/n/ac WPAN RADIO Bluetooth 4.0 LE -
Çevresel
Nem Çalışma: %5 ila %90 (yoğuşmasız), Depolama: %5 ila %95 (yoğuşmasız) Çalışma Sıcaklığı -10 °C ile 50 °C arası (14 °F ile 122 °F arası) Depolama Sıcaklığı -20 °C ile 60 °C (-4 °F ile 140 °F) -
Yazılım
Yapılandırma Araçları Ndevor MDM (sertifikalı) Ndevor, SOTI -
Garanti
Garanti Koşulları 2 yıl
-
Önerilen sektörler
-
Perakende
-
Konaklama ve Eğlence
-
Sağlık
-
Saha Servis ve Kamu Hizmetleri
-
Mevcut versiyonlar
| Parça numarası | Açıklama |
|---|---|
| NLS-NQUIRE351PRW-7C | NQuire 351 Skate Customer information terminal with 4.3" Touch Screen, 2D CMOS engine, BT, Wi-Fi, POE, NFC. Incl. wall mount bracket and multiplug adapter. OS: Android 7.1 |
