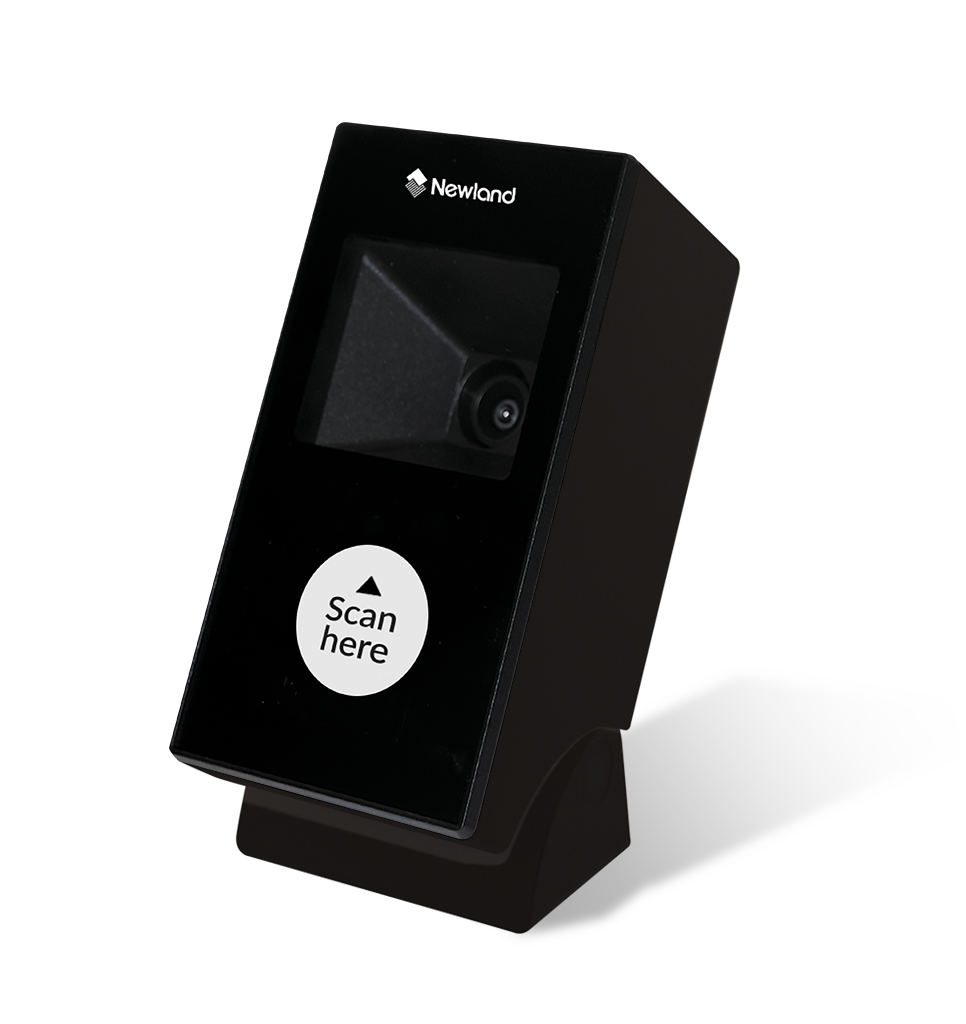

Perspective view FR21 Neon presentation scanner black colour

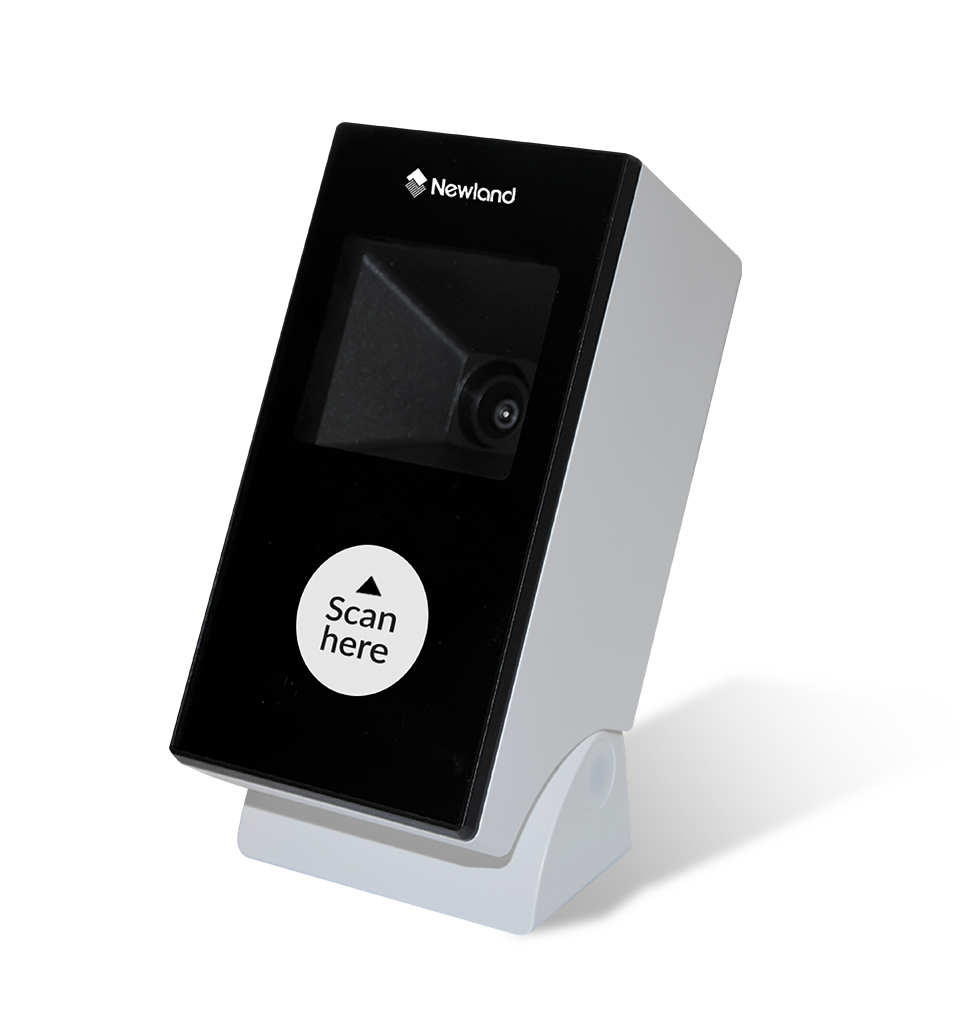

Perspective view FR21 Neon presentation scanner white colour

FR21 Neon

Sunum Tarayıcıları

Parça numarası Açıklama EOL tarihi EOM tarihi
FR2170-20 2D CMOS Desktop Area Imager Reader, 0390 CHIP + MCU, with 2 meter USB cable, white housing, black front. 1.09.2021 1.09.2026
FR2170-B-20 2D CMOS Desktop Area Imager Reader, 0390 CHIP + MCU, with 2 meter USB cable, black housing, black front. 1.09.2021 1.09.2026

Yayımlanma tarihi:

Aşağıdaki ürünler, daha iyi alternatiflere veya eski teknolojiye sahip oldukları için belirlenen tarihlerde kullanımdan kaldırılacaktır.

Alternatif ürün önerisi:

FR40 Koi

EOL tarihi: Ürün durdurma tarihi, bu ürün için sipariş kabul edilecek son gün.

EOM tarihi: Servis ve destek durdurma tarihi, bu ürün için yazılım yükseltme, parça ve onarım hizmetinin sağlanacağı son gün.

The FR21 Neon was built to create an optimal customer experience at the POS. It scans quickly and easily, even for the most inexperienced user, making it an ideal solution for applications like mobile payment, customer loyalty, cashback and ticket verification.

Özellikler

  • Customer-facing scanning solution.
    First time, every time scanning of 1D and 2D barcodes from an LCD screen. The FR21 Neon was built to create an optimal customer experience at the POS. It scans quickly and easily, even for the most inexperienced user, making it an ideal solution for applications like Mobile Payment, Customer Loyalty and Ticket Verification.
  • Suits your POS perfectly.
    The FR21 Neon is designed as a modern and attractive device that you can fully adjust to your brand and POS. Its compact size makes it ideal for positioning on a small desk, a store shelf or at the counter, where space is crucial. For added flexibility, the scanning head can be tilted up to 35° to accommodate objects of various shapes and sizes.
  • Subtle, modest illumination.
    The FR21 Neon is equipped with a subtle, white light that optimizes the scanning performance without drawing unnecessary attention when faced outwards. Additionally, the depth of field helps customers scan quickly without causing the device to light up unnecessarily.
  • Customize for your brand.
    It is easy and affordable to match the FR21 Neon to your brand. The fully flat front lends itself to simple cover designs and the round window (diameter 2.8 cm) underneath the scanner has LED lighting behind it, providing extra visibility for a company logo placed over it. This allows you to customize and change up the look of the device, even for small quantities. For large order quantities, the color of the full desktop scanner can be adjusted for further customization.

Teknik özellikler

  • Veri Yakalama
    1D All major 1D symbologies, including Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey.
    2D All major 2D symbologies, including PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, ECC000, 050, 080, 100, 140), Chinese Sensible Code.
    Yatay Görüş Alanı 73°
    Dikey Görüş Alanı 56°
    Aydınlatma White LED
    Görüntü Sensörü 640 x 480 CMOS
    Minimum Baskı Kontrastı 25%
    Tarama Açısı Aralığı ±30°
    Tarama Yatış Açısı 360°
    Verev Tarama Açısı ±30°
    Tarama Yöntemleri Algılama Modu, Sürekli Mod
    Tarama hızı 60 frames per second
  • Performans
    İşlemci 0390 Chip, MCU
  • Fiziksel
    5VDC Çalışma akımı 127.3 mA (typical), 280.7 mA (max)
    Boyutlar (mm) 70.5(W) × 60.2(D) × 120.7(H) mm
    Kabuk ABS
    Giriş Gerilimi 5 VDC ±%5
    Arayüzler USB, RS-232
    Bildirimler Bip sesi
    Güç Kaynağı Girişi 5 VDC (1.5 A)
    Güç Kaynağı Çıkışı AC100 to 240 V (50 to 60 Hz)
    Ağırlık 242 g
  • Çevresel
    Düşme 1.2 m
    Elektrostatik Deşarj (ESD) ±12 kV (hava deşarjı), ±6 kV (doğrudan deşarj)
    Nem %5 ila %95 (yoğuşmasız)
    IP Sınıfı IP50
    Çalışma Sıcaklığı -20 °C ile 60 °C (-4 °F ile 140 °F)
    Depolama Sıcaklığı -40 °C ile 70 °C (-40 °F ile 158 °F)
  • Yazılım
    Yapılandırma Araçları EasySet
  • Sertifikalar
    Sertifikalar Donanım CE EMC Class B, FCC Part15 Class B
  • Garanti
    Garanti Koşulları 5 yıl
  • Aksesuarlar
    Opsiyonel aksesuarlar RS-232 kablosu , Adaptörü
    Standart aksesuarlar USB kablosu
  • Önerilen sektörler

    • placeholder Perakende
    • placeholder Konaklama ve Eğlence

Mevcut versiyonlar

Parça numarası Açıklama
FR2170-20 2D CMOS Desktop Area Imager Reader, 0390 CHIP + MCU, with 2 meter USB cable, white housing, black front.
FR2170-B-20 2D CMOS Desktop Area Imager Reader, 0390 CHIP + MCU, with 2 meter USB cable, black housing, black front.
