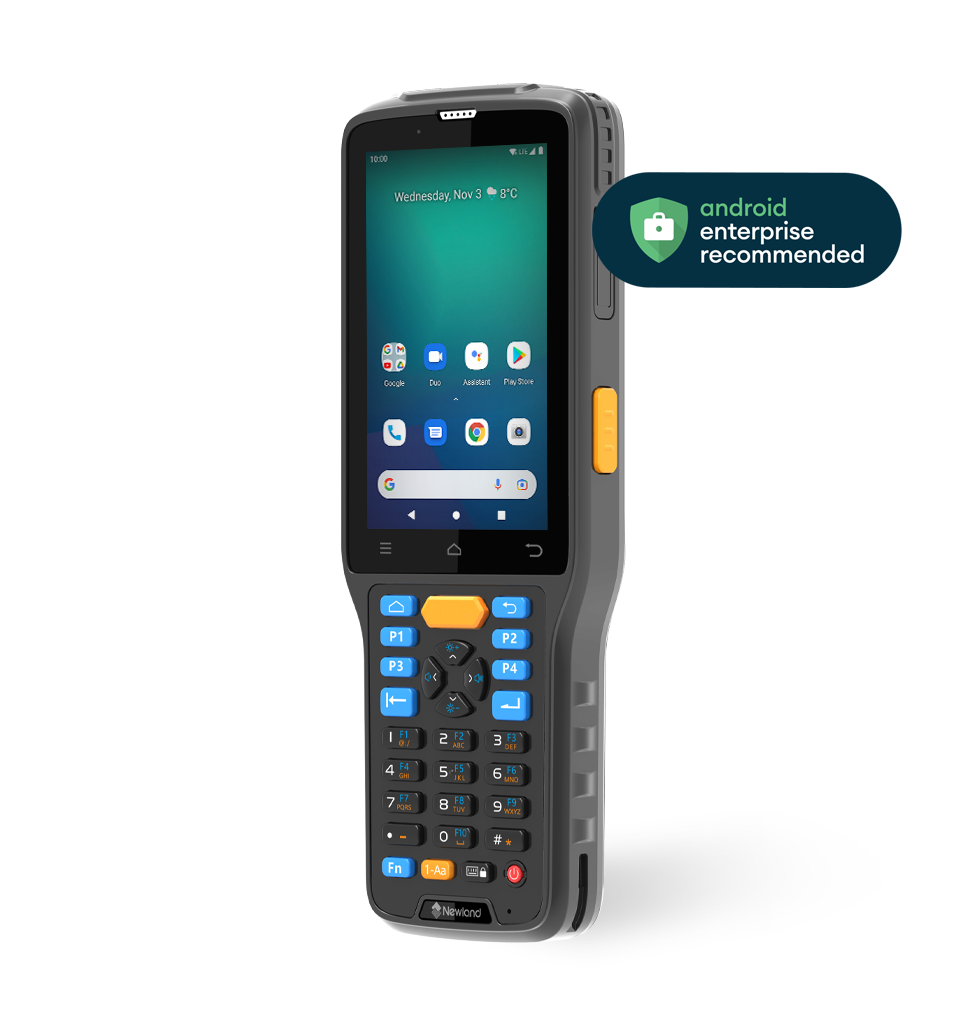

Perspective view N7 Cachalot Pro mobile computer with AER tag

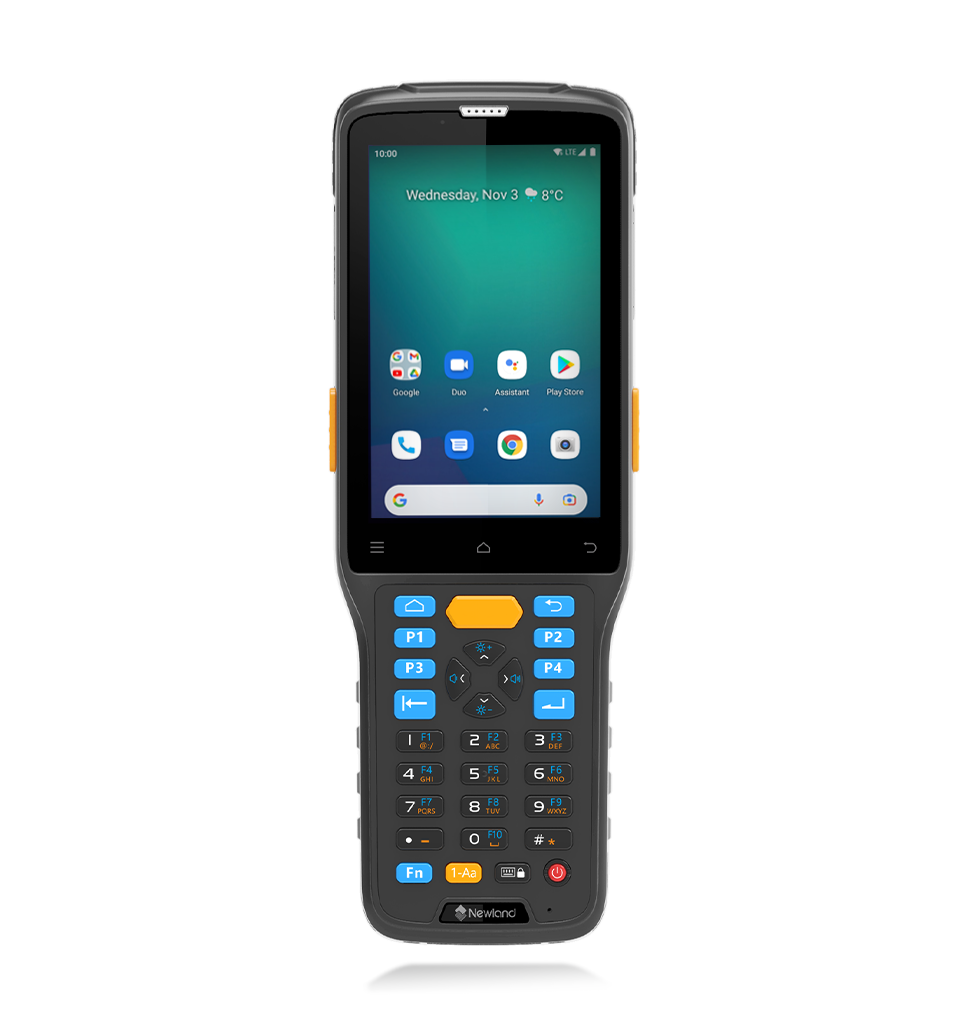

Front view N7 Cachalot Pro mobile computer

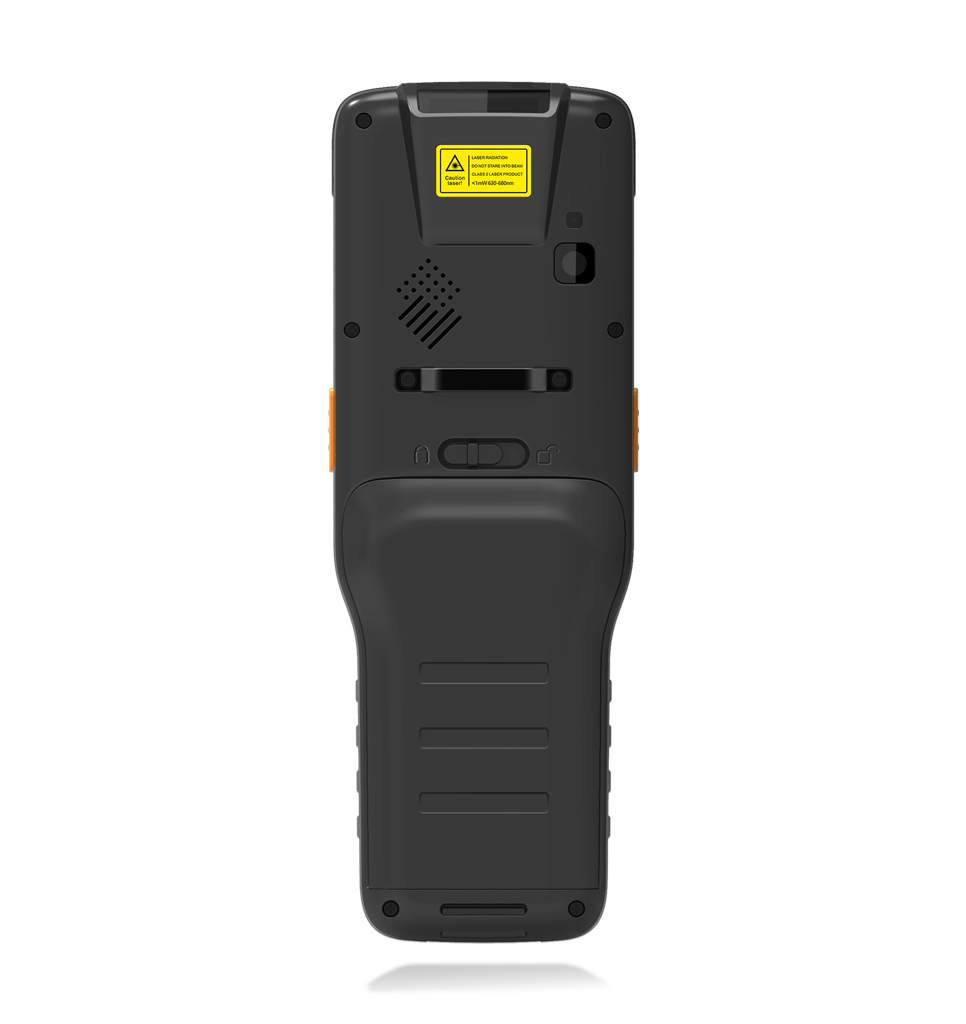

Back view N7 Cachalot Pro mobile computer

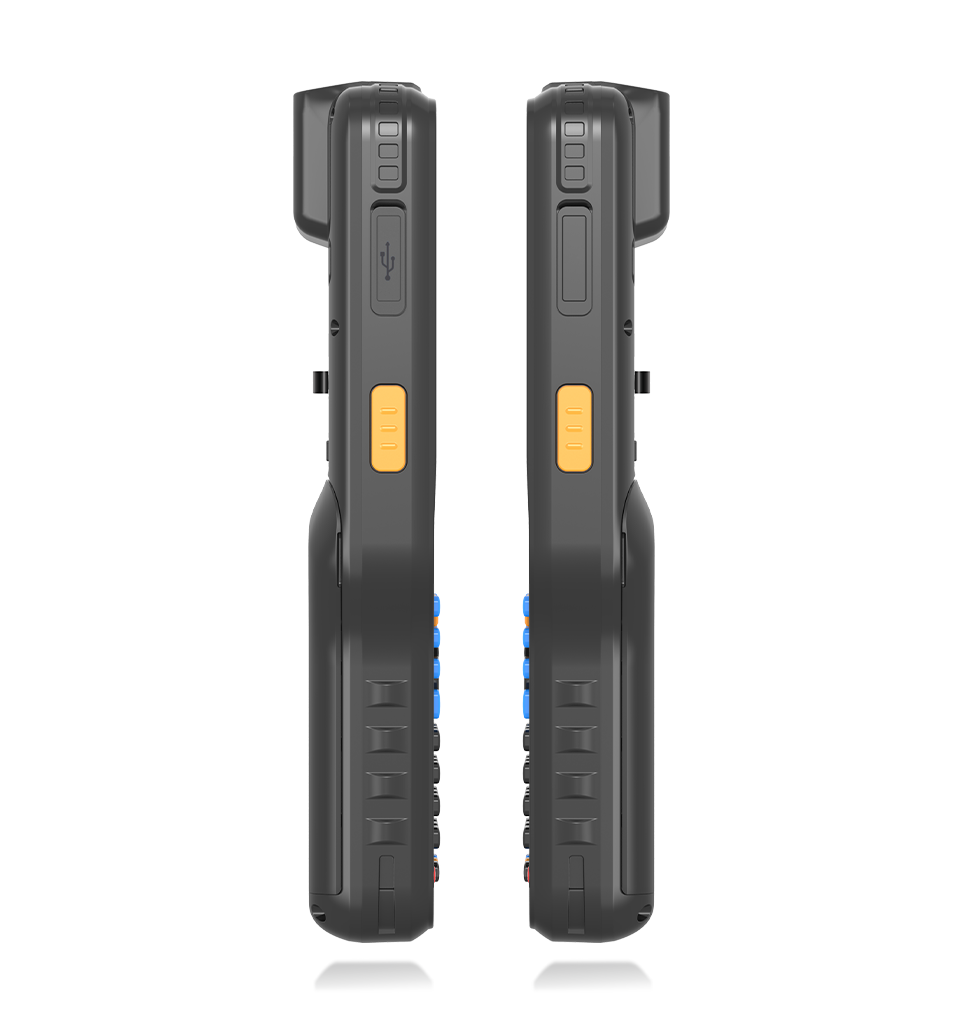

Side views N7 Cachalot Pro mobile computer

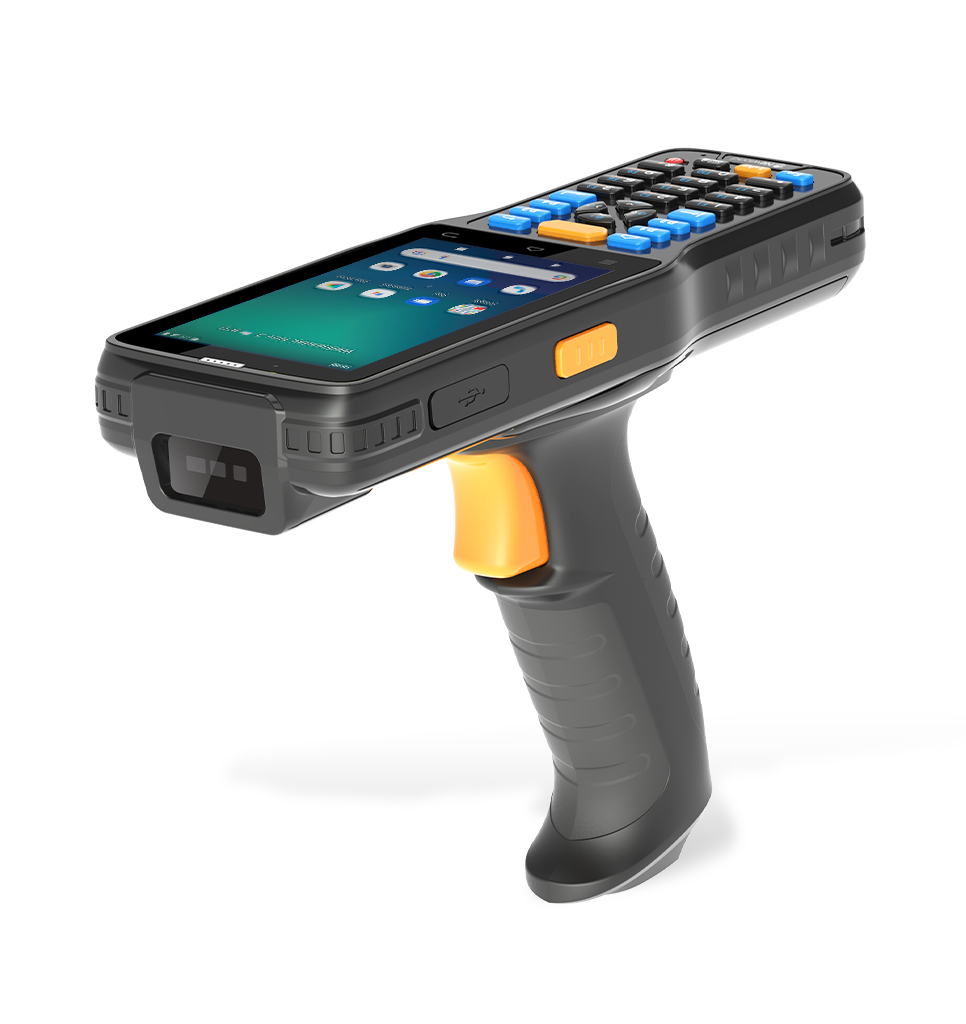

Perspective view N7 Cachalot Pro mobile computer with pistol grip

N7 Cachalot Pro

Mobil bilgisayarlar

Parça numarası Açıklama EOL tarihi EOM tarihi
N7-W-S2-V3 N7 Cachalot Pro Mobile Computer 4GB/64GB with 4” Gorilla Glass Touch Screen, 29 keys keyboard 2D CMOS Mega Pixel imager with Laser Aimer, BT, GPS, NFC, WiFi only, Camera. Incl. USB cable, battery, EU adapter, TPU Boot (TPU N7). OS: Android 10 GMS(AER) 31.01.2024 31.01.2029
N7-W4-M4-V3 N7 Cachalot Pro Mobile Computer 4GB/64GB with 4” Gorilla Glass Touch Screen,47 keys keyboard 2D CMOS Mid-range Mega Pixel imager with Laser Aimer,BT,GPS,NFC,4G & WiFi, Camera. Incl. USB cable, battery, EU adapter, TPU Boot (TPU N7). OS: Android 1(AER) 31.01.2024 31.01.2029
N7-W-M4-V3 N7 Cachalot Pro Mobile Computer 4GB/64GB with 4” Gorilla Glass Touch Screen, 47 keys keyboard 2D CMOS Mid-range Mega Pixel imager with Laser Aimer,BT,GPS,NFC,WiFi only, Camera. Incl. USB cable, battery,EU adapter, TPU Boot (TPU N7). OS: Android 1(AER) 31.01.2024 31.01.2029
N7-W-S4-V3 N7 Cachalot Pro Mobile Computer 4GB/64GB with 4” Gorilla Glass Touch Screen, 47 keys keyboard 2D CMOS Mega Pixel imager with Laser Aimer,BT,GPS,NFC, WiFi only, Camera. Incl. USB cable, battery and EU adapter, TPU Boot (TPU N7). OS: Android 10 GMS(AER) 31.01.2024 31.01.2029
N7-W4-M2-V3 N7 Cachalot Pro Mobile Computer 4GB/64GB with 4” Gorilla Glass Touch Screen, 29 keys keyboard 2D CMOS Mid-range Mega Pixel imager with Laser Aimer,BT,GPS,NFC,4G & WiFi, Camera. Incl. USB cable, battery, EU adapter, TPU Boot (TPU N7). OS: Android 1(AER) 31.01.2024 31.01.2029
N7-W4-S3-V3 N7 Cachalot Pro Mobile Computer 4GB/64GB with 4” Gorilla Glass Touch Screen, 38 keys keyboard 2D CMOS Mega Pixel imager with Laser Aimer, BT, GPS,NFC, 4G & WiFi, Camera. Incl. USB cable, battery, EU adapter, TPU Boot (TPU N7). OS: Android 10 GMS (AER) 31.01.2024 31.01.2029
N7-W-M2-V3 N7 Cachalot Pro Mobile Computer 4GB/64GB with 4” Gorilla Glass Touch Screen, 29 keys keyboard 2D CMOS Mid-range Mega Pixel imager with Laser Aimer,BT,GPS,NFC,WiFi only, Camera. Incl. USB cable, battery, EU adapter, TPU Boot (TPU N7). OS: Android 1(AER 31.01.2024 31.01.2029
N7-W4-M3-V3 N7 Cachalot Pro Mobile Computer 4GB/64GB with 4” Gorilla Glass Touch Screen,38 keys keyboard 2D CMOS Mid-range Mega Pixel imager with Laser Aimer,BT,GPS,NFC,4G & WiFi, Camera. Incl. USB cable, battery, EU adapter, TPU Boot (TPU N7). OS: Android 1(AER) 31.01.2024 31.01.2029
N7-W4-S4-V3 N7 Cachalot Pro Mobile Computer 4GB/64GB with 4” Gorilla Glass Touch Screen, 47 keys keyboard 2D CMOS Mega Pixel imager with Laser Aimer, BT, GPS,NFC, 4G & WiFi, Camera. Incl. USB cable, battery, EU adapter, TPU Boot (TPU N7). OS: Android 10 GMS (AER) 31.01.2024 31.01.2029
N7-W-M3-V3 N7 Cachalot Pro Mobile Computer 4GB/64GB with 4” Gorilla Glass Touch Screen,38 keys keyboard 2D CMOS Mid-range Mega Pixel imager with Laser Aimer,BT,GPS,NFC,WiFi only, Camera. Incl. USB cable, battery, EU adapter, TPU Boot (TPU N7). OS: Android 1(AER) 31.01.2024 31.01.2029
N7-W-S3-V3 N7 Cachalot Pro Mobile Computer 4GB/64GB with 4” Gorilla Glass Touch Screen, 38 keys keyboard 2D CMOS Mega Pixel imager with Laser Aimer,BT,GPS,NFC, WiFi only, Camera. Incl. USB cable, battery and EU adapter, TPU Boot (TPU N7). OS: Android 10 GMS(AER) 31.01.2024 31.01.2029
N7-W4-S2-V3 N7 Cachalot Pro Mobile Computer 4GB/64GB with 4” Gorilla Glass Touch Screen, 29 keys keyboard 2D CMOS Mega Pixel imager with Laser Aimer, BT,GPS, NFC, 4G & WiFi, Camera. Incl. USB cable, battery, EU adapter, TPU Boot (TPU N7). OS: Android 10 GMS (AER) 31.01.2024 31.01.2029

Yayımlanma tarihi:

Aşağıdaki ürünler, daha iyi alternatiflere veya eski teknolojiye sahip oldukları için belirlenen tarihlerde kullanımdan kaldırılacaktır.

Alternatif ürün önerisi:

N7 Cachalot Pro II

EOL tarihi: Ürün durdurma tarihi, bu ürün için sipariş kabul edilecek son gün.

EOM tarihi: Servis ve destek durdurma tarihi, bu ürün için yazılım yükseltme, parça ve onarım hizmetinin sağlanacağı son gün.

The N7 Cachalot Pro takes the Newland Pro Series into rugged warehouse and logistics applications. This Mobile Computer adds processing speed, fast-roaming wireless connections, higher drop- and IP ratings and added flexibility through a choice of 3 keyboard layouts.

Özellikler

  • Newland’s best screen technology.
    The 4” HD screen has a high transparency and low reflectivity to give crystal clear images, even in sunlight. The touchscreen responds when wearing gloves and maintains sensitivity even when wet. For added protection, Gorilla Glass 3 makes the N7 Cachalot Pro tougher and more damage resistant, making the device the perfect companion in rough environments.
  • Android Enterprise Recommended (AER).
    The N7 Cachalot Pro carries Google’s AER seal of approval, signaling it keeps pace with performance and security upgrades to its operating system and core functionality. This label, in combination with Newland’s free MDM Ndevor, enables clients to maintain secure visibility and control over their devices regardless of location.
  • Fast charging, high-capacity and hot-swappable battery.
    The N7 Cachalot Pro supports fast charging for its 5100mAh battery and is hot-swappable. This keeps your program running and your wifi connected, even when taking the battery fully out to exchange it with a new one.
  • Near and far scanning, acuscan and multi-read mode
    The N7 Cachalot Pro offers a choice of megapixel 2D scan engine. The Standard-range version with acuscan provides standard, accurate scanning on codes close-up or smaller items. Alternatively, the Mid-range version is capable of reading codes on boxes and pallets from further away. Both scanners offer Newland’s multi-read mode.
  • Daisy chain charging.
    The single cradle is designed to link to up to 3 additional cradles (4 in total), to limit the number of power outlets needed to charge units.
  • The keys to unlock applications.
    The N7 Cachalot Pro is designed to allow tailoring to many different applications for which a physical keyboard is still preferred. It offers the flexibility to choose between a 29, 38 and 47 keypad option (not including side scan buttons). Each of the three configurations are back-lit for high visibility in dark work environments.
  • Seen and heard.
    The applications most suited to the N7 Cachalot Pro are often in noisy environments. To accommodate for this, sound notifications can be adjusted to reach up to 90 decibels. When sound is not wanted, or instead, enough on its own, the device has vibration and a LED color feedback.

Teknik özellikler

  • Veri Yakalama
    1D All major 1D symbologies
    2D All major 2D symbologies
    Hedefleme Lazer diyot
    Alan Derinliği Code 39 (5mil) SR: 80 mm - 350 mm; MR: 200 mm - 575 mm
    Alan Derinliği Data Matrix (10mil) SR: 55 mm - 355 mm; MR: 185 mm - 520 mm
    Alan Derinliği EAN13 (13mil) SR: 40 mm - 480 mm; MR: 130 mm - 705 mm
    Alan Derinliği PDF417 (6.67mil) SR: 60 mm - 320 mm; MR: 175 mm - 550 mm
    Alan Derinliği QR (15mil) SR: 50 mm - 400 mm; MR: 195 mm - 550 mm
    Aydınlatma Beyaz LED (625±10 nm)
    Görüntü Sensörü 1280 x 800 CMOS
    Tarama Yöntemleri Tetikleme Modu, Algılama Modu
    Tarama hızı 60 frames per second
  • Performans
    Mevcut İşletim Sistemi Android 10, GMS, Android Enterprise Recommended (AER)
    Flaş Bellek 64GB
    RAM Bellek  4GB
    Bellek Artırma (Maks.) Micro SD/TF card (max. 128 GB)
    İşlemci 1.8 GHz Qualcomm Snapdragon
  • Fiziksel
    Pil Türü 3.8 V, 5100 mAh, removable
    Düğmeler Two scan buttons (left/right), three touch navigation keys
    Boyutlar (mm) 200(W) x 70(D) x 29(H) mm
    Ekran 4.0" WVGA (800 x 480)
    Genişleme Yuvası MicroSD card (max. 128GB)
    Beklenen Pil Ömrü Scanning:> 15 hours of continuous operations; standby: 500 hours
    Arayüzler Hızlı Şarj (QC) 3.0
    Tuş takımı 29 tuş, 38 tuş, 47 tuş
    Bildirimler Hoparlör, Titreşim, Çok renkli LED'ler
    Güç Kaynağı Girişi AC 100 to 240 V (50 to 60 Hz)
    Güç Kaynağı Çıkışı Type-C 9 V/2 A, 15 V/1.2 A
    Arka kamera 13 MP, LED flaş, Otomatik odaklama
    Sensörler Gravity Sensor, Hall switch
    SIM/TF Nano+Nano or Nano+TF (4G configurations only)
    Dokunmatik Panel Gorilla Glass, Eldivenle giriş yapılmasına izin verir
    Ağırlık 360 g (including battery)
  • Kablosuz
    GPS Beidou, GLONASS, Galileo, GPS (AGPS)
    RFID NFC: 13.36MHz IS014443A/B, Ml FARE, Felica, NFC Forum Tags
    WLAN RADIO 802.11 a/b/g/n/ac, compatible with 11 d/h/i/k/r/v/w, support 2.4G and 5G dual frequency; Roaming: Super Fast Roaming
    WPAN RADIO Dual mode, Bluetooth 4.2+LE (backward compatible)
    WWAN RADIO 2G: GSM: 850/900/1800/1900MHz; 3G: WCDMA: Bl/B2/BS/B7/B8/ B20/B28a&b, CDMA lx/EVDO: BCO; 4G: FDD-LTE: Bl/B2/B3/BS/B7/B8/B20/B28a&b, TDD-LTE; B38/B39/B40/B41 (100M)
  • Çevresel
    Düşme 1.8 m
    Elektrostatik Deşarj (ESD) ±8 kV (doğrudan deşarj), ±15 kV (hava deşarjı)
    Nem %5 ila %95 (yoğuşmasız)
    IP Sınıfı IP65
    Çalışma Sıcaklığı -20 °C ile 55 °C (-4 °F ile 131 °F)
    Depolama Sıcaklığı -40 °C ile 70 °C (-40 °F ile 158 °F)
  • Yazılım
    Yapılandırma Araçları Ndevor
    MDM (sertifikalı) Ndevor, SOTI, Airwatch
    Terminal Emülasyonu StayLinked, Ivanti Velocity
  • Sertifikalar
    Sertifikalar Donanım REACH, SOTI, FCC, RoHS 2.0, UN38.3, CE RED, IEC 60825, IEC 62471, AER, BIS
  • Garanti
    Garanti Koşulları 2 yıl
  • Aksesuarlar
    Opsiyonel aksesuarlar 4 yuvalı pil şarj cihazı, Şarj yuvası, Kabza, Ekran koruyucu
    Standart aksesuarlar USB kablosu, El kayışı, Pil, çoklu güç adaptörü

  • Önerilen sektörler

    • placeholder Ulaşım ve Lojistik
    • placeholder Depolama ve Dağıtım
    • placeholder Saha Servis ve Kamu Hizmetleri

Belgeler

Bağlantılar

Mevcut versiyonlar

Parça numarası Açıklama
N7-W-S2-V3 N7 Cachalot Pro Mobile Computer 4GB/64GB with 4” Gorilla Glass Touch Screen, 29 keys keyboard 2D CMOS Mega Pixel imager with Laser Aimer, BT, GPS, NFC, WiFi only, Camera. Incl. USB cable, battery, EU adapter, TPU Boot (TPU N7). OS: Android 10 GMS(AER)
N7-W4-M4-V3 N7 Cachalot Pro Mobile Computer 4GB/64GB with 4” Gorilla Glass Touch Screen,47 keys keyboard 2D CMOS Mid-range Mega Pixel imager with Laser Aimer,BT,GPS,NFC,4G & WiFi, Camera. Incl. USB cable, battery, EU adapter, TPU Boot (TPU N7). OS: Android 1(AER)
N7-W-M4-V3 N7 Cachalot Pro Mobile Computer 4GB/64GB with 4” Gorilla Glass Touch Screen, 47 keys keyboard 2D CMOS Mid-range Mega Pixel imager with Laser Aimer,BT,GPS,NFC,WiFi only, Camera. Incl. USB cable, battery,EU adapter, TPU Boot (TPU N7). OS: Android 1(AER)
N7-W-S4-V3 N7 Cachalot Pro Mobile Computer 4GB/64GB with 4” Gorilla Glass Touch Screen, 47 keys keyboard 2D CMOS Mega Pixel imager with Laser Aimer,BT,GPS,NFC, WiFi only, Camera. Incl. USB cable, battery and EU adapter, TPU Boot (TPU N7). OS: Android 10 GMS(AER)
N7-W4-M2-V3 N7 Cachalot Pro Mobile Computer 4GB/64GB with 4” Gorilla Glass Touch Screen, 29 keys keyboard 2D CMOS Mid-range Mega Pixel imager with Laser Aimer,BT,GPS,NFC,4G & WiFi, Camera. Incl. USB cable, battery, EU adapter, TPU Boot (TPU N7). OS: Android 1(AER)
N7-W4-S3-V3 N7 Cachalot Pro Mobile Computer 4GB/64GB with 4” Gorilla Glass Touch Screen, 38 keys keyboard 2D CMOS Mega Pixel imager with Laser Aimer, BT, GPS,NFC, 4G & WiFi, Camera. Incl. USB cable, battery, EU adapter, TPU Boot (TPU N7). OS: Android 10 GMS (AER)
N7-W-M2-V3 N7 Cachalot Pro Mobile Computer 4GB/64GB with 4” Gorilla Glass Touch Screen, 29 keys keyboard 2D CMOS Mid-range Mega Pixel imager with Laser Aimer,BT,GPS,NFC,WiFi only, Camera. Incl. USB cable, battery, EU adapter, TPU Boot (TPU N7). OS: Android 1(AER
N7-W4-M3-V3 N7 Cachalot Pro Mobile Computer 4GB/64GB with 4” Gorilla Glass Touch Screen,38 keys keyboard 2D CMOS Mid-range Mega Pixel imager with Laser Aimer,BT,GPS,NFC,4G & WiFi, Camera. Incl. USB cable, battery, EU adapter, TPU Boot (TPU N7). OS: Android 1(AER)
N7-W4-S4-V3 N7 Cachalot Pro Mobile Computer 4GB/64GB with 4” Gorilla Glass Touch Screen, 47 keys keyboard 2D CMOS Mega Pixel imager with Laser Aimer, BT, GPS,NFC, 4G & WiFi, Camera. Incl. USB cable, battery, EU adapter, TPU Boot (TPU N7). OS: Android 10 GMS (AER)
N7-W-M3-V3 N7 Cachalot Pro Mobile Computer 4GB/64GB with 4” Gorilla Glass Touch Screen,38 keys keyboard 2D CMOS Mid-range Mega Pixel imager with Laser Aimer,BT,GPS,NFC,WiFi only, Camera. Incl. USB cable, battery, EU adapter, TPU Boot (TPU N7). OS: Android 1(AER)
N7-W-S3-V3 N7 Cachalot Pro Mobile Computer 4GB/64GB with 4” Gorilla Glass Touch Screen, 38 keys keyboard 2D CMOS Mega Pixel imager with Laser Aimer,BT,GPS,NFC, WiFi only, Camera. Incl. USB cable, battery and EU adapter, TPU Boot (TPU N7). OS: Android 10 GMS(AER)
N7-W4-S2-V3 N7 Cachalot Pro Mobile Computer 4GB/64GB with 4” Gorilla Glass Touch Screen, 29 keys keyboard 2D CMOS Mega Pixel imager with Laser Aimer, BT,GPS, NFC, 4G & WiFi, Camera. Incl. USB cable, battery, EU adapter, TPU Boot (TPU N7). OS: Android 10 GMS (AER)
