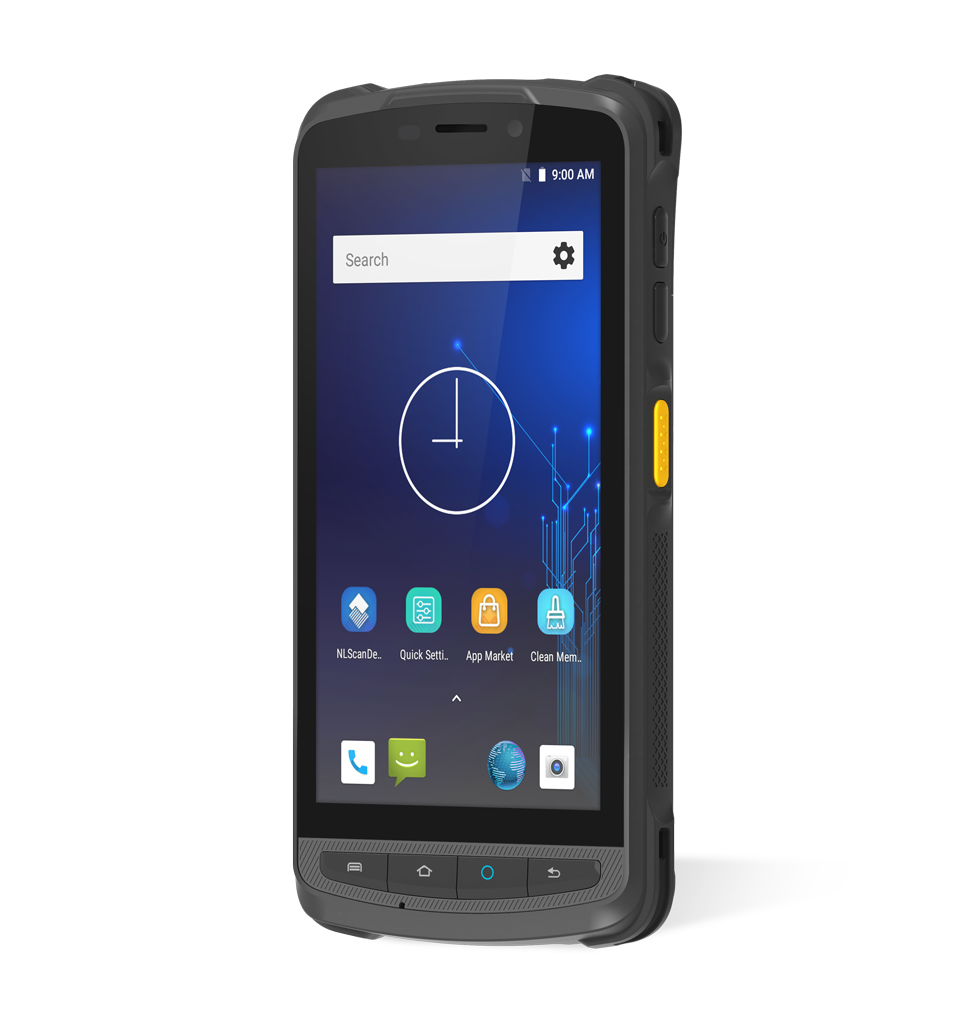

Perspective view MT90 Orca III mobile computer

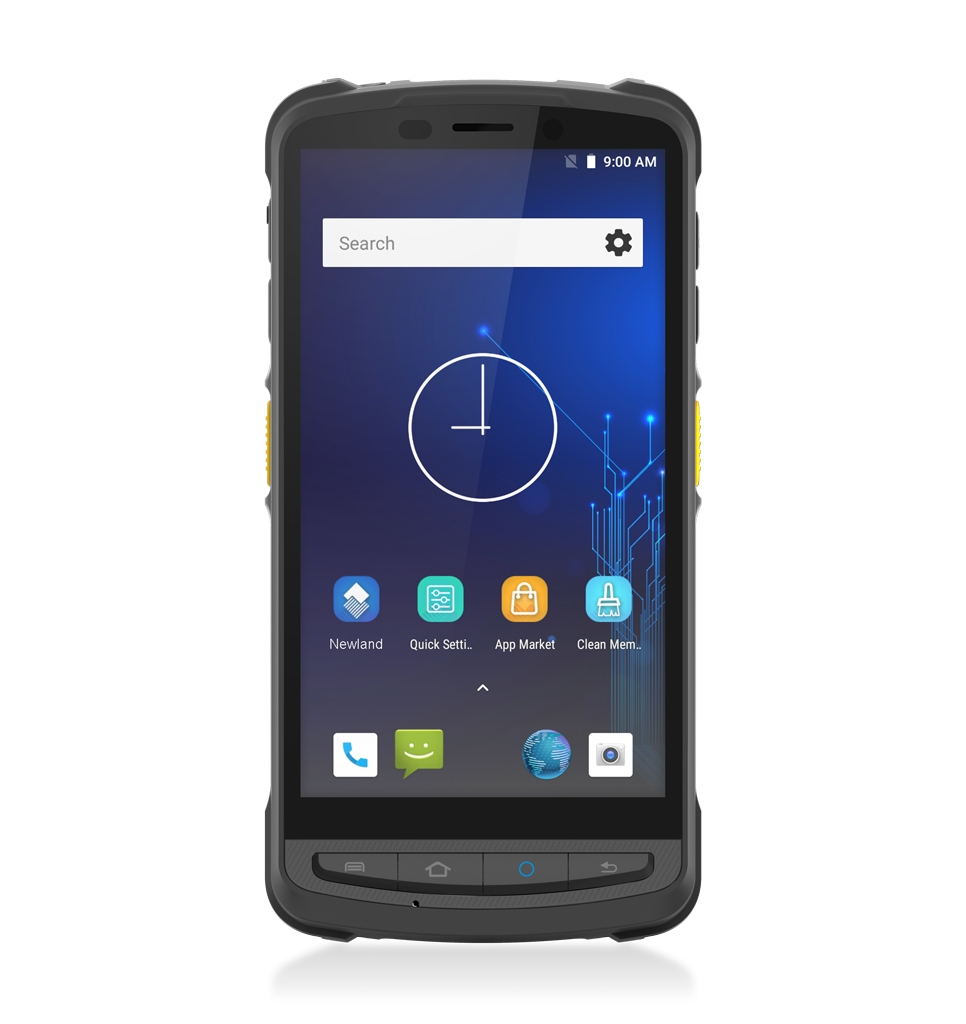

Front view MT90 Orca III mobile computer
Back view MT90 Orca III mobile computer
Side views MT90 Orca III mobile computer
Top and bottom views MT90 Orca III mobile computer

MT90 Orca III

Mobil bilgisayarlar

Parça numarası Açıklama EOL tarihi EOM tarihi
NLS-MT9055-W4-A13 MT9055 Orca III Mobile Computer with 5" touchscreen, 2D CMOS Mega Pixel imager with Laser Aimer (CM6x), 3GB/32GB, BT, WiFi, 4G, GPS, NFC and Camera. Incl. USB-C cable, battery, rubber boot, screen protector and multiplug adapter. OS: Android 13 GMS. 31.12.2025 31.12.2030
NLS-MT9055-W4X MT9055 Orca III Mobile Computer with 5" touchscreen, 2D CMOS Mega Pixel imager with Laser Aimer (CM6x), 4GB/64GB, BT, WiFi, 4G, GPS, NFC and Camera. Incl. USB-C cable, battery, rubber boot, screen protector and multiplug adapter. OS: Android 11 GMS. 31.12.2025 31.12.2030
NLS-MT9055-W4X-A13 MT9055 Orca III Mobile Computer with 5" touchscreen, 2D CMOS Mega Pixel imager with Laser Aimer (CM6x), 4GB/64GB, BT, WiFi, 4G, GPS, NFC and Camera. Incl. USB-C cable, battery, rubber boot, screen protector and multiplug adapter. OS: Android 13 GMS. 31.12.2025 31.12.2030
NLS-MT9055-W0X MT9055 Orca III Mobile Computer 4GB/64GB with 5” Touch Screen, 2D CMOS Mega Pixel imager with Laser Aimer (CM6x), BT, WiFi, Camera. OS: Android 11 GMS Incl. USB cable, battery, rubber boot and multi plug adapter 31.12.2025 31.12.2030
NLS-MT9055-W4 MT9055 Orca III Mobile Computer with 5" touchscreen, 2D CMOS Mega Pixel imager with Laser Aimer (CM6x), 3GB/32GB, BT, WiFi, 4G, GPS, NFC and Camera. Incl. USB-C cable, battery, rubber boot, screen protector and multiplug adapter. OS: Android 11 GMS. 31.12.2025 31.12.2030

Yayımlanma tarihi:

Aşağıdaki ürünler, daha iyi alternatiflere veya eski teknolojiye sahip oldukları için belirlenen tarihlerde kullanımdan kaldırılacaktır.

Alternatif ürün önerisi:

MT95 Megattera Standard Plus

EOL tarihi: Ürün durdurma tarihi, bu ürün için sipariş kabul edilecek son gün.

EOM tarihi: Servis ve destek durdurma tarihi, bu ürün için yazılım yükseltme, parça ve onarım hizmetinin sağlanacağı son gün.

The MT90 Orca III Mobile Computer is designed with an optimal form factor for a full touchscreen mobile computer with barcode scanner. Its consumer-style design and Android operating system makes the experience similar to picking up a personal mobile phone. This makes for an intuitive use and a limited need for staff training.

Özellikler

  • Full touchscreen mobile computer.
    The MT90 Orca III is an Android mobile computer that packs all of the latest hardware in a modern and user-friendly design. It is a light and durable device with a 5” capacitive touch screen. Equipped with a familiar user interface and the exterior of a consumer phone, the MT90 Orca III is easy to set up and use right out of the box.
  • Megapixel barcode scanning.
    Developed for quick and efficient barcode scanning, the MT90 Orca III ensures maximum productivity. Its megapixel scan engine is built in at the top of the device and can be triggered with a virtual button on the screen or a physical button on the side of the device for easy point-and-shoot scanning.
  • Reliable all day use with a replaceable battery.
    The MT90 Orca III has a 3.8V 4500 mAh battery that allows you to use the device all day without problem. Additionally, the battery is replaceable, allowing you to use a spare battery if needed.
  • Business-class durability.
    The MT90 Orca III is built to withstand dusty environments and inevitable bumps and drops. It has a rating of IP65 and has been drop tested up to 1.5m, or 1.8m with a rubber boot, ensuring longer and more reliable use.
  • GMS.
    The MT90 Orca III offers Google Mobile Services (GMS) with integrated Google applications such as Gmail, Google Maps and Google Play Store.
  • Accessories that match your operations.
    A wide range of accessories for the MT90 Orca III are included in the package, namely: single slot charging & communication (USB) cradle, rubber boot, hand strap and wrist lanyard. Pistol grip, UHF pistol grip, long-range pistol grip and holsters are optional.

  • Sertifikalar

Teknik özellikler

  • Veri Yakalama
    1D All major 1D symbologies
    2D All major 2D symbologies
    Hedefleme Lazer diyot
    Aydınlatma Beyaz LED (625±10 nm)
    Görüntü Sensörü 1280 x 800 CMOS
    Tarama Yöntemleri Tetikleme Modu
    Tarama hızı 60 frames per second
  • Performans
    Mevcut İşletim Sistemi Android 11, GMS
    Flaş Bellek 64GB
    RAM Bellek  4GB
    Bellek Artırma (Maks.) Micro SD card (max. 128GB)
    İşlemci 2.0 GHz octa-core, 64-bit
  • Fiziksel
    Ses Hoparlör, Mikrofon
    Ses Jakı 3,5 mm kulaklık girişi
    Pil Türü 3.8 V, 4500 mAh, swappable
    Düğmeler Side Keys Volume+, Volume-, Left Scan Key, Right Scan Key, Power Button, Function Key, Keypad (4 Keys)
    Boyutlar (mm) 155(W) × 78(D) × 20(H) mm
    Ekran 5” full colour (1280 × 720)
    Genişleme Yuvası Micro SD card (max. 128GB)
    Beklenen Pil Ömrü 10 hours
    Beklenen Şarj Süresi 5 hours (charge via AC adapter)
    Arayüzler USB-C
    Tuş takımı 10 tuş
    Bildirimler Hoparlör, Titreşim, Çok renkli LED'ler
    Güç Kaynağı Girişi AC 100 to 240 V (50 to 60 Hz)
    Güç Kaynağı Çıkışı DC5 V, 2 A
    Arka kamera LED flaş, Otomatik odaklama, 8 MP
    SIM/TF Dual SIM: 1 SIM card, 1 Micro SIM Card
    Dokunmatik Panel Kapasitif dokunmatik ekran
    Ağırlık 270 g (including battery)
  • Kablosuz
    GPS GLONASS, GPS (AGPS)
    RFID 13.56MHz RFID ISO14443A/B, MIFARE, FeliCa, NFC Forum Tags, ISO15693
    WLAN RADIO IEEE 802.11 a/b/g/n/ac, compatible with 11 d/h/i/k/r/v/w, support 2.4GHz and 5GHz
    WPAN RADIO Bluetooth 5.0 (backward compatible)
    WWAN RADIO 2G: GSM:850/900/1800/1900MHz; 3G: WCDMA: B1/B2/B5/B8; TD-SCDMA: B34/B39; CDMA 1x/EVDO:BC0; 4G: FDD-LTE: B1/B2/B3/B5/B7/B8/B20/B28; TDD-LTE: B34/B38/B39/B40/B41
  • Çevresel
    Düşme 1.5 m
    Kauçuk koruyucu ile düşme yüksekliği 1.8 m
    Elektrostatik Deşarj (ESD) ±8 kV (doğrudan deşarj), ±15 kV (hava deşarjı)
    Nem %5 ila %95 (yoğuşmasız)
    IP Sınıfı IP65
    Çalışma Sıcaklığı -20 °C ile 55 °C (-4 °F ile 131 °F)
    Depolama Sıcaklığı -40 °C ile 70 °C (-40 °F ile 158 °F)
  • Yazılım
    Yapılandırma Araçları Ndevor
    MDM (sertifikalı) Ndevor, SOTI, Airwatch
    Terminal Emülasyonu StayLinked, Ivanti Velocity
  • Sertifikalar
    Sertifikalar Donanım FCC ID, CE RED, RoHS, Laser safety (Class II), EN 62471
  • Garanti
    Kapsamlı Hizmet Sözleşmesi 3 Yıl, 5 Yıl
    Garanti Uzatımı +1 yıl, +3 yıl
    Garanti Koşulları 2 yıl
  • Aksesuarlar
    Opsiyonel aksesuarlar 4 yuvalı pil şarj cihazı, Şarj yuvası, Kabza, Pil, Ekran koruyucu, Bilek kılıfı, El kayışı
    Standart aksesuarlar USB kablosu, Kauçuk koruyucu kılıf, Pil, Ekran koruyucu, AC adaptörü

  • Önerilen sektörler

    • placeholder Perakende
    • placeholder Konaklama ve Eğlence
    • placeholder Sağlık
    • placeholder Ulaşım ve Lojistik

Belgeler

Bağlantılar

Mevcut versiyonlar

Parça numarası Açıklama
NLS-MT9055-W4-A13 MT9055 Orca III Mobile Computer with 5" touchscreen, 2D CMOS Mega Pixel imager with Laser Aimer (CM6x), 3GB/32GB, BT, WiFi, 4G, GPS, NFC and Camera. Incl. USB-C cable, battery, rubber boot, screen protector and multiplug adapter. OS: Android 13 GMS.
NLS-MT9055-W4X MT9055 Orca III Mobile Computer with 5" touchscreen, 2D CMOS Mega Pixel imager with Laser Aimer (CM6x), 4GB/64GB, BT, WiFi, 4G, GPS, NFC and Camera. Incl. USB-C cable, battery, rubber boot, screen protector and multiplug adapter. OS: Android 11 GMS.
NLS-MT9055-W4X-A13 MT9055 Orca III Mobile Computer with 5" touchscreen, 2D CMOS Mega Pixel imager with Laser Aimer (CM6x), 4GB/64GB, BT, WiFi, 4G, GPS, NFC and Camera. Incl. USB-C cable, battery, rubber boot, screen protector and multiplug adapter. OS: Android 13 GMS.
NLS-MT9055-W0X MT9055 Orca III Mobile Computer 4GB/64GB with 5” Touch Screen, 2D CMOS Mega Pixel imager with Laser Aimer (CM6x), BT, WiFi, Camera. OS: Android 11 GMS Incl. USB cable, battery, rubber boot and multi plug adapter
NLS-MT9055-W4 MT9055 Orca III Mobile Computer with 5" touchscreen, 2D CMOS Mega Pixel imager with Laser Aimer (CM6x), 3GB/32GB, BT, WiFi, 4G, GPS, NFC and Camera. Incl. USB-C cable, battery, rubber boot, screen protector and multiplug adapter. OS: Android 11 GMS.
