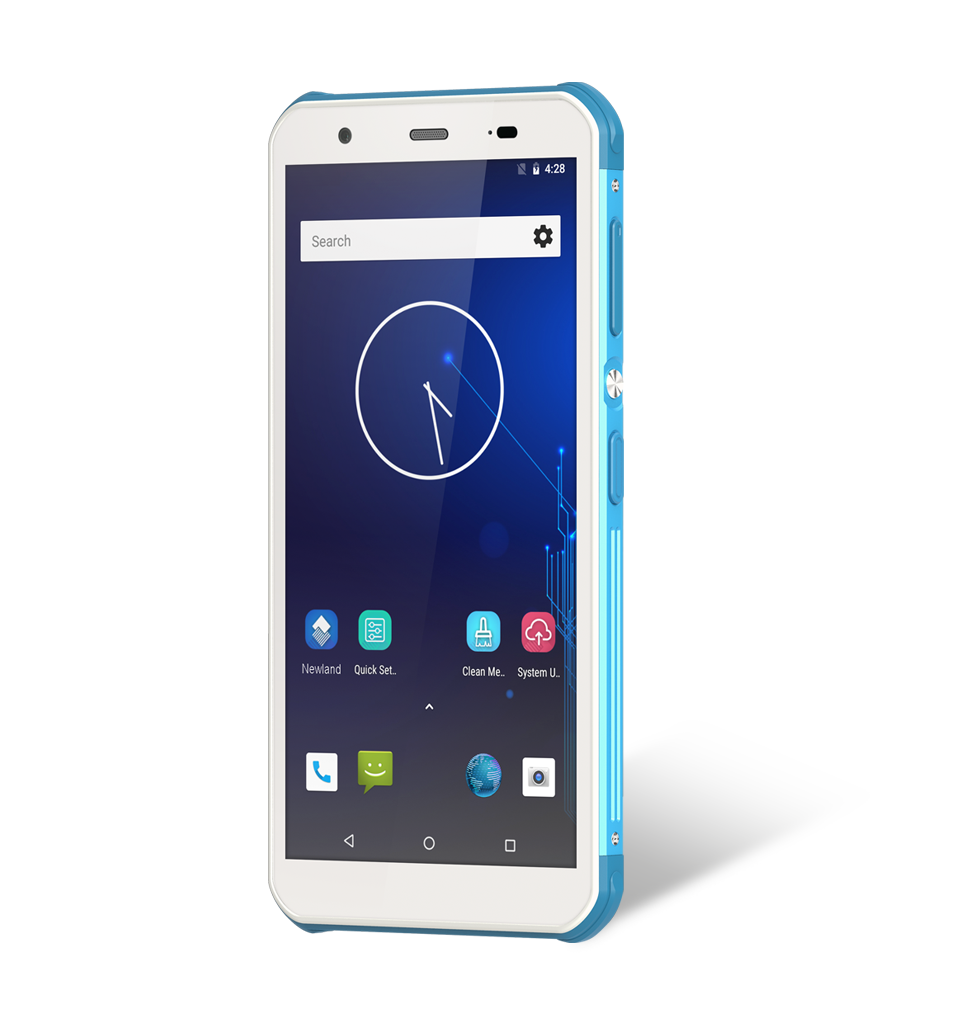

Perspective view M10 mobile computer

M10

Mobil bilgisayarlar

Parça numarası Açıklama EOL tarihi EOM tarihi
CL-M1055-W4 M10 Pilot Pro Healthcare Mobile Computer (white) with 5.7" Touch Screen, 2D CMOS imager, BT, WiFi (dual band), 4G, NFC, GPS and Camera. Incl. Protective case, wrist strap, USB cable and multiplug adapter. OS: Android 11 GMS AER. 31.03.2025 31.03.2030

Yayımlanma tarihi:

Aşağıdaki ürünler, daha iyi alternatiflere veya eski teknolojiye sahip oldukları için belirlenen tarihlerde kullanımdan kaldırılacaktır.

Alternatif ürün önerisi:

MT93 Megattera Standard Plus

EOL tarihi: Ürün durdurma tarihi, bu ürün için sipariş kabul edilecek son gün.

EOM tarihi: Servis ve destek durdurma tarihi, bu ürün için yazılım yükseltme, parça ve onarım hizmetinin sağlanacağı son gün.

Designed to bridge the gap between a rugged PDA and a sleek & stylish smartphone, the M10 Pilot Pro offers businesses a high quality Android mobile computer. At 5.7”, it’s one of the largest durable touchscreens on the market. It features edge to edge screen protection by a metal housing that’s designed to withstand high drops and offer reliable performance in all weathers. The M10 features a white anti-microbial casing that makes it perfect for healthcare applications.

Özellikler

  • Comprehensive data capture.
    The M10 Pilot Pro can be integrated with a variety of data capture options including Mega Pixel 1D/2D barcode Comprehensive data capture. The M10 can be integrated with a variety of data capture options including Mega Pixel 1D/2D barcode scanning, NFC RFID reading, fingerprint recognition and GPS/Beidou/GLONASS.
  • Versatile connectivity.
    With dual band 802.11 a/b/g/n/ac WiFi and 4G/3G/2G support, the M10 keeps you connected. Further optimizing this, the dual SIM option allows you to use the most suitable provider no matter where you are. It's a match for any leading consumer-brand mobile phone experience.
  • Powerful performance.
    The Android 11.0 operating system helps you get more from your mobile computer. It's intuitive, fast and tailored to you and your choice of software, applications and operational use. A 2.0GHz octa­core processor keeps you running even smoother.
  • Long Lasting Battery.
    The M10 is equipped with a 4800mAh battery. Supplemented by a low-power design, the usage time is significant. The device is so power-efficient that you won't need to change the battery to operate well beyond a standard shift. To top it off, it supports fast-charging via its Type-C port.
  • Android Enterprise Recommended.
    The M10 is the first Newland unit to be Android Enterprise recommended. Additionally, GMS services are included.
  • Antimicrobial Casing.
    With healthcare in mind, the M10 features an antimicrobial casing that is built to resist even the harshest cleaning agents.
  • Biometric Security.
    The M10 has fingerprint biometrics for extra security and a faster login. Positioned on the back of the device, the device can be comfortably unlocked with one hand without having the press the front of the screen.

Teknik özellikler

  • Veri Yakalama
    1D All major 1D symbologies
    2D All major 2D symbologies
  • Performans
    Mevcut İşletim Sistemi Android 11, GMS, Android Enterprise Recommended (AER)
    Flaş Bellek 64GB
    RAM Bellek  4GB
    Bellek Artırma (Maks.) TF card (max 128GB) slot
    İşlemci 2.0 GHz octa-core, 64-bit
  • Fiziksel
    Ses Jakı Type-C kulaklık
    Pil Türü 3.8 V, 4800 mAh
    Boyutlar (mm) 157(W) x 76.3(D) x 12.6(H) mm
    Ekran 5.7" (1440 x 720) 18:9, 420 Nits
    Genişleme Yuvası TF card slot (max. 128GB); Nano+Nano or Nano+ TF
    Ön kamera 2 MP, Sabit odak
    Arayüzler USB-C, OTG
    Tuş takımı 5 tuş
    Bildirimler Hoparlör, Titreşim, Çok renkli LED'ler
    Güç Kaynağı Girişi AC 100 to 220 V (50 to 60 Hz)
    Güç Kaynağı Çıkışı Quick Charger (Output: DC5 V/7 V/9 V, 1.67 A)
    Arka kamera 13 MP, LED flaş, Otomatik odaklama
    Sensörler Magnetic sensor, Light & proximity sensor, Gyroscope
    SIM/TF Nano+Nano or Nano+ TF
    Dokunmatik Panel Kapasitif dokunmatik ekran, Gorilla Glass
    Ağırlık 231 g (including battery)
  • Kabuk
    Antimikrobiyal kaplama Escherichia coli, Staphylococcus aureus
  • Kablosuz
    GPS Beidou, GLONASS, Galileo, GPS (AGPS)
    RFID 13.56MHz RFID: 15O14443NB, 15015693, 15018000-3, Ml FARE, Felica RF, Kovio, NFC Forum Type 1-4 tags
    WLAN RADIO IEEE 802.11 a/b/g/n/ac, 2.4GHz and 5GHz
    WPAN RADIO Bluetooth 5.0
    WWAN RADIO 2G: GSM/GPRS/EDGE (850/900/1800/1900MHz); 3G: WCDMA (B1, B2, B5, B8); CDMA 1X/EV-D0 (BC0); TDSCDMA(B34, Band39); 4G: TD-LTE (B34, B38, B39, B40, B41); FDD-LTE (B1,B2,B3,B5,B7,B8,B20,B28)
  • Çevresel
    Düşme 1.5m drops to concrete (BG/T 2423.8-1995 PART2), 1.22m drops to concrete MIL-STD-81 0G
    Elektrostatik Deşarj (ESD) ±8 kV (doğrudan deşarj), ±12 kV (hava deşarjı)
    Nem %5 ila %95 (yoğuşmasız)
    IP Sınıfı IP67
    Çalışma Sıcaklığı -20 °C ile 50 °C (-4 °F ile 122 °F)
    Depolama Sıcaklığı -30 °C ile 60 °C (-22 °F ile 140 °F)
  • Yazılım
    MDM (sertifikalı) Ndevor, SOTI, Airwatch, VMWare Workspace ONE UEM
  • Garanti
    Garanti Koşulları 2 yıl
  • Aksesuarlar
    Opsiyonel aksesuarlar USB-C kablosu, 4 yuvalı pil şarj cihazı, Şarj yuvası, Koruyucu kılıf, Adaptörü

  • Önerilen sektörler

    • placeholder Perakende
    • placeholder Konaklama ve Eğlence
    • placeholder Sağlık
    • placeholder Ulaşım ve Lojistik

Belgeler

Bağlantılar

Mevcut versiyonlar

Parça numarası Açıklama
CL-M1055-W4 M10 Pilot Pro Healthcare Mobile Computer (white) with 5.7" Touch Screen, 2D CMOS imager, BT, WiFi (dual band), 4G, NFC, GPS and Camera. Incl. Protective case, wrist strap, USB cable and multiplug adapter. OS: Android 11 GMS AER.
