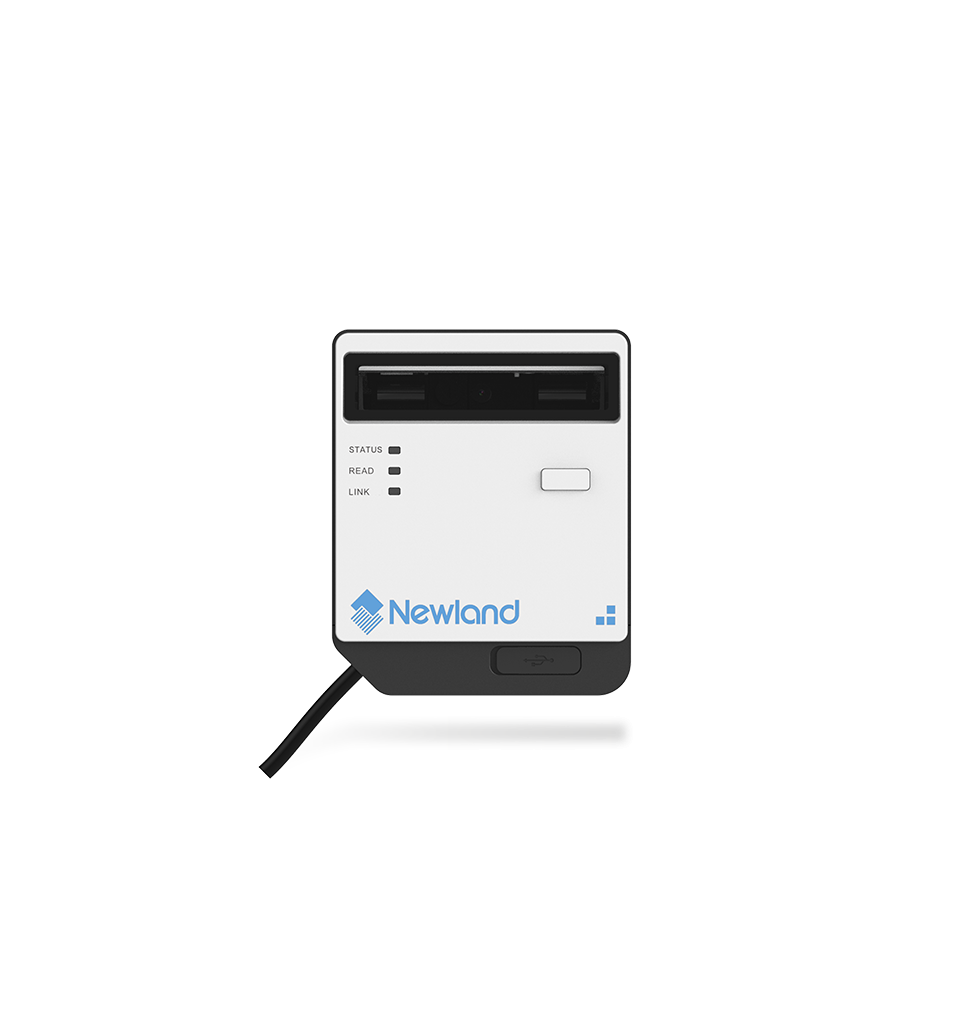

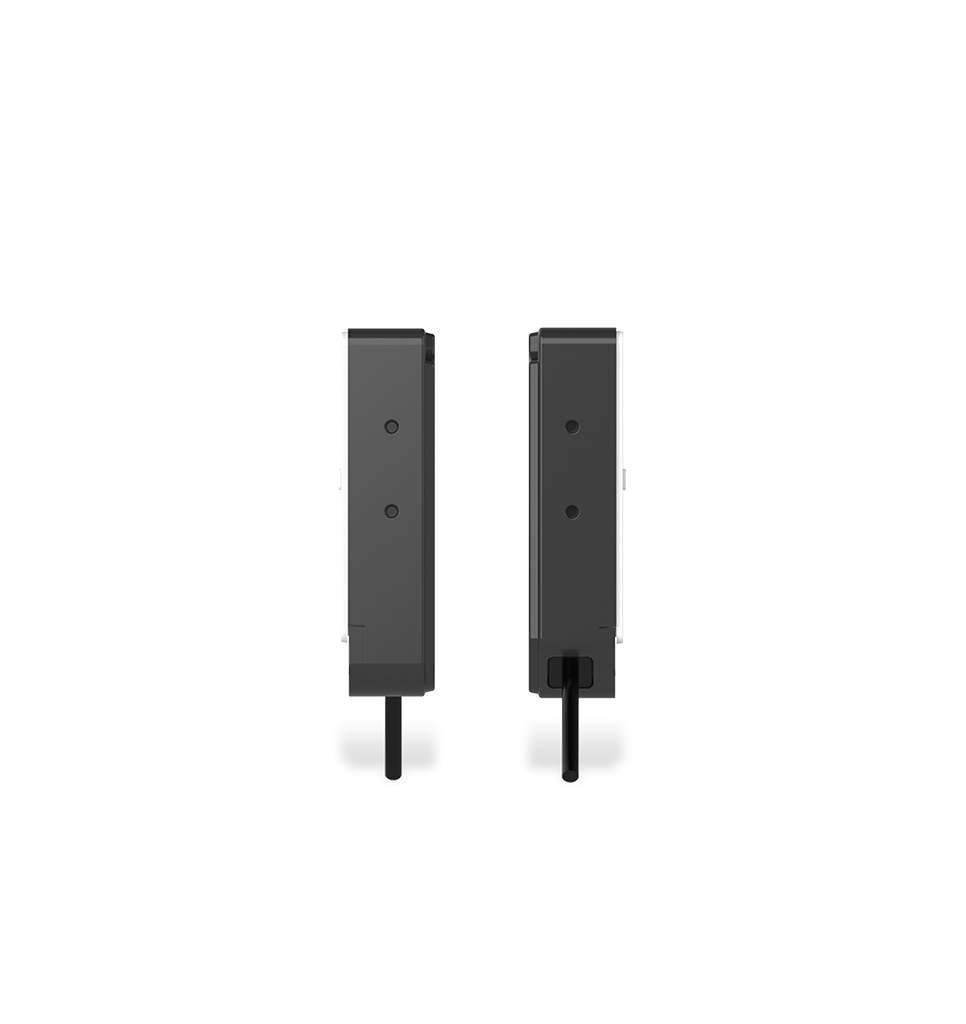

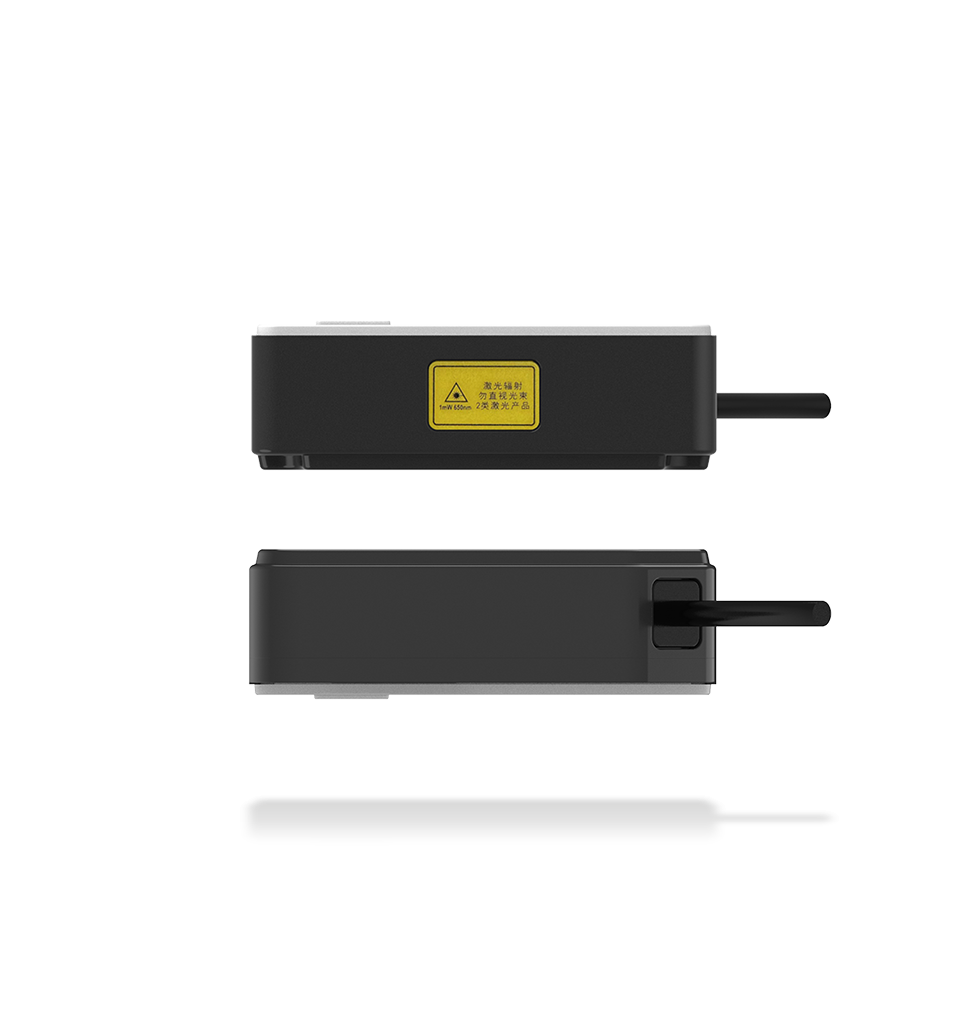

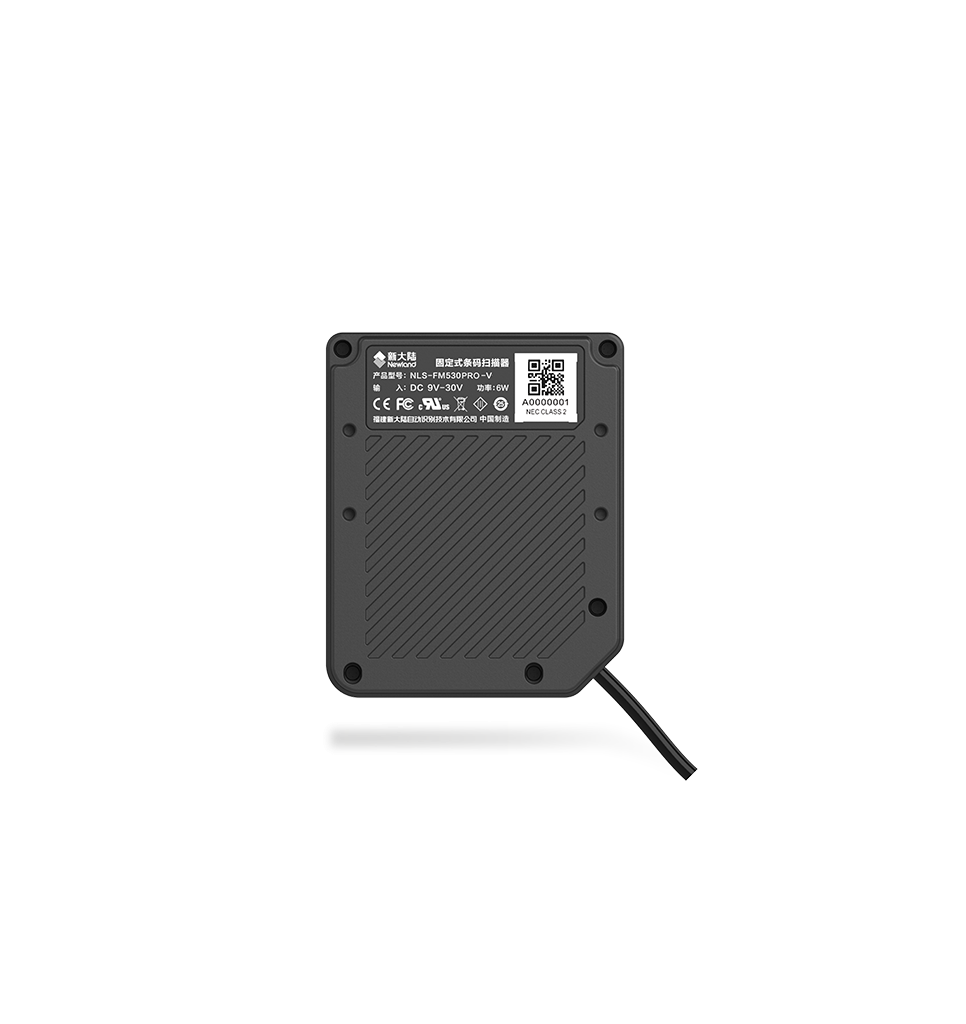

FM530

Endüstriyel Sabit Barkod Okuyucular

1D
CCD
High motion tolerance
IP65
Laser aimer
RS232
Warranty 2 Years
Wide Voltage 9-30V

Bize ulaşın Veri sayfasını indir

Why choose the FM530?

Effortlessly capture barcodes from any angle with a wide scan field
Depth of field up to 350 mm for long-range barcode reading
Protects against dust, moisture and fluids with its IP65 rating

The FM530 boasts a scanning speed of 780 scans per second and can scan up to a distance of 350mm, making it a perfect choice for laboratory automation and in vitro diagnostics applications, where fast and accurate scanning is critical.

Tıbbi ve laboratuvar otomasyonu için hassasiyet.

Özellikler

Ideal for IVD and Lab Automation Applications

With its wide scanning angle, the FM530 can effortlessly capture barcodes, regardless of their position or orientation, making it a perfect fit for IVD and lab automation applications. Designed for reading barcodes at a further distance, the FM530 reliably scans 1D codes from up to 350mm.
Precision Scanning with Crosshair Laser Aimer

For precise positioning during installation, the FM530 is equipped with a crosshair laser aiming system. This feature simplifies the scanner’s setup, enhancing user convenience and ensuring accurate scanning is achieved.
Robust Design

The FM530's metal housing is sealed to an IP65 rating, providing robust protection against dust, moisture, and environmental factors. This level of security is a necessary requirement for laboratory settings, ensuring the durability of equipment and the integrity of scanned data.
Versatile Voltage Compatibility

The FM530's wide voltage input range of 9 to 30VDC provides adaptability to diverse power sources, simplifying installation and reducing the need for additional power infrastructure.
Ease of Maintenance

With its convenient USB On-The-Go (OTG) interface, the FM530 allows for easy upgrades without disassembling the device. This feature minimizes downtime and simplifies maintenance procedures, ensuring uninterrupted lab workflow.

Teknik özellikler

Veri Yakalama

1D	All major 1D symbologies
Hedefleme	Yeşil çapraz lazer (515 nm)
Işın Çıkışı	Scan window with lateral beam exit
Alan Derinliği	30 mm - 350 mm
Aydınlatma	Kırmızı LED
Görüntü Sensörü	2500 CCD
Minimum Baskı Kontrastı	25%
Çözünürlük	≥6mil
Tarama hızı	780 scans per second

Fiziksel

24VDC Çalışma akımı	156 mA RMS (typical); 288 mA (max)
Boyutlar (mm)	90(W) × 110(D) × 29.8(H) mm
Kabuk	Metal
Giriş Gerilimi	9-30 VDC ±%5
Arayüzler	RS-232
Bildirimler	Bip sesi, LED
Güç Tüketimi	9 W
Ağırlık	500 g

Çevresel

Ortam Işığı	≤5000 lüks
Nem	%5 ila %95 (yoğuşmasız)
IP Sınıfı	IP65
Çalışma Sıcaklığı	0 °C ile 50 °C arası (32 °F ile 122 °F arası)
Depolama Sıcaklığı	-40 °C ile 70 °C (-40 °F ile 158 °F)

Yazılım

Yapılandırma Araçları EasySet
Sertifikalar

Sertifikalar Donanım FCC, RoHS 2.0, IEC 62471, CE, EN 50689, UL
Garanti

Garanti Koşulları 2 yıl

Önerilen sektörler
- Sağlık
- Saha Servis ve Kamu Hizmetleri
- Tıbbi Teşhis ve Laboratuvar

Belgeler

Mevcut versiyonlar

Parça numarası	Açıklama
NLS-FM530 PRO-R20	1D fixed mount IVD scanner, IP65, 9-30vdc, RS232 (USB OTG diagnostics port) 2M cable with Pin to pin connector T125011--4,780 S/S, 50? FOV, Lateral beam exit, 30-350mm read range, Green cross hair laser aimer.
