HR32 Marlin BT SD

El Tipi Barkod Okuyucular

1.5m drop
1D & 2D
2,400 mAh
Bluetooth 5.0
CMOS
IP52
Megapixel
USB

Parça numarası	Açıklama	EOL tarihi	EOM tarihi
NLS-HR3280-BT-SD	2D CMOS Mega Pixel Wireless Bluetooth Handheld Reader with Stand/Docking Station & USB cable	5.03.2025	5.03.2030

Yayımlanma tarihi: Mart 5, 2025

Aşağıdaki ürünler, daha iyi alternatiflere veya eski teknolojiye sahip oldukları için belirlenen tarihlerde kullanımdan kaldırılacaktır.

Alternatif ürün önerisi:

HR33 Marlin Bluetooth

EOL tarihi: Ürün durdurma tarihi, bu ürün için sipariş kabul edilecek son gün.

EOM tarihi: Servis ve destek durdurma tarihi, bu ürün için yazılım yükseltme, parça ve onarım hizmetinin sağlanacağı son gün.

Adopting the latest Bluetooth 5.0 technology, the HR32 Marlin BT SD can maintain a strong, anti-interference connection to transmit data. The HR32 Marlin BT SD is equipped with megapixel technology to read virtually all 1D or 2D barcodes in any condition. From long or truncated 1D codes to larger and more high-density 2D codes.

Özellikler

Mega Pixel Scanning Technology

Equipped with a megapixel barcode scanner, the HR32 Marlin BT SD reads virtually all 1D or 2D barcodes in any condition. It has a better reading performance on reading long or truncated 1D codes or larger and more high-density 2D codes.
Perfected for POS

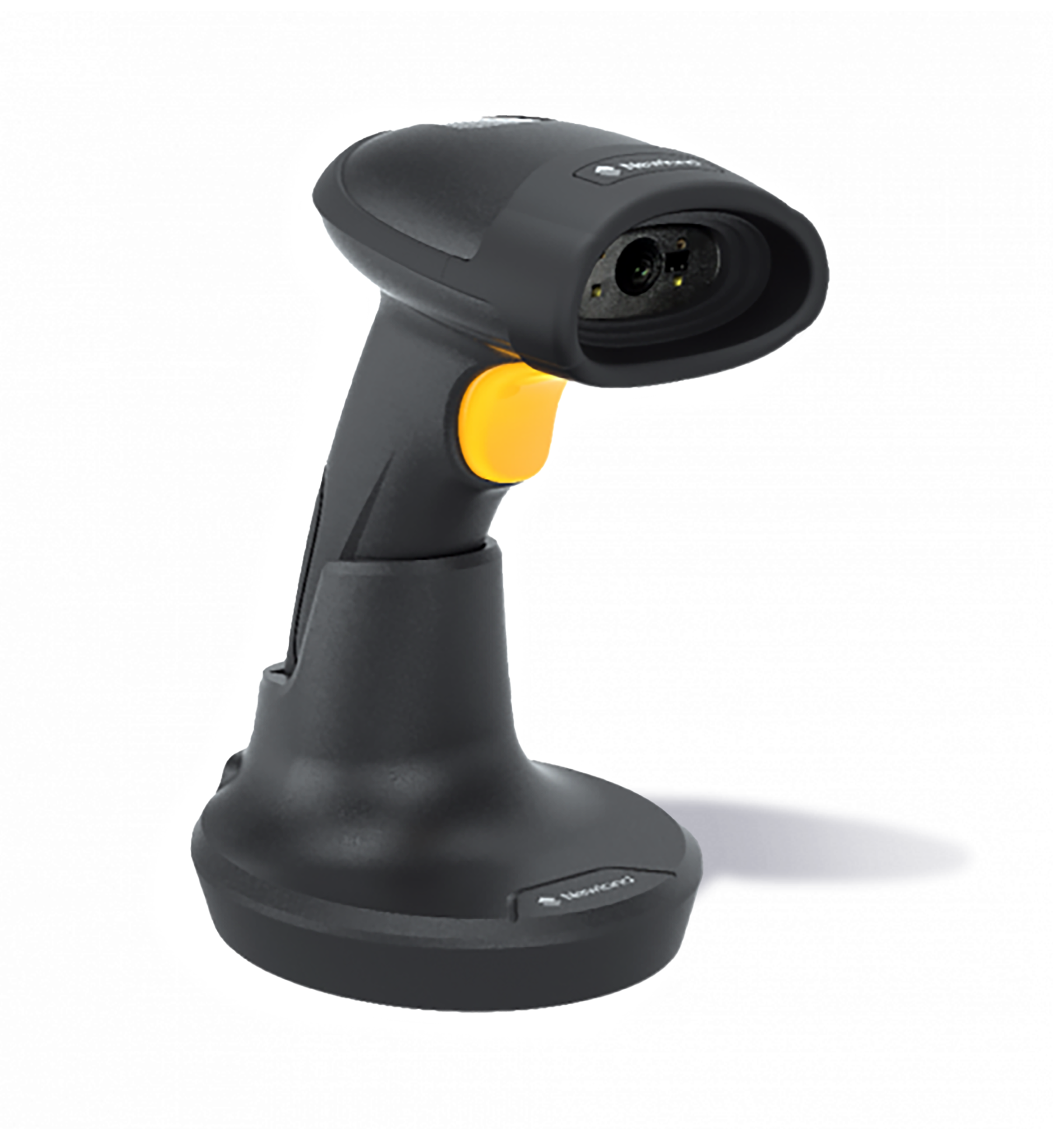

The HR32 Marlin BT SD has a stand design for hands-free scanning, especially ideal for POS applications. Users can process smaller items without having to pick up the scanner. The scanner can then be picked up to use for more oversized items without dealing with cables.
JPOS and OPOS Driver Support

When in HID-POS or Newland CDC mode, JPOS and OPOS drivers are supported via the dongle directly or the dongle, stand + USB cable combination.
Supports the Workload

The 2400mAh battery, combined with the low power consumption of the HR32 Marlin BT SD and lower power Bluetooth 5.0, means a full charge can last over 12 hours. A charge from empty to full takes less than 4 hours.
Fit for the job

With a 1.5m drop and IP52 rating, the HR32 Marlin BT SD can take a tumble from a high countertop or workbench onto hard floors with no problem. The IP52 is a high enough sealing for dirty and damp environments.
Flexible Bluetooth Options

The HR32 Marlin BT SD has 3 Bluetooth options. When the dongle and charging station is connected, the scanner transmits data via the USB cable to the host. The dongle can also be removed and used in a spare USB port, and the Bluetooth on the scanner can be paired with a 3rd party Bluetooth on a host.

Teknik özellikler

Veri Yakalama

1D	EAN-8, EAN-13, UPC-E, UPC-A, Code128, Coupon, UCC/EAN128, CodaBar, I2Of5, Febraban, ITF14, ITF6, Matrix 25, Code39, Code93, ISSN, ISBN, Industrial 25, Standard 25, China Post 25, Plessey, Code 11, MSI Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K, AIM 128, ISBT 128.
2D	PDF417, Micro PDF417, QR Code, Micro QR Code, Aztec, Data Matrix, Chinese Sensible Code, Maxicode, Code One.
Hedefleme	Yeşil LED
Alan Derinliği Code 39 (5mil)	85 mm - 220 mm
Alan Derinliği Data Matrix (10mil)	50 mm - 220 mm
Alan Derinliği EAN13 (13mil)	50 mm - 495 mm
Alan Derinliği PDF417 (6.67mil)	70 mm - 215 mm
Alan Derinliği QR (15mil)	20 mm - 325 mm
Yatay Görüş Alanı	39°
Dikey Görüş Alanı	24°
Aydınlatma	White LED, Kırmızı LED
Görüntü Sensörü	1280 x 800 CMOS
Minimum Baskı Kontrastı	25%
Tarama Açısı Aralığı	±55°
Tarama Yatış Açısı	360°
Verev Tarama Açısı	±55°

Performans

Flaş Bellek ≥15.000 adet Code 128 (her bir Code 128 kodu 20 bayt), 1MB

Fiziksel

Pil Türü	2400 mAh lithium-ion battery
Boyutlar (mm)	113.5(W) x 73.3(D) x 159(H) mm
Beklenen Pil Ömrü	≥12 hours of continuous operation (scan once per 6 seconds)
Beklenen Şarj Süresi	4 hours (with power adapter)
Giriş Gerilimi	5 VDC ±%5
Arayüzler	USB
Bildirimler	Bip sesi, LED
Ağırlık	217 g

Kablosuz

Haberleşme Yöntemleri	Senkron, Asenkron, Toplu iş
Radyo Teknolojisi	Bluetooth 5.0
Kablosuz Mesafesi (maks.)	≥50 m/164ft (direct line of sight in open air)

Çevresel

Düşme	1.5 m
Şarj yuvası ile düşme yüksekliği	1.2 m
Elektrostatik Deşarj (ESD)	±8 kV (hava deşarjı), ±4 kV (doğrudan deşarj)
Nem	%5 ila %95 (yoğuşmasız)
IP Sınıfı	IP52
Çalışma Sıcaklığı	-20 °C ile 50 °C (-4 °F ile 122 °F)
Depolama Sıcaklığı	-40 °C ile 70 °C (-40 °F ile 158 °F)
